 Cold Start Squirters on six, anyone know details?? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
Model Specific Information
914/4: 70 71 72 73 74 75 76 914/6: 70 71 72
| gereed75 |
 Apr 30 2016, 10:15 AM
Post
#1
|
|
Senior Member  Group: Members Posts: 1,407 Joined: 19-March 13 From: Pittsburgh PA Member No.: 15,674 Region Association: North East States
 |
I have an aircleaner box that still has the squirter manifolds and the fuel line that feeds them.
I thought it would be cool to leave them in and mock up the connection. Does anyone have a pix or know where the feed line for these connected and how was it routed?? Could not find it in PET or the shop manual. From what I can learn, the 911 one was connected to a T and a solenoid that was in the tunnel. What about the six?? |
   |

|
  |
Replies
| pete000 |
Jun 21 2016, 05:28 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,887 Joined: 23-August 10 From: Bradenton Florida Member No.: 12,094 Region Association: South East States |
I have all the emissions and cold start stuff from my early six #131

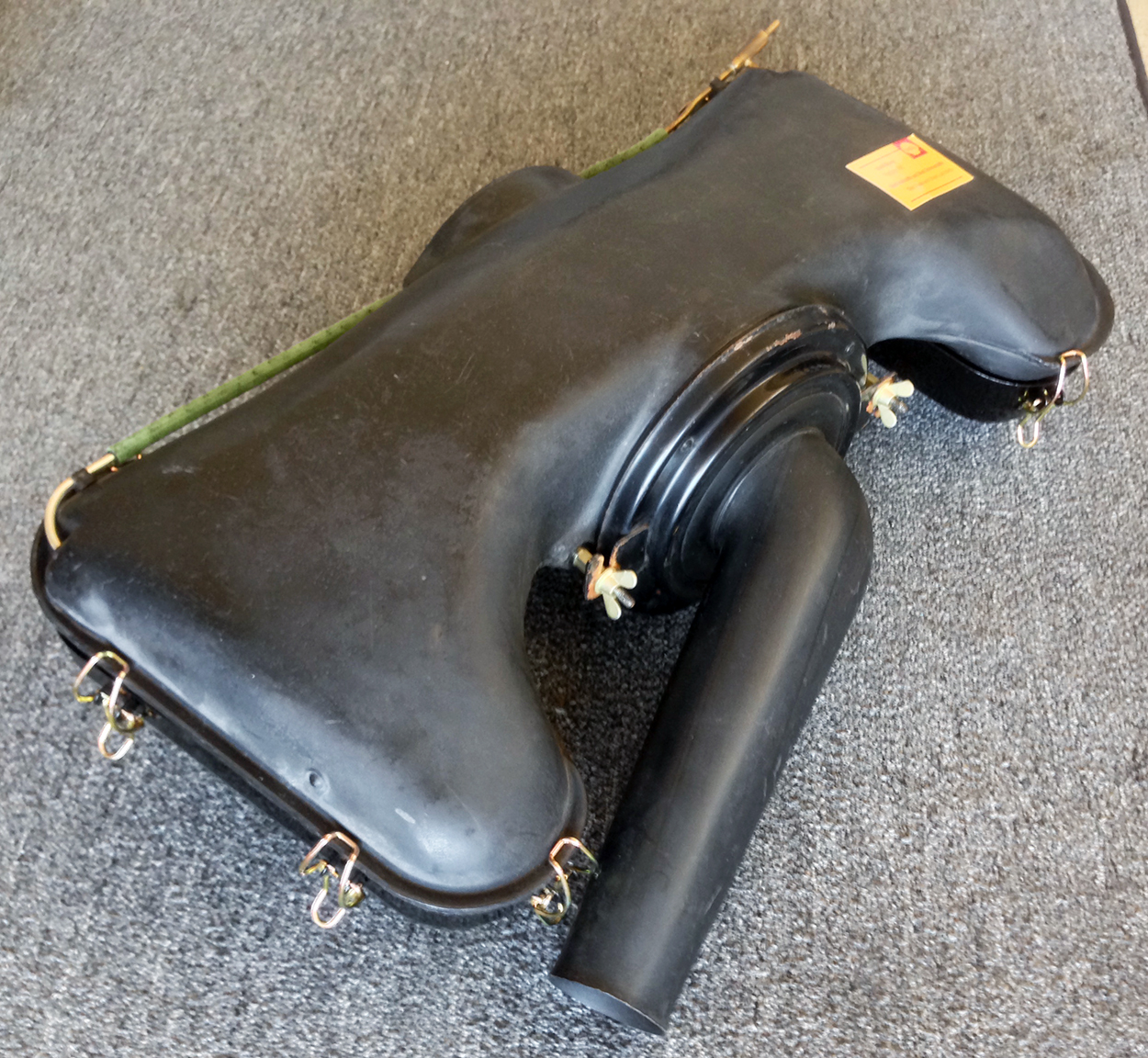

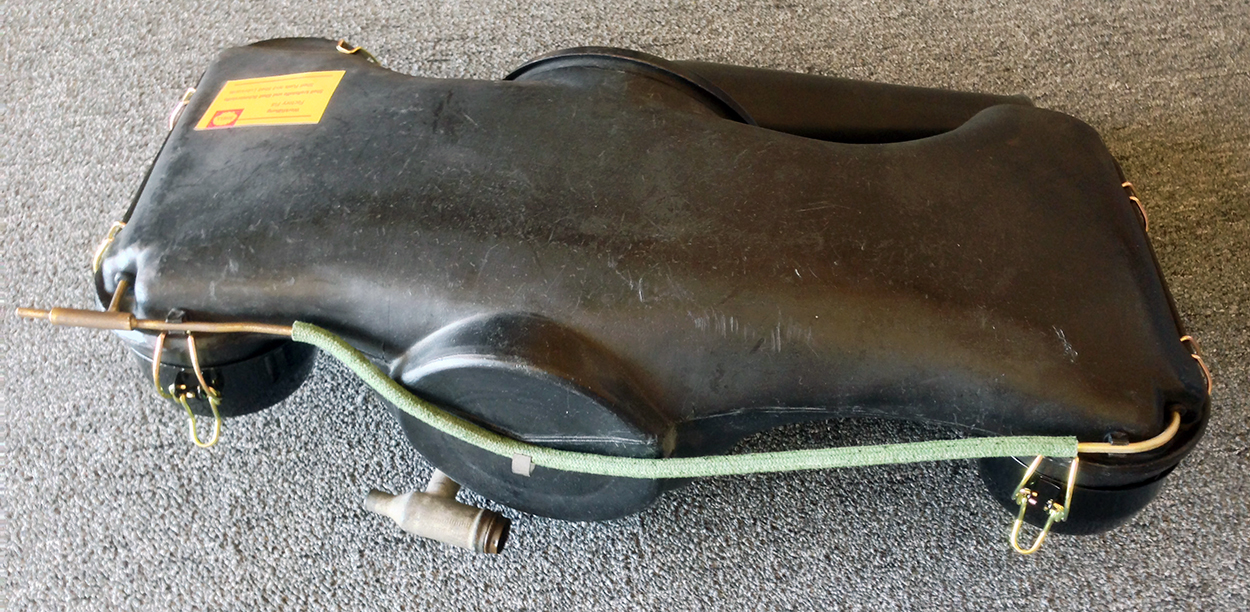

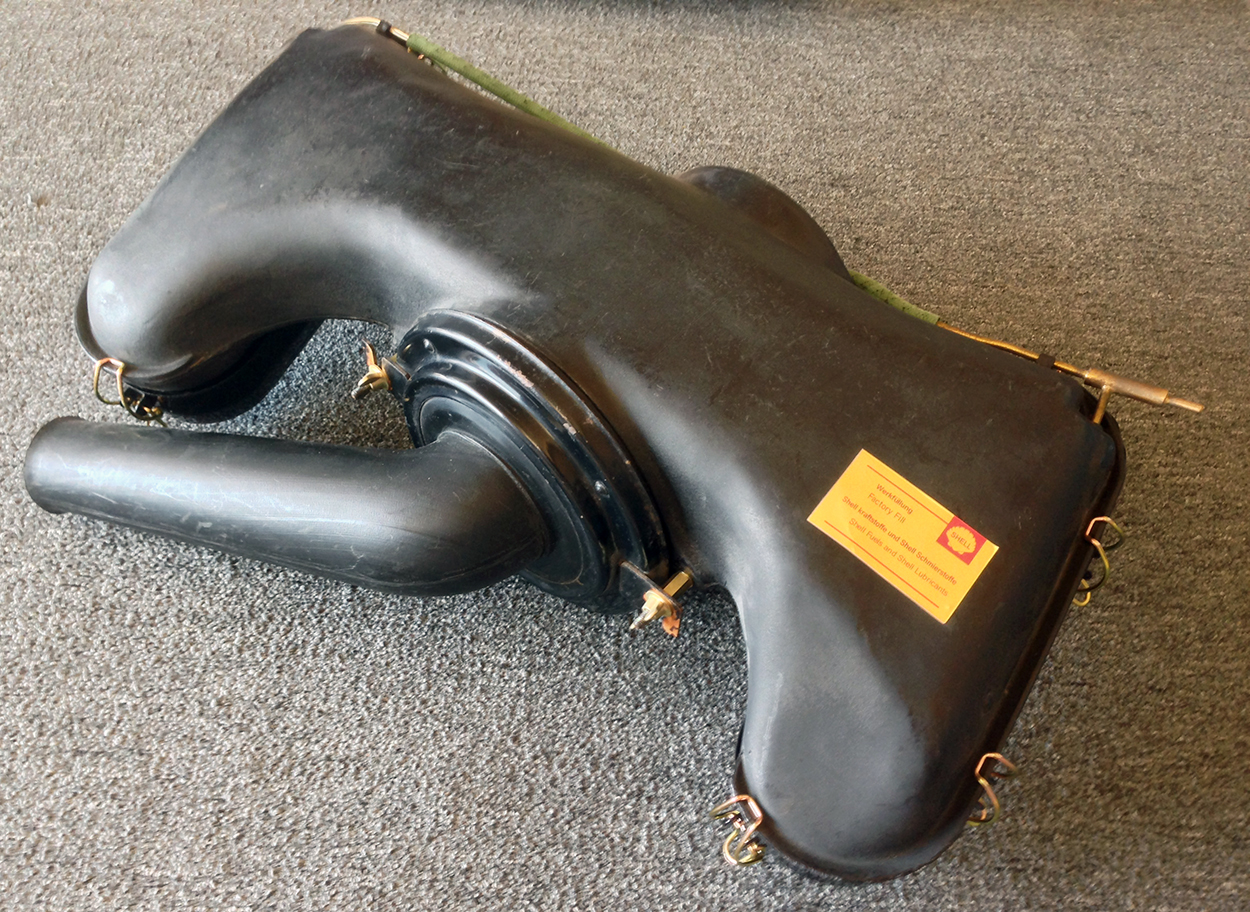

The tubes that run into the air box were disabled by being pinched at some point possibly during the recall? Green braided hose is just a place holder. (I have no intention of ever hooking any of this up in the future. It will all continue to live in a storage bin) Attached thumbnail(s)     Attached image(s)
|
|
|
|
| rgalla9146 |
Aug 15 2016, 02:20 PM
Post
#3
|
|
Advanced Member Group: Members Posts: 4,894 Joined: 23-November 05 From: Paramus NJ Member No.: 5,176 Region Association: None
|

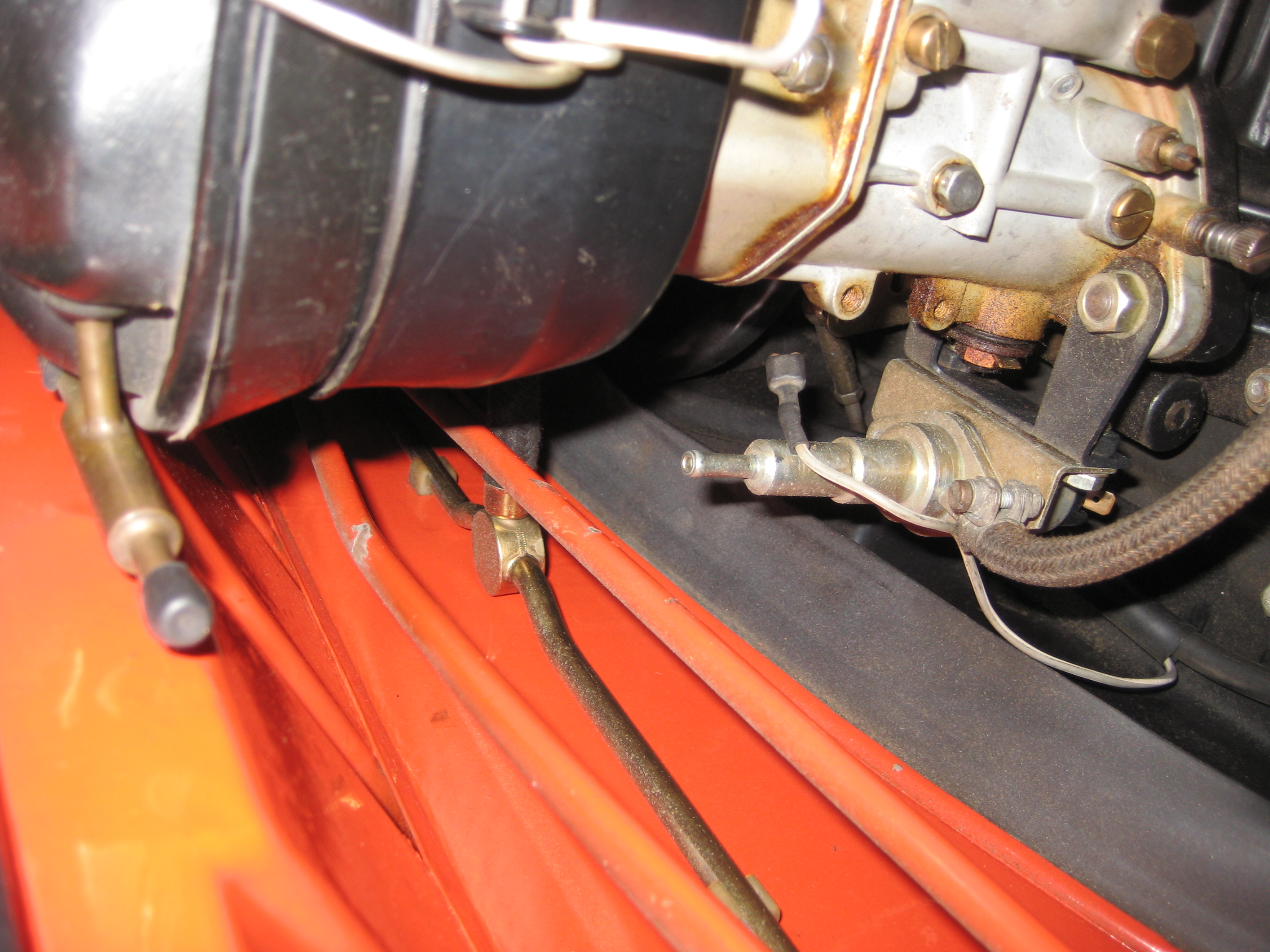

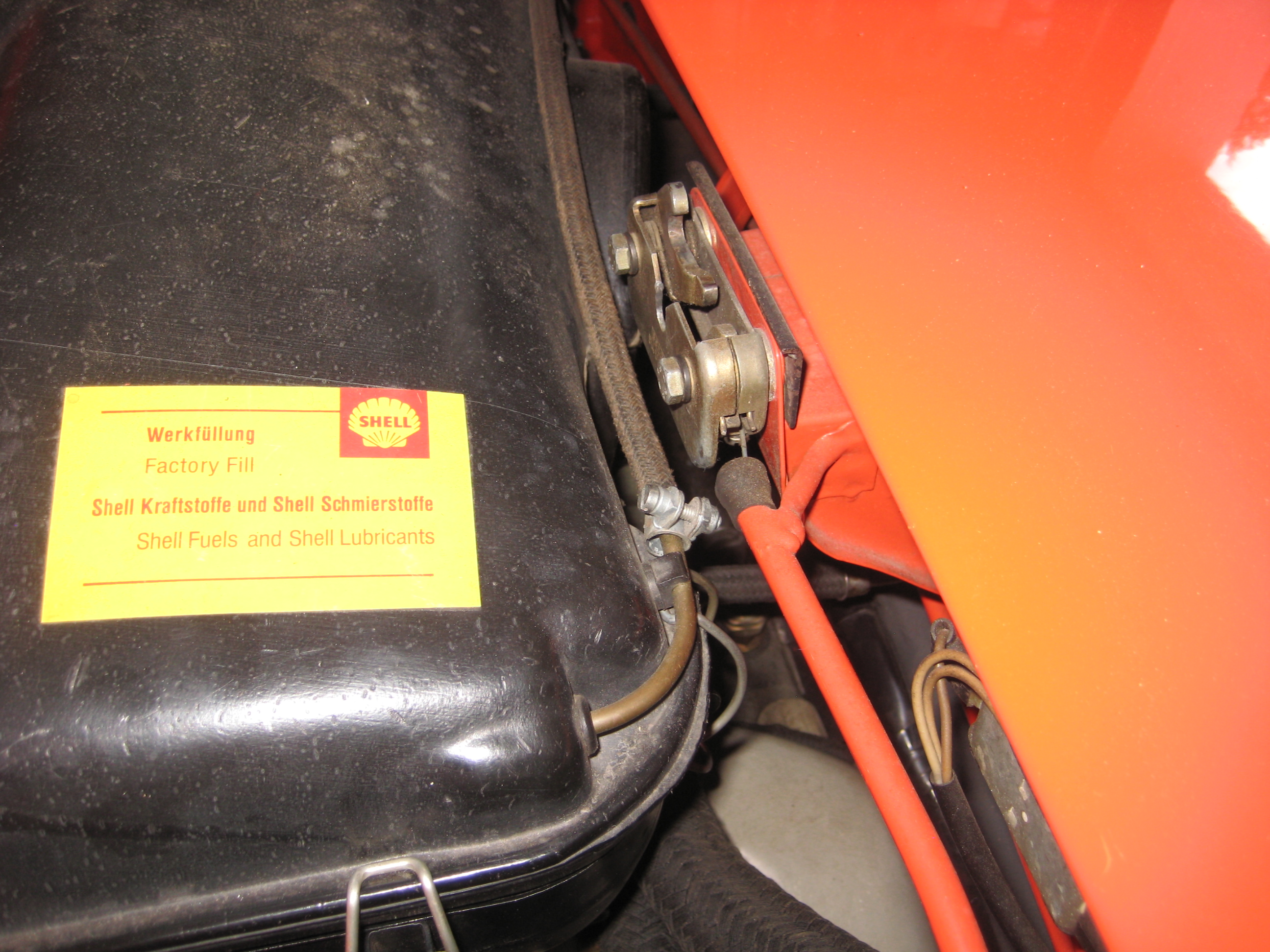

QUOTE(pete000 @ Jun 21 2016, 07:28 PM)  I have all the emissions and cold start stuff from my early six #131 The tubes that run into the air box were disabled by being pinched at some point possibly during the recall? Green braided hose is just a place holder. (I have no intention of ever hooking any of this up in the future. It will all continue to live in a storage bin) I think the above air filter housing is from a 911. 1. the Shell factory fill sticker is positioned so as to be read from the rear if mounted in a 911. This position makes the sticker nearly impossible to be read when installed in a 914 6 chassis. 2. the feed to the cold start squirters is on the opposite side of the engine from where the supply valve is fitted in a 914 6 chassis. Attached is pic of my cold start valve with disconnected l wire and fuel supply hose and also my air filter with squirters still in place. Attached thumbnail(s)
|
|
|
|
Posts in this topic
gereed75 Cold Start Squirters on six Apr 30 2016, 10:15 AM
Perry Kiehl Clone Those were disabled in a recall program. You don... May 1 2016, 06:18 AM
gereed75
Those were disabled in a recall program. You don... May 1 2016, 07:18 AM PancakePorsche I heard the recall was so early nearly all of the ... May 1 2016, 07:55 PM gandalf_025 I have never seen a complete setup on a car..
I ... May 2 2016, 10:47 AM gereed75
I have never seen a complete setup on a car..
I... May 3 2016, 04:09 PM mskala I'm pretty sure I have the squirter stuff that... May 3 2016, 05:10 PM gereed75
I'm pretty sure I have the squirter stuff tha... May 3 2016, 05:57 PM mskala Here is all I found
You can barely see in the a... May 3 2016, 06:27 PM gereed75
Here is all I found
You can barely see in the ... May 3 2016, 08:14 PM gandalf_025 Here is the dashpot that was removed from my car b... May 4 2016, 10:29 AM gereed75
Here is the dashpot that was removed from my car ... May 4 2016, 01:11 PM mskala
... But I have never seen the solenoid or the fue... May 4 2016, 02:12 PM gandalf_025 Snorkel may be from a six..
Here is the inside o... May 4 2016, 02:55 PM mskala Found this T and this un-braided hose.
May 4 2016, 04:30 PM gereed75 yea, sorry. So the squirters enter at the center ... May 4 2016, 07:58 PM gandalf_025 Here are a few images that show

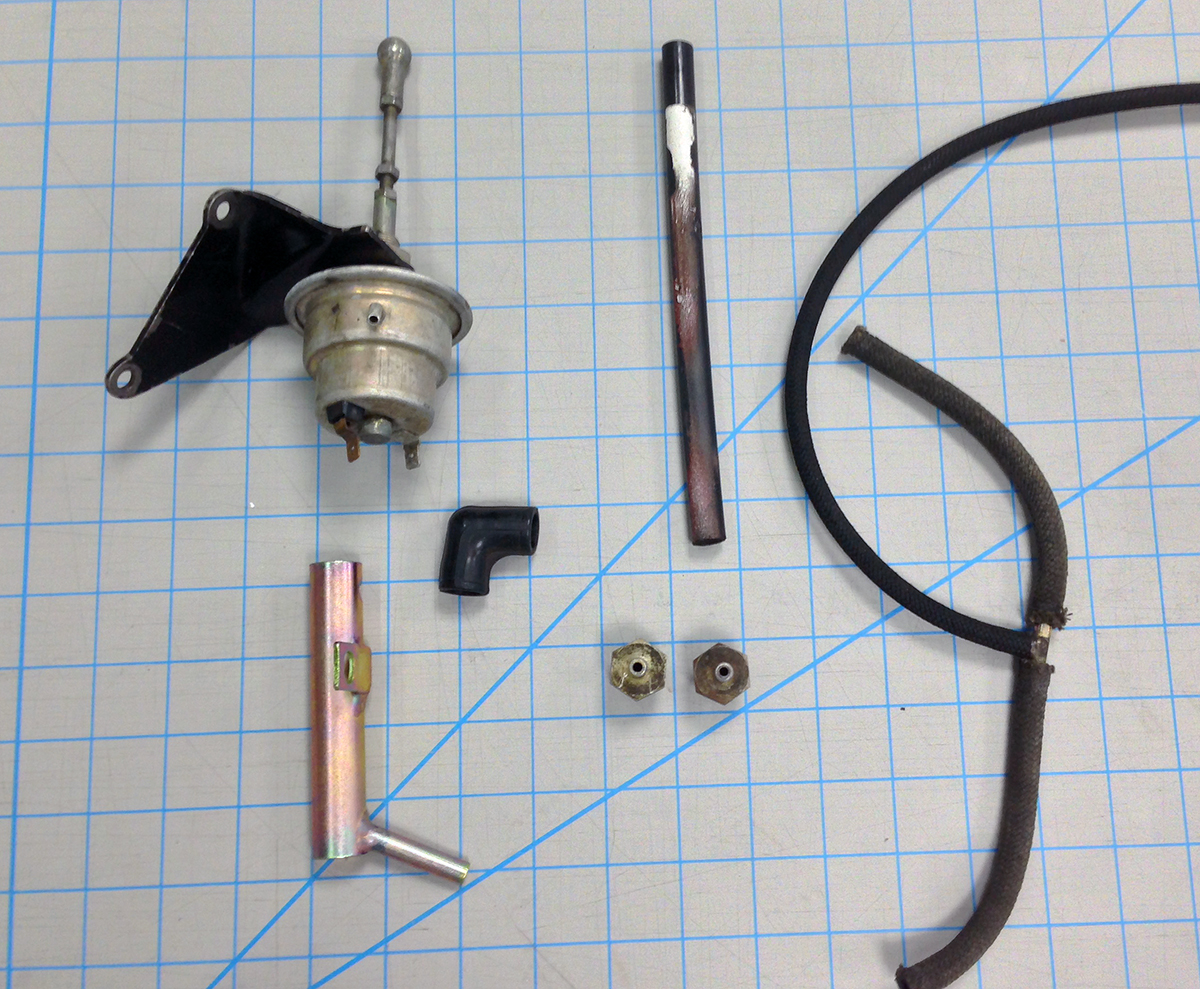

The exhaust emissi... May 5 2016, 11:40 AM mskala I have never seen anything like their picture of a... May 5 2016, 07:02 PM PancakePorsche The more I think about the cold start circuit, the... May 6 2016, 02:22 AM gandalf_025 Not the greatest wiring schematic.. But it does s... May 6 2016, 06:04 AM gereed75 Thanks for posting the diagram Gandalf. I got Back... May 6 2016, 10:30 PM PancakePorsche Found schematic. Not seen on the last list is: #41... May 7 2016, 01:32 AM PancakePorsche Maybe this poor guy still kept his cold start ... May 7 2016, 02:03 AM gereed75 There it is! I am guessing the micro switches ... May 7 2016, 07:30 AM PancakePorsche Those switches are for MFI car (throttle position)... May 7 2016, 12:50 PM PancakePorsche eBay item number:272047811234 May 9 2016, 01:12 AM gereed75 I guess that answers all questions remaining about... Aug 21 2016, 09:52 AM |
