914 in Carbon Fiber, Its a street car too! Options

[Jake Raby]

Yep...
Just took on the engine job tonight!

Its a 2615cc EFI Turbo using my new heads and a set of Nickies and no budget!

Lookin for 400 ponies....

The entire car weighs 1300 pounds and is based on a full tube chassis, all covered with correct 914 body panels in Carbon Fiber/Kevlar with a Black and Yellow weave.... the suspension is also amazing and looks like an ALMS car with massive ducting and incredible brakes.

The guuy is a composites engineer and has made all the panels himself.

To answer your question- He won't sell other parts or make them! I already tried that one with him!

He also won't allow me to post the pics, but man is it amazing looking. He is building the car for someones collection, but he won't tell me who........

Wild stuff! Lookin for 400 ponies! This one will bring some developments to light that no one else has been willing to pony up the bucks for!

[914forme]

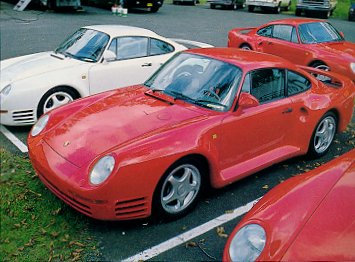

A 959 one of the most signicant Porsche ever tech spec follow I would have one in my garage parked next ot a 914 oh course. It is no slouch of a car even by todays standards. Us version where a 1987 model year.

Specifications
Engine:

Horizontally opposed 6 cylinder, 24-valve DOHC aluminum block and water-cooled heads
Bore and stroke: 3.74" x 2.64"
Displacement:174 cu.in. or 2849cc
Max boost pressure: 14.0 psi
Horsepower: 450@6,500 rpm
Power to weight ratio: 6.6 lbs per horsepower
Compression ratio: 8.3:1
Cd: .31
Fuel system: Bosch Motronic
Induction: Twin sequential turbocharging

Drivetrain:
6 speed electronically controlled 4wd with 4 settings

Suspension:

Electronically adjustable independent f/r with upper and lower A arms, hydraulic shocks, anti-roll bar/coil.

Body:

Kevlar and aluminum

Dimensions:

Curb weight: 2,917 lbs
Wheelbase: 89.4"
Length: 167.7"
Width: 72.4"
Height: 47.2"

Brakes and Wheels:

ABS, power assisted, vented, cross drilled disks
17x8.0" front,17x9.0" rear cast magnesium wheels with pressure sensors to detect hairline cracks

Fuel Economy:

13 mpg

Performance:

0-60mph: 3.6 seconds (US version: 3.5s)
0-100: 8.3
0-125: 12.7
0-140: 19.0
0-1/4 mile: 11.8s @119 mph
Top Speed: 198++ mph
