period correct blaupunkt radios, pictures of the differences Options

[dr914@autoatlanta.com]

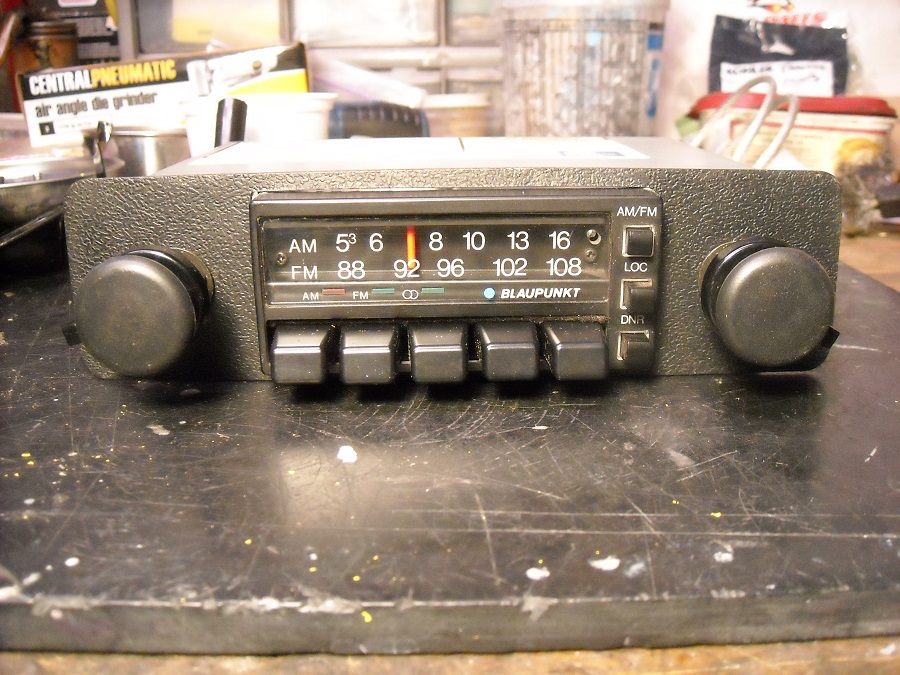

We have all discussed radios, but thought since I was taking some pics for a customer that I would post. The original blaupunkt frankfurt (writing only about frankfurt now) ordered as an option from the factory (a very rare occurrence) or from the dealer had two different designs over the 70-76 run: 70-12/73 and 1/74-76 (do not get me wrong, the dealer installed later on the earlier and vice versa) but BASICALLY these were the cut offs. The difference was the face and surround. Early had a chrome surround with rounded edges and late had a black surround with square edges. The later looked at the time more modern and less reflective for safety standards.


As you can see two types are displayed along with both the usa and the european faces. The am fm bands are very slightly different but the european will work in the usa. HOWEVER the european face is not correct for any usa car, so if looking for one, if you can get the usa face your 914 would be more correct

[Olympic 914]

Does anyone have any info on this radio? It is stereo with front and rear channels. I don't know what the knob controls are supposed to do but it sounds terrible. I have it hooked up to a 400 W clarion amp on two channels that is not bridged and running through infinity speakers.

I believe controls SHOULD be F/R fader, R/L balance, and Tone. But all that happens it just sounds bad differently. Also running an amplified Hirshman antenna.

Don't really care if its not perfectly period correct.
