 Late model Blue wire with Yellow stripe Dash location?, Where does this wire go? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| TINKERGINEERING |
 May 24 2024, 10:30 PM
Post
#1
|
|
Member  Group: Members Posts: 219 Joined: 15-March 20 From: Sierra Madre, CA Member No.: 24,031 Region Association: Southern California
 |
First 3 pics:
This has a small mental female blade connector and goes back to the white cylinder connector behind the firewall. under the dash near the Gagues, where does this connect to? Not on the diagram Last 3 pics of Bezel: also the two lights on the instrument gauge bezel I am missing 1 of them but what do they mean and what's the one I am missing? Basically, what are these and what do I label them? Thanks! Frances Attached thumbnail(s)
|
   |

|
  |
Replies
| L-Jet914 |
May 24 2024, 10:35 PM
Post
#2
|
|
Member Group: Members Posts: 352 Joined: 24-October 12 From: Davis, CA Member No.: 15,080 Region Association: Northern California |

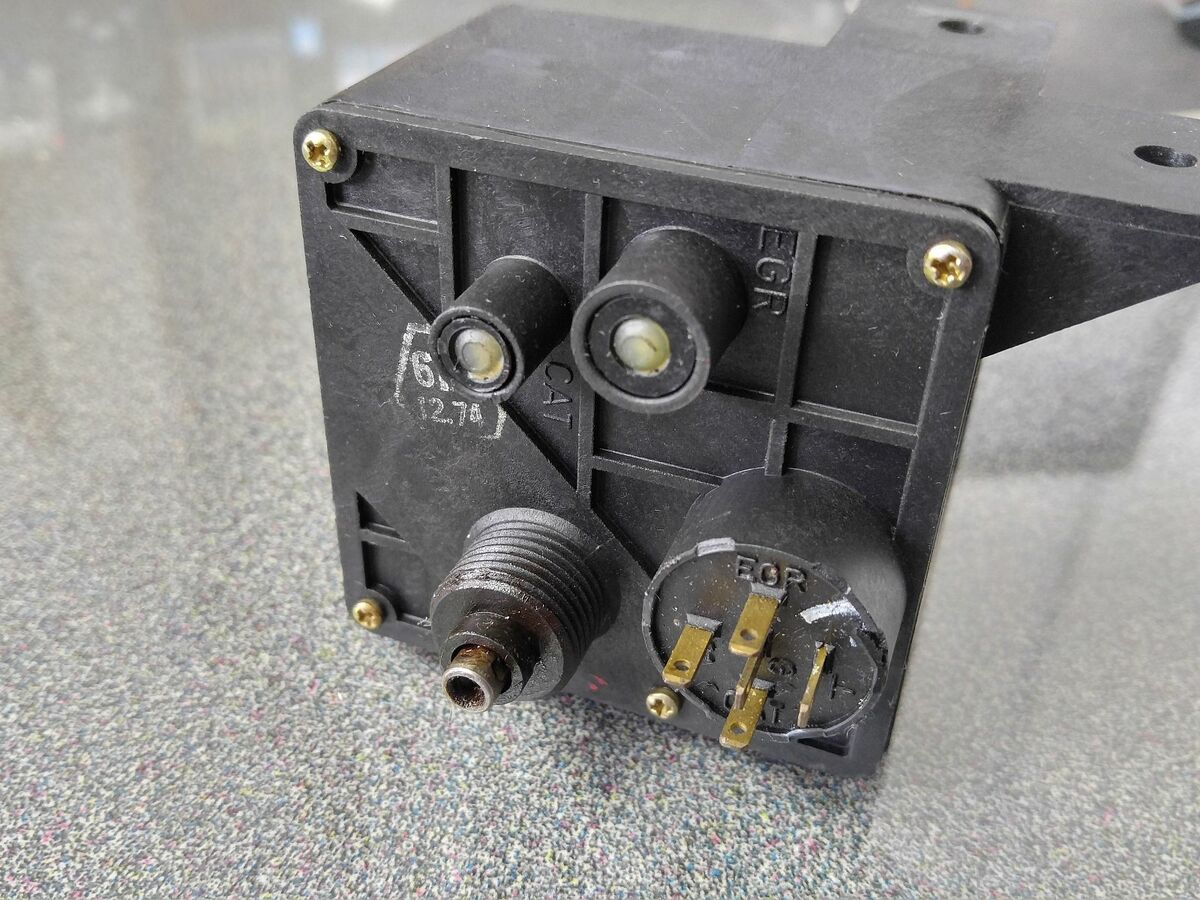

Catalytic converter temperature warning light and EGR reminder light. The 4 pin connector goes to the EGR/Cat timer box.
Attached thumbnail(s)
|
|
|
|
| TINKERGINEERING |
Jun 6 2024, 04:02 PM
Post
#3
|
|
Member Group: Members Posts: 219 Joined: 15-March 20 From: Sierra Madre, CA Member No.: 24,031 Region Association: Southern California
|
QUOTE(L-Jet914 @ May 24 2024, 09:35 PM)  Catalytic converter temperature warning light and EGR reminder light. The 4 pin connector goes to the EGR/Cat timer box. The previous DC build guy removed all combustion bits.. Apearently including this sensor module. now the plug makes sense thanks for the great pic. Frances Dad gave a thumbs up too (IMG:style_emoticons/default/bye1.gif) |
|
|
|
Posts in this topic
TINKERGINEERING Late model Blue wire with Yellow stripe Dash location? May 24 2024, 10:30 PM
saladin @TINKERGINEERING hopefully the below service manu... May 25 2024, 12:21 AM JeffBowlsby To answer the questions, what L-Jet914 and Saladin... May 25 2024, 07:48 AM
saladin
To answer the questions, what L-Jet914 and Saladi... May 25 2024, 10:40 AM JeffBowlsby
Yes, exactly. May 25 2024, 10:46 AM SirAndy So in short, she doesn't need any of these on ... May 25 2024, 01:36 PM TINKERGINEERING
So in short, she doesn't need any of these on... May 25 2024, 02:03 PM TINKERGINEERING not on my diagram
Thanks for these print outs
I a... May 25 2024, 02:06 PM Chris914n6 EGR - Energy Gone, Recharge (low watts)
CAT - Char... May 25 2024, 09:29 PM TINKERGINEERING
EGR - Energy Gone, Recharge (low watts)
CAT - Cha... Jun 6 2024, 04:00 PM rick 918-S I was on youtube wanting to see where you are at o... Jun 7 2024, 05:16 AM Geezer914 I wired the cat light to my oil cooler fan. The l... Jun 7 2024, 05:50 AM |
