> There sure are a lot of parts in a 901 box, Now I'm going to try to put them back in
DNHunt
post Nov 5 2005, 08:30 AM
Post #1


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



Lots and lots of parts that are hard to keep track of. And lots of cleaning.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Reply to this topicStart new topic
Replies
DNHunt
post Nov 6 2005, 01:03 PM
Post #2


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

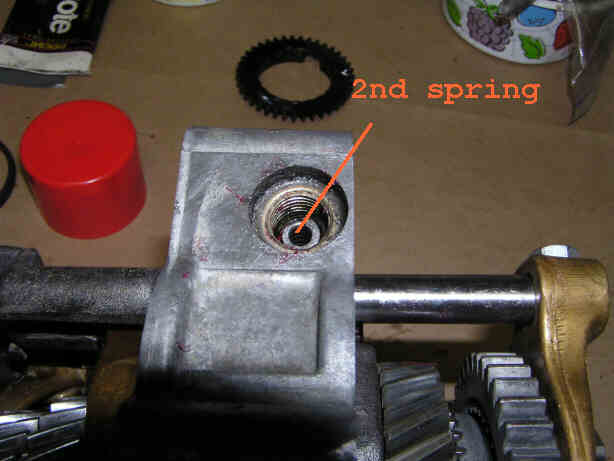

You can see the last spring in the hole


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Posts in this topic
DNHunt   There sure are a lot of parts in a 901 box   Nov 5 2005, 08:30 AM
DNHunt   What have I done?   Nov 5 2005, 08:31 AM
DNHunt   This started as a grind in 1st and 2nd. I used Bon...   Nov 5 2005, 08:37 AM
DNHunt   So here I go. The race for the new big bearing on ...   Nov 5 2005, 08:44 AM
DNHunt   One snap ring on   Nov 5 2005, 08:46 AM
DNHunt   Seating the race. I used a piece of PVC pipe about...   Nov 5 2005, 08:50 AM
DNHunt   Here is the race seated and the second snap ring i...   Nov 5 2005, 08:59 AM
DNHunt   New seals. I sure love PVC pipe   Nov 5 2005, 09:02 AM
Bleyseng   Ran it low on oil huh, Dave. Watch how you instal...   Nov 5 2005, 09:04 AM
DNHunt   Time to install this after a few squirts of gear l...   Nov 5 2005, 09:04 AM
DNHunt   Installed   Nov 5 2005, 09:06 AM
DNHunt   I installed a new O ring with a little gear lube a...   Nov 5 2005, 09:09 AM
DNHunt   Onto the gear stack. I needed to replace dogteeth ...   Nov 5 2005, 09:13 AM
Verruckt     Nov 5 2005, 09:14 AM
DNHunt   Here's the new dogteeth installed on the gear....   Nov 5 2005, 09:21 AM
DNHunt   I put the brake band stops (I can't remember i...   Nov 5 2005, 09:27 AM
DNHunt   Brake bands installed. There are 2 on 2nd through ...   Nov 5 2005, 09:31 AM
DNHunt   This picture shows the new syncro installed and it...   Nov 5 2005, 09:37 AM
DNHunt   I installed the snap ring (a bitch) to finsh the a...   Nov 5 2005, 09:39 AM
DNHunt   I had a hell of a time with the snap rings slippin...   Nov 5 2005, 09:53 AM
rdauenhauer   Dude I just start this myself! Planned on just...   Nov 5 2005, 11:15 AM
Headrage   Nice work!!!   Nov 5 2005, 11:27 AM
Tom Perso   Nice trick with the 6 penny nails. I HATE snap ri...   Nov 5 2005, 12:17 PM
J P Stein   Ah, good....Dave is doing this. I have an AX tomor...   Nov 5 2005, 12:40 PM
DNHunt   Onto the pinion shaft. Just got back from a soccer...   Nov 5 2005, 04:20 PM
DNHunt   Next come the shims that help set pinion depth.   Nov 5 2005, 04:24 PM
DNHunt   I had 3 shims in this box. I think there can be di...   Nov 5 2005, 04:26 PM
DNHunt   After that washer is 5th gear. One of the hard thi...   Nov 5 2005, 04:31 PM
DNHunt   There is a ridge on one side of 4th and 5th gear t...   Nov 5 2005, 04:36 PM
DNHunt   4th gear with the ridge down facing the spacing co...   Nov 5 2005, 04:49 PM
DNHunt   Another washer   Nov 5 2005, 04:50 PM
DNHunt   Next comes the race for the roller bearing for the...   Nov 5 2005, 04:52 PM
DNHunt   Roller bearing for 3rd gear goes on next. It just ...   Nov 5 2005, 08:30 PM
DNHunt   Here's the roller bearing on the race ready to...   Nov 5 2005, 09:05 PM
DNHunt   3rd gear assembly goes over the race and roller be...   Nov 5 2005, 09:07 PM
DNHunt   Next is the slider hub for the 2nd and 3rd slider....   Nov 5 2005, 09:09 PM
DNHunt   2nd, 3rd slider fits on its hub. You can't mis...   Nov 5 2005, 09:10 PM
DNHunt   Next the 2nd gear race, roller bearing and gear as...   Nov 5 2005, 09:13 PM
DNHunt   Another cone washer goes on next. You have to keep...   Nov 5 2005, 09:16 PM
DNHunt   Finally, the race for the ball bearing in the inte...   Nov 5 2005, 09:20 PM
DNHunt   The finished pinion shaft assembly   Nov 5 2005, 09:40 PM
bd1308   wow. so 2nd and 3rd are the only gears with a slid...   Nov 5 2005, 09:52 PM
DNHunt   Time to assemble the drive shaft. 2nd gear on the ...   Nov 6 2005, 06:12 AM
DNHunt   Now I turned the shaft over so i was putting parts...   Nov 6 2005, 06:14 AM
DNHunt   Next goes a flat washer   Nov 6 2005, 06:15 AM
DNHunt   Here's the beginning of the one mistake I made...   Nov 6 2005, 06:20 AM
DNHunt   4th, 5th slider hub. There is no right or wrong si...   Nov 6 2005, 06:23 AM
DNHunt   4th, 5th slider. I swapped this slider with the 2n...   Nov 6 2005, 06:31 AM
DNHunt   I'm still continuing in my ignorance. 5th gear...   Nov 6 2005, 06:33 AM
DNHunt   Cone washer   Nov 6 2005, 06:34 AM
DNHunt   Next goes the smaller roller bearing and a locking...   Nov 6 2005, 06:37 AM
DNHunt   Tighten the nut down to 80 lbs and bend up 1 edge ...   Nov 6 2005, 06:40 AM
sj914   4th and 5th gear are in the wrong order? How did y...   Nov 6 2005, 06:46 AM
DNHunt   You are RiIGHT. It won't go in the intermediat...   Nov 6 2005, 07:01 AM
DNHunt   Ah, the intermediate plate. I installed the bearin...   Nov 6 2005, 07:03 AM
DNHunt   Next comes the spacer that goes under the bearing ...   Nov 6 2005, 07:05 AM
DNHunt   The bearing retainer plate   Nov 6 2005, 07:06 AM
DNHunt   Here is another use for the CV joint tool. 8mm 12p...   Nov 6 2005, 07:07 AM
DNHunt   Torqued to 15-17 lb ft. I had a heck of a time fig...   Nov 6 2005, 07:08 AM
DNHunt   I'm ready to drive the race down the pinion sh...   Nov 6 2005, 07:15 AM
DNHunt   Pinion and drive shafts installed in the intermedi...   Nov 6 2005, 07:16 AM
DNHunt   1st gear on the drive shaft is the gear then a was...   Nov 6 2005, 07:48 AM
DNHunt   The pinion shaft ready for the 1st gear assembly   Nov 6 2005, 07:49 AM
DNHunt   A washer goes on the pinion shaft first   Nov 6 2005, 08:02 AM
DNHunt   Just like the other gear assemblies a race goes on...   Nov 6 2005, 08:03 AM
DNHunt   Then the roller bearing   Nov 6 2005, 08:06 AM
DNHunt   Then the 1st gear assembly. Sorry about the fuzzy ...   Nov 6 2005, 08:07 AM
DNHunt   Next is the slider hub.   Nov 6 2005, 08:09 AM
DNHunt   I got this slider used and it is in really good sh...   Nov 6 2005, 08:12 AM
DNHunt   The slider goes on with the teeth facing the first...   Nov 6 2005, 08:13 AM
qa1142   Wow! Move this to classics once this is done.   Nov 6 2005, 09:15 AM
DNHunt   Shift forks, shafts and detents. I really like thi...   Nov 6 2005, 12:33 PM
DNHunt   Start with the 4th, 5th shift fork on it's sli...   Nov 6 2005, 12:35 PM
DNHunt   Next I inserted it's shift rod.   Nov 6 2005, 12:37 PM
DNHunt   Then I added the ball that is part of the detent i...   Nov 6 2005, 12:39 PM
DNHunt   All these balls, springs, and rods go in this hole...   Nov 6 2005, 12:43 PM
DNHunt   Next comes a spring with the little rod inside it....   Nov 6 2005, 12:44 PM
Aaron Cox   as joe sharp said yesterday - the ball and stick g...   Nov 6 2005, 12:46 PM
DNHunt   Then comes the second ball. You shoud be able to s...   Nov 6 2005, 12:48 PM
DNHunt   Next I put the 2nd, 3rd shift fork on its' sli...   Nov 6 2005, 12:50 PM
DNHunt   Next, 2nd, 3rd shift rod! These bolts are only...   Nov 6 2005, 12:52 PM
DNHunt   Next is the little peanut thing in the tube in the...   Nov 6 2005, 12:53 PM
DNHunt   After you shove it in you should be able to just b...   Nov 6 2005, 12:56 PM
DNHunt   Next the 1st, reverse shift rod and shift fork go ...   Nov 6 2005, 01:00 PM
DNHunt   The 3rd and final ball goes in the tube   Nov 6 2005, 01:01 PM
DNHunt   Then the stiffer of the 2 springs   Nov 6 2005, 01:02 PM
DNHunt   You can see the last spring in the hole   Nov 6 2005, 01:03 PM
DNHunt   The plug finishes it up   Nov 6 2005, 01:04 PM
DNHunt   Done with that   Nov 6 2005, 01:04 PM
qa1142   Very cool stuff   Nov 6 2005, 01:09 PM
DNHunt   This is a side shifter!!! Adjusting t...   Nov 6 2005, 01:18 PM
DNHunt   The jig holds everything nice and steady   Nov 6 2005, 01:19 PM
DNHunt   Tighten the bolts when the sliders for 2nd, 3rd an...   Nov 6 2005, 01:23 PM
DNHunt   Haynes manual calls for 1mm clearance between the ...   Nov 6 2005, 02:30 PM
DNHunt   The gear stack is now ready except for torquing th...   Nov 6 2005, 02:32 PM
DNHunt   The paper shims for the intermediate plate were no...   Nov 6 2005, 02:34 PM
DNHunt   One old shim measured .009"   Nov 6 2005, 02:36 PM
DNHunt   The other old one was .006   Nov 6 2005, 02:37 PM
DNHunt   It just so happens that there was an .009" in the ...   Nov 6 2005, 02:38 PM
DNHunt   And lucky me an .006. I guess I'm good to go.   Nov 6 2005, 02:38 PM
