can someone explain (detailed) how to install an oil temp sender to a 1.7l '72 car?
i got a very good combo unit with oil temp gauge and have to install the sender as the car is currently w/o. which parts do i need? is the cabling already there? i mean is it in all cars anyway? maybe there is a guide somewhere in the net i can download? pics? thanks in advance, david |
   |

|
| tat2dphreak |
Jun 11 2009, 01:55 PM
Post
#2
|
|
stoya, stoya, stoya Group: Benefactors Posts: 8,797 Joined: 6-June 03 From: Wylie, TX Member No.: 792 Region Association: Southwest Region  |

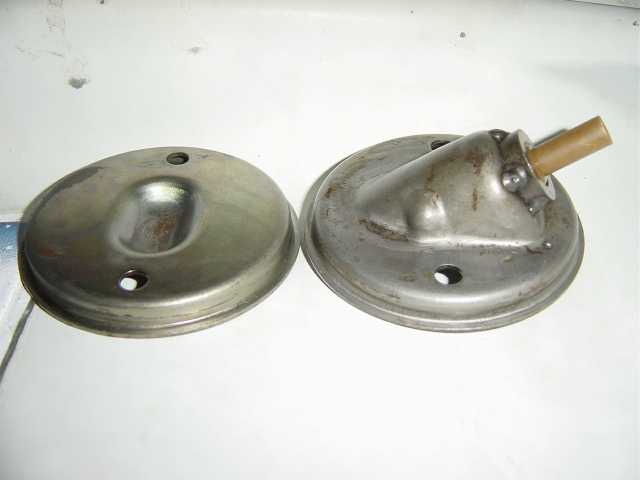

I don't know of a guide... but what you need is a taco plate... which attaches the sender to the bottom of the engine. the spot is already there, but you need the plate to be able to install the sender... the 1.7 and non-temp guage equipped cars just have a flat plate there. you will have to replace that. you'll have to run a new wire from the sender to the gauge, and wire in the gauge all new. if the car didn't have a console originally, then it never had the wiring for it, that I know about... it's not hard to wire in an oil temp gauge tho.
|
|
|
|
| jt914-6 |
Jun 11 2009, 02:09 PM
Post
#3
|
|
Driving & working on teeners 41 years Group: Members Posts: 1,787 Joined: 3-May 08 From: Bryant, Arkansas Member No.: 9,003 Region Association: South East States |
Here's a wiring diagram. Check under the carpet near the gear shift area. The green/black wire is for the gauge. It and the other wires for a console should be there. They will have a plastic rectangle cover on them. Find the sender wire coming out of the harness in the engine side of the harness. Connect the sender wire to it and tap into the one by console for the gauge.
 |
|
|
|
| type47 |
Jun 11 2009, 08:26 PM
Post
#4
|
|
Viermeister Group: Members Posts: 4,254 Joined: 7-August 03 From: Vienna, VA Member No.: 994 Region Association: MidAtlantic Region |
The diagram above will be very useful in your installation. Basically, the oil temp gauge needs to be hooked to a + power supply (as shown in the diagram but there may be other + supplies besides the brake light switch that may work) then the gauge is connected to the temp sensor. The temp sensor is a variable resistor that varies with temperature (a thermistor) and that is what actuates the needle on the gauge; a varying voltage that is varied by the temp.

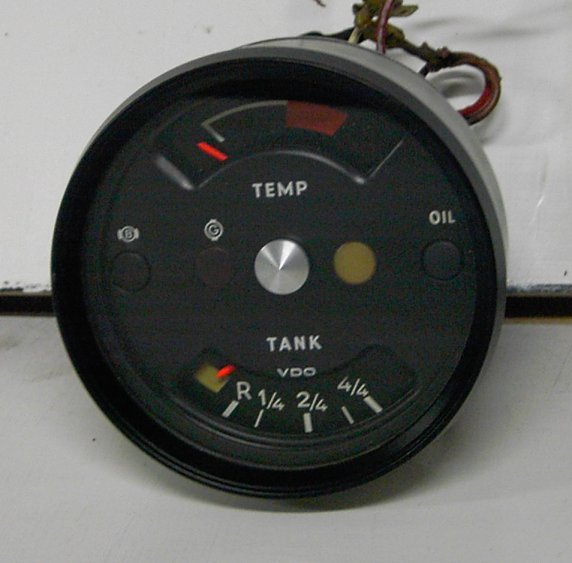

taco   Did you get the correct silver button "early" gauge?  |
|
|
|
| dave1075 |
Jun 12 2009, 11:44 AM
Post
#5
|
|
Newbie Group: Members Posts: 15 Joined: 15-April 09 From: Cologne, Germany Member No.: 10,267 Region Association: Germany |
QUOTE(type47 @ Jun 12 2009, 04:26 AM)  The diagram above will be very useful in your installation. Basically, the oil temp gauge needs to be hooked to a + power supply (as shown in the diagram but there may be other + supplies besides the brake light switch that may work) then the gauge is connected to the temp sensor. The temp sensor is a variable resistor that varies with temperature (a thermistor) and that is what actuates the needle on the gauge; a varying voltage that is varied by the temp. Did you get the correct silver button "early" gauge? ihank you both for the instructions. Yes, i got an early silver button gauge. a last question: will much oil drain out of the engine when i change the cover and install the sender unit? thanks, david |
|
|
|
| tat2dphreak |
Jun 12 2009, 11:47 AM
Post
#6
|
|
stoya, stoya, stoya Group: Benefactors Posts: 8,797 Joined: 6-June 03 From: Wylie, TX Member No.: 792 Region Association: Southwest Region |
QUOTE a last question: will much oil drain out of the engine when i change the cover and install the sender unit? damn near all of it |
|
|
|
| jt914-6 |
Jun 12 2009, 11:50 AM
Post
#7
|
|
Driving & working on teeners 41 years Group: Members Posts: 1,787 Joined: 3-May 08 From: Bryant, Arkansas Member No.: 9,003 Region Association: South East States |

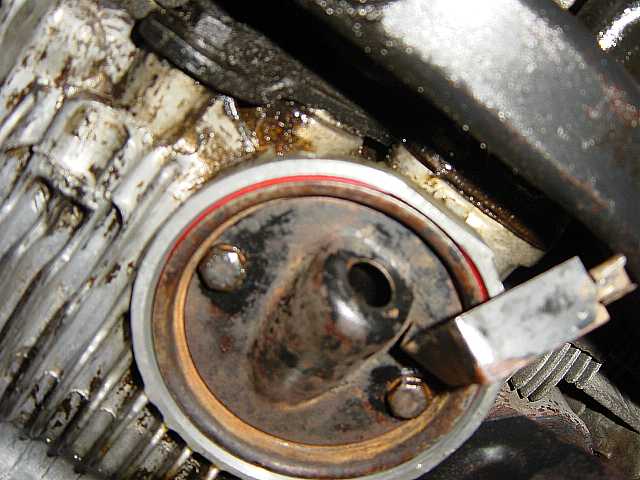

Pretty much all of the oil will come out. Plan to change the oil & filter. Remove the drain plug too. Remove the screen above the taco plate and clean it. A new gasket would be nice to replace on the plate too.
|
|
|
|
| Ferg |
Jun 12 2009, 11:52 AM
Post
#8
|
|
914 Guru Group: Members Posts: 5,948 Joined: 8-January 03 From: Boulder CO Member No.: 116 Region Association: None
|
All of it.
|
|
|
|
| dave1075 |
Jun 14 2009, 09:32 AM
Post
#9
|
|
Newbie Group: Members Posts: 15 Joined: 15-April 09 From: Cologne, Germany Member No.: 10,267 Region Association: Germany |
thanks to all of you.
|
|
|
|
| r_towle |
Jun 14 2009, 10:14 AM
Post
#10
|
|
Custom Member Group: Members Posts: 24,705 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States
|
your going to take a large plate off the bottom of the motor to install the sensor. What makes you think that oil will come out???
Rich |
|
|
|
|
