> Need "Machinist"? - Need A Mounting Plate Made, ...to relocate the clutch pulley wheel for a header
7TPorsh
post Aug 16 2015, 01:44 PM
Post #1


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
I have the skills but don't have the tools or the material to do this. I need a steel plate made with three holes in it so i can re-angle the clutch pulley for my header installation.

With the header on, the clutch cable rubs on the header. A custom plate between the clutch pulley housing and the transmission will enable me to rotate the housing slightly so the angle of the cable goes further down and gives some clearence to the header. Cable will be wrapped with fireproof sleeve.

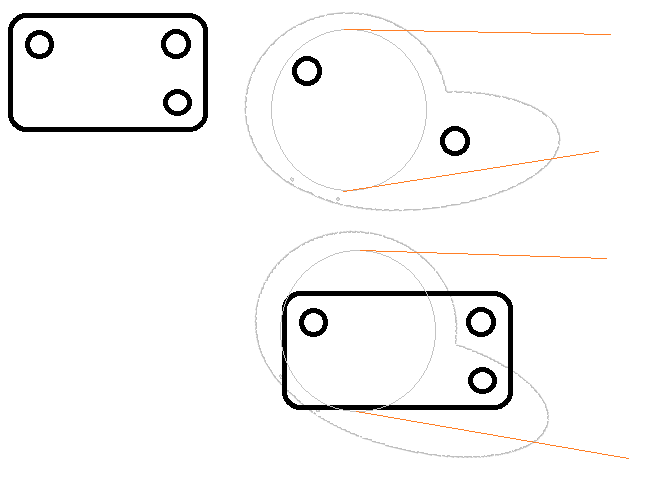

Can anyone out there fabricate this? I will get exact measurements. The plate is small; 3"x 5" tops.

I have seen the other mount made that relocates the pulley horizontal but that will not work for mine.

I anticipate that more than just me may want one of these.

Can anyone out there punch this out?

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Aug 16 2015, 02:18 PM
Post #2


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
steel or aluminum?

thru hole or threaded or nuts welded to far side?

how thick?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Harpo
post Aug 16 2015, 02:55 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,304
Joined: 21-August 11
From: Motor City aka Detroit
Member No.: 13,469
Region Association: None
What about Chris's clutch pulley adapter

http://www.tangerineracing.com/transmission.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Aug 16 2015, 03:25 PM
Post #4


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
QUOTE(Harpo @ Aug 16 2015, 01:55 PM) *

What about Chris's clutch pulley adapter

http://www.tangerineracing.com/transmission.htm

Yes that's the horizontal one. I want to stay vertical. Simpler design.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Aug 16 2015, 03:27 PM
Post #5


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
QUOTE(Mueller @ Aug 16 2015, 01:18 PM) *

steel or aluminum?

thru hole or threaded or nuts welded to far side?

how thick?

Steel is fine. Thickness I don't know. Thick enough not to bend. Straight holes not threaded.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Harpo
post Aug 16 2015, 04:08 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,304
Joined: 21-August 11
From: Motor City aka Detroit
Member No.: 13,469
Region Association: None
Chris has two designs, one horizontal & one vertical
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Aug 16 2015, 04:13 PM
Post #7


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

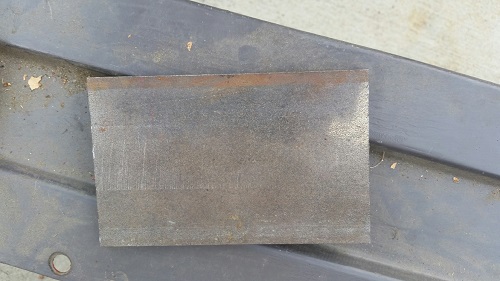

I just happen to have this .25" thick steel piece sitting on my bandsaw....


3.125"x5.125" approx.

Send me some dimensions for the holes and pay for shipping (I usually use USPS flat rate boxes, so figure about $5.50 or so for shipping plus paypal fees or send a check/cash)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Aug 16 2015, 05:37 PM
Post #8


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,899
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
I just welded a piece onto the pulley holder piece, easy peasy. Done, and worked great.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Aug 16 2015, 09:39 PM
Post #9


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
QUOTE(Harpo @ Aug 16 2015, 03:08 PM) *

Chris has two designs, one horizontal & one vertical


I don't see the vertical one. Plus it's kinda pricey...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Aug 16 2015, 09:41 PM
Post #10


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
QUOTE(914forme @ Aug 16 2015, 04:37 PM) *

I just welded a piece onto the pulley holder piece, easy peasy. Done, and worked great.

Can't weld....oh the things I could do if only.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Aug 16 2015, 09:43 PM
Post #11


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
QUOTE(Mueller @ Aug 16 2015, 03:13 PM) *

I just happen to have this .25" thick steel piece sitting on my bandsaw....


3.125"x5.125" approx.

Send me some dimensions for the holes and pay for shipping (I usually use USPS flat rate boxes, so figure about $5.50 or so for shipping plus paypal fees or send a check/cash)

Attached Image

Sounds good. 1/4" shouldn't change the pulley alignment too much. 1/8" may be better if available.
I'll take measurements tomorrow.

thx Gary
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MartyYeoman
post Aug 16 2015, 10:03 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,546
Joined: 19-June 03
From: San Ramon, CA
Member No.: 839
Region Association: Northern California
Looks like a job for a waterjet.
I suggest making one in cardboard first to get the dimensions just right, then move to metal.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Aug 17 2015, 04:40 AM
Post #13


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,899
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
QUOTE(7TPorsh @ Aug 16 2015, 11:41 PM) *

QUOTE(914forme @ Aug 16 2015, 04:37 PM) *

I just welded a piece onto the pulley holder piece, easy peasy. Done, and worked great.

Can't weld....oh the things I could do if only.....


Seems like something I would jump into with both feet just to say I "CAN" weld. Heck even my daughter knows how to weld. This little project is a great place to start.

(IMG:style_emoticons/default/agree.gif) Start in cardboard, easy to make a template, much cheaper to screw up with also. I use templates all the time, food boxes is where I get most of my stock from. I personally don't eat the shit, but, it makes great mockup material. And it reacts somewhat like metal. Metal can be stretched and shrunk, but if I can get close in cardboard, I know I can do it with metal.

I will say you can do this with some pretty primitive tools since your talking a flat plat. A drill, a few bits, a sharpie, and a hack saw will get you there. No welding required. A file will make it pretty, and you are done.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Aug 17 2015, 06:48 AM
Post #14


I am Tangerine Racing
*****

Group: Members
Posts: 8,019
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
This is all you need.

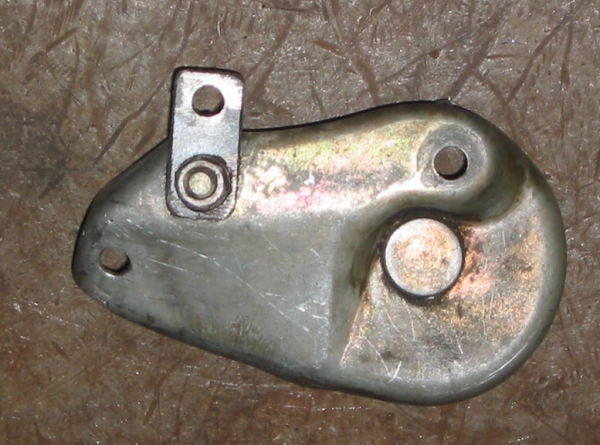

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
blackmoon
post Aug 17 2015, 09:32 AM
Post #15


Member
**

Group: Members
Posts: 153
Joined: 27-May 08
From: Cal Bay Area
Member No.: 9,106
Region Association: None
QUOTE(Racer Chris @ Aug 17 2015, 05:48 AM) *

This is all you need.

Attached Image

simplicity at it's best (IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Aug 17 2015, 10:42 AM
Post #16


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
QUOTE(blackmoon @ Aug 17 2015, 08:32 AM) *

QUOTE(Racer Chris @ Aug 17 2015, 05:48 AM) *

This is all you need.

Attached Image

simplicity at it's best (IMG:style_emoticons/default/beer.gif)


Yes this would be great too. The closest thing I could find at home Depot was too thin and long.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Aug 17 2015, 10:43 AM
Post #17


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California

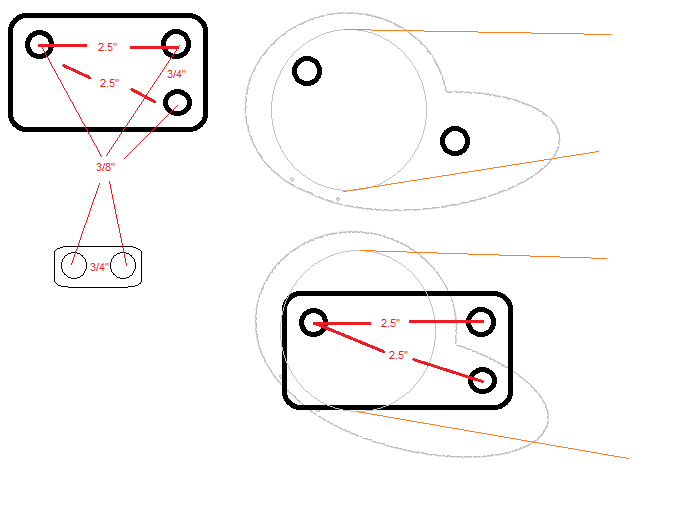

Here are the dimensions for either:

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Aug 17 2015, 10:44 AM
Post #18


I am Tangerine Racing
*****

Group: Members
Posts: 8,019
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
I keep them on the shelf. Every EVO 914 header gets one in the package.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Aug 17 2015, 11:06 AM
Post #19


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
QUOTE(Racer Chris @ Aug 17 2015, 09:44 AM) *

I keep them on the shelf. Every EVO 914 header gets one in the package.



Problem solved, thank you Chris!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
