> Heat Shield Mounting Question
914_7T3
post Jun 23 2020, 11:05 PM
Post #1


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,894
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
Would like to confirm if the the heat shield above the muffler is bolted into the cross section of the rear trunk from underneath or is it welded in place?

Just learned I don't have one installed and the heat is baking my new paint in the trunk from underneath. Have one sourced already and will also be going with heat insulation matting for extra protection.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jun 24 2020, 04:38 AM
Post #2


bdstone914
*****

Group: Members
Posts: 5,280
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(914_7T3 @ Jun 23 2020, 10:05 PM) *

Would like to confirm if the the heat shield above the muffler is bolted into the cross section of the rear trunk from underneath or is it welded in place?

Just learned I don't have one installed and its baking my new paint in the trunk from underneath. Have one sourced already and will also be going with heat insulation matting for extra protection.


As we discussed only the early 1970 cars had them bolted on.
I don't see how it can be rewelded with the limited access to the rear brackets on the shield
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Jun 24 2020, 06:52 AM
Post #3


Senior Member
***

Group: Members
Posts: 1,488
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
For my 76, it was welded on. Since I replaced a portion of the rear trunk pan, mine is now SS pop riveted on.

Barefoot
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
aharder
post Jun 24 2020, 11:35 AM
Post #4


Advanced Member
****

Group: Members
Posts: 4,954
Joined: 6-September 11
From: Dallas Texas
Member No.: 13,524
Region Association: Southwest Region
My 75 is welded, I plan on using inserts to re-install once I remove and repair the trunk pan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jun 24 2020, 11:56 AM
Post #5


914-6 GT in waiting
***************

Group: Members
Posts: 20,587
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(bdstone914 @ Jun 24 2020, 06:38 AM) *

QUOTE(914_7T3 @ Jun 23 2020, 10:05 PM) *

Would like to confirm if the the heat shield above the muffler is bolted into the cross section of the rear trunk from underneath or is it welded in place?

Just learned I don't have one installed and its baking my new paint in the trunk from underneath. Have one sourced already and will also be going with heat insulation matting for extra protection.


As we discussed only the early 1970 cars had them bolted on.
I don't see how it can be rewelded with the limited access to the rear brackets on the shield

Turn it into a bolt on and then cover over the bolts with some seam sealer and undercoating.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
davep
post Jun 24 2020, 11:59 AM
Post #6


914 Historian
*****

Group: Benefactors
Posts: 5,359
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
From what I have seen, all the 914/6 had them fastened by screws in the rear trunk, and the 914/4 were welded in place.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 24 2020, 08:43 PM
Post #7


914 Guru
*****

Group: Members
Posts: 8,646
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Bolt-in? Weld-in? Why not both?

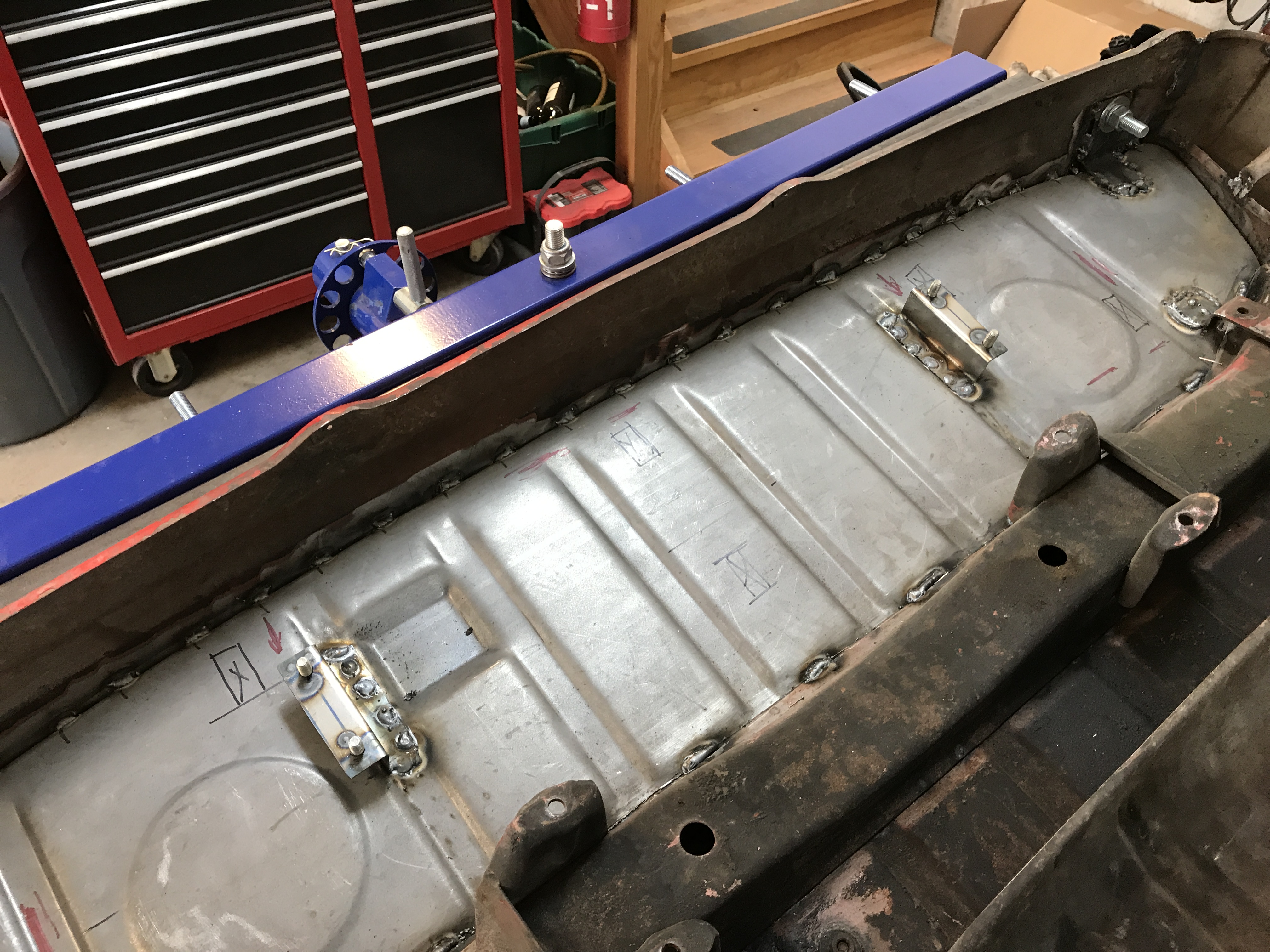

My solution: weld in some simple brackets.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 24 2020, 08:44 PM
Post #8


914 Guru
*****

Group: Members
Posts: 8,646
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

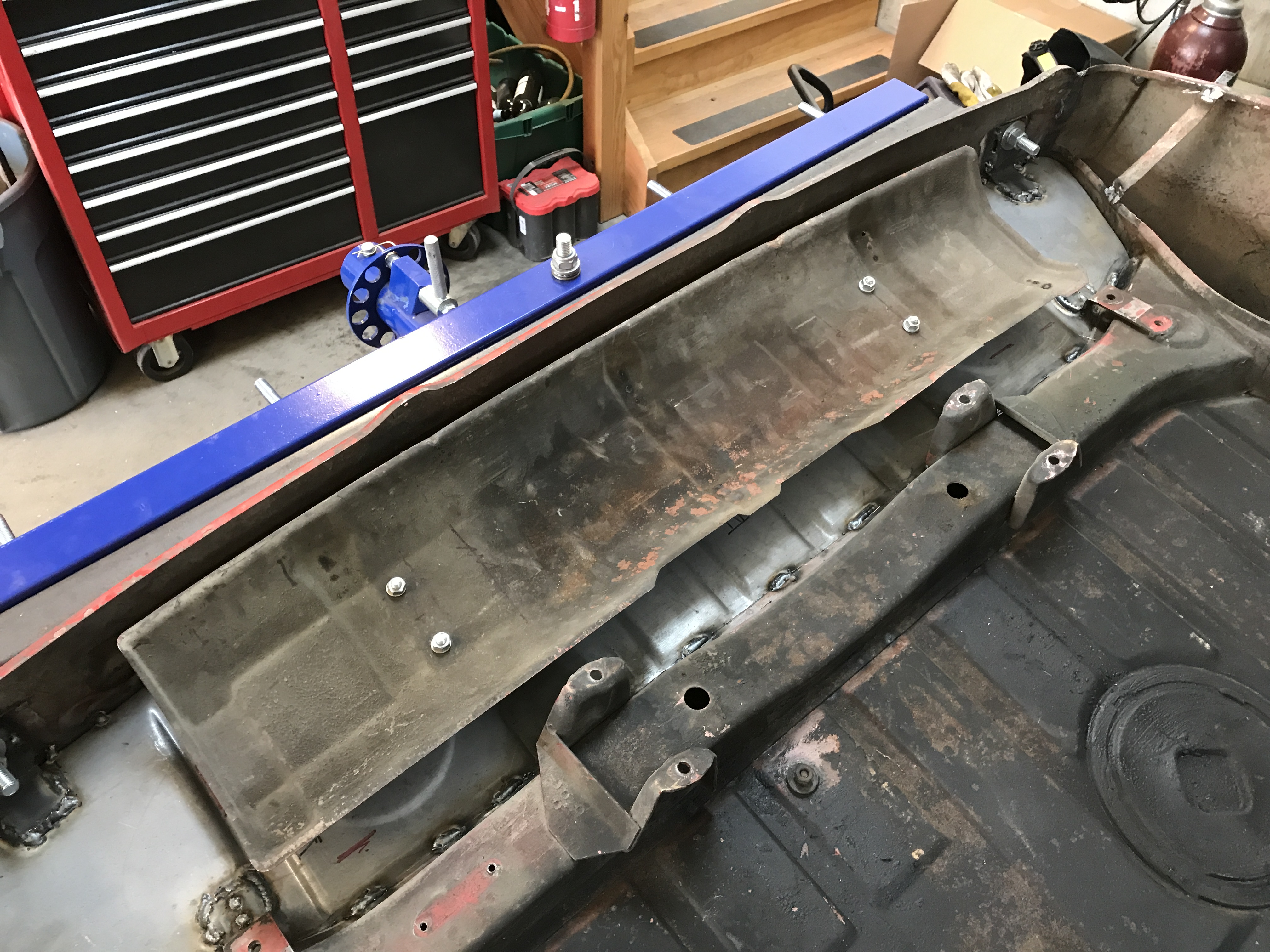

And then bolt on the heat shield.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jun 25 2020, 12:26 AM
Post #9


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,606
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
I like it
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zoomCat
post Jun 25 2020, 09:44 AM
Post #10


Member
**

Group: Members
Posts: 201
Joined: 13-August 04
From: Cincinnati, OH
Member No.: 2,526
Region Association: None

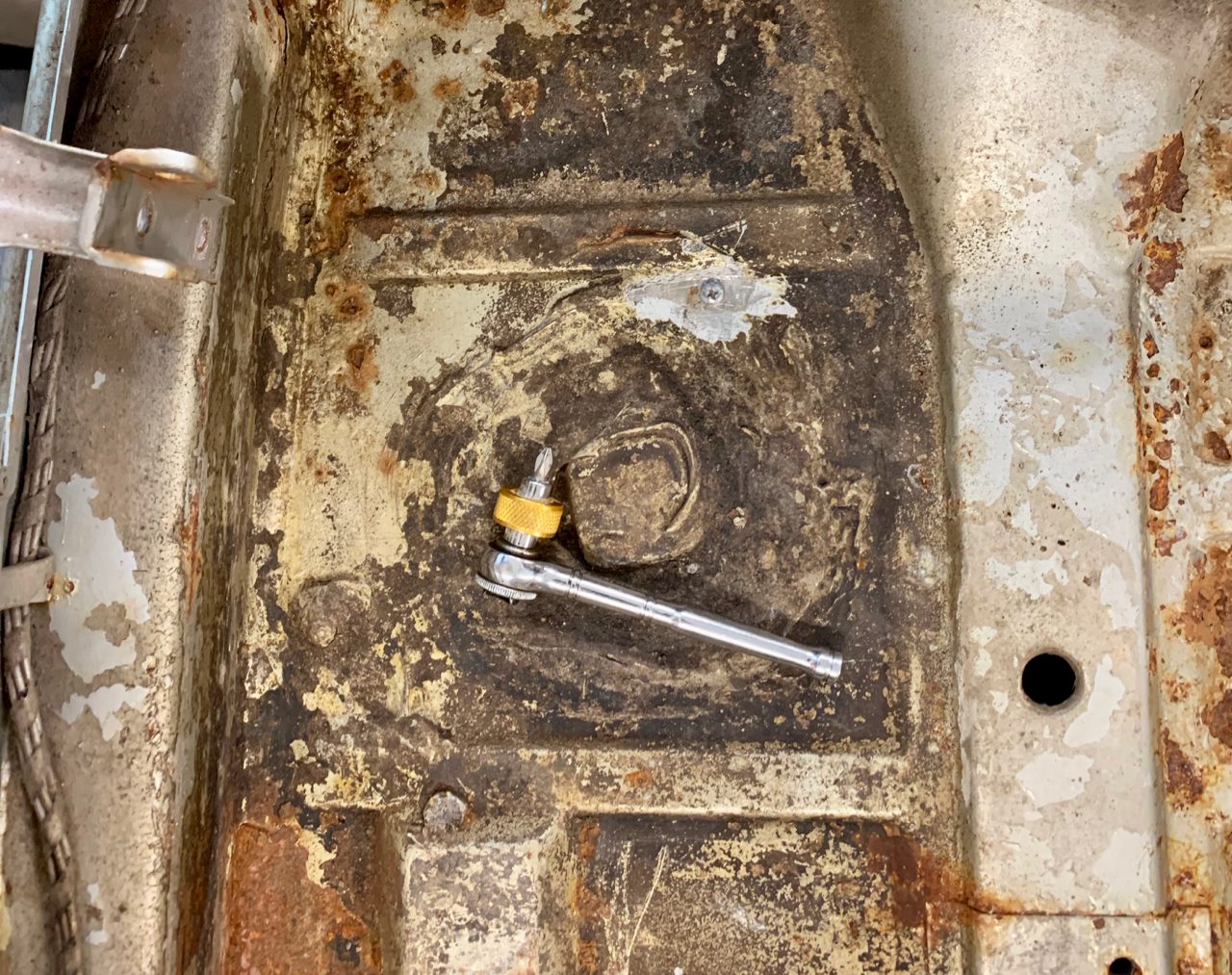

As it turns out I was looking at this very thing today. I'm in the process of stripping the easily removed stuff prior to sending the car off for restoration. This car is a six, so the heat shield is attached with screws to the rear trunk floor, hidden under factory seam sealer. Here's one of them:

Attached Image

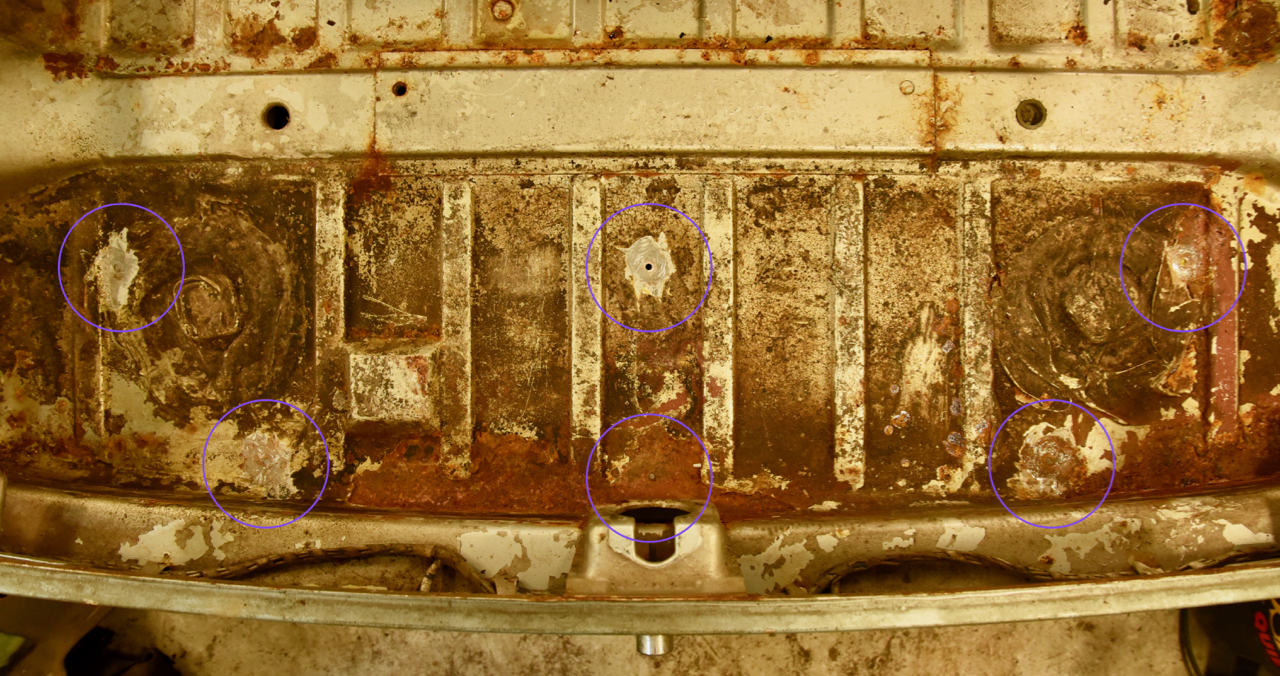

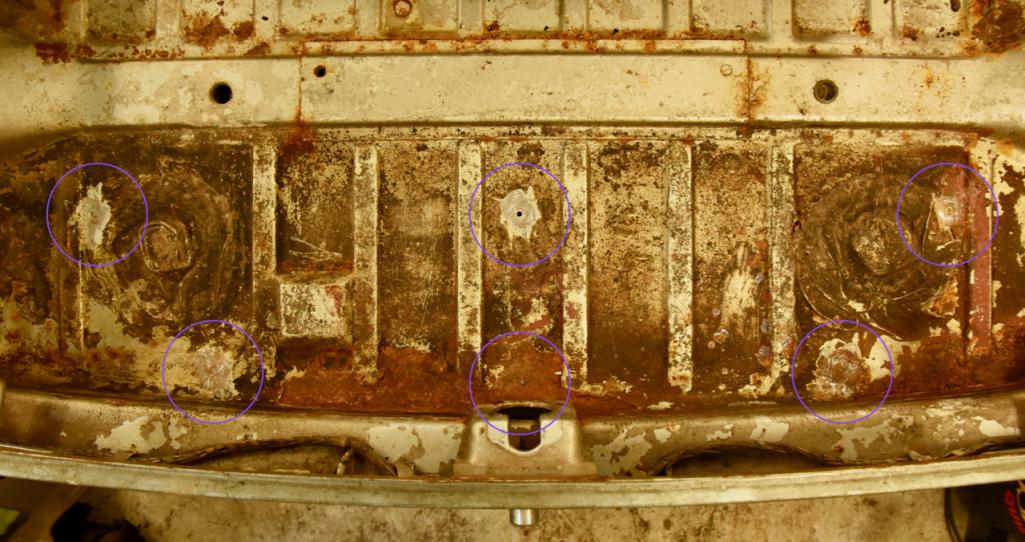

There are six of them, located here:

Attached Image

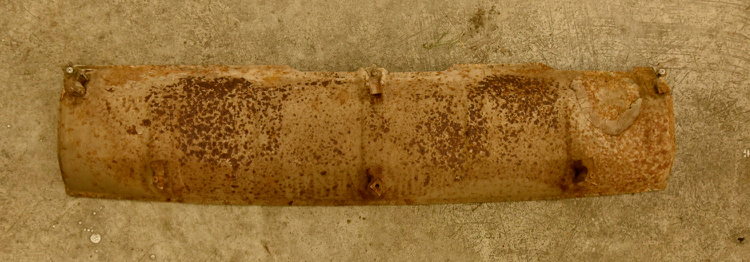

Here's a shot of the top side of the heat shield:

Attached Image

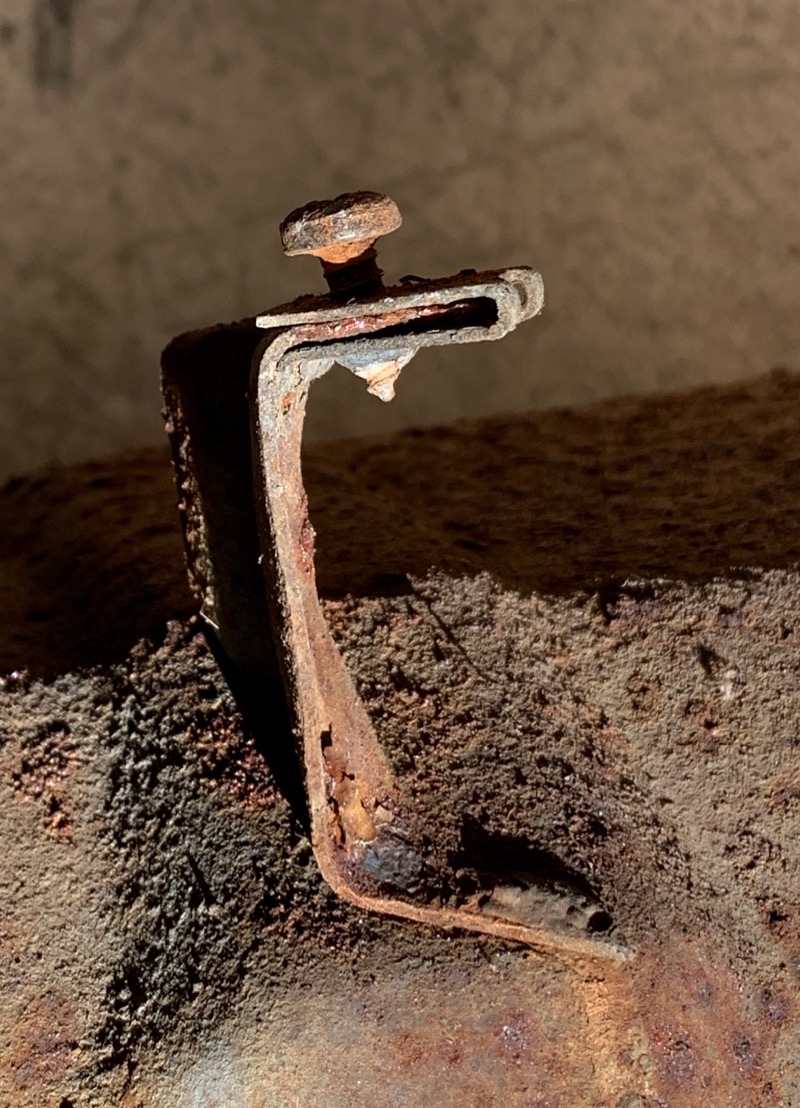

And a detail of the mounting hardware:

Attached Image

The shield is solid, but with surface rust, so it's going to the dippers prior to paint. I don't think I'll hide the fasteners under sealer when it goes back together, though.

Guy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Jun 25 2020, 10:42 AM
Post #11


Advanced Member
****

Group: Members
Posts: 2,176
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California
Maybe instead of the shield - 1 or two of these?

https://www.rix914parts.com/store/p44/Heat_Sheild_Mat.html
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ElCee
post Jun 25 2020, 11:07 AM
Post #12


Newbie
*

Group: Members
Posts: 6
Joined: 30-September 16
From: the Netherlands
Member No.: 20,449
Region Association: None

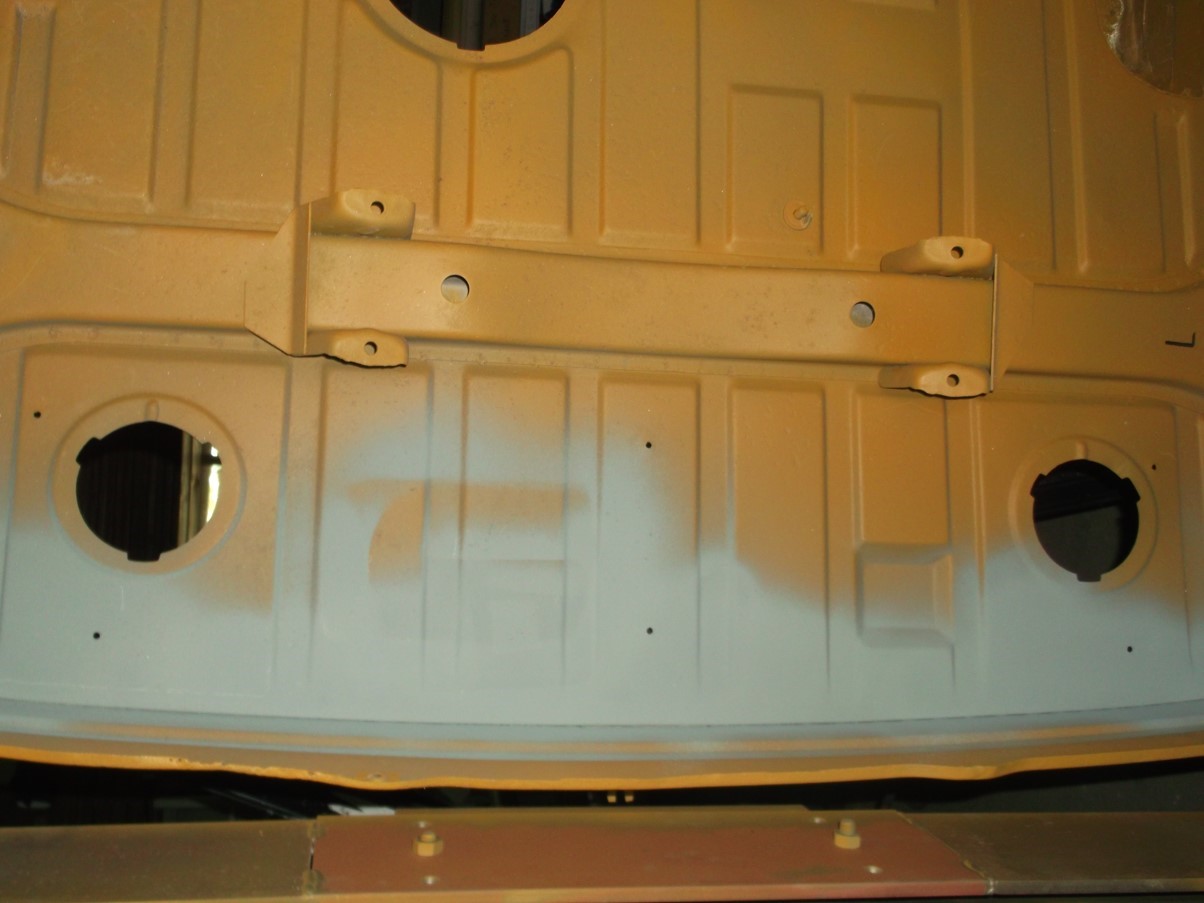

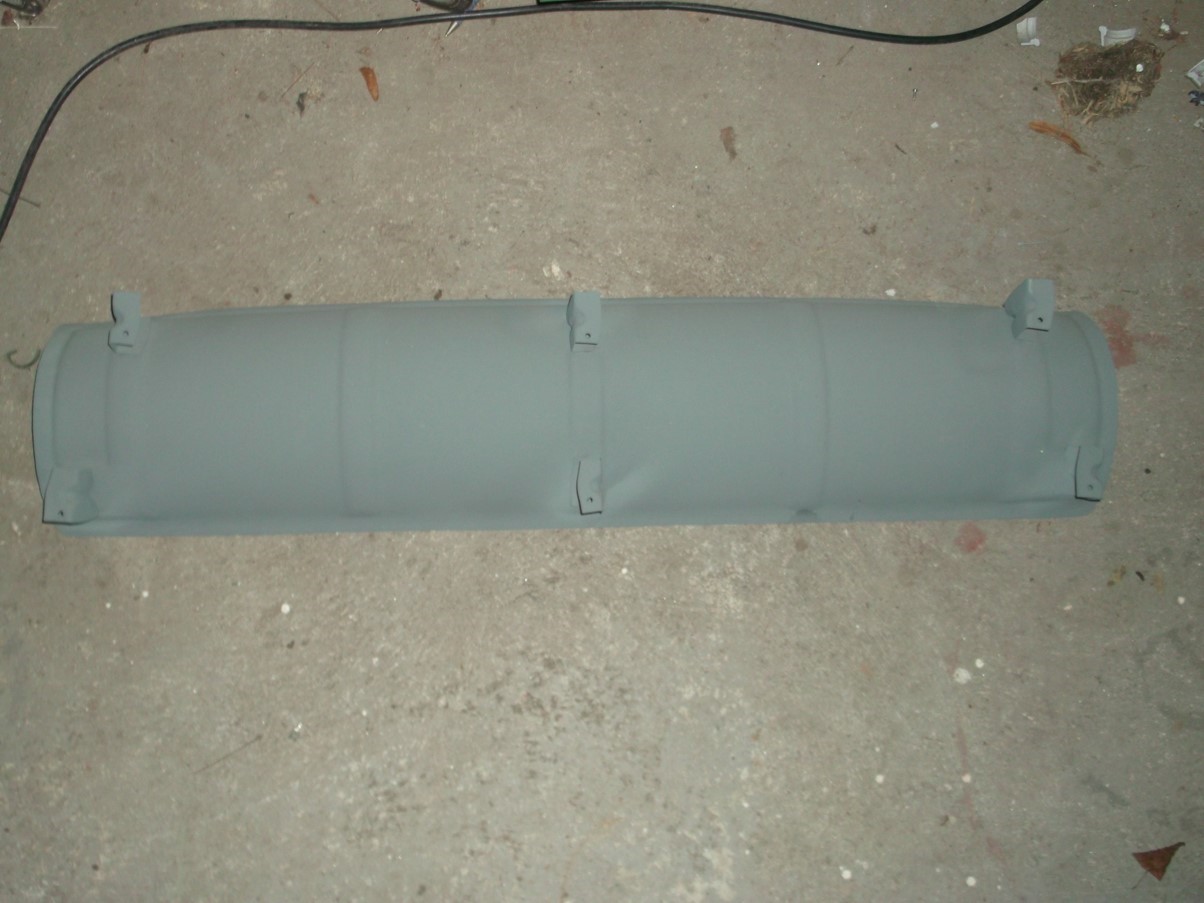

I have a 914/4 from May 1970.
My car has a heat shield attached with screws.


Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 25 2020, 11:23 AM
Post #13


PMB Performance
***************

Group: Admin
Posts: 19,304
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains

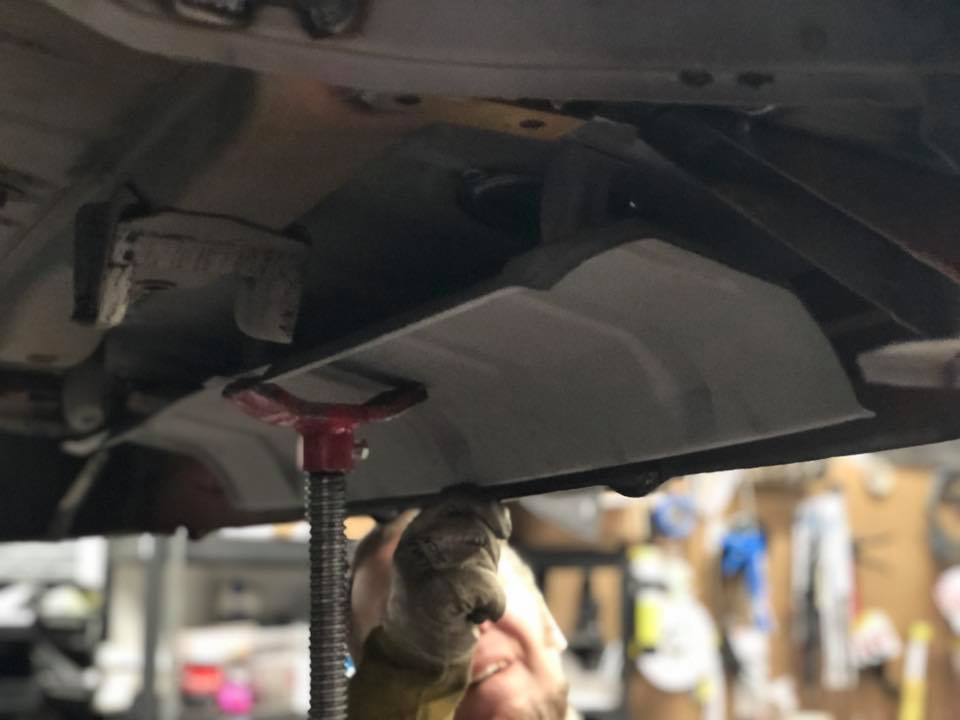

Not easy to get at but, it can be welded back in.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zoomCat
post Jun 25 2020, 11:24 AM
Post #14


Member
**

Group: Members
Posts: 201
Joined: 13-August 04
From: Cincinnati, OH
Member No.: 2,526
Region Association: None
Interesting, the much clearer pictures of the /4 show a similar method of attachment but different locations. I wonder what the reason was?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post Jun 25 2020, 11:43 AM
Post #15


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,894
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California

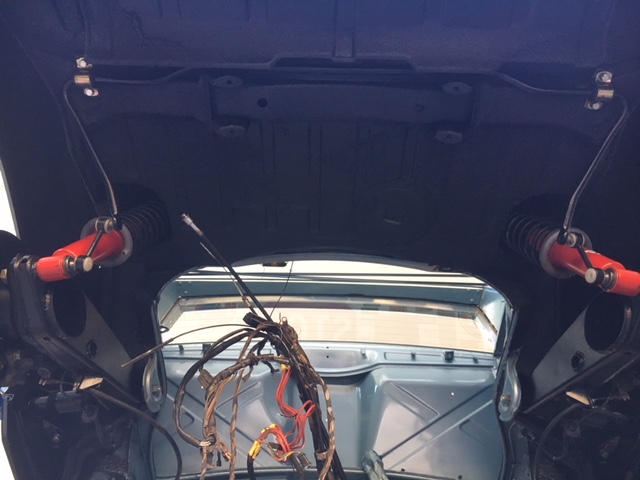

Thanks for chiming in and the solutions are great. Embarrased to find out that the heat shield is indeed there as evidenced at the top of this photo from suspension swap Saturday.


Attached Image

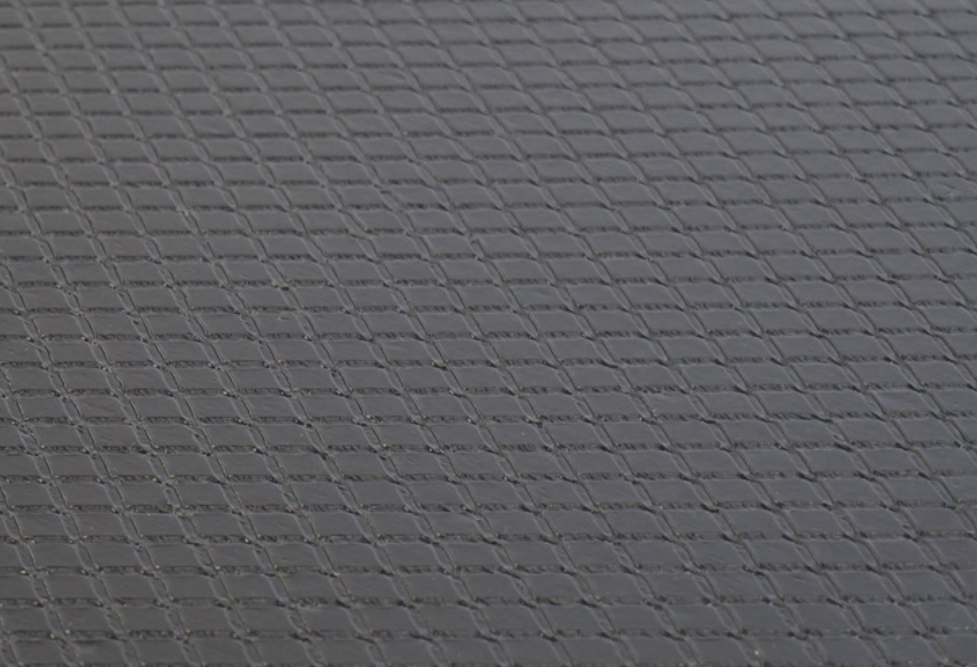

Still can't figure out why the paint in the trunk has heat damage, however @Flacaproductions has it right as AASE Sales sells precut sections of that same heat insulating material from Thermal Products.

https://www.thermalcontrolproducts.com/our-.../zeroclearance/

The plan is to install that on the shield along with another section underneath the trunk mat. Ordered this sound dampening trunk mat material from Porsche Classic and will custom cut and run that. Of course its not original, but I still have my original mat if I ever show the car.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 25 2020, 12:49 PM
Post #16


Resident German
*************************

Group: Admin
Posts: 42,469
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(davep @ Jun 24 2020, 10:59 AM) *

From what I have seen, all the 914/6 had them fastened by screws in the rear trunk, and the 914/4 were welded in place.

Early /4 cars had them screwed in as well ...
(IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Jun 25 2020, 03:33 PM
Post #17


914 Historian
*****

Group: Benefactors
Posts: 5,359
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
Thanks Andy, I stand corrected. There are so few 70 or 71 914 in Canada. When did the detachable shield end?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Jun 25 2020, 05:38 PM
Post #18


Advanced Member
****

Group: Members
Posts: 4,950
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
The 'screw in' early one is found in both 4 and 6 cylinder cars.
There are at least two .....maybe three weld in versions.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
iankarr
post Jun 25 2020, 09:06 PM
Post #19


The wrencher formerly known as Cuddy_K
****

Group: Members
Posts: 2,595
Joined: 22-May 15
From: Heber City, UT
Member No.: 18,749
Region Association: Intermountain Region
My guess (and it's just a guess) is it might not be not heat damage that's messing with your paint. At least not directly. I had the same issue on my yellow car and it turned out there was a little oil / contamination still in the trunk when the paint was applied. As whatever oil got warm it spread and broke the adhesion.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Feb 12 2021, 11:06 AM
Post #20


Advanced Member
****

Group: Members
Posts: 2,072
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California
Planning on installing my new trunk panel this weekend and have been thinking about what route I will use for the heat shield.

I like the @bkrantz option (IMG:style_emoticons/default/idea.gif)

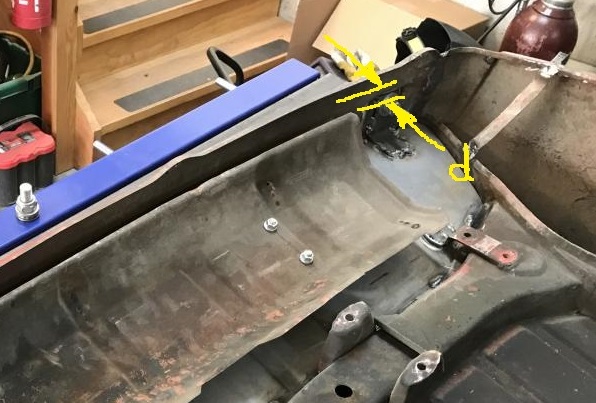

But first, I would appreciate a basic information. Can someone give me the distance from the back edge of the shield to the rear panel of the car?

Thank you! (IMG:style_emoticons/default/beerchug.gif)

bkrantz's picture as reference.

Attached Image
User is online!Profile CardPM
