> That grinding's gotta go, Changed 1st dog teeth and syncro
DNHunt
post Jun 17 2005, 06:28 PM
Post #1


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

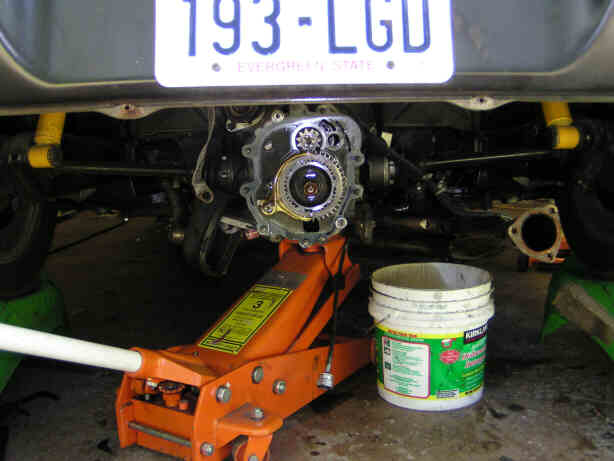

Wednesday afternoon I couldn't stand it any longer. Teachuing my son to drive a stick has taken it's toll on an already bad situation. So, I got new dogteeth and syncro from Rich and had at it. The hardest prt was getting the dog teeth out of 1st gear. I finally just used a sharp chisel and tapped them off. Left the tranny and engine in the car and just lowered it enough for access.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jun 17 2005, 06:30 PM
Post #2


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

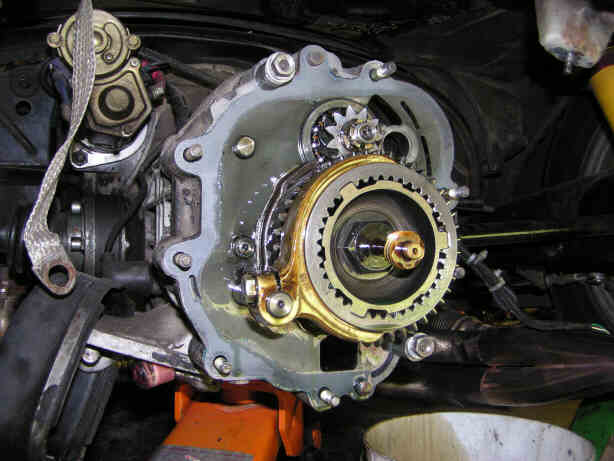

1st gear assembly


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jun 17 2005, 06:31 PM
Post #3


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

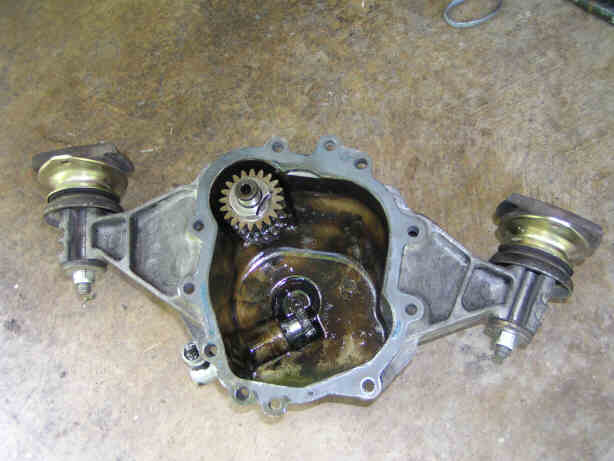

cover with reverse and speedo drive


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jun 17 2005, 06:32 PM
Post #4


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

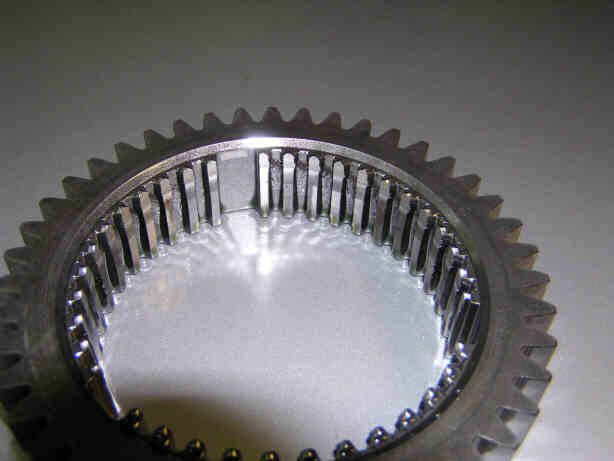

Worn dogteeth


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jun 17 2005, 06:34 PM
Post #5


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

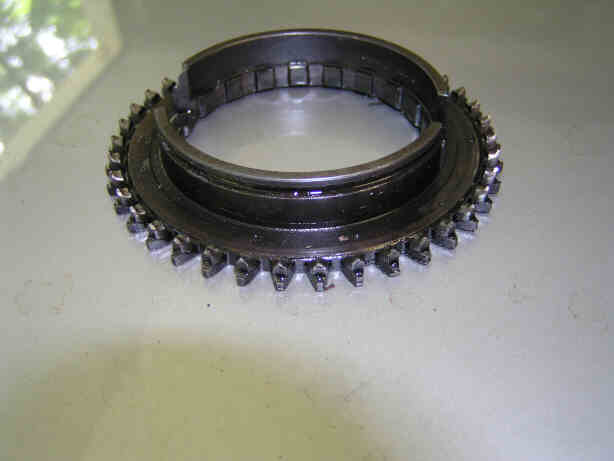

Worn slider. The teeth are slightly rounded and the groove to receive the synco ring is worn.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jun 17 2005, 06:36 PM
Post #6


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

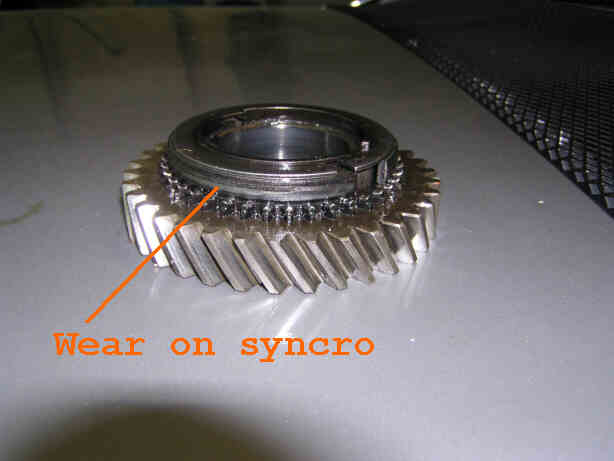

The syncro was worn. All in all it was a nice afternoon project and it really helped.

Dave


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
xsboost90
post Jun 17 2005, 06:40 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,393
Joined: 2-August 04
From: cincinnati
Member No.: 2,432
hmm... (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif) that looks easy. I need that. Where did you get the parts, how much and how difficult? Sounds like a winter project...or weekend.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jr91472
post Jun 17 2005, 07:05 PM
Post #8


"I'm pacing myself sergeant..."
***

Group: Members
Posts: 1,205
Joined: 2-August 04
From: McKinney, TX
Member No.: 2,437
have you priced 1st gear sliders?.......... holy (IMG:http://www.914world.com/bbs2/html/emoticons/stromberg.gif)

If you stumble on a deal, let me know. Mine is only slightly better.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Jun 18 2005, 08:23 AM
Post #9


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
The slider in the picture is in pretty good shape. Use a file and clean up the slots. Use a dremel tool to grind and repoint the tips.

The dog teeth are done! This is a classic picture of bad dogteeth. Look at the right hand side of the picture and see how the dog teeth are "dished" in the middle.

1 point. Since you removed the slider, you lost your alignment of the 1st gear shift rod. You need to remove the shift console from the side of the transmission and line up the shift rod notch with the others. You tighten the nut on the shiftrod after you align the shiftrod, so do this before you put the cover back on.

James
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Jun 18 2005, 08:51 AM
Post #10


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
New 1st/reverse slider $395.33

http://parts.professionalautoparts.com/

Free shipping over $50.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jun 18 2005, 09:22 AM
Post #11


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
James

I''m not sure I get how I changed the alignment of the shift rod. I unbolted the shift fork but the shft rod never moved. I guess I'm just a little confused about that.

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Jun 18 2005, 01:51 PM
Post #12


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
The alignment is not in/out, but radial.

With the shift console out, you can see the position of the shift rods in relation to each other. The Slot in each rod should be lined up, since the shift rake moves in/out to engage the different rods. If the rod isn't aligned right, it can engage in the wrong spot, and try to put 2 gear into play at the same time, or possible hang up and prevent operation of that gear.

As you're re-installing the shift fork and slider, look up into the hole and turn the shift rod until it lines up with the other 2.

James

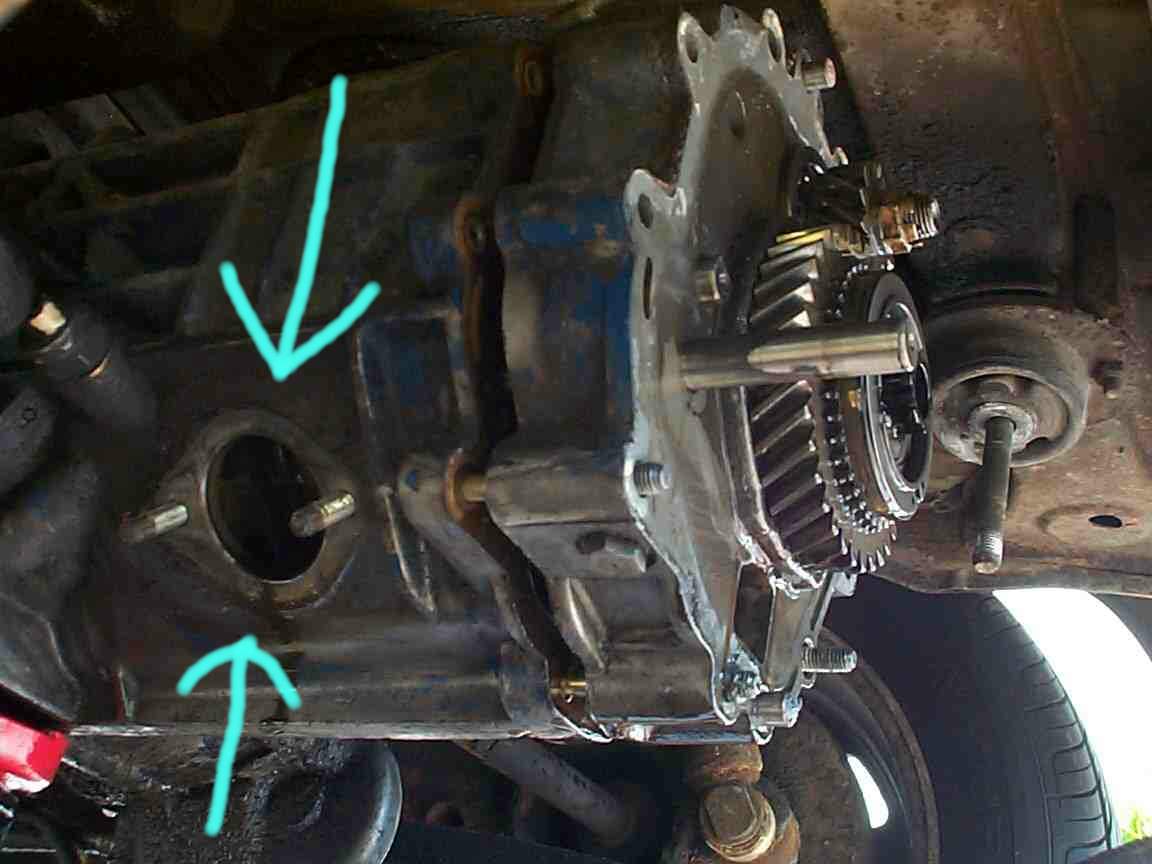

Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jun 18 2005, 01:53 PM
Post #13


Aircooled Baby!
**********

Group: Members
Posts: 13,037
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Jun 18 2005, 02:16 PM
Post #14


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
Oh, and to help re-install the cover, "glue" the washer that sits under reverse to the intermediate plate with thick grease. Then, use grease to hold all of reverse together. It will go back together easier if you remove the speed drive from the rear cover then re-install afterwards.

Do not over torque the screw which hold in the speedo drive. 3 ft lbs. Three foot pounds!!!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Jun 18 2005, 03:35 PM
Post #15


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
I just VERY ACCURATELY mark the rail and fork. Worked for me for 30+ years. The hard part is doing it accurately, and knowing the last guy did it right. Dye Kem is a lifesaver, here .................. The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Jun 18 2005, 08:01 PM
Post #16


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
You're right. But you have to mark it _before_ you disassemble...

(IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jun 19 2005, 09:13 AM
Post #17


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Ok now I get it.

I assumed that the slot in the shift rod had no room for adjustment but, I found about 1 to 1.5 mm that the shift fork could travel. Pretty easy adjustment to make if I would have been aware of it. Anyway it's done now.

Thanks you guys

Dave
