> LED gauge lighting*** NEW MULTI COLOR SAMPLES, Odometer repair / New: Kienzle clock repair
Als914
post Oct 28 2009, 12:58 PM
Post #1


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
ADMIN EDIT: This thread is closed. Sadly, Al has passed away in October. R.I.P ... (IMG:style_emoticons/default/sad.gif)

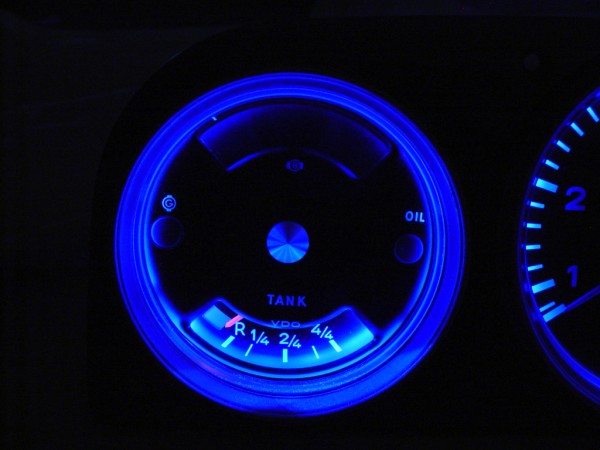

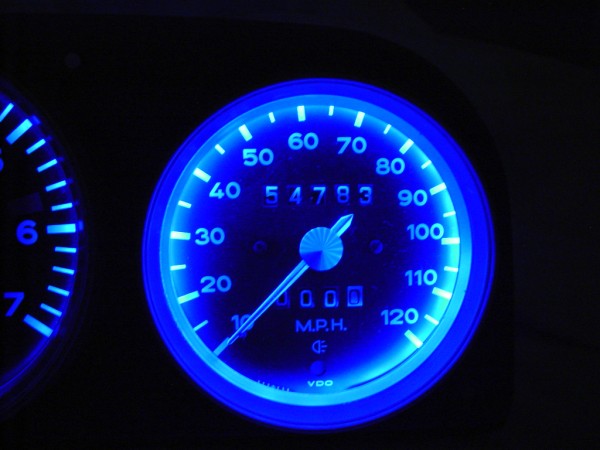

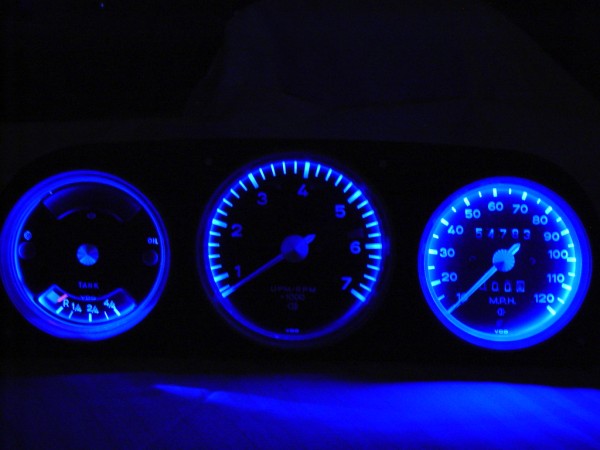

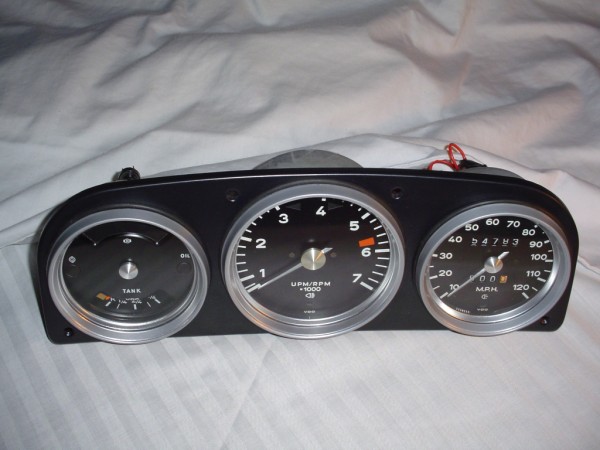

Here is Sample: refinished the inner gauge housings with a highly reflective paint. Stripped the inner and outer bezels to bare metal and repainted in mat-silver. I chose to paint the dial pointers the same mat-silver. Added the BLUE LED strip lighting.......Huge difference from the BA7 LED bulbs!

LED colors available are: Cool White, Natural White, Blue, Ultra Violet, Red, Green and Amber.

Attached Image
Attached Image
Attached Image
Attached Image

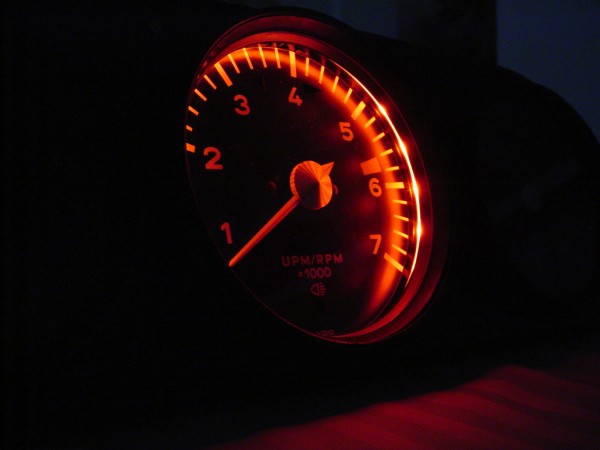

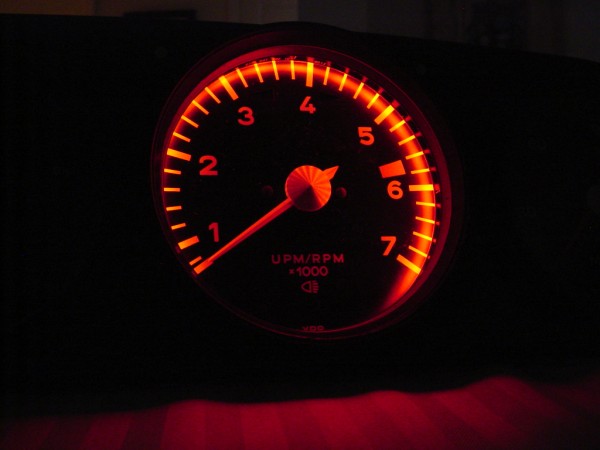

Samples in RED LEDs

Attached Image
Attached Image

I can perform the LED strip lighting (on your gauges) for:
$30 ea. large gauge
$20 ea. small gauge
$10 ea. strip/paint in/out [/size]

Send me your non-working odometer for repair $40 + any parts replacement + shipping.

NEW ITEM: Send me your non-working KIENZLE clock for repair and calibration. This is the clock that has a white plastic back housing. $50 + shipping.

I Just completed my new MULTI COLOR gauges.SEE AT THE BOTTOM OF THIS THREAD. Pricing is listed below picture samples.

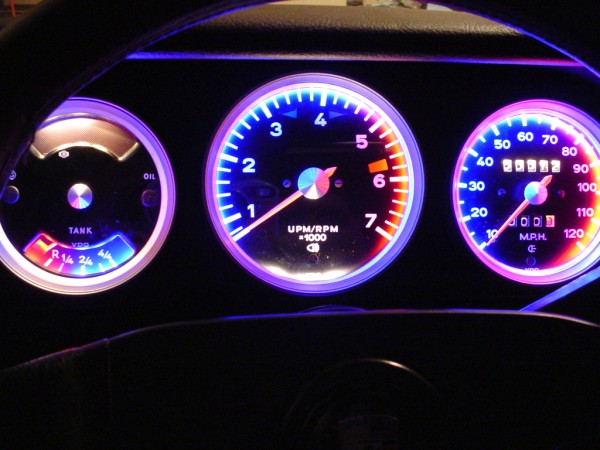

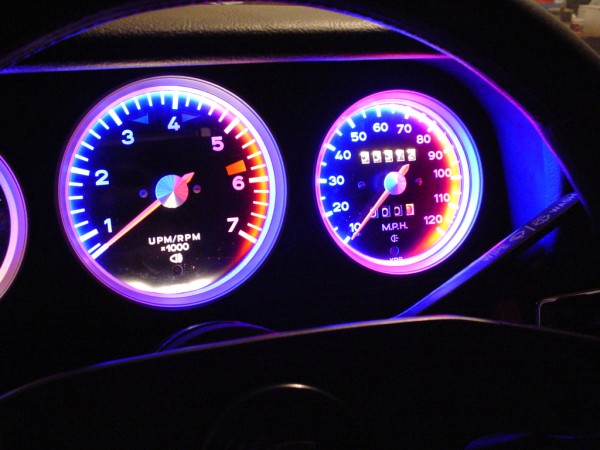

New Multi Color Series

Attached Image Attached Image

These are set up in LED BLUE with WARNING color RED and WARM WHITE Accent lighting to better see the gauge face nomenclature and speedo and trip odometer numbers..

For multi color LED lighting (on your gauges) as shown pricing is:
Speedo $55
Tach $45
Fuel $35

NEW ITEM: Send me your non-working KIENZLE clock for repair and calibration. This is the clock that has a white plastic back housing. $50 + shipping.

You can PM or e-mail me at als914x4@aol.com
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Oct 29 2009, 01:06 AM
Post #2


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,878
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
Those look pretty sharp (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Als914
post Oct 29 2009, 11:04 AM
Post #3


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
Thanks Mark.

The lights are so bright I may have to find a dimmer that can be incorperared. The Cool White lights will undoubtedly be very bright but this is better than squinting to see your gauges at night.

I am currently working on another early set and a later set ( non-silver button) but don't know what color lights I am going to use. I am thinking of installing Amber lights in the early set since newer autos use them. When completed I will post more pic's.

Al
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zymurgist
post Oct 29 2009, 12:15 PM
Post #4


"Ace" Mechanic
*****

Group: Members
Posts: 7,411
Joined: 9-June 05
From: Hagerstown, MD
Member No.: 4,238
Region Association: None
Nice! (IMG:style_emoticons/default/thumb3d.gif)

Can it be done in red?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Als914
post Oct 29 2009, 12:56 PM
Post #5


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
Thanks Ken,

Yes to your question on RED.

Under the posted pic's I list the colors available and cost per gauge. They are: Cool White, Natural White, Blue, Ultra Violet, Red, Green and Amber. It's not noted clearly but gauges would have to be shipped to me at area code 92545.

Al
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JazonJJordan
post Oct 31 2009, 06:53 PM
Post #6


Member
**

Group: Members
Posts: 340
Joined: 6-June 09
From: Atlanta-Augusta, Georgia area
Member No.: 10,446
Region Association: South East States
Al, great product and effort! What a difference~ (IMG:style_emoticons/default/wub.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Als914
post Nov 22 2009, 03:34 PM
Post #7


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
Here are some pic,s of a later set with Blue LED strips and glass lenses.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Als914
post Nov 22 2009, 03:39 PM
Post #8


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
Here are pic's of a silver button early set with Cool White LED strips.

These will be place for sale in the For Sale Forum (Parts) as soon as I receive and install "Spunone" gauge rings. I did not like the ring surface as they are so I am adding the clear anodized to this set. Of course I will have to add in that cost. So look for these soon.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bandjoey
post Nov 22 2009, 10:08 PM
Post #9


bandjoey
****

Group: Members
Posts: 4,934
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region
Over looks, what color lights are the best for night visability for us older eyes?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Nov 22 2009, 10:54 PM
Post #10


The rubber man
**********

Group: Members
Posts: 12,767
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None

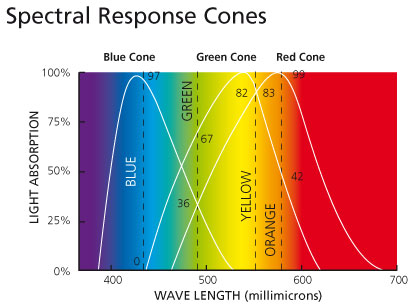

Red is best next green, for night vision.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Als914
post Nov 23 2009, 11:43 AM
Post #11


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
QUOTE(Als914 @ Nov 22 2009, 01:39 PM) *

Here are pic's of a silver button early set with Cool White LED strips.


Hey Bill,
Thanks to mikey914 for the graph. Hard to argue against data.
I haven't done a Red or Green test at night. I can tell you that when I changed my incandescent bulbs to the BA7 White LED bulbs it was an improvement but I still wasn't satisfied (IMG:style_emoticons/default/headbang.gif) untill I installed the these LED strips with each gauge containing a minimum of fifteen miniature bulbs (mine are Blue) the difference is amazing (IMG:style_emoticons/default/smilie_pokal.gif) !!! Turn your standard dash lights on during daylight hours and they are barely visible; turn these LED strips on in daylight and your gauges are very visibly lit up.
I am 62 and need vision help also so I am very happy with the results.
Al
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
celluloid3
post Nov 23 2009, 03:27 PM
Post #12


Newbie
*

Group: Members
Posts: 23
Joined: 16-September 08
From: New Jersey
Member No.: 9,555
Region Association: None
Are the led strips mounted inside the gauges behind the face plates or in front of the face plates between the glass??? They look great! I put LED bulbs in the standard bulb holders in the backs and its not much of a improvement over the standard bulbs...

NICE WORK! (IMG:style_emoticons/default/clap56.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Als914
post Nov 23 2009, 04:32 PM
Post #13


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
QUOTE(celluloid3 @ Nov 23 2009, 01:27 PM) *

Are the led strips mounted inside the gauges behind the face plates or in front of the face plates between the glass??? They look great! I put LED bulbs in the standard bulb holders in the backs and its not much of a improvement over the standard bulbs...

NICE WORK! (IMG:style_emoticons/default/clap56.gif)


Thanks celluloid3 (IMG:style_emoticons/default/beerchug.gif) ,

Exactly!! After I installed the BA7 Led bulb in my gauges (as you did) I was bummed. I decided to do something different and these are the results. There is a lot of work that goes into each gauge. They have to be completely disassembled, drilled for wiring,polished or repainted in each housing. The LED strips have to have lead and ground wires soldered to each strip and then the strips are attached to the inner circumference at a specific distance behind the face plate and re-assembled. I beleive the light emitted from these gauges are outstnding.
I have a later set for sale in the Parts For Sale Forum.
Thanks again Al
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tat2dphreak
post Nov 24 2009, 12:35 PM
Post #14


stoya, stoya, stoya
*****

Group: Benefactors
Posts: 8,797
Joined: 6-June 03
From: Wylie, TX
Member No.: 792
Region Association: Southwest Region
I guess the real question now is price for a kit?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Als914
post Nov 24 2009, 03:03 PM
Post #15


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
QUOTE(tat2dphreak @ Nov 24 2009, 10:35 AM) *

I guess the real question now is price for a kit?


I put the pricing below the pic's at the top of this thread.
LED Strip lights $30 per dash gauge
$20 per console gauge
Ring painting $10 per gauge
Shipping your gauges to area code 92545.

I quoted one today, example: Dash gauages $30 x 3=$90 w/ cool White LEDs
Inner / outer rings Painted $10 x 3=$30
+ shipping to 92545 $?
I pay shipping back to you $0
Total= $120
Hope this helped,Thanks for the inquiry
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfuerst911sc
post Nov 24 2009, 04:16 PM
Post #16


Advanced Member
****

Group: Members
Posts: 2,158
Joined: 4-May 06
From: Dahlonega , Georgia
Member No.: 5,980
Region Association: South East States
Any pics of natural white ? I would want it closer to stock..............only brighter. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Als914
post Nov 24 2009, 05:29 PM
Post #17


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
QUOTE(rfuerst911sc @ Nov 24 2009, 02:16 PM) *

Any pics of natural white ? I would want it closer to stock..............only brighter. Thanks


I'me putting together other colors into individual gauges for samples. I will pm you when I post the pic's of Natural White. Thanks for the inquiry.

Al
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfuerst911sc
post Nov 25 2009, 05:03 PM
Post #18


Advanced Member
****

Group: Members
Posts: 2,158
Joined: 4-May 06
From: Dahlonega , Georgia
Member No.: 5,980
Region Association: South East States
QUOTE(Als914 @ Nov 24 2009, 03:29 PM) *

QUOTE(rfuerst911sc @ Nov 24 2009, 02:16 PM) *

Any pics of natural white ? I would want it closer to stock..............only brighter. Thanks


I'me putting together other colors into individual gauges for samples. I will pm you when I post the pic's of Natural White. Thanks for the inquiry.

Al


Sounds good thank you.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Als914
post Apr 9 2010, 04:14 PM
Post #19


Lighting my way
**

Group: Members
Posts: 330
Joined: 1-January 06
From: Hemet,Ca.
Member No.: 5,346
Region Association: Southern California
Hello all,

Check out the new multi color series LED lighting at the bottom of #1 thread.
Here is a sample.

Attached Image

Al
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jfort
post Sep 30 2010, 09:16 AM
Post #20


Senior Member
***

Group: Members
Posts: 1,167
Joined: 5-May 03
From: Findlay, OH
Member No.: 652
Region Association: Upper MidWest
Interested in white LEDs for my 3 914-6 gauges. Can I install them myself? You can email me at jeffreyfort at mac dot com.. thanks!
User is offlineProfile CardPM
