> R Shock retaining nut - opinions?
bandjoey
post Oct 30 2009, 09:32 PM
Post #1


bandjoey
****

Group: Members
Posts: 4,925
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region

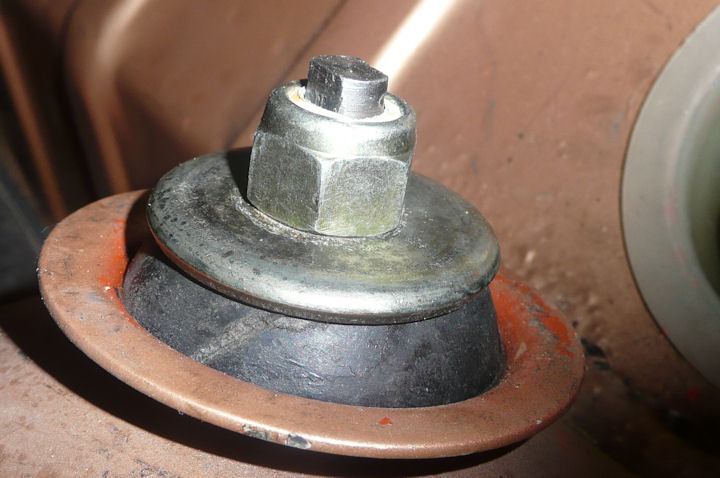

this looks like not enough threads poking through.. What do you think? I tightened the spring retention -looks like a valve- nut down tight. Is something not lined up right or what?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
6freak
post Oct 30 2009, 10:50 PM
Post #2


MR.C
****

Group: Members
Posts: 4,740
Joined: 19-March 08
From: Tacoma WA
Member No.: 8,829
Region Association: Pacific Northwest
I think mine have more threads show`n..you did hold the shock stud firm when you tight`n the nut? Lots of variables with shocks and all ,,, just thought i would throw something out there for ya
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
6freak
post Oct 30 2009, 10:56 PM
Post #3


MR.C
****

Group: Members
Posts: 4,740
Joined: 19-March 08
From: Tacoma WA
Member No.: 8,829
Region Association: Pacific Northwest
just looked Mine`s not much more then that but mine`s more round and is hex head
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ME733
post Nov 1 2009, 12:27 PM
Post #4


Senior Member
***

Group: Members
Posts: 842
Joined: 25-June 08
From: Atlanta Ga.
Member No.: 9,209
Region Association: South East States
(IMG:style_emoticons/default/popcorn[1].gif) ....IT appears that the ..."LOCK NUT" has a much taller upper section, with the plastic/teflon enclosed., this would account for some of the threads not being exposed....And the rubber bushing appears to be "Taller" than a O.E.M. part. (it,s possable the nut is not completely tightened.)....the nut is definately not O.E.M. sized , therefore I am assuming the upper bushings, have been replaced also.....for your consideration. (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bandjoey
post Nov 1 2009, 10:08 PM
Post #5


bandjoey
****

Group: Members
Posts: 4,925
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region
Did a little measuring today. The original factory shock, from top of the spring mount to the top of the threads, is 1/2" longer than the Koni shock. Also, the rubber donut here is Oem. I'm going to see if I can find a shorter 'lock nut' and
what do you think about shaving about 4-5mm off the top of the donut?

P.s. Here are the shocks on the car when I bought it, and they look like original equipment, so I think the donut is factory. No reason (normally) for anyone to chanage this out.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jt914-6
post Nov 1 2009, 10:48 PM
Post #6


Driving & working on teeners 41 years
***

Group: Members
Posts: 1,786
Joined: 3-May 08
From: Bryant, Arkansas
Member No.: 9,003
Region Association: South East States
Bill, Here is a shot of mine. It looks like we have opposite problems. My Koni adjustable shock sticks up too far. Can't get the top in the trunk for it. I just need to shim a little. Winter project.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bandjoey
post Nov 2 2009, 12:52 AM
Post #7


bandjoey
****

Group: Members
Posts: 4,925
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region
Bigger lower donut smaller top donut call Duncan Donut...They're coming to take me away Ha Ha. (IMG:style_emoticons/default/mueba.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ericread
post Nov 2 2009, 10:11 AM
Post #8


The Viper Blue 914
****

Group: Members
Posts: 2,177
Joined: 7-December 07
From: Irvine, CA (The OC)
Member No.: 8,432
Region Association: Southern California
QUOTE(bandjoey @ Nov 1 2009, 10:52 PM) *

Bigger lower donut smaller top donut call Duncan Donut...They're coming to take me away Ha Ha. (IMG:style_emoticons/default/mueba.gif)


(IMG:style_emoticons/default/lol-2.gif)

Had a bit too much caffine this morning???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ME733
post Nov 2 2009, 03:21 PM
Post #9


Senior Member
***

Group: Members
Posts: 842
Joined: 25-June 08
From: Atlanta Ga.
Member No.: 9,209
Region Association: South East States
QUOTE(bandjoey @ Nov 1 2009, 11:08 PM) *

Did a little measuring today. The original factory shock, from top of the spring mount to the top of the threads, is 1/2" longer than the Koni shock. Also, the rubber donut here is Oem. I'm going to see if I can find a shorter 'lock nut' and
what do you think about shaving about 4-5mm off the top of the donut?

P.s. Here are the shocks on the car when I bought it, and they look like original equipment, so I think the donut is factory. No reason (normally) for anyone to chanage this out.

(IMG:style_emoticons/default/popcorn[1].gif) ..good Idea , cut the rubber shock soft mount down...BuT maybe at the local N.A.P.A, or parts store/hotrod shop they might have a similar but shorter rubber mount for another application. And then see if the longer , lock nut will thread down to tighten the assembly. While you are looking for alternative rubber bushings, maybe you can find a larger steel flat washer that curves over the rubber bushing to "capture" it better. (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Nov 2 2009, 03:29 PM
Post #10


Resident German
*************************

Group: Admin
Posts: 41,632
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(jt914-6 @ Nov 1 2009, 08:48 PM) *

Bill, Here is a shot of mine. It looks like we have opposite problems. My Koni adjustable shock sticks up too far. Can't get the top in the trunk for it. I just need to shim a little. Winter project.

That's a lot! Did you put the lower rubber "donut" on there? My Koni adjustable fit much better with a lot less sticking out the top and enough room for the top.

(IMG:style_emoticons/default/idea.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Nov 2 2009, 04:49 PM
Post #11


914 Guru
*****

Group: Members
Posts: 8,879
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
The nuts I sent were oversize. You can use the stock nuts from the old ones.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bandjoey
post Nov 2 2009, 06:37 PM
Post #12


bandjoey
****

Group: Members
Posts: 4,925
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region
Ah the PO speaks up! Thanks for that. I'll check on a shorter one.
These are great shocks...like everything else I do, it only took 6 months to get around to putting these on. Yes to Bottom donut. I'm stop by my Flaps tomorrow for another size. TI was unsure about thinning the rubber down much since I don't know how much force is placed on them and what a thinner one would do.
