> 4 lug - anyone install studs and nuts, bolts suck : )
ChrisFoley
post May 8 2010, 06:07 PM
Post #21


I am Tangerine Racing
*****

Group: Members
Posts: 8,030
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(charliew @ May 8 2010, 07:06 PM) *

Chris are those rings a press fit in the rotor or are they trapped in between the rotor and hub?

Light press fit in the rotor center bore, snug fit in the wheel.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post May 8 2010, 07:39 PM
Post #22


Senior member, and old dude
****

Group: Members
Posts: 4,028
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California
QUOTE(Racer Chris @ May 8 2010, 05:07 PM) *

QUOTE(charliew @ May 8 2010, 07:06 PM) *

Chris are those rings a press fit in the rotor or are they trapped in between the rotor and hub?

Light press fit in the rotor center bore, snug fit in the wheel.

What is the weight?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post May 8 2010, 10:11 PM
Post #23


I am Tangerine Racing
*****

Group: Members
Posts: 8,030
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(burton73 @ May 8 2010, 09:39 PM) *

QUOTE(Racer Chris @ May 8 2010, 05:07 PM) *

QUOTE(charliew @ May 8 2010, 07:06 PM) *

Chris are those rings a press fit in the rotor or are they trapped in between the rotor and hub?

Light press fit in the rotor center bore, snug fit in the wheel.

What is the weight?

A couple of ounces
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jaxdream
post May 9 2010, 08:02 AM
Post #24


Senior Member
***

Group: Members
Posts: 974
Joined: 8-July 08
From: North Central Tennessee
Member No.: 9,270
Region Association: South East States
Are 2 L fuchs hubcentric ??? (IMG:style_emoticons/default/confused24.gif)

Jack / jaxdream

P.S. Racer Chris - great to see that you made steering hockey pucks out of Delrin , too late for me , but others should benefit!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post May 9 2010, 08:59 PM
Post #25


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region
http://www.race-studs.com/servlet/Categories

* correction >> seems i need M14 x 1.5 x 65mm for 4 lug fuchs.
edit - seems like 80mm stud is needed with 4 lug fuch to leave some thread showing.

* correction > and M14 spherical nuts.
edit - seems like nut must have R14 ball seat, not R13.

oh yeah - do i double nut to install them and would i use some version of loctite to hold them in place?

jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DanT
post May 9 2010, 09:11 PM
Post #26


Going back to the Dark Side!
****

Group: Members
Posts: 4,300
Joined: 4-October 04
From: Auburn, CA
Member No.: 2,880
Region Association: None
I believe you need 14x1.5 (IMG:style_emoticons/default/smile.gif)

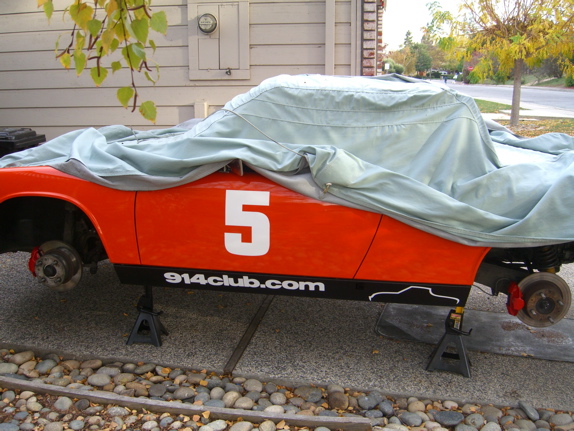

when I installed mine on the Puttputt, I used loctite red and double nutted them to get them in...
worked great. They never moved in over 3 years of lots of on and off with different tire/wheel combinations.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Elliot Cannon
post May 9 2010, 09:17 PM
Post #27


914 Guru
*****

Group: Retired Members
Posts: 8,487
Joined: 29-December 06
From: Paso Robles Ca. (Central coast)
Member No.: 7,407
Region Association: None
QUOTE(jimkelly @ May 9 2010, 07:59 PM) *

http://www.race-studs.com/servlet/Categories

seems i need M12 x 1.5 x 65mm for 4 lug fuchs.

and M12 spherical nuts.

* oh yeah - do i double nut to install them and would i use some version of loctite to hold them in place?

jim


My question as well. What keeps the lugs from backing out when you take the wheels off?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DanT
post May 9 2010, 09:26 PM
Post #28


Going back to the Dark Side!
****

Group: Members
Posts: 4,300
Joined: 4-October 04
From: Auburn, CA
Member No.: 2,880
Region Association: None
torque and loctite (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rav914
post May 10 2010, 01:44 PM
Post #29


All-weather fan
***

Group: Members
Posts: 741
Joined: 15-April 07
From: WA
Member No.: 7,669
Region Association: None
http://www.race-studs.com/servlet/Categories

For the 2.0 liter Fuchs, would I use the Porsche nuts or the spherical VW/Audi nuts?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post May 10 2010, 03:07 PM
Post #30


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region
i sure hope it does not matter as i ordered the black oxide nuts and the
M14x1.5 ACS Race Studs - 65mm - this morning - i have wanted studs for a long time.

m14x1.5 ball seat nut should all be the same fit - i hope.

jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DanT
post May 10 2010, 03:22 PM
Post #31


Going back to the Dark Side!
****

Group: Members
Posts: 4,300
Joined: 4-October 04
From: Auburn, CA
Member No.: 2,880
Region Association: None
those should work fine Jim....Spherical/ball seat I believe are interchangeable terms for the same thing.
As long as they are not cone seat you will be good. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
underthetire
post May 10 2010, 03:42 PM
Post #32


914 Guru
*****

Group: Members
Posts: 5,062
Joined: 7-October 08
From: Brentwood
Member No.: 9,623
Region Association: Northern California
QUOTE(scotty b @ May 8 2010, 04:10 PM) *

Chuck Norris just tells his wheels to stay on the car...and they do.............no nuts or studs needed

(IMG:style_emoticons/default/biggrin.gif)
But Chuck Norris is the ultimate stud!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post May 12 2010, 07:23 AM
Post #33


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region

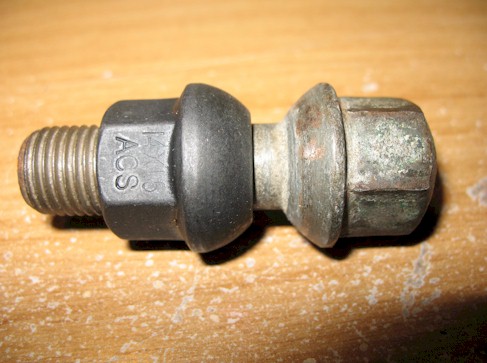

rav - seems like i should have ordered the porsche nuts

the lug is about 24mm wide and the nut is about 25mm wide

the lug seats perfectly into my 4 lug fuch but the nut does not.

according to the website - the porsche nut has a R14 ball seat ??

the one i ordered has a R13 ball seat ??

jim

QUOTE(Rav914 @ May 10 2010, 12:44 PM) *

http://www.race-studs.com/servlet/Categories

For the 2.0 liter Fuchs, would I use the Porsche nuts or the spherical VW/Audi nuts?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post May 12 2010, 07:30 AM
Post #34


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region

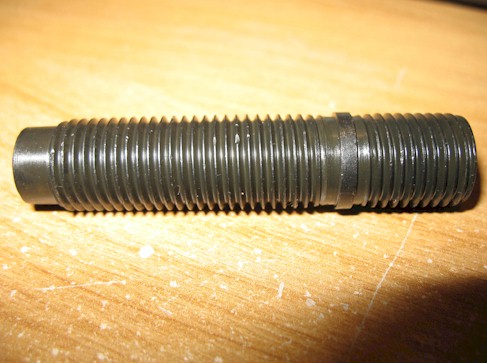

that said - i can not wait to get these studs installed : )


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post May 12 2010, 08:07 AM
Post #35


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region

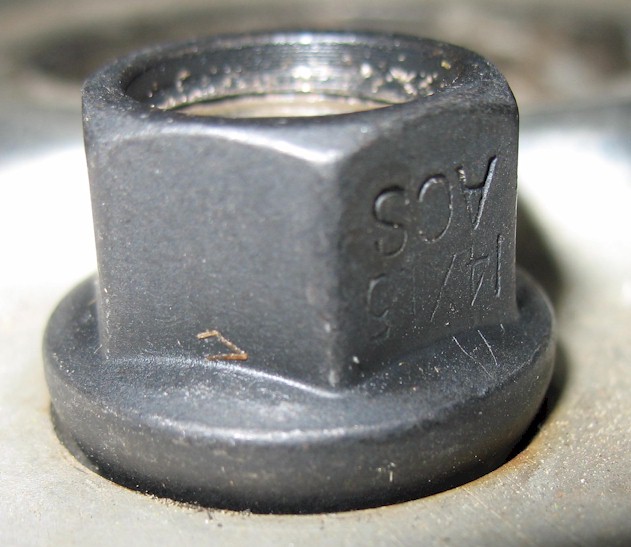

R13 seat ball


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rav914
post May 12 2010, 10:04 AM
Post #36


All-weather fan
***

Group: Members
Posts: 741
Joined: 15-April 07
From: WA
Member No.: 7,669
Region Association: None
Thanks for the info. I ordered the Porsche nuts, I'll let you know how they fit.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post May 12 2010, 10:07 AM
Post #37


I. I. R. C.
*****

Group: Members
Posts: 6,945
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
Just to be sure I'd take a Sharpie and totally black out the seat on the wheel, and then torque a nut on and see where you are getting contact. If it's a broad area you are OK, but if it shows a thin line it's a no workie.

FWIW, they do look correct from the pic.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris Pincetich
post May 12 2010, 10:39 AM
Post #38


B-)
****

Group: Members
Posts: 2,082
Joined: 3-October 05
From: Point Reyes Station, CA
Member No.: 4,907
Region Association: Northern California
(IMG:style_emoticons/default/agree.gif)
Ideally, the stud length/wheel/spacer combo will allow some threads to poke through the top of the open lug nut.

I JUST sold the wheels I owned that accept ball -seat lugs, PM me if you need a set that I bought from Pelican. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post May 12 2010, 11:36 AM
Post #39


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region
regarding threads showing past nut - the pic aboev is not mounted to car, just nut threaded on stud and dropped into wheel laying on ground - but i agree.

jim

QUOTE(ChrisNPDrider @ May 12 2010, 09:39 AM) *

(IMG:style_emoticons/default/agree.gif)
Ideally, the stud length/wheel/spacer combo will allow some threads to poke through the top of the open lug nut.

I JUST sold the wheels I owned that accept ball -seat lugs, PM me if you need a set that I bought from Pelican. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post May 12 2010, 12:35 PM
Post #40


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region

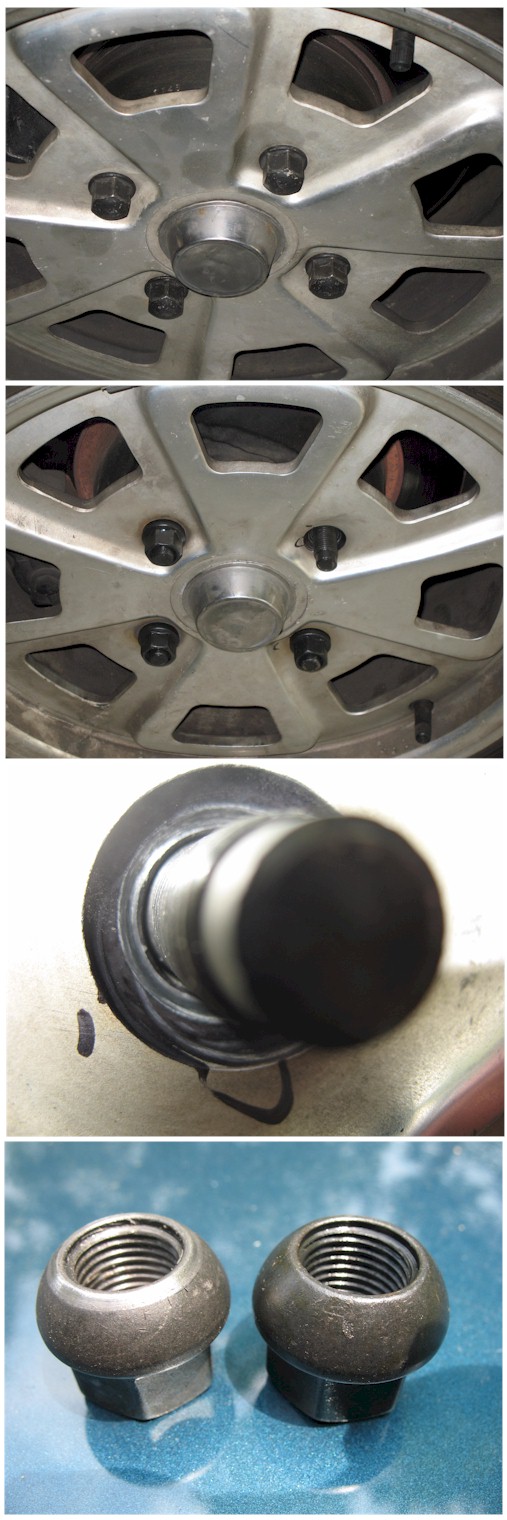

ok - i installed one set of studs and lugs - i black sharpeed on ball seat on the wheel - the lug to the left was the installed one ( see shiny leading edge ) vs never installed nut. my left nut is shiny : )


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
