> Fuel Evaporative Control System-AKA Charcoal Canister, More information than anyone wants to know
JeffBowlsby
post Jun 29 2010, 01:13 PM
Post #1


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

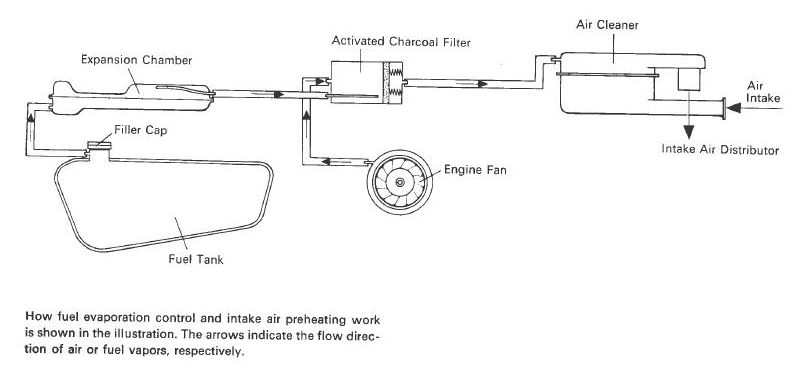

So how does this system work? Review these first two graphics from the factory repair manual to find out.

(PS I wonder why the forced induction guys dont't use the air from the fan housing to spin their turbos? (IMG:style_emoticons/default/confused24.gif))


Attached image(s)
Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 29 2010, 01:28 PM
Post #2


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



Then as a test, whats wrong with the charcoal conister installation on these diagrams? The first one is in the factory repair and Service and Training Manuals.

When you are done with this I have more...


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 29 2010, 01:29 PM
Post #3


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



(IMG:style_emoticons/default/biggrin.gif)


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 29 2010, 02:22 PM
Post #4


Resident German
*************************

Group: Admin
Posts: 41,924
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(Jeff Bowlsby @ Jun 29 2010, 12:28 PM) *

whats wrong with the charcoal conister installation on these diagrams?

They both show the air from the fan shroud go into the wrong end on the canister ...


The pressure side on the canister is on the side with the two nipples. Fresh air and vapors come in from the same side. The vapor/air mix is then expelled on the drivers side of the canister and routed to the engine air-filter housing ...


What do i win?
(IMG:style_emoticons/default/biggrin.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 29 2010, 02:39 PM
Post #5


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



Jahvol Mein Freund (IMG:style_emoticons/default/biggrin.gif)

Win? HA! This is a documentary...

But wait there is more. The later plastic case charcoal canisters can be opened up and the activated charcoal can be replaced (check Google for suppliers). This should be done...every 50K miles according to the repair manual.



Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Pat Garvey
post Jun 29 2010, 06:52 PM
Post #6


Do I or don't I...........?
*****

Group: Members
Posts: 5,899
Joined: 24-March 06
From: SE PA, near Philly
Member No.: 5,765
Region Association: North East States



Jeff, you know you had to open a "can 'o worms" here.

What about the older cars? I was told by the local PD (dealer) in about '75/76 that the canister was self healing, in that it would clear itself & rejuvinate itself over time - like I believed that!

Charcoal has limited capabilities of absorbing hydrocarbons. Yes, it works fine for a few yeas of normal driving, but then it becomes, in the case of these pellets. over absorbed.. I suppose after that some " parked time" the pellets could clear of hydrocarbons, but would then absorb ambient moisture. Bad? Not certain, but I think so. And, when that moisture is released to the chamber & tank, corroson might occur.

Now, I seem to remember that there was a maintenance bulletin that recommended changing the canister on the early cars at around 50K. By that time (one my 914) they were unavailable.

So, given that my 914 is 37 years old, and isn't required to have emission testing in PA, would I be better off bypassing the canister? Is it of any value at this point?
Pat

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 29 2010, 10:30 PM
Post #7


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



Well Pat...

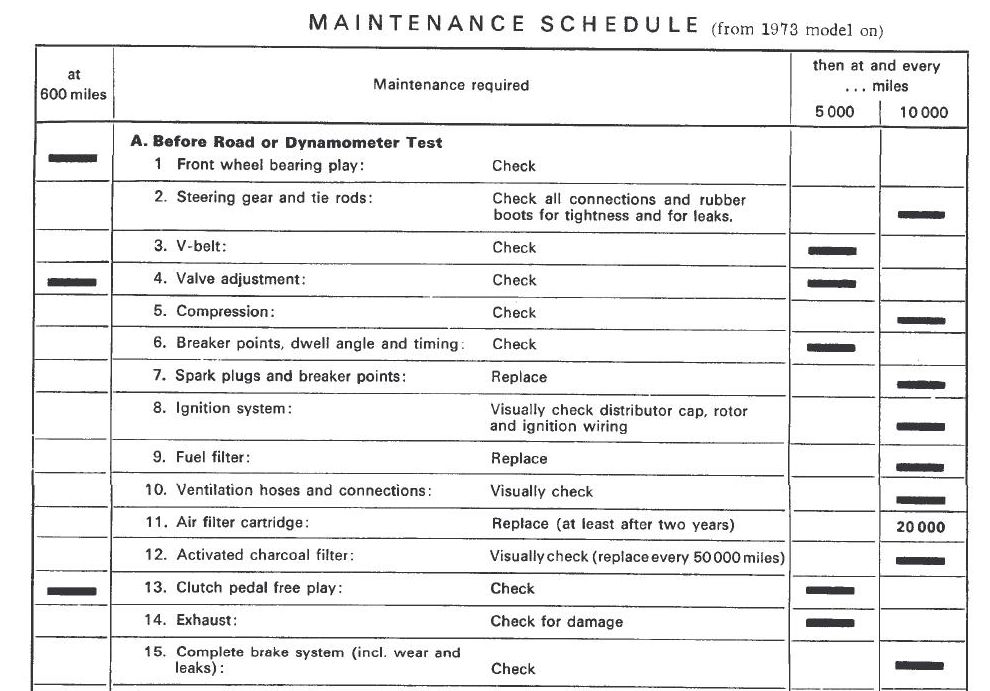

You can see the factory manual recomendaiton above indicating replacement at 50K intervals. Thats all I know. I dunno nuthin' 'bout the mineralogical properties of the activated charcoal, bet Google knows.

I believe its primarily an emissions thing...filtering raw hydrocarbons from the air (the fuel tank is not pressurized, its open to the atmosphere). If people smell gas in their cabins, it must be a faulty hose, loaded-up charcoal canister or some other flaw in the system.

OR, you could find an NOS charcoal canister correct for your model year...OR you could locate a later-issue <gasp> plastic canister and change out the charcoal as in the above picture.

Next chance I get I will post photos of the different styles of canister and their different locations...

How many different canister styles were their? How many different mounting locations? (IMG:style_emoticons/default/confused24.gif)

(IMG:style_emoticons/default/smile.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:03 AM
Post #8


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



How many different canister styles were their? How many different mounting locations?

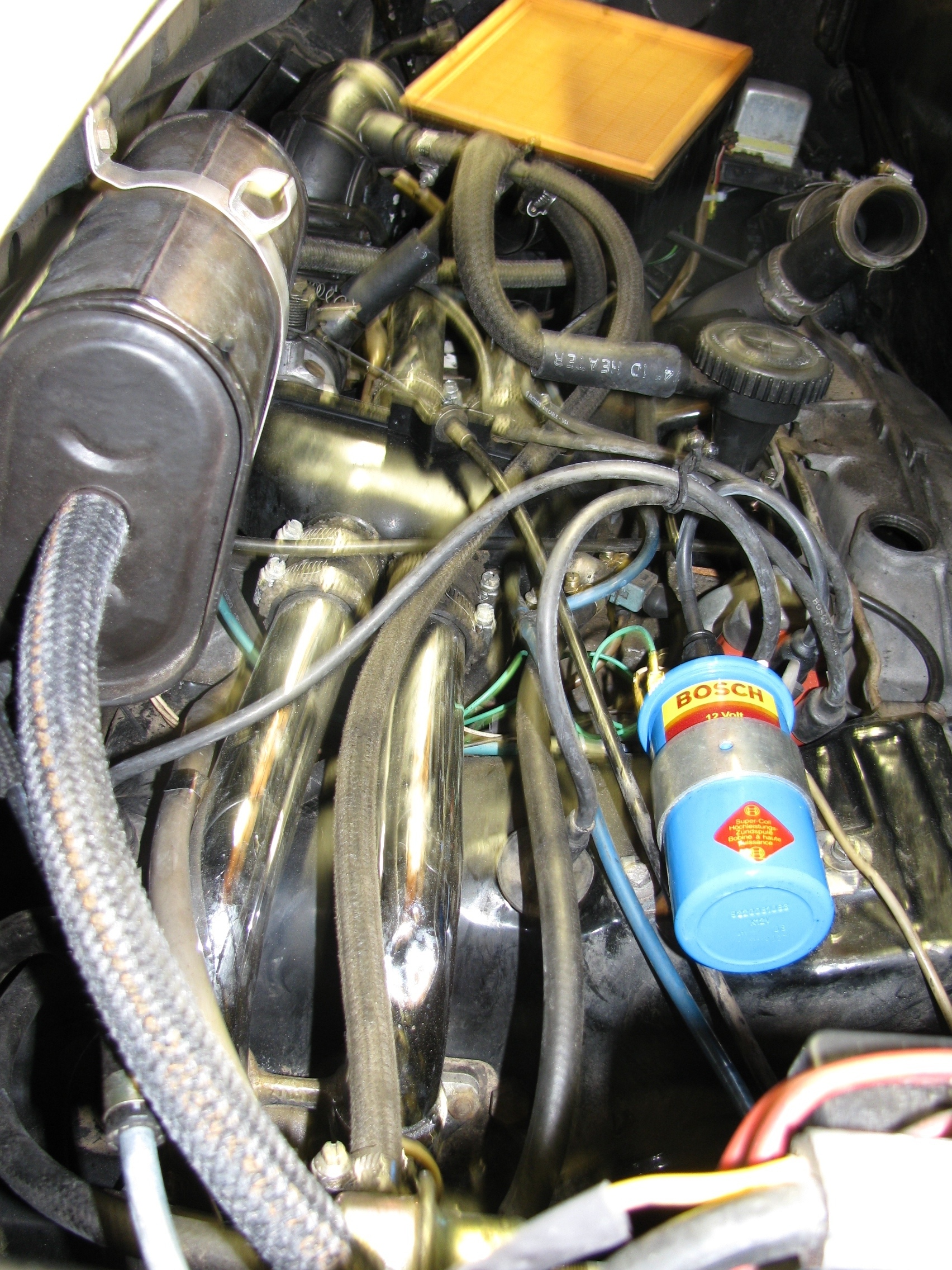

A 1970 model


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:04 AM
Post #9


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



VIN 4712908458


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:05 AM
Post #10


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



VIN 4722907659


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:05 AM
Post #11


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



VIN 4732903509


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:06 AM
Post #12


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



VIN 4732914926


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:06 AM
Post #13


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



VIN 4732926371


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:07 AM
Post #14


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



VIN 4742905929


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:07 AM
Post #15


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



VIN 4742915964


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:09 AM
Post #16


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



From the 1975 Service and Training Manual


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:09 AM
Post #17


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



VIN 4752903075


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 30 2010, 10:10 AM
Post #18


914 Wiring Harnesses
*****

Group: Members
Posts: 8,764
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



VIN 4762901268


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 30 2010, 10:37 AM
Post #19


Resident German
*************************

Group: Admin
Posts: 41,924
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(Pat Garvey @ Jun 29 2010, 05:52 PM) *
I suppose after that some " parked time" the pellets could clear of hydrocarbons, but would then absorb ambient moisture.

When i removed mine ('70 914-4), i opened it up to have a look inside. It was empty! (IMG:style_emoticons/default/huh.gif)

I guess after 30+ years, all the charcoal inside had turned to dust and was happily burned by my engine ...
(IMG:style_emoticons/default/popcorn[1].gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Peter Zimmermann
post Aug 23 2011, 04:11 PM
Post #20


Newbie
*

Group: Members
Posts: 11
Joined: 15-August 10
From: Bakersfield, CA
Member No.: 12,055
Region Association: None



QUOTE(SirAndy @ Jun 30 2010, 08:37 AM) *

QUOTE(Pat Garvey @ Jun 29 2010, 05:52 PM) *
I suppose after that some " parked time" the pellets could clear of hydrocarbons, but would then absorb ambient moisture.

When i removed mine ('70 914-4), i opened it up to have a look inside. It was empty! (IMG:style_emoticons/default/huh.gif)

I guess after 30+ years, all the charcoal inside had turned to dust and was happily burned by my engine ...
(IMG:style_emoticons/default/popcorn[1].gif) Andy



FWIW; this is the only suitable place I could find on my '74 1.8 (VIN 7173). There were no holes in the left side body to bring the lines forward from the shroud/air cleaner, and the car did have the 5mm plastic line in the tunnel. Result? No fuel smell at all in the car or garage.


Attached thumbnail(s)
Attached Image
