> New Product, Specialty tool
ChrisFoley
post Sep 8 2010, 03:10 PM
Post #1


I am Tangerine Racing
*****

Group: Members
Posts: 7,986
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
I was tired of the axle shafts hanging down on a car with the engine removed a long time ago.
I've used bungees, coat hangers, tie downs, etc. to hold them up out of the way while crawling about under the car.
Its even worse when you have to move the car and the halfshafts bang around, sometimes jamming a CV joint.
Some time ago I came up with the idea of using a 2 ft. piece of cardboard tube over the inner CVs to keep them together but the tube rolls off to one side quickly and one axle falls out.
Its only a minor irritation but with the number of cars we have at the shop which are engine-less, often needing to be pushed around from one area to another, I wanted a better solution.
So here it is:

Attached Image

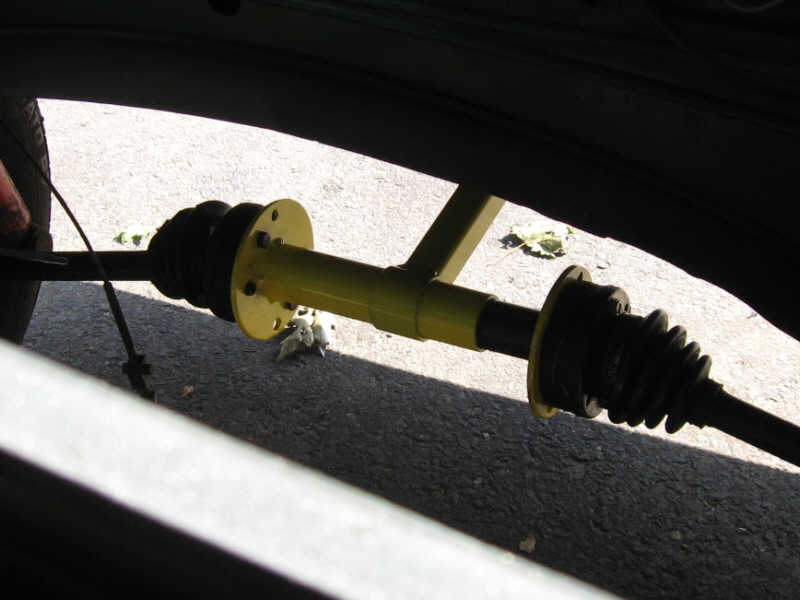

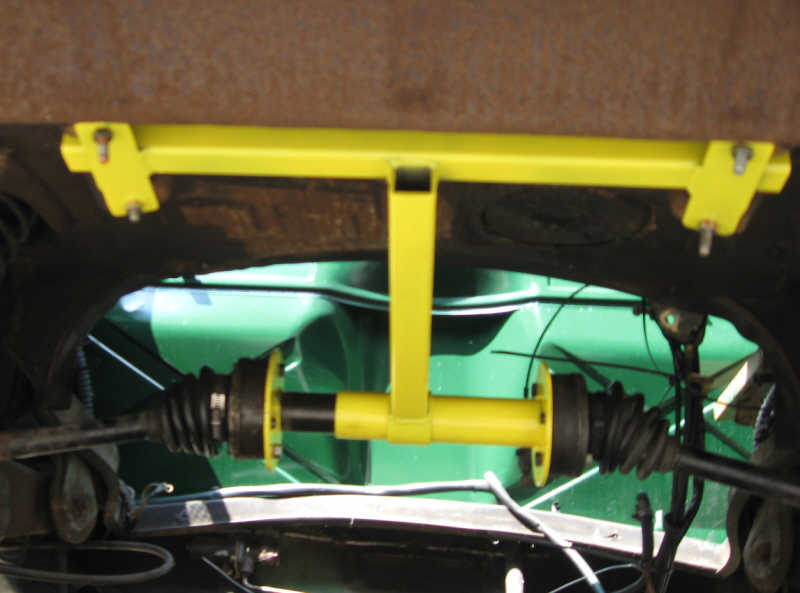

The bracket bolts to the rear trans mounts, and the flange/tube assembly acts like an open diff. The flanges will have bolt holes for 3 different CV sizes often used on 914s.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
smontanaro
post Sep 8 2010, 03:21 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,190
Joined: 3-June 05
From: Evanston, IL
Member No.: 4,197
Region Association: Upper MidWest
Cool... And it's yellow. Will it make engine-less teeners go faster???

S
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AndyB
post Sep 8 2010, 03:25 PM
Post #3


The Governor is watching me
***

Group: Members
Posts: 1,115
Joined: 10-April 10
From: Philadelphia New York
Member No.: 11,595
Region Association: North East States
(IMG:style_emoticons/default/biggrin.gif) Chris I could just leave the drive train in there for you if that would make it easier?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bruce Hinds
post Sep 8 2010, 03:30 PM
Post #4


V-8 madness
***

Group: Members
Posts: 748
Joined: 27-December 06
From: Port Orchard, WA
Member No.: 7,391
Region Association: Pacific Northwest
doesn't look like the right side will rotate... how does the car roll? (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Sep 8 2010, 03:31 PM
Post #5


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
I don't want to admit that I could have used one of these a couple years ago...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Sep 8 2010, 03:37 PM
Post #6


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
That's pretty cool! (IMG:style_emoticons/default/first.gif)

Make sure you include a big note in the package "NOT FOR TOWING USE". (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Sep 8 2010, 03:41 PM
Post #7


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(Bruce Hinds @ Sep 8 2010, 05:30 PM) *

doesn't look like the right side will rotate... how does the car roll? (IMG:style_emoticons/default/idea.gif)

Take a better look, the two sides move independent of each other. Chris did that as a low tech diff so you're not fighting a solid shaft when turning corners.

Good job!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 8 2010, 03:49 PM
Post #8


I am Tangerine Racing
*****

Group: Members
Posts: 7,986
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(McMark @ Sep 8 2010, 05:37 PM) *

That's pretty cool! (IMG:style_emoticons/default/first.gif)

Make sure you include a big note in the package "NOT FOR TOWING USE". (IMG:style_emoticons/default/wink.gif)


LOL, Ed already brought that up. No need for a teener being towed to end up on WreckedExotics.com

QUOTE
doesn't look like the right side will rotate... how does the car roll?

The assembly comprises three independent sleeves. It works perfectly.
I wish I had thought of this a long time ago. We already have 2 prototypes in use and a third nearly ready for service.
Now I just have to figure out a way to make them cheap enough that a few of you guys will buy them. (IMG:style_emoticons/default/wink.gif)

QUOTE
Cool... And it's yellow. Will it make engine-less teeners go faster???

I was planning to go with orange for production but since we are now doing our own powdercoating in-house I have options. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Sep 8 2010, 03:50 PM
Post #9


914 Wizard
**********

Group: Members
Posts: 10,824
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
I had a car delivered with the axles flopping around on a mega motor swap weekend, so I came up with this, held up for a 40 mile tow,on two different cars.
(notfortowing) but worked fine.
http://www.914world.com/bbs2/index.php?s=&...t&p=1362714
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
hot_shoe914
post Sep 8 2010, 05:11 PM
Post #10


on ramp passer
****

Group: Members
Posts: 3,806
Joined: 20-November 07
From: Earle, Ar.
Member No.: 8,354
Region Association: None
QUOTE(McMark @ Sep 8 2010, 04:37 PM) *

That's pretty cool! (IMG:style_emoticons/default/first.gif)

Make sure you include a big note in the package "NOT FOR TOWING USE". (IMG:style_emoticons/default/wink.gif)

You just spoiled all of my fun! (IMG:style_emoticons/default/mad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Sep 8 2010, 06:57 PM
Post #11


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 126,371
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Chris, you've done it again....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mr.242
post Sep 8 2010, 10:10 PM
Post #12


May your glass be smaller so it's always FULL!
***

Group: Members
Posts: 1,079
Joined: 10-June 08
From: Seattle
Member No.: 9,160
Region Association: Pacific Northwest
I have ONE more idea and you can take it off the price of mine when I order it.

Deal?


Well, here it is.........................................


Drill two independant holes that accept hitch pins or grade 8 bolts. This will allow for the locking of the unit that doesn't allow it to rotate. Then you can break the castle nuts on the outside AFTER the motor has been removed! (the two bolts also keep it together for storage =bonus!)

It can also act as a LOCK to keep the car from rolling....


(IMG:style_emoticons/default/beerchug.gif)

I will take a powder coated ORANGE one! (IMG:style_emoticons/default/first.gif)

Mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Sep 8 2010, 10:28 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712


Chris
Thats a great idea. Kremer used a similar device to "transport" engineless 935's.
Funny thing though... that tooling yellow looks familiar. Did you pirate those square tubes from a pickup jig? (inside humor only Chris will understand)

Jeff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 16 2010, 01:41 PM
Post #14


I am Tangerine Racing
*****

Group: Members
Posts: 7,986
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(Jeff Hail @ Sep 9 2010, 12:28 AM) *

Chris
Thats a great idea. Kremer used a similar device to "transport" engineless 935's.
Funny thing though... that tooling yellow looks familiar. Did you pirate those square tubes from a pickup jig? (inside humor only Chris will understand)

Jeff

I guess great minds think alike, lol.

Heheh.
Actually Jeff, we repaired that fixture. I think we still have it here.
My fabricator had a bottle of yellow powder he was trying to finish off.

This may not be a big seller to individuals but it could be a big benefit to shops with long term projects.
A friend with an SC thought I should design one for a 911 too. The spool would be the same.

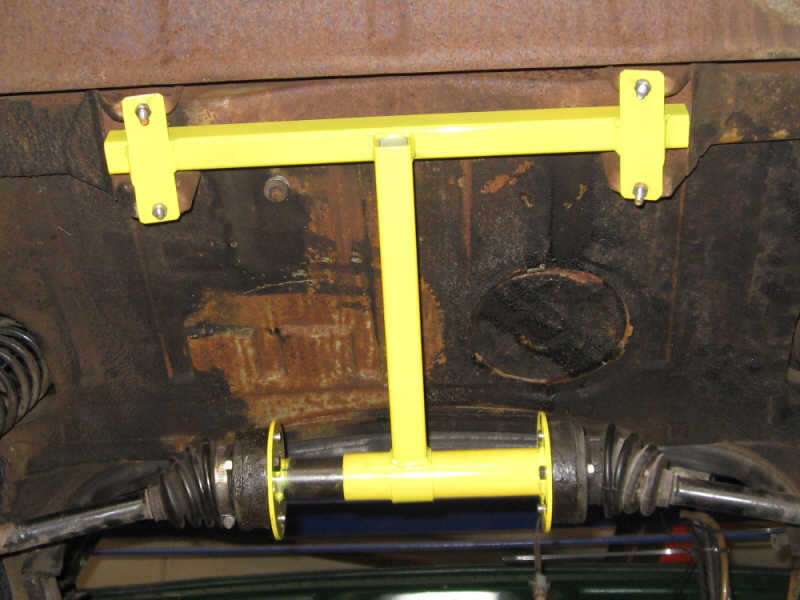

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 16 2010, 01:49 PM
Post #15


I am Tangerine Racing
*****

Group: Members
Posts: 7,986
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(Mr.242 @ Sep 9 2010, 12:10 AM) *

I have ONE more idea and you can take it off the price of mine when I order it.

Deal?


Well, here it is.........................................


Drill two independant holes that accept hitch pins or grade 8 bolts. This will allow for the locking of the unit that doesn't allow it to rotate. Then you can break the castle nuts on the outside AFTER the motor has been removed! (the two bolts also keep it together for storage =bonus!)

It can also act as a LOCK to keep the car from rolling....


(IMG:style_emoticons/default/beerchug.gif)

I will take a powder coated ORANGE one! (IMG:style_emoticons/default/first.gif)

Mark

Ooh, I don't think I want to try implementing that idea. Those nuts take too much force for the fixture to withstand.
But I'll give you the $.02 off anyway. (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mr.242
post Jan 3 2011, 06:33 PM
Post #16


May your glass be smaller so it's always FULL!
***

Group: Members
Posts: 1,079
Joined: 10-June 08
From: Seattle
Member No.: 9,160
Region Association: Pacific Northwest
Wondering if this product ever came into production?

Also, what does it take to remove the shafts from the trailing arms?

If the CV joints are removed can the car still be rolled? sorry, such a FNG question. (IMG:style_emoticons/default/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Jan 3 2011, 07:38 PM
Post #17


I am Tangerine Racing
*****

Group: Members
Posts: 7,986
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(Mr.242 @ Jan 3 2011, 07:33 PM) *

Wondering if this product ever came into production?

Could be any time now.
QUOTE

Also, what does it take to remove the shafts from the trailing arms?

You can unbolt the stub axle using a big ass wrench or reach into the hole in the back side of the trailing arm and remove the four 12 point bolts that hold the CV to the stub axle.
QUOTE

If the CV joints are removed can the car still be rolled?

Its not wise to move the car without stub axles bolted into the hubs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
