> new gas pedal, one that stays attached!
JayB
post Sep 23 2010, 08:02 PM
Post #1


Newbie
*

Group: Members
Posts: 13
Joined: 29-June 10
From: Oak Ridge, NJ
Member No.: 11,891
Region Association: North East States

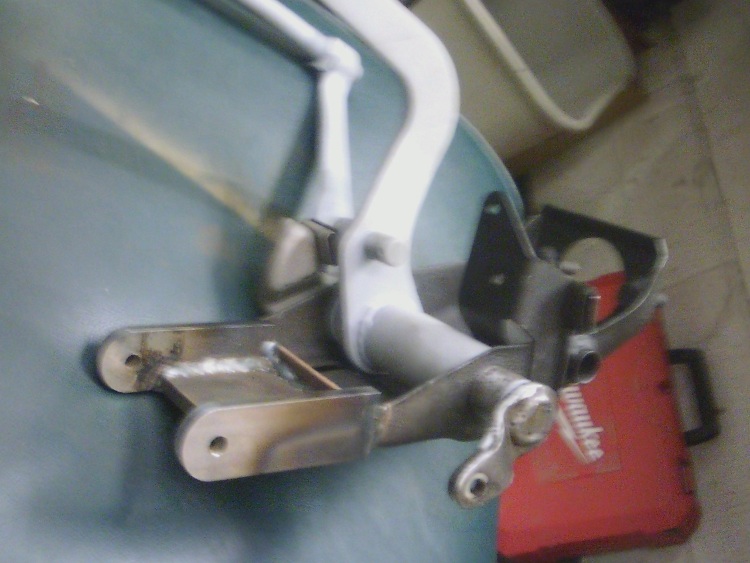

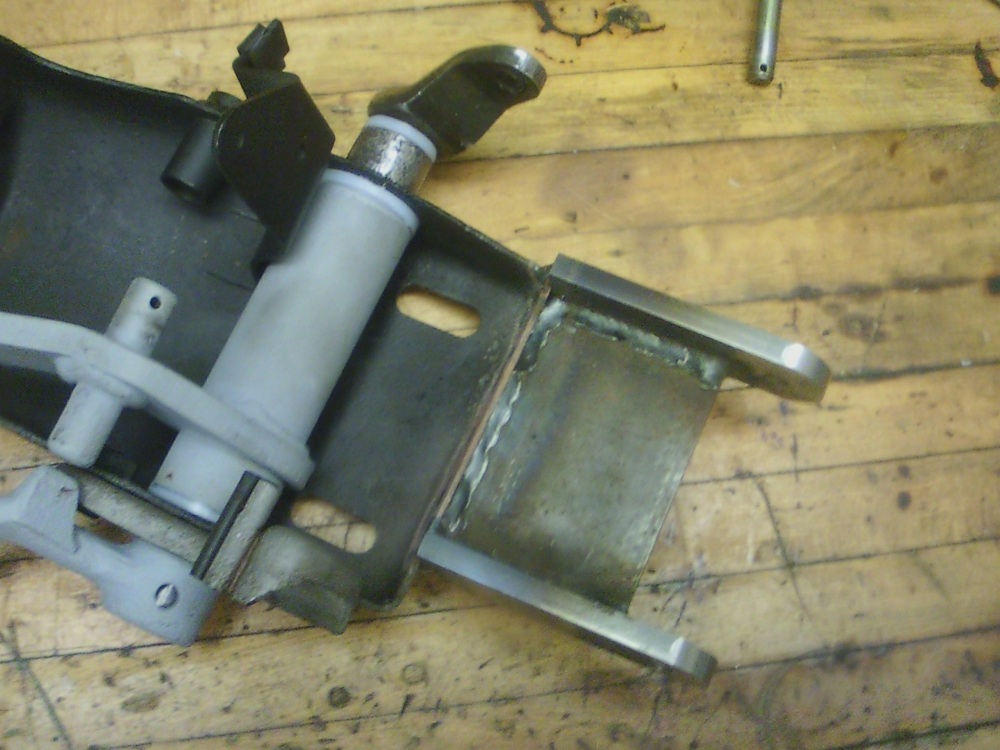

After taking out the pedal assembly to machine some new bushings and clean it up a bit, i decided to get rid of the horrible gas pedal situation while i was at it. so i came up with this...

Attached Image
Attached Image

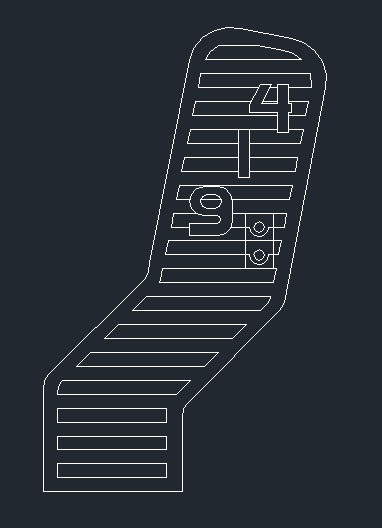

I wanted to keep everything together as one unit, no more of this bolting the pedal down separately stuff. As you can see its a work in progress. Heres the pedal design:

Attached Image

Ill machine it out of aluminum hopefully this weekend.
the best part: a real tie rod that has no chance of falling off (IMG:style_emoticons/default/laugh.gif)
if there's interest, i would do a whole rebuild of other peoples' assemblies with UHM bushings and this new pedal.

unless of course no one else besides me is having problems with theres, which may very well be the case!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Sep 23 2010, 08:04 PM
Post #2


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
Can you make a chrome bare foot?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JayB
post Sep 23 2010, 08:09 PM
Post #3


Newbie
*

Group: Members
Posts: 13
Joined: 29-June 10
From: Oak Ridge, NJ
Member No.: 11,891
Region Association: North East States
i suppose if enough people wanted it. It would probably be a real pain to program though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Sep 23 2010, 08:19 PM
Post #4


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
I looks AWESOME! But doesn't the floor pan rise up, just behind* the pedal cluster?


*behind, as in towards the back of the car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JayB
post Sep 23 2010, 08:28 PM
Post #5


Newbie
*

Group: Members
Posts: 13
Joined: 29-June 10
From: Oak Ridge, NJ
Member No.: 11,891
Region Association: North East States
Thanks! i think it does, but its mounted to clear it. All i do know is that it fits in no problem!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
strawman
post Sep 25 2010, 10:24 AM
Post #6


Senior Member
***

Group: Members
Posts: 885
Joined: 25-January 08
From: Los Osos, CA
Member No.: 8,624
Region Association: Central California
Since you're in there already, I'd suggest replacing the plastic bushings with bronze ones. I've got an extra set that I'll sell for $15 including shipping... PM me if you're interested.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nsr-jamie
post Sep 25 2010, 10:53 AM
Post #7


914 guy in Japan
***

Group: Members
Posts: 1,182
Joined: 7-November 07
From: Nagoya, Japan
Member No.: 8,305
Region Association: None
QUOTE(JayB @ Sep 24 2010, 11:09 AM) *

i suppose if enough people wanted it. It would probably be a real pain to program though.


I don' think it would be that hard to make a program for it to run in NC code....our CAM programs take care of all that for you and its 2D so should not be that hard. You will need to make 2 programs for it, first from the bottom and add some tap drills for it to fit to some kind of holder or jig for the second machining process when you flip it over and machine it again for the second run...its hard to tell in the picture but if its a flat 2D pedal should be simple to make, if its a pedal with an arc or any 3D work you will need to machine a larger piece of material (alluminum?) and would increase cost more but the programing would still be quite easy.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JayB
post Sep 25 2010, 12:54 PM
Post #8


Newbie
*

Group: Members
Posts: 13
Joined: 29-June 10
From: Oak Ridge, NJ
Member No.: 11,891
Region Association: North East States
i already machined a set of UHM bushings, but thanks anyway. Is bronze that much better than UHM though?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JayB
post Sep 25 2010, 12:58 PM
Post #9


Newbie
*

Group: Members
Posts: 13
Joined: 29-June 10
From: Oak Ridge, NJ
Member No.: 11,891
Region Association: North East States
and jamie, i havent had much luck getting my CNC to communicate with a computer, so its all manual entry for now. (IMG:style_emoticons/default/wacko.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Sep 25 2010, 02:20 PM
Post #10


The rubber man
**********

Group: Members
Posts: 12,738
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
This is an excellent solution to a crappy design. But do check the fit, it looks like you may want to take a little off the bottom.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
underthetire
post Sep 25 2010, 02:44 PM
Post #11


914 Guru
*****

Group: Members
Posts: 5,062
Joined: 7-October 08
From: Brentwood
Member No.: 9,623
Region Association: Northern California
QUOTE(JayB @ Sep 25 2010, 11:58 AM) *

and jamie, i havent had much luck getting my CNC to communicate with a computer, so its all manual entry for now. (IMG:style_emoticons/default/wacko.gif)



If you have a "real" cnc control, I can probably help you with the RS232. I am/was a CNC controls tech for Mori seiki and Okuma, and do retrofits now for a large company.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JayB
post Sep 25 2010, 09:18 PM
Post #12


Newbie
*

Group: Members
Posts: 13
Joined: 29-June 10
From: Oak Ridge, NJ
Member No.: 11,891
Region Association: North East States
QUOTE(Mikey914 @ Sep 25 2010, 04:20 PM) *

This is an excellent solution to a crappy design. But do check the fit, it looks like you may want to take a little off the bottom.


It already fits perfectly, but i'll get it finished and mounted and use it for a while to make sure it doesnt interfere with anything.


QUOTE(underthetire @ Sep 25 2010, 04:44 PM) *

If you have a "real" cnc control, I can probably help you with the RS232. I am/was a CNC controls tech for Mori seiki and Okuma, and do retrofits now for a large company.


Ill just warn you now, its not as easy as it sounds! i had a pro come in twice to try to set it up, and he got it working for a little while, but then it stopped and he couldnt fix it again. if you want to take on the challenge, thanks a bunch! if so ill give you some more details.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
