> Brake Caliper Restoration Service, "We don't rebuild your calipers... we restore them."
Eric_Shea
post Oct 11 2010, 07:58 PM
Post #1


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
"We don't rebuild your calipers... we restore them."

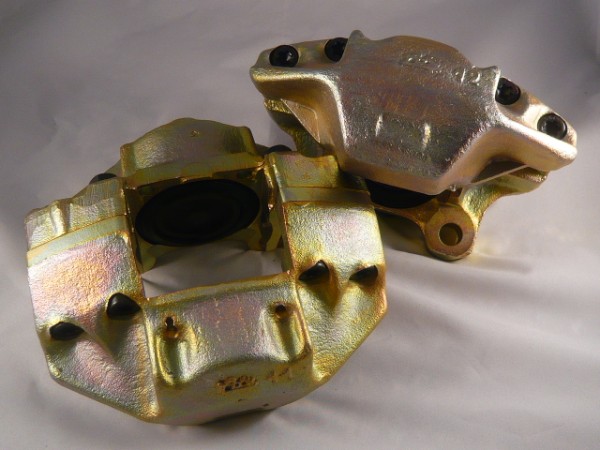

Early 914 Fronts $349.00 Per Pair: Click Here to Learn More
Attached Image

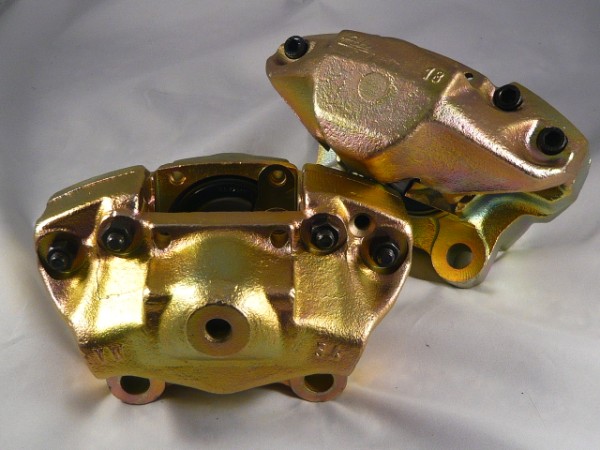

Late 914 Fronts $349.00 Per Pair: Click Here to Learn More
Attached Image

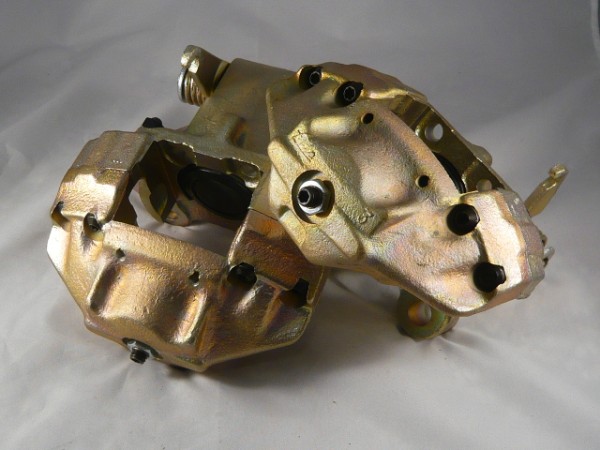

Early 914 Rears $349.00 Per Pair: Click Here to Learn More
Attached Image

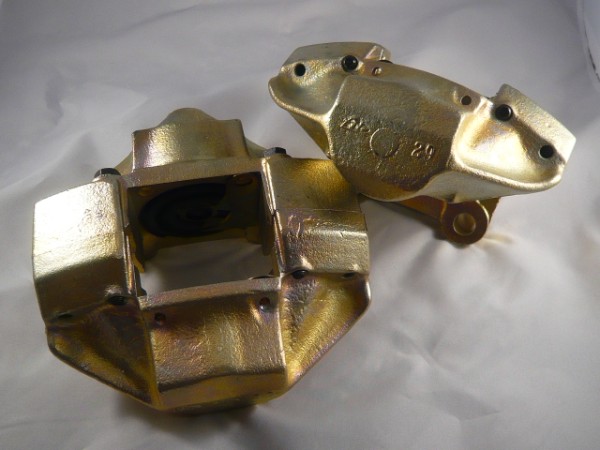

Late 914 Rears $349.00 Per Pair: Click Here to Learn More
Attached Image

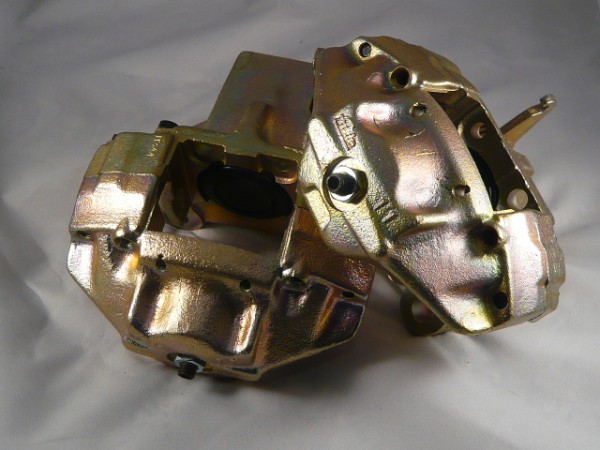

914-6 Fronts $349.00 Per Pair: Click Here to Learn More
Attached Image

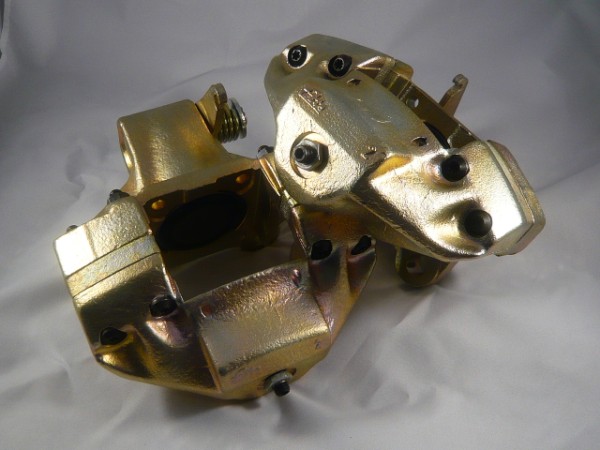

Specializing in 914-6 and 914-6/GT Rear Calipers $349.00 Per Pair: Click Here to Learn More
Attached Image

Why have us restore your brakes?

Very simple. Because we do it right. The way the factory did it. The way it should be done for many reasons. Here's some common questions:

"Why not just "paint" the calipers?"

1. Paint only protects the outside of the caliper... not very well and only temporarily.
2. Paint comes off with odd things like... brake fluid and brake cleaner.
3. Zinc is the factory finish and has superior corrosion protection.
4. Zinc re-plates the bore, which it probably needs it by now.

Rebuilders that paint calipers do so because zinc is expensive. They can easily slap on a coat of paint on "in-house" and it speeds up the process. They can even call it cool things like "Ceramic" or "Polymer" etc. If you want your calipers done right they will need to be zinc coated like the day they left the ATE factory.

"Why not buy the el cheapo mass-rebuilt, assembly line calipers other parts vendors are pushing on me?"

1. Those things cost those vendors $35.00 each. They're pushing them because there's big money to be made off you.
2. The caliper bodies are vibratory tumble polished. They put them in a huge bin of media and polish all of the finish off them. Then they get an oil bath. That's it! There is "no" protective finish on them at all! Give it a few years and your bargin calipers will literally be covered with rust. We've seen hundreds of them. The ones that come from the big-box rebuilders are almost unusable in a few short years.

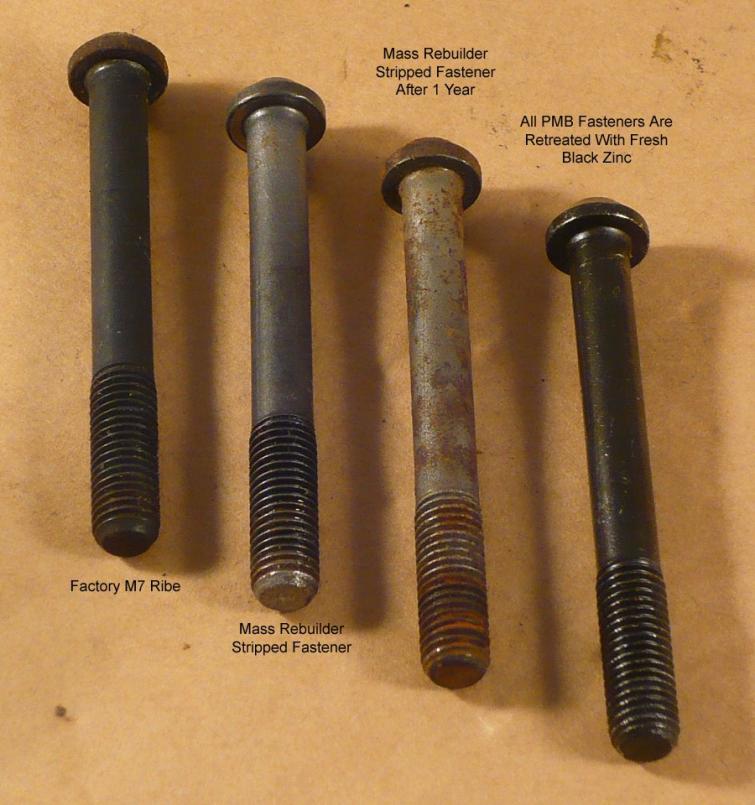

3. The same process applies to your "vital" fasteners. We've seen some fasteners about to rust right through (see picture below)
4. And finally, mass production can lead to mass-problems. We've actually seen pistons in backward. Your piston step needs to be set at a precise 20 degree angle to help eliminate pad squeal. We've seen the wrong calipers delivered (there's many VW deriviatives of some of these calipers). We've seen handbrake arms with the wrong springs set to them... meaning; your handbrake is on all the time!

Attached Image

The real benifit of zinc is the sacrificial coating properties. Zinc, by nature, will attract oxidents and literally save the metal it is protecting. Even if it is scratched off the zinc will continue to protect the steel it encapsulates. We've restored 46 year old calipers and have them come out looking brand new. All thanks to the protective properties of the zinc coating applied those many years back.

Zinc also helps protect your piston bore. While the bore is not a sealing surface, it can get wear from the piston. Wear, lack of fluid changes and rusty caliper shellac will cause a caliper to stick. This usually happens just above the seal where moisture can get in. Other rebuilders use a hone to clean out your caliper bore. We recommend against that as it leaves a fresh steel on steel surface (bore and piston). The zinc bath leaves a perfect factory finish on the inside of your caliper bore. All in all, the process will clean and replate the entire caliper and make everything good for another 30-40 years.

Now you know what we mean when we say "We don't rebuild your calipers... we restore them."
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jan 1 2011, 01:50 PM
Post #2


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Thanks for your support and for making it a great 2010!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jan 1 2011, 08:18 PM
Post #3


Michael
*****

Group: Members
Posts: 9,703
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
I have a set of late "S" aluminum front calipers going to Eric soon so they will be as perfect as my 914-6 rear calipers he restored. I just have to wait until my 914-6 budget gets back in line. 4th quarter taxes, Christmas, etc....
User is online!Profile CardPM
Go to the top of the page
+Quote Post
porbmw
post Jan 4 2011, 12:45 AM
Post #4


Senior Member
***

Group: Members
Posts: 811
Joined: 10-September 08
From: Vancouver, B.C.
Member No.: 9,534
Region Association: None
Eric!
Picked up the fronts and rears for the 6 about 10 days ago.
Haven't seen fresh, NOS sets...but I can't imagine they look nearly as good as the ones you restored.
Absolutely beautiful!
Thanks so much
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jjackson
post Jan 8 2011, 06:52 AM
Post #5


Member
**

Group: Members
Posts: 219
Joined: 5-October 10
From: maumelle, arkansas
Member No.: 12,246
Region Association: None
Eric,
Currently run 944 turbo fronts on 1900lb autocross car.Run stock rears.Based on piston size, what would you recommend in rear.We run carbotech pads.Never upgraded any further.J
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jan 20 2011, 07:29 AM
Post #6


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
Based on piston size, what would you recommend in rear.We run carbotech pads.Never upgraded any further


951 rears. Your stock rears are probably not really working all that much at this point.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jjackson
post Jan 20 2011, 08:25 AM
Post #7


Member
**

Group: Members
Posts: 219
Joined: 5-October 10
From: maumelle, arkansas
Member No.: 12,246
Region Association: None
QUOTE(Eric_Shea @ Jan 20 2011, 07:29 AM) *

QUOTE
Based on piston size, what would you recommend in rear.We run carbotech pads.Never upgraded any further


951 rears. Your stock rears are probably not really working all that much at this point.

Thanks for the information.Do not feel that the rears are currently effective.J
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
70-914nut
post May 8 2011, 11:59 AM
Post #8


Member
**

Group: Members
Posts: 119
Joined: 15-March 11
From: Elizabeth city nc
Member No.: 12,826
Region Association: None
Hi i need my 70 914 front calipers done but here it says 269.00 but the website 369.00 which is correct?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 9 2011, 08:19 PM
Post #9


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Both... one has a core charge added to the credit card sale.

(check the page on the site for this):

***PRICE IS PER PAIR. IT INCLUDES A $100 CORE CHARGE THAT WILL BE REFUNDED UPON RETURN OF YOUR USABLE CORES***
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
70-914nut
post Jun 4 2011, 07:50 AM
Post #10


Member
**

Group: Members
Posts: 119
Joined: 15-March 11
From: Elizabeth city nc
Member No.: 12,826
Region Association: None
pm sent eric
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Mar 7 2012, 01:29 PM
Post #11


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
We also do A-Calipers for 911SC front suspensions:

(IMG:http://www.914world.com/bbs2/uploads_offsite/www.pmbperformance.com-1110-1331148565.1.jpg)

And S-Calipers for 911S front suspensions:

(IMG:http://www.914world.com/bbs2/uploads_offsite/www.pmbperformance.com-1110-1331148565.2.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChicagoPete
post Mar 7 2012, 05:38 PM
Post #12


Member
**

Group: Members
Posts: 227
Joined: 10-January 05
From: Lake Forest,IL
Member No.: 3,427
QUOTE(Eric_Shea @ Mar 7 2012, 01:29 PM) *

We also do A-Calipers for 911SC front suspensions:

(IMG:http://www.914world.com/bbs2/uploads_offsite/www.pmbperformance.com-1110-1331148565.1.jpg)

And S-Calipers for 911S front suspensions:

(IMG:http://www.914world.com/bbs2/uploads_offsite/www.pmbperformance.com-1110-1331148565.2.jpg)


Eric, Those S Calipers look incredible. The 908 version is even better!

Am I the only person that thinks these look better sitting on my office desk than installed on a car??

Kind of like the quality of work that Harvey does on a set of Fuchs...I just love admiring this stuff!

Great work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Mar 8 2012, 11:26 AM
Post #13


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Thanks Pete... that's lofty company indeed. (IMG:style_emoticons/default/blush.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Mar 28 2012, 10:34 AM
Post #14


"I got blisters on me fingers"
*****

Group: Members
Posts: 9,995
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Hey Eric aside from the single/dual bleeder difference is there anything particularly beneficial or advantageous with using the early vs late 914 rear caliper? IE aside from "correctness" for the MY application couldn't you swap early for late R. calipers w/o issue?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Mar 29 2012, 06:24 AM
Post #15


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE(rdauenhauer @ Mar 28 2012, 10:34 AM) *

Hey Eric aside from the single/dual bleeder difference is there anything particularly beneficial or advantageous with using the early vs late 914 rear caliper? IE aside from "correctness" for the MY application couldn't you swap early for late R. calipers w/o issue?


Rear calipers are interchangeable. Early have 7mm adjusters and late have 10mm adjusters. I don't see any advantages of one over the other so... Other than that and what you noted, they are totally interchangeable.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Mar 29 2012, 08:19 PM
Post #16


Advanced Member
****

Group: Members
Posts: 3,430
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None

Aha! (IMG:style_emoticons/default/biggrin.gif)

pete
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jun 17 2012, 02:35 PM
Post #17


"I got blisters on me fingers"
*****

Group: Members
Posts: 9,995
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Hey Eric are these available?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 18 2012, 08:08 AM
Post #18


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
yes...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jun 18 2012, 05:25 PM
Post #19


"I got blisters on me fingers"
*****

Group: Members
Posts: 9,995
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
QUOTE(Eric_Shea @ Jun 18 2012, 07:08 AM) *

yes...



Uh, (IMG:style_emoticons/default/blink.gif) Ok...are the details a secret?
Let me clarify : are the caps available outside of purchasing the $40 seal kit?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 23 2012, 12:30 PM
Post #20


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
maybe... (IMG:style_emoticons/default/lol3.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
