> 1975 relay board yellow wire
Geezer914
post Oct 21 2010, 07:17 AM
Post #1


Geezer914
***

Group: Members
Posts: 1,904
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States

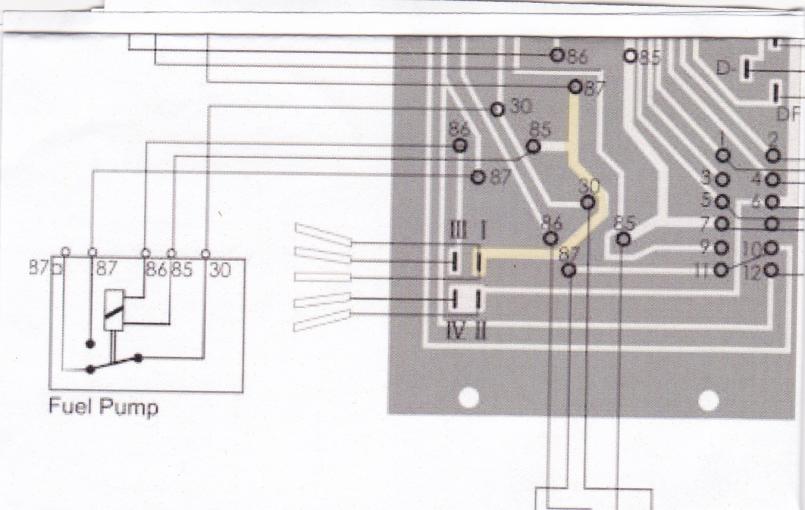

Attached ImageWhich terminal does the yellow wire plug into I or III?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Oct 21 2010, 07:39 AM
Post #2


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California



Look at the rest of the wiring diagram. It's available on the Bird Board, I believe.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Oct 21 2010, 08:16 AM
Post #3


Get that VIN ?
*****

Group: Members
Posts: 9,676
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California

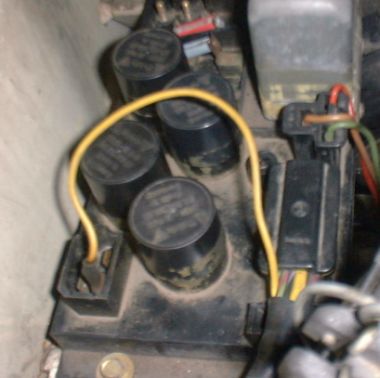

The Yellow wire on my '75 relay board goes to IV


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Oct 21 2010, 09:14 AM
Post #4


914 Guru
*****

Group: Members
Posts: 8,158
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



yup right rear. For all 1.8 models.



QUOTE(jim_hoyland @ Oct 21 2010, 07:16 AM) *

The Yellow wire on my '75 relay board goes to IV

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Oct 21 2010, 10:50 AM
Post #5


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,269
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



QUOTE(dr914@autoatlanta.com @ Oct 21 2010, 10:14 AM) *

yup right rear. For all 1.8 models.



QUOTE(jim_hoyland @ Oct 21 2010, 07:16 AM) *

The Yellow wire on my '75 relay board goes to IV




It can plug into either rear connector. Also makes an easy way to crank the engine. Just feed power there and the starter engages.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Oct 21 2010, 12:11 PM
Post #6


Geezer914
***

Group: Members
Posts: 1,904
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States



Thanks for the reply's!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Oct 21 2010, 12:53 PM
Post #7


Get that VIN ?
*****

Group: Members
Posts: 9,676
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



QUOTE(ClayPerrine @ Oct 21 2010, 09:50 AM) *

QUOTE(dr914@autoatlanta.com @ Oct 21 2010, 10:14 AM) *

yup right rear. For all 1.8 models.



QUOTE(jim_hoyland @ Oct 21 2010, 07:16 AM) *

The Yellow wire on my '75 relay board goes to IV




It can plug into either rear connector. Also makes an easy way to crank the engine. Just feed power there and the starter engages.


(IMG:style_emoticons/default/idea.gif) If the coil and that rear connector get 12v, it's gonna start ?
