> Engine Case Terminology, Please help a super novice learn!
tornik550
post Dec 19 2010, 05:49 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,248
Joined: 29-January 07
From: Ohio
Member No.: 7,486
Region Association: None
I am a novice engine builder. I enjoy working on my engine however I do not have much experience and I am learning as I go. Lately, I have been trying to learn about engine cases however I have been running into terms that I have not been able to figure out (ex- sunken registers, spigots- I know what a spigot or register is however I cannot figure out what is meant on this case). I figure that I am not the only one so I thought that I would post some pictures and ask for people to name the indicated areas. I just picked a bunch of parts that may or may not have specific names. I figure that this would be a good start for novices like me. (I do know the name of the several of the things arrowed however I added them for documentation purposes. If you can think of other parts areas that would be useful to name-- please add them)

(Please note that I pirated some of the pics from this website http://www.ephotomotion.com/914engine/

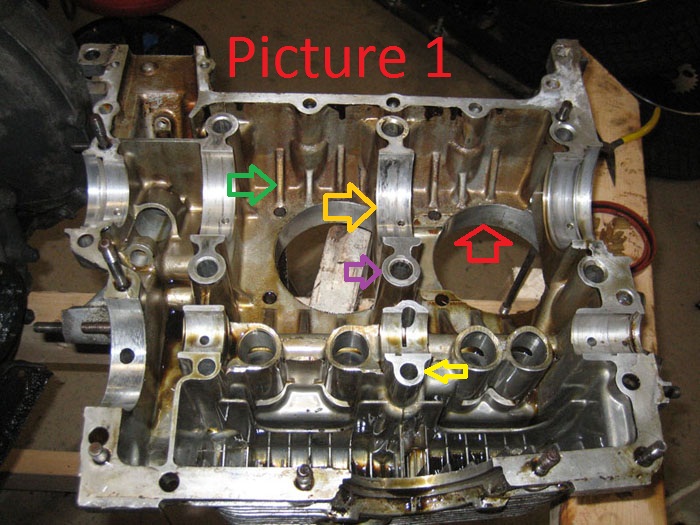

Picture 1 (please fill in the blanks)
Green Arrow-
Orange Arrow-
Red Arrow-
Purple Arrow-
Yellow Arrow-

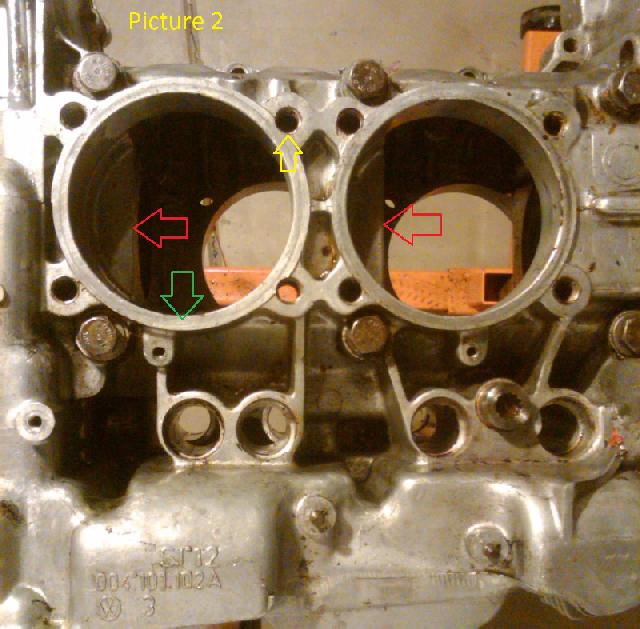

Picture 2
Yellow Arrow-
Red Arrows-
Green Arrow-


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tornik550
post Dec 20 2010, 04:13 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,248
Joined: 29-January 07
From: Ohio
Member No.: 7,486
Region Association: None
Anyone?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914rat
post Dec 20 2010, 04:31 PM
Post #3


Member
**

Group: Members
Posts: 279
Joined: 3-July 06
From: Maryland
Member No.: 6,362
The center main journal is the big yellow arrow.The green is a case support.The purple is a case through bolt support.Small yellow is a cam through bolt support.Picture 2 yellow is a head stud bolt hole.Green is the deck,red is the case bore.Thats what I have always called them not sure if there are any other names for them.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tornik550
post Dec 20 2010, 05:16 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,248
Joined: 29-January 07
From: Ohio
Member No.: 7,486
Region Association: None
Thanks for the reply. When referring to a sunken register- where is that? Also, what is meant by a spigot. In general, I know what a register and spigot is- however I cannot figure out what they are in reference to a type 4 case.

Also, in picture 2, I didn't know if there was a specific name to the back of the main bearing journal- the area indicated by the red arrow in pic 2?

Thanks

P.S.- I know this post seems somewhat stupid however I thought it could help beginners like me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Dec 20 2010, 05:29 PM
Post #5


Send me your transmission!
***************

Group: Members
Posts: 22,999
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Green arrow in pic 2 is one of the registers. When there is a sunken register it means that after several years of abuse, the case warps in a way that allows this seating surface for the cylinder to move medially. This causes a gap at the head to cylinder interface and a condition that can not be corrected without "decking" the case = take case half and put on mill and have both registers made even.

There are no stupid questions. I wasnt born knowing these things. No one was.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Dec 20 2010, 05:33 PM
Post #6


Send me your transmission!
***************

Group: Members
Posts: 22,999
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Spigot = part of the cylinder that fits into the register.

Skirt = part of the piston that is below the pin boss (medial - toward piston rod) and is thinner than the rest of the piston.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van
post Jan 2 2011, 09:46 PM
Post #7


Member
**

Group: Members
Posts: 199
Joined: 15-January 08
From: Hyde Park, NY
Member No.: 8,571
I'm not an authority when it comes to what things are called... But I'll tell you my names for them. (IMG:style_emoticons/default/smile.gif)

QUOTE(tornik550 @ Dec 19 2010, 03:49 PM) *

(Please note that I pirated some of the pics from this website http://www.ephotomotion.com/914engine/

Picture 1 (please fill in the blanks)
Green Arrow- gusset
Orange Arrow- crank bearing journal
Red Arrow- cylinder sleeve bore
Purple Arrow- case through-bolt boss
Yellow Arrow- cam bearing journal/boss

Picture 2
Yellow Arrow- head stud hole
Red Arrows- journal base
Green Arrow- cylinder shoulder (maybe face)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tornik550
post Jan 2 2011, 10:12 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,248
Joined: 29-January 07
From: Ohio
Member No.: 7,486
Region Association: None
QUOTE(Van @ Jan 2 2011, 10:46 PM) *

I'm not an authority when it comes to what things are called... But I'll tell you my names for them. (IMG:style_emoticons/default/smile.gif)

QUOTE(tornik550 @ Dec 19 2010, 03:49 PM) *

(Please note that I pirated some of the pics from this website http://www.ephotomotion.com/914engine/

Picture 1 (please fill in the blanks)
Green Arrow- gusset
Orange Arrow- crank bearing journal
Red Arrow- cylinder sleeve bore
Purple Arrow- case through-bolt boss
Yellow Arrow- cam bearing journal/boss

Picture 2
Yellow Arrow- head stud hole
Red Arrows- journal base
Green Arrow- cylinder shoulder (maybe face)



Your terminology makes sense to me. Everybody seems to have different terms for the same part.
