> Disco Bay, CA transmission rebuild clinic, June 11-12, taking registration!
jeeperjohn56
post Feb 3 2011, 06:22 AM
Post #61


Member
**

Group: Members
Posts: 479
Joined: 9-July 06
From: Antioch,Ca.
Member No.: 6,407
Region Association: None
Mike, That sounds great, Do I have to source out a H or HB gear set? John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Feb 3 2011, 10:15 AM
Post #62


Send me your transmission!
***************

Group: Members
Posts: 23,041
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Yes. I do not have any.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RJMII
post Feb 4 2011, 09:01 PM
Post #63


Jim McIntosh
****

Group: Members
Posts: 3,125
Joined: 11-September 07
From: Sandy, Utah
Member No.: 8,112
Region Association: None
QUOTE
I have done several of these and have nothing but accolades from attendees.



accolades and friends that bump threads for a worthwhile weekend trip.
(IMG:style_emoticons/default/icon_bump.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jeeperjohn56
post Feb 6 2011, 05:26 PM
Post #64


Member
**

Group: Members
Posts: 479
Joined: 9-July 06
From: Antioch,Ca.
Member No.: 6,407
Region Association: None
Hey Mike, What other gear set would be close to a "H" or "HB" would a "ZD" work? just going by what someone suggested. I have no clue about any of the gearing or cost so all help is appreciated. John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arkitect
post Feb 7 2011, 01:09 PM
Post #65


Senior Member
***

Group: Members
Posts: 617
Joined: 3-March 10
From: Stockton, CA
Member No.: 11,426
Region Association: None
Mike,
Have not been on the world in awhile, glad to see this is happening in Discovery Bay, just west of Stockton. (IMG:style_emoticons/default/piratenanner.gif)

I'm in, will pm you for where to send the money.

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
underthetire
post Feb 7 2011, 01:27 PM
Post #66


914 Guru
*****

Group: Members
Posts: 5,062
Joined: 7-October 08
From: Brentwood
Member No.: 9,623
Region Association: Northern California
Im probably not in. Finances and a blown up engine... I can help others. Was thinking about doing a smoked pulled pork sandwiches for the event...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Feb 7 2011, 07:39 PM
Post #67


Send me your transmission!
***************

Group: Members
Posts: 23,041
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
QUOTE(jeeperjohn56 @ Feb 6 2011, 06:26 PM) *

Hey Mike, What other gear set would be close to a "H" or "HB" would a "ZD" work? just going by what someone suggested. I have no clue about any of the gearing or cost so all help is appreciated. John


ZD is the gear already in the box. There is no close to H or HB.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gudhjem
post Feb 7 2011, 07:45 PM
Post #68


Member
**

Group: Members
Posts: 133
Joined: 29-March 07
From: Castro Valley, CA
Member No.: 7,629
Region Association: Northern California
I'm in. Probably only for Saturday though, so will get done as much as I can then.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Feb 7 2011, 08:16 PM
Post #69


Resident Electrician
*****

Group: Members
Posts: 8,347
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
Well Dr. Evil, I'm looking forward to you telling me what 5th gear I have. My box was rebuilt by a former owner and a taller 5th was installed. I have a little whine in 5th, maybe a flipped H? Sometimes it is a little stif going into 2nd but no grinding. If I shift to 1st, then into 2nd, super smooth.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Feb 7 2011, 08:38 PM
Post #70


Send me your transmission!
***************

Group: Members
Posts: 23,041
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
QUOTE(Gudhjem @ Feb 7 2011, 08:45 PM) *

I'm in. Probably only for Saturday though, so will get done as much as I can then.


Not a problem. I have many people do two rebuilds in a weekend so one is totally doable in a day.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Feb 7 2011, 08:41 PM
Post #71


Send me your transmission!
***************

Group: Members
Posts: 23,041
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
QUOTE(kg6dxn @ Feb 7 2011, 09:16 PM) *

Well Dr. Evil, I'm looking forward to you telling me what 5th gear I have. My box was rebuilt by a former owner and a taller 5th was installed. I have a little whine in 5th, maybe a flipped H? Sometimes it is a little stif going into 2nd but no grinding. If I shift to 1st, then into 2nd, super smooth.


Probably a bad bearing. A flipped H doesnt generally howl.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jeeperjohn56
post Feb 8 2011, 06:07 AM
Post #72


Member
**

Group: Members
Posts: 479
Joined: 9-July 06
From: Antioch,Ca.
Member No.: 6,407
Region Association: None
Hey Mike, Are you going to get rid of your "H" gear in your box? If so I would be interested in it. John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Feb 8 2011, 10:50 AM
Post #73


Resident Electrician
*****

Group: Members
Posts: 8,347
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
QUOTE(jeeperjohn56 @ Feb 8 2011, 04:07 AM) *

Hey Mike, Are you going to get rid of your "H" gear in your box? If so I would be interested in it. John

I was not planning a full rebuild on mine. It was done recently. I am planning to swap my nose cone for my spare. However, I will not need the taller 5th with my new engine. I am open to negotiations...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Feb 8 2011, 03:54 PM
Post #74


Send me your transmission!
***************

Group: Members
Posts: 23,041
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Registrations fees arriving now! I will list which ones arrive in the first post and if they reserved parts. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gudhjem
post Feb 13 2011, 09:29 PM
Post #75


Member
**

Group: Members
Posts: 133
Joined: 29-March 07
From: Castro Valley, CA
Member No.: 7,629
Region Association: Northern California

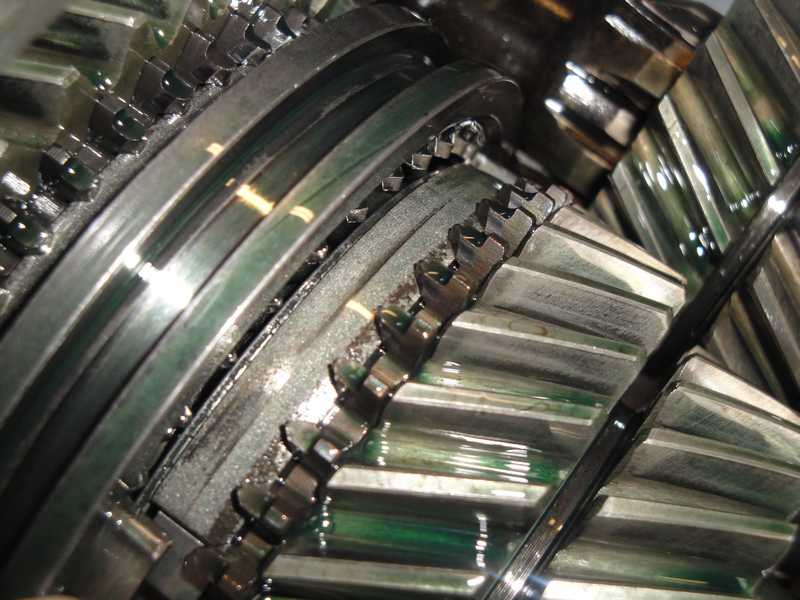

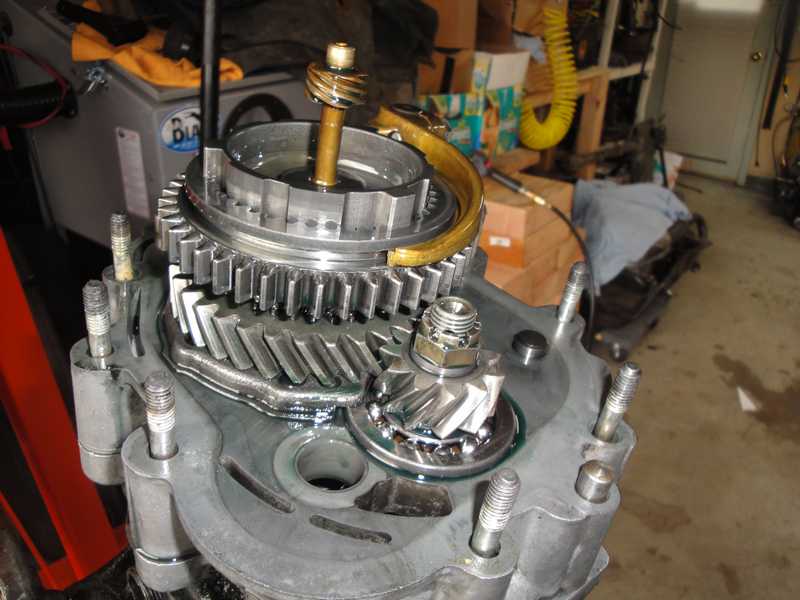

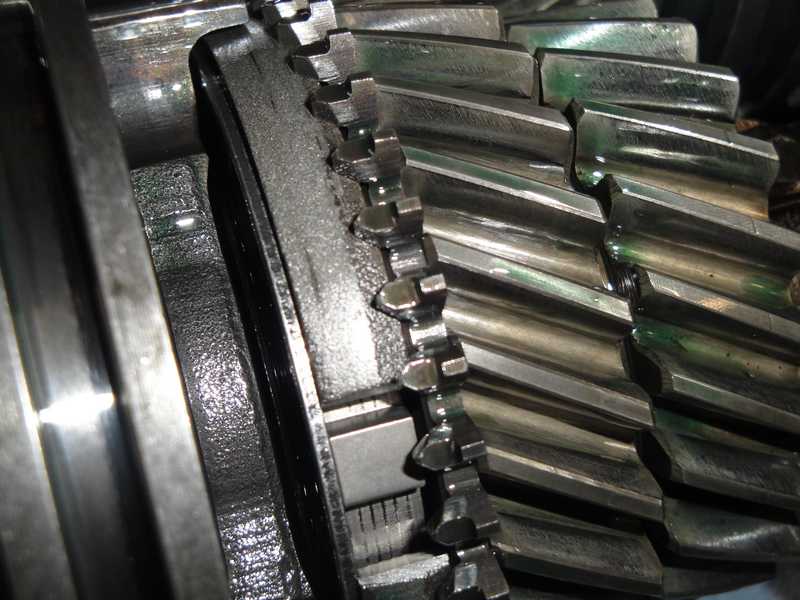

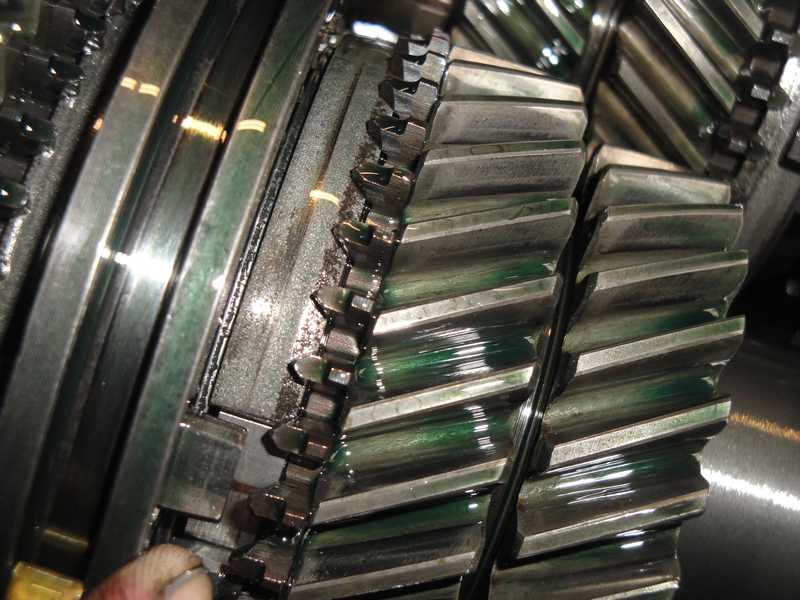

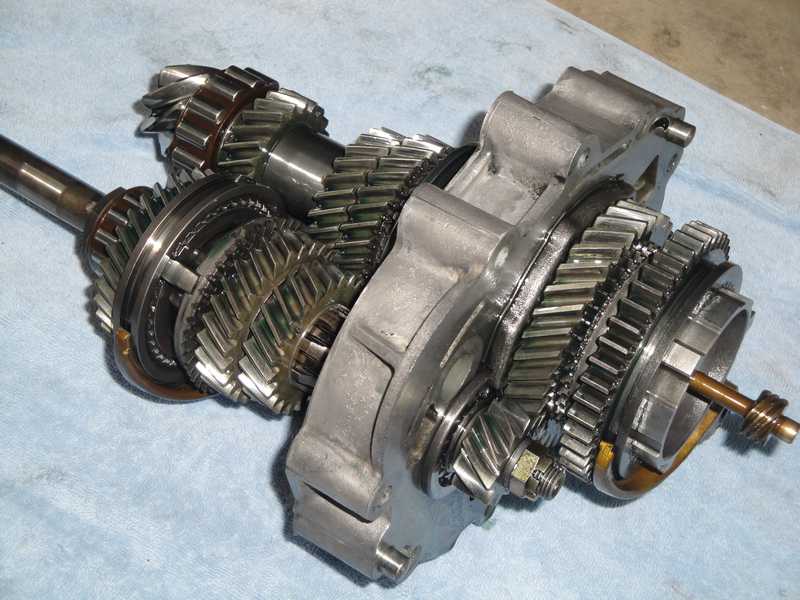

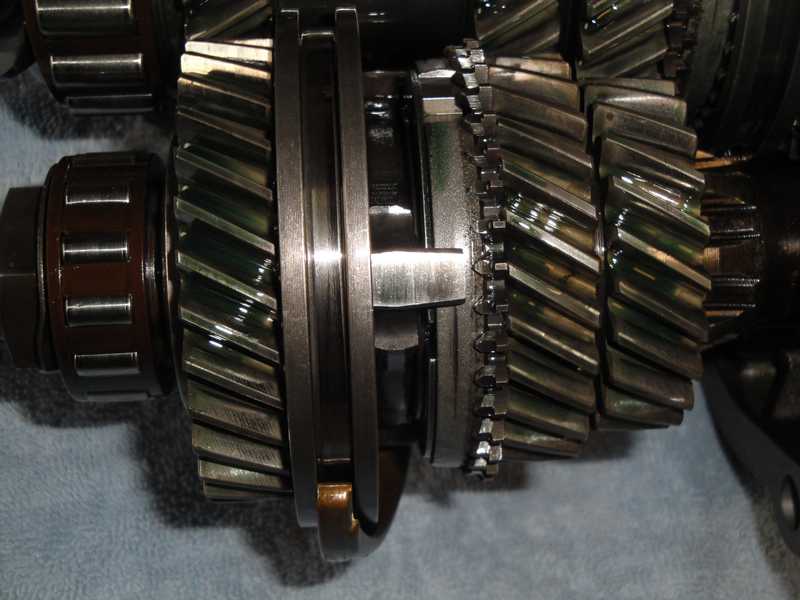

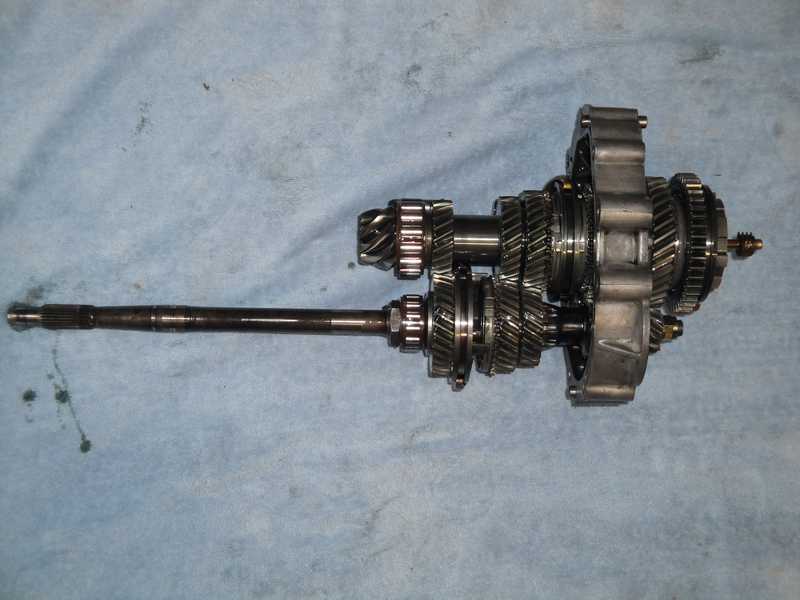

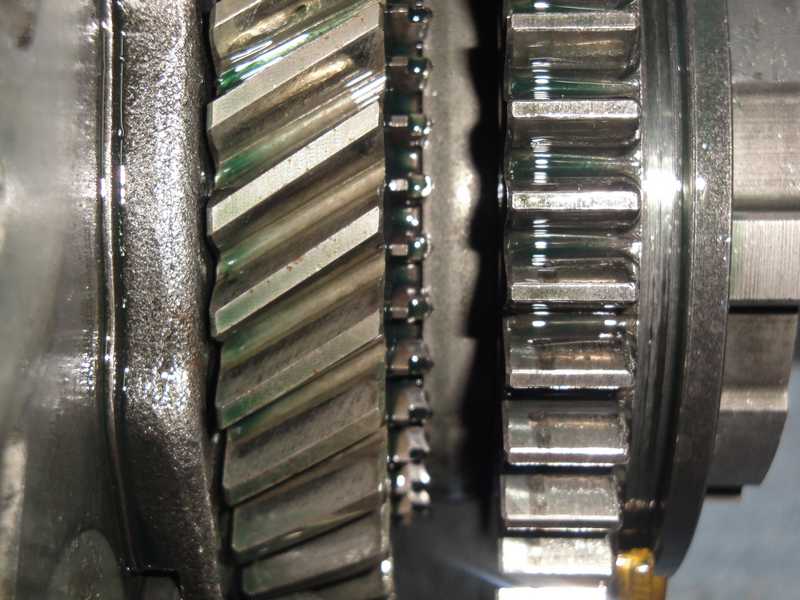

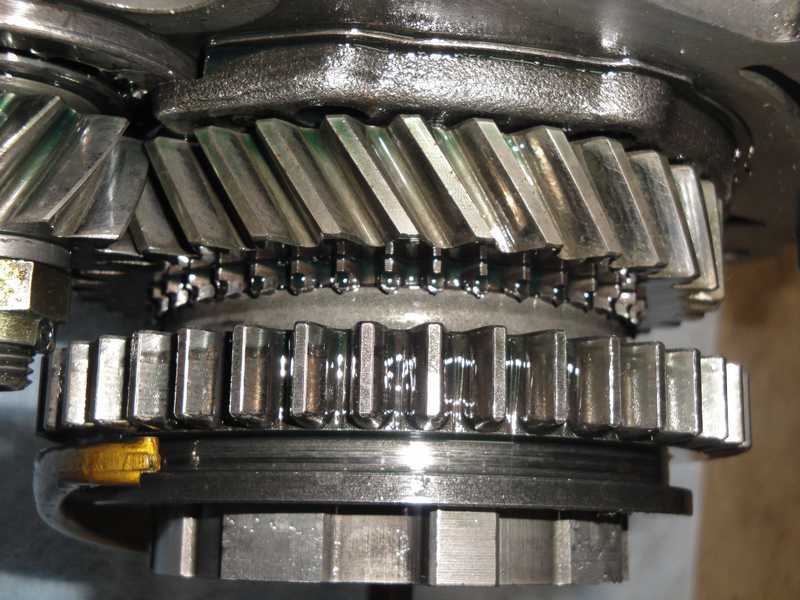

Okay Doc, I pulled my gear stack this today and took some pics. Hard to believe you can tell what I might need from these photos. Maybe I need to dismantle a bit more for you to see it?


Attached ImageAttached ImageAttached Image[attachmentid=249
128]Attached ImageAttached Image


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gudhjem
post Feb 13 2011, 09:30 PM
Post #76


Member
**

Group: Members
Posts: 133
Joined: 29-March 07
From: Castro Valley, CA
Member No.: 7,629
Region Association: Northern California

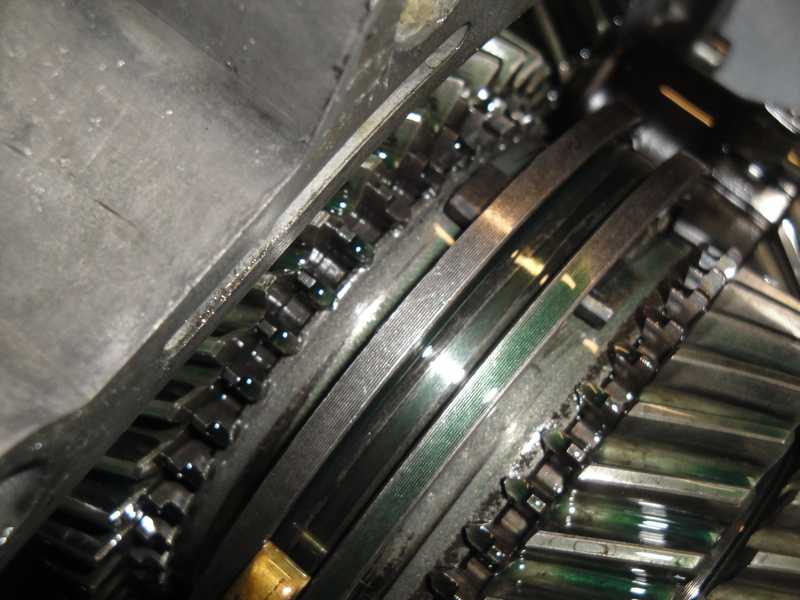

A few more:



Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Feb 13 2011, 10:11 PM
Post #77


Send me your transmission!
***************

Group: Members
Posts: 23,041
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
From those pics alone I see that you need:

1st teeth
2nd teeth
3rd band
2nd band

Take off 1st gear slider and photo the teeth and band. It is only one 13mm bolt.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Feb 13 2011, 10:13 PM
Post #78


Send me your transmission!
***************

Group: Members
Posts: 23,041
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
This is your fist gear slider. The big money part. Remove it and let us see what is under it.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gudhjem
post Feb 13 2011, 10:43 PM
Post #79


Member
**

Group: Members
Posts: 133
Joined: 29-March 07
From: Castro Valley, CA
Member No.: 7,629
Region Association: Northern California

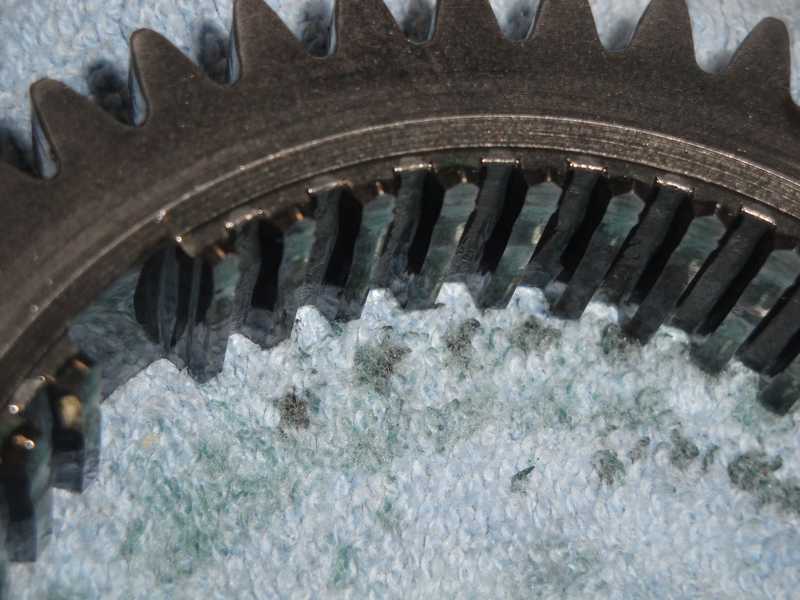

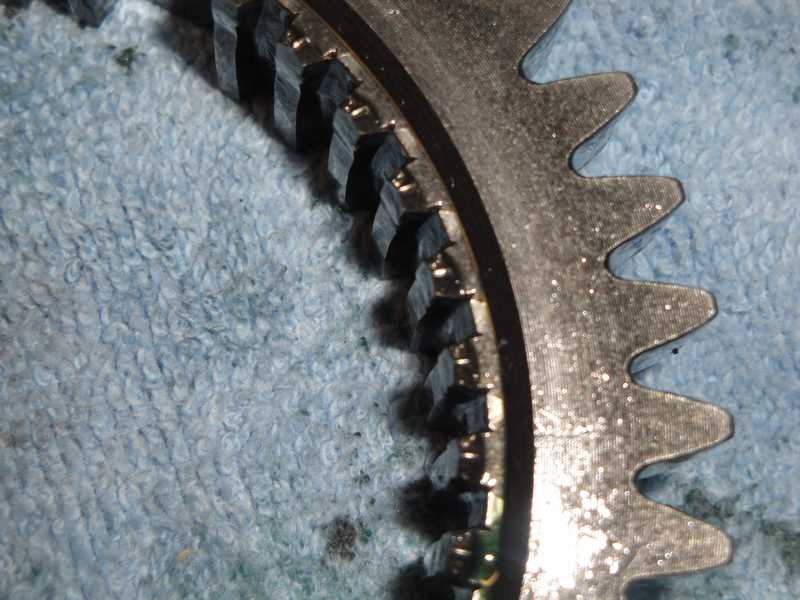

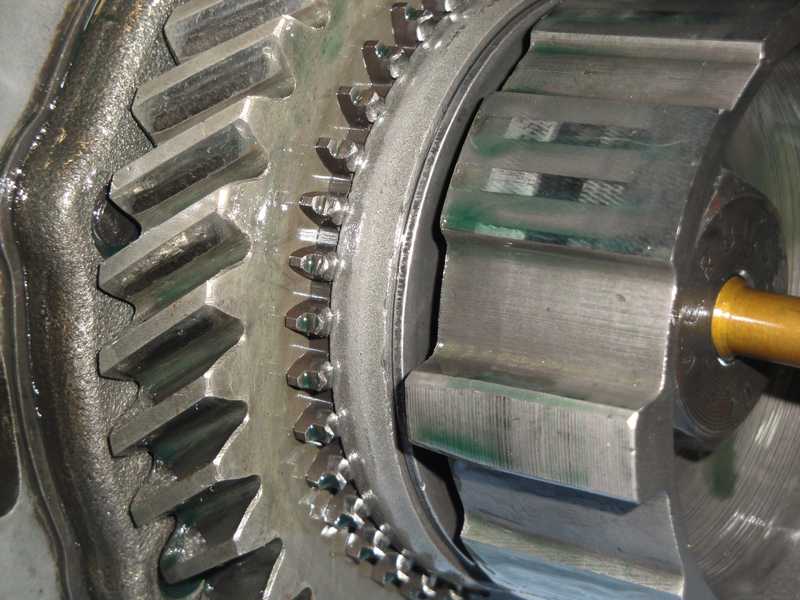

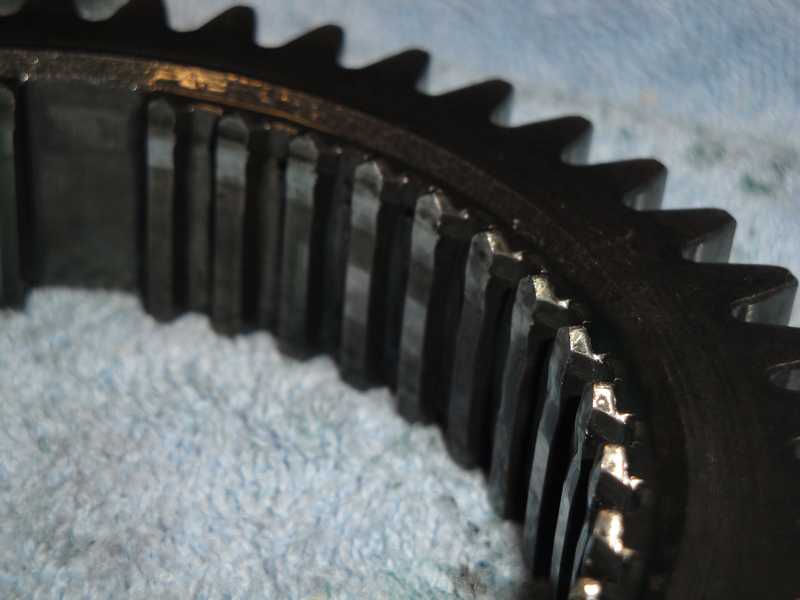

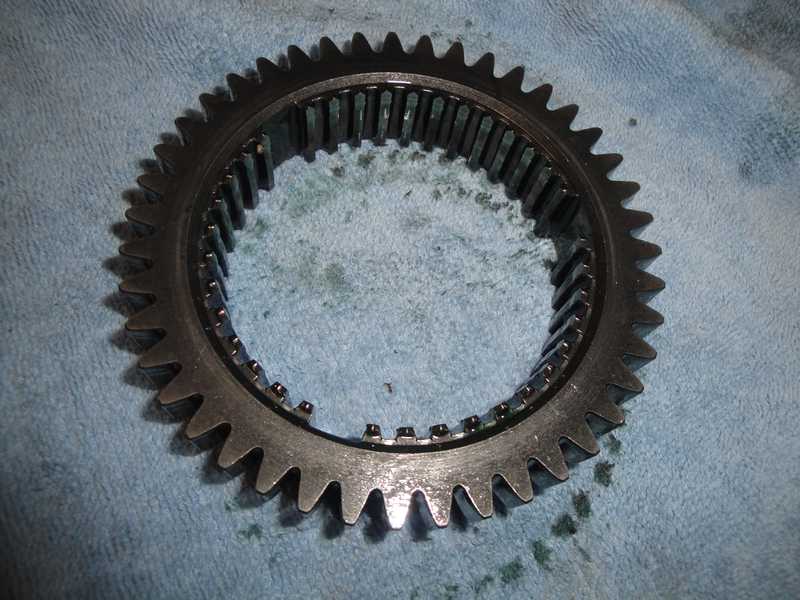

This one?

I think I know the answer (IMG:style_emoticons/default/sad.gif)


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Feb 14 2011, 07:29 AM
Post #80


Send me your transmission!
***************

Group: Members
Posts: 23,041
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Your transmission lived a good life. Your 1st slider is actually reusable (IMG:style_emoticons/default/smilie_pokal.gif)

Your 1st band is in good shape as well, which leads me to believe that someone was in there at one point in the last 10 years. Your 1st teeth still look shot. This is not the normal wear pattern. It usually goes: band-->teeth--> slider. This also just so happens to be the cost curve as well with the cheapest part wearing first.
User is offlineProfile CardPM
