> 914-6 oil tank question - too many orifices?
moparrob
post Feb 16 2011, 09:30 PM
Post #1


Senior Member
***

Group: Members
Posts: 646
Joined: 27-April 10
From: Los Angeles
Member No.: 11,663
Region Association: None
For the longest time I was having difficulty trying to picture where the oil lines go to and from on a 914-6 conversion - but I think I have most of the issues figured out.

A lot of the problem has to do with the tank I bought. It has 'extra' holes and fittings that most other tanks I have seen did not have.

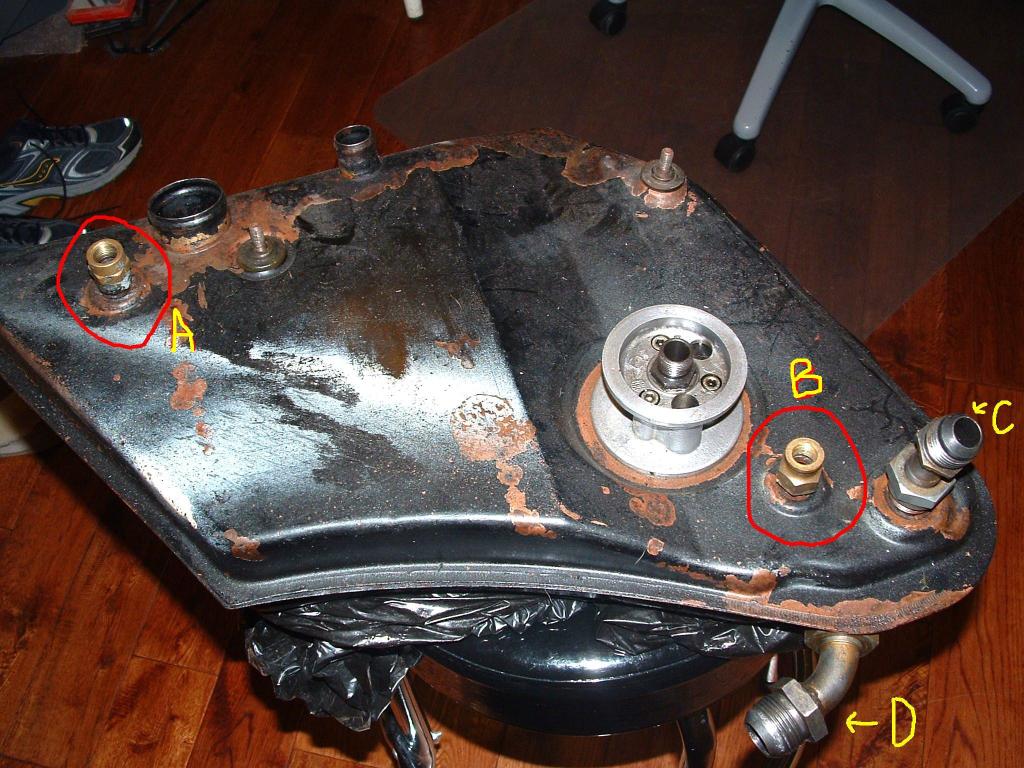

Here is a pic:

(IMG:http://www.914world.com/bbs2/uploads_offsite/i954.photobucket.com-11663-1297913412.1.jpg)

I finally figured out that fitting 'C' is the AN -12 return line which is usually a hard pipe from the engine which attaches to a flex line to this port.

Similarly, I figured that fitting 'D' is the supply line that goes to the oil cooler, which in my case is AN -16 on both ends.

The confusion arises out of fittings 'A' and 'B'. Most tanks I see do not have these fittings. Also, my car was only pre-drilled (by the PO) for fittings C,D, the filler, the vent and the filter only. I don't have extra holes for these fittings.

So, do I need these fittings A and B? What do they do?

If I don't need them, how do I get rid of them? Do I have to braze the holes shut? Or is it easier to just drill the two requisite holes in the engine compartment and use plugs on those fittings?

Last question, does anyone know the size and thread of those fittings?

Thanks in advance for your help.

Rob
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Feb 16 2011, 09:35 PM
Post #2


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
I can't remember if those are for an automatic transmission (some tanks had extra fittings) or some type of PO installed item.

Based on the "B" position, that would be supply and the "A" the return.

You only need "C" & "D"

Anyway, the experts will chime in in a moment.

Oh, I would say 3/8" pipe fittings.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Feb 16 2011, 10:01 PM
Post #3


914-6 GT in waiting
***************

Group: Members
Posts: 19,703
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
A lot more fittings than my OEM tank. I know there was a different version for the Sportomatic but I've never seen one in person. Maybe look at PET?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
sixerdon
post Feb 16 2011, 10:13 PM
Post #4


Member
**

Group: Members
Posts: 466
Joined: 23-May 03
From: Dartmouth, MA
Member No.: 731
That is a sporto tank. Back in the 70's, I bought one to replace a leaking one in my /6 at the time. Stock tanks were already hard to find, but sporto's were available. What I did is take a copper penny (1981 or earlier) and brazed it over the openings. Never had a problem with leaks for the remaining time that I owned it.
Don
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Feb 16 2011, 10:28 PM
Post #5


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
I can pretty much guarantee they're not 3/8ths pipe. Might want to check in the metric section of any good hardware supplier ........................

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
moparrob
post Feb 16 2011, 10:30 PM
Post #6


Senior Member
***

Group: Members
Posts: 646
Joined: 27-April 10
From: Los Angeles
Member No.: 11,663
Region Association: None
I wonder if they are pipe thread (taper) so that I could use a plug? Otherwise, if it is a straight thread I guess it would seal on the top surface with an aluminum washer?

Or perhaps I could unscrew those fittings and find threaded caps?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 17 2011, 10:34 AM
Post #7


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Sporto. I'd take it down, have it properly welded, re-copper plated and re-painted.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 17 2011, 11:43 AM
Post #8


Resident German
*************************

Group: Admin
Posts: 41,973
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(sixerdon @ Feb 16 2011, 08:13 PM) *
That is a sporto tank.

(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Feb 17 2011, 11:45 AM
Post #9


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
MMMmmmmm AAHHHHhhhhhhhhhhh toasty radiant heat (IMG:style_emoticons/default/rolleyes.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Feb 17 2011, 12:19 PM
Post #10


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
QUOTE(moparrob @ Feb 16 2011, 08:30 PM) *

I wonder if they are pipe thread (taper) so that I could use a plug? Otherwise, if it is a straight thread I guess it would seal on the top surface with an aluminum washer?

Or perhaps I could unscrew those fittings and find threaded caps?



I repeat. They're metric fittings, NOT pipe thread. Just get a couple of plugs, a couple of copper gaskets, and be done with it.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
laflaur
post Feb 17 2011, 12:46 PM
Post #11


Member
**

Group: Members
Posts: 162
Joined: 8-June 06
From: Granite Bay
Member No.: 6,186
Region Association: Northern California
Hey are those pipe thread fittings?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
moparrob
post Feb 17 2011, 02:18 PM
Post #12


Senior Member
***

Group: Members
Posts: 646
Joined: 27-April 10
From: Los Angeles
Member No.: 11,663
Region Association: None
(IMG:style_emoticons/default/stirthepot.gif)

Cap'n, I was trying to avoid cutting two additional holes for those fittings to stick out of, but your advice is well taken. That may be the easier course of action.

Now if I could only figure out where the heck to layout the holes before I start drilling ... (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 17 2011, 03:02 PM
Post #13


Resident German
*************************

Group: Admin
Posts: 41,973
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(moparrob @ Feb 17 2011, 12:18 PM) *
Now if I could only figure out where the heck to layout the holes before I start drilling ... (IMG:style_emoticons/default/confused24.gif)


I would think that a stock 914-6 sport-o-matic oil tank would be worth more to the right buyer than a standard tank ...

Why not sell it and buy a correct one and pocket some money in the process??? (IMG:style_emoticons/default/confused24.gif)


They made only what, 25 914-6 sportos? (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jeff
post Feb 17 2011, 04:13 PM
Post #14


Member
**

Group: Members
Posts: 254
Joined: 17-January 04
From: thousand oaks,ca
Member No.: 1,570
http://www.pegasusautoracing.com/productde....asp?RecID=4060 Maybe?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
moparrob
post Feb 17 2011, 05:06 PM
Post #15


Senior Member
***

Group: Members
Posts: 646
Joined: 27-April 10
From: Los Angeles
Member No.: 11,663
Region Association: None
QUOTE(SirAndy @ Feb 17 2011, 01:02 PM) *

QUOTE(moparrob @ Feb 17 2011, 12:18 PM) *
Now if I could only figure out where the heck to layout the holes before I start drilling ... (IMG:style_emoticons/default/confused24.gif)


I would think that a stock 914-6 sport-o-matic oil tank would be worth more to the right buyer than a standard tank ...

Why not sell it and buy a correct one and pocket some money in the process??? (IMG:style_emoticons/default/confused24.gif)


They made only what, 25 914-6 sportos? (IMG:style_emoticons/default/idea.gif)


Hmmm, not a bad idea.

Think I'll give it a try....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
moparrob
post Feb 17 2011, 05:08 PM
Post #16


Senior Member
***

Group: Members
Posts: 646
Joined: 27-April 10
From: Los Angeles
Member No.: 11,663
Region Association: None
QUOTE(jeff @ Feb 17 2011, 02:13 PM) *

http://www.pegasusautoracing.com/productde....asp?RecID=4060 Maybe?


Except those are tapered threads and per prior posting the threads are not tapered...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Feb 17 2011, 06:28 PM
Post #17


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
QUOTE(moparrob @ Feb 17 2011, 12:18 PM) *

(IMG:style_emoticons/default/stirthepot.gif)

Cap'n, I was trying to avoid cutting two additional holes for those fittings to stick out of, but your advice is well taken. That may be the easier course of action.

Now if I could only figure out where the heck to layout the holes before I start drilling ... (IMG:style_emoticons/default/confused24.gif)


You can make a cardboard template and register off the other holes to know where to drill if it comes to that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 17 2011, 06:42 PM
Post #18


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
You can make a cardboard template and register off the other holes to know where to drill if it comes to that.


This is painful to watch... (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Feb 17 2011, 06:50 PM
Post #19


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
QUOTE(Eric_Shea @ Feb 17 2011, 04:42 PM) *

QUOTE
You can make a cardboard template and register off the other holes to know where to drill if it comes to that.


This is painful to watch... (IMG:style_emoticons/default/sad.gif)


Close your eyes and the pain will go away! (IMG:style_emoticons/default/slap.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
hwgunner
post Feb 17 2011, 08:29 PM
Post #20


914 Parts @ Discount Prices 800.321.5432
***

Group: Members
Posts: 1,714
Joined: 11-November 04
From: Santa Maria, Ca
Member No.: 3,095
Region Association: None
QUOTE(SLITS @ Feb 17 2011, 04:50 PM) *

QUOTE(Eric_Shea @ Feb 17 2011, 04:42 PM) *

QUOTE
You can make a cardboard template and register off the other holes to know where to drill if it comes to that.


This is painful to watch... (IMG:style_emoticons/default/sad.gif)


Close your eyes and the pain will go away! (IMG:style_emoticons/default/slap.gif)


Well said! (IMG:style_emoticons/default/sheeplove.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
