> Just another damned project thread, 914-6 3.2 conversion in GT dress-up
ConeDodger
post Apr 2 2011, 03:15 PM
Post #1


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



First of all, let me say this: let's not turn this into a 4 vs: 6 thread. I like them both and really don't give a damn about your position on this non-issue.

All the legal stuff out of the way, let's talk engine.

First of all, this project is well advanced. The engine is already together and the 20 minute cam run in has been done. But let's talk about how we got to that point first...

This motor is a 2432 Raby kit. It uses the LE200 heads and stock 2liter cylinders. The stroked crank is 84mm I believe so think of it as a super-stroker. It will run Jenvey throttle bodies and SDS injection. The EFI sensors I have chosen to use will be TPS, CHT, MAP, IAT, O2 in closed loop, and I think that is everything. Injectors are Ford Red Top. This motor requires quite a bit of engine block clearance so as they say, don't try this at home...

It took me about three trips down to Original Customs to put the engine together. I used McMark's shop so I could get his free advice which he of course charges me for, and I don't get distracted by wives wondering how much all of this costs. Plus Mark has an engine break-in stand that allows us to fire it out of the car and correct anything that might be wrong without having to pull an already installed motor.

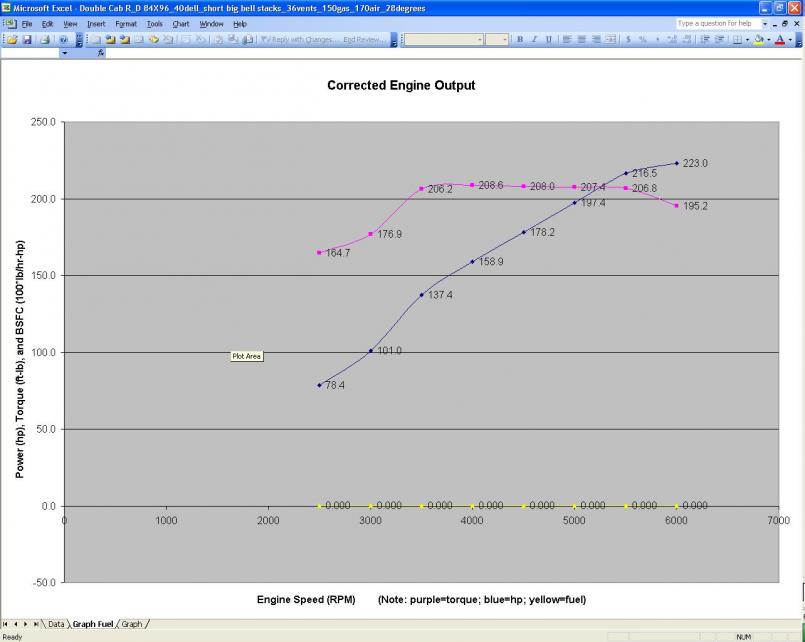

Here is a dyno sheet of one of these motors that Jake actually built. I would expect that my result might be within 10% of his. :Insert fingers crossed smiley here:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:16 PM
Post #2


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California

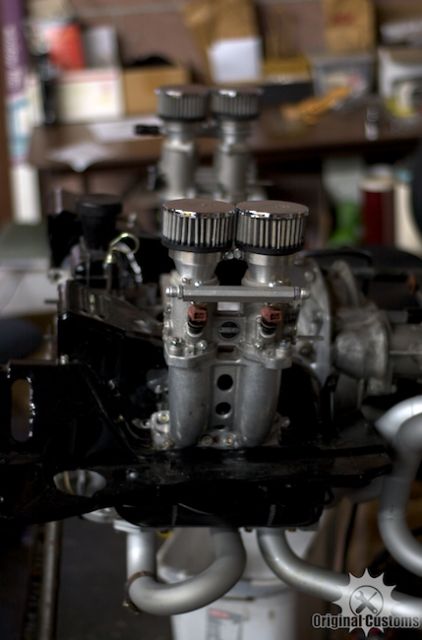

Jenvey throttle bodies


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:17 PM
Post #3


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California

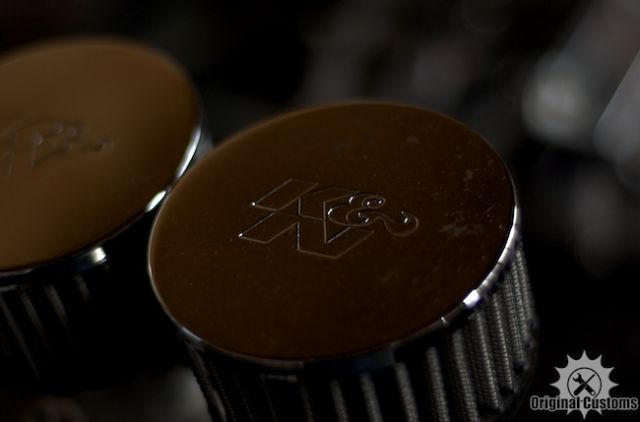

Custom air cleaners using K&N filters designed by Jake Raby


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:20 PM
Post #4


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California

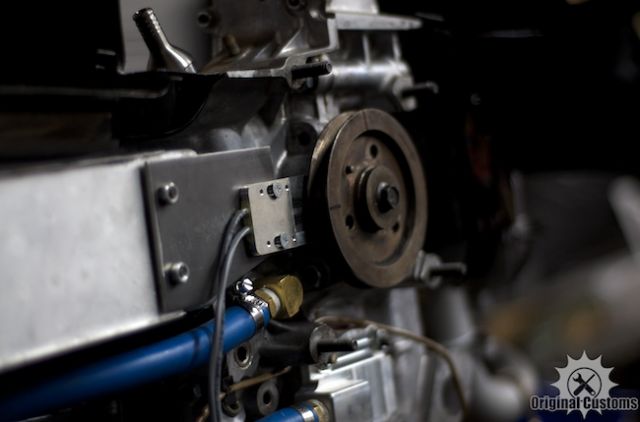

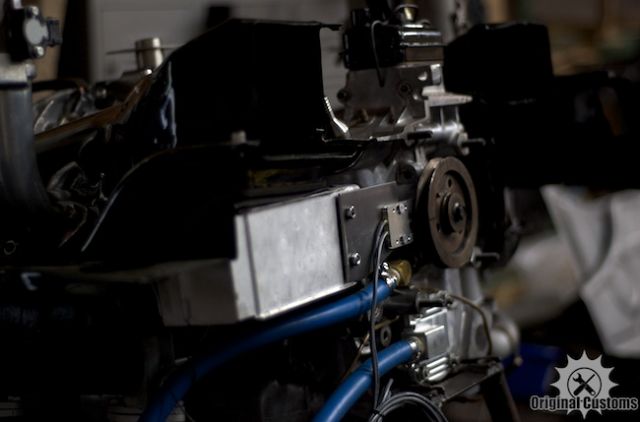

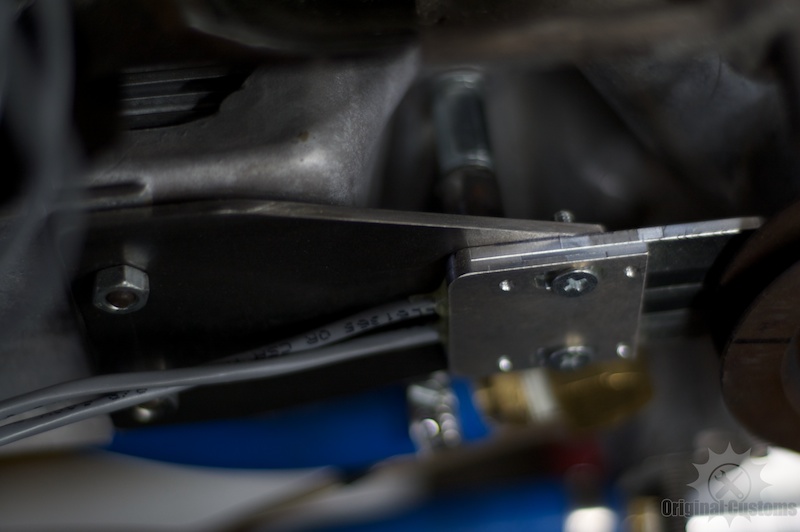

This engine will be distributorless so this is a couple shots of the Original Customs Hall Sensor mount. Also notice, the crankcase vent that was custom built by Jeff Hines (sixnotfour). This is replacing the distributor and venting the crankcase.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Apr 2 2011, 03:22 PM
Post #5


Resident Electrician
*****

Group: Members
Posts: 8,327
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None



This is a bad ass build! Rock on! (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:24 PM
Post #6


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California

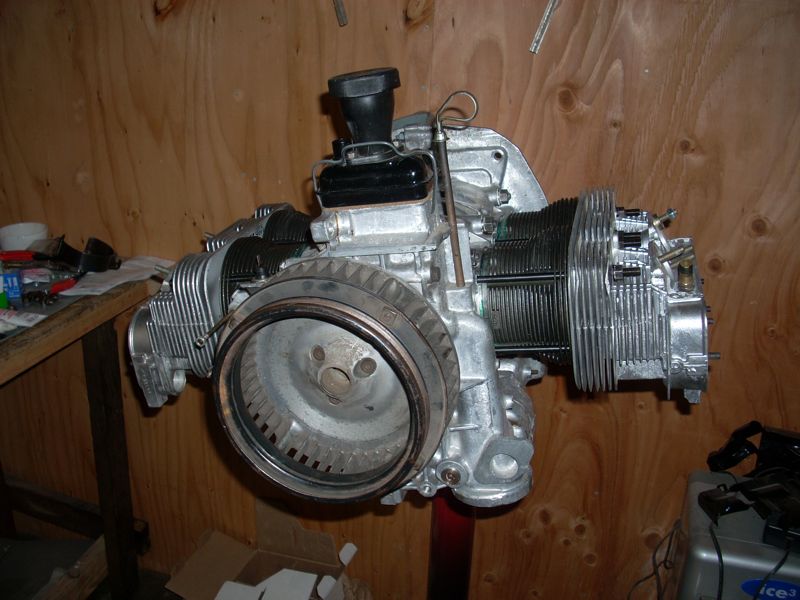

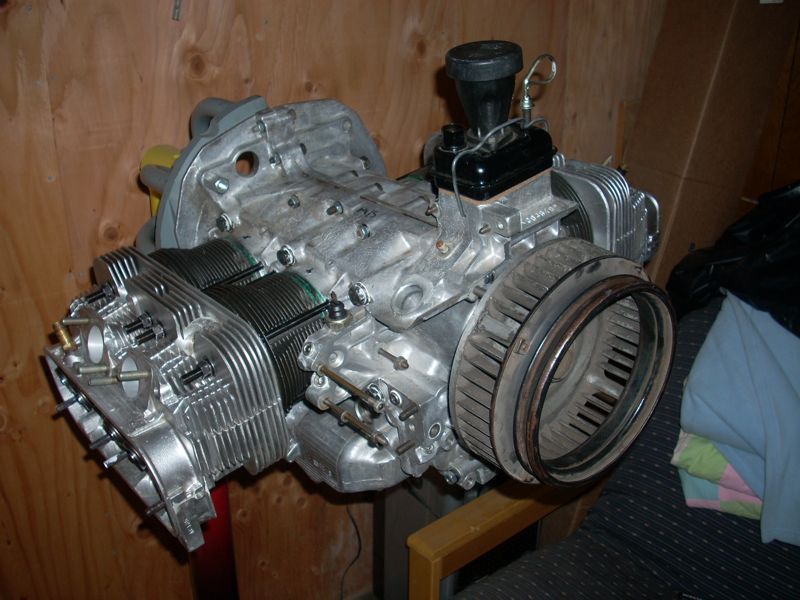

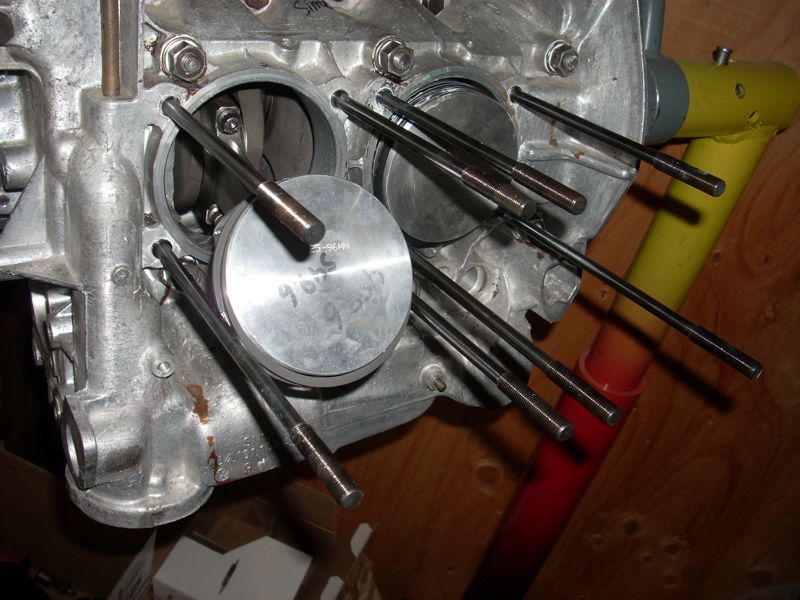

Here are some random shots of the engine as it goes together...


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:25 PM
Post #7


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



Here is a close-up of just how much spacer you need to run that much of a stroke. Pretty thick!!! (IMG:style_emoticons/default/smile.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:27 PM
Post #8


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



QUOTE(kg6dxn @ Apr 2 2011, 01:22 PM) *

This is a bad ass build! Rock on! (IMG:style_emoticons/default/aktion035.gif)


Thanks Mike! I'm just the cook though... Jake was the chef and Mark is supervising the kitchen...

Mark has a video of the cam break in. Maybe he will post that here...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Apr 2 2011, 03:32 PM
Post #9


Send me your transmission!
***************

Group: Members
Posts: 22,877
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region



(IMG:style_emoticons/default/wub.gif) Say what you will, that is beautiful!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MDG
post Apr 2 2011, 03:36 PM
Post #10


Wolf in wolf's clothing.
*****

Group: Members
Posts: 8,652
Joined: 3-February 09
From: Toronto
Member No.: 10,018
Region Association: None



I think I'd be a vibrating mess waiting to drive it. Those chart numbers are amazing. And the yellow line for fuel . . . it doesn't use any (IMG:style_emoticons/default/unsure.gif)

Seriously, congratulations on this!! (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:38 PM
Post #11


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



Some planned locations for SDS components are as follows: The SDS ECU with it's hideous gold anodizing will hide under the passenger seat along with the O2 Sensor control unit. The coil packs will be over on the driver side wall just aft of the relay board. Here is a pic of the vacuum manifold that will collect and smooth the vacuum impulses from the four vacuum vents on the ITB's. This of course will be connected to the MAP. That hideous Eagle will be face down... (IMG:style_emoticons/default/barf.gif) The CHT will be in the stock 2liter location and in fact, is the stock Bosch unit. The Intake Air Temperature Sensor will be located between the air cleaners and correct me if I am wrong Mark - on the passenger side? This will use one of McMark's Original Customs designed mounts which he has used on other peoples motors...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:40 PM
Post #12


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



QUOTE(MDG @ Apr 2 2011, 01:36 PM) *

I think I'd be a vibrating mess waiting to drive it. Those chart numbers are amazing. And the yellow line for fuel . . . it doesn't use any (IMG:style_emoticons/default/unsure.gif)

Seriously, congratulations on this!! (IMG:style_emoticons/default/smilie_pokal.gif)


Mike, I think it is an often overlooked fact that Jake's creations run smoother, use less fuel and run cooler than stock. I'd guess Jake didn't record that parameter 'cause this thing will be thirsty!

I am very excited.
(IMG:style_emoticons/default/evilgrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:44 PM
Post #13


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



QUOTE(Dr Evil @ Apr 2 2011, 01:32 PM) *

(IMG:style_emoticons/default/wub.gif) Say what you will, that is beautiful!


Has anyone else noticed that the only people who have responded to this thread are named Mike? (IMG:style_emoticons/default/dry.gif)

Thanks Evil... As we say in science the rate limiting factor at this point is the custom harness being built by Jeff Bowlsby. The prevalent opinion on the SDS harness was 'cheesy' so Jeff is building a custom one. The plan was to have it done in January but Jeff has some issues personally and professionally right now that are making his life hell and holding the harness up...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Apr 2 2011, 03:46 PM
Post #14


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 12,468
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California



(IMG:style_emoticons/default/aktion035.gif) Nice job, Sweeeeeeeeeeet. And seeing as how these things usually end up being a 50/50 deal, what did you have to buy her as an offset? (IMG:style_emoticons/default/lol-2.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Madswede
post Apr 2 2011, 03:51 PM
Post #15


Flat Out Driver
***

Group: Members
Posts: 853
Joined: 13-September 06
From: Rio Rancho NM
Member No.: 6,831
Region Association: Rocky Mountains



Very cool! (IMG:style_emoticons/default/shades.gif) And even tho I'll have a /6 in my teener, I love big /4's! Look no further than my beloved 968 - 3.0L /4 (inline of course) that I plan eventually to have turbocharged.

Even right now, though, it's around 240 hp naturally aspirated thanks to VarioCam. Once of the reasons I fell in love P-cars in the first place was 'cos they find replacements for cubic displacement ... like good engineering.

I'm now in awe of Jake Raby.

- Nelson
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 03:51 PM
Post #16


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



QUOTE(76-914 @ Apr 2 2011, 01:46 PM) *

(IMG:style_emoticons/default/aktion035.gif) Nice job, Sweeeeeeeeeeet. And seeing as how these things usually end up being a 50/50 deal, what did you have to buy her as an offset? (IMG:style_emoticons/default/lol-2.gif)


(IMG:style_emoticons/default/sad.gif) It's looking like a Cayenne S... Thanks to that provocateur Eric Shea!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 2 2011, 03:57 PM
Post #17


Hey nice rack! -Celette
***************

Group: Members
Posts: 19,670
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region



Are you planning on attending the WCR with it? (IMG:style_emoticons/default/drooley.gif) Very nice! You have some of the best of the best working on it too!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Apr 2 2011, 04:02 PM
Post #18


En Garde!
**********

Group: Admin
Posts: 12,798
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region



This fills my "coolest thing of the day" slot!

What are you going to do for exhaust? I kinda doubt you are going to be able to use the usual suspects with that much extra space under the cylinders.

Zach
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 2 2011, 04:03 PM
Post #19


Apex killer!
***************

Group: Members
Posts: 22,727
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



QUOTE(rick 918-S @ Apr 2 2011, 01:57 PM) *

Are you planning on attending the WCR with it? (IMG:style_emoticons/default/drooley.gif) Very nice! You have some of the best of the best working on it too!


I hope so...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MDG
post Apr 2 2011, 04:03 PM
Post #20


Wolf in wolf's clothing.
*****

Group: Members
Posts: 8,652
Joined: 3-February 09
From: Toronto
Member No.: 10,018
Region Association: None



QUOTE(ConeDodger @ Apr 2 2011, 05:44 PM) *

Has anyone else noticed that the only people who have responded to this thread are named Mike? (IMG:style_emoticons/default/dry.gif)


(IMG:style_emoticons/default/laugh.gif) We move in packs . . .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
