I have purchased a bunch of parts from someone local. In the deal was a transmission. I was told it was from a 914, but it doesn't look like any 914 transmission I have ever seen. The mount ears aren't cast in like I am used to seeing. It is a tailshifter, that much I do know.
The cast in numbers are as follows. 901.301.101.0R on top... and on the bottom 90270 and 3080004 I can't find much on it. Can you tell me what the numbers are, and what this trans came from? Thanks. |
   |

|
| McMark |
May 11 2011, 07:02 PM
Post
#2
|
|
914 Freak! Group: Retired Admin Posts: 20,180 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |

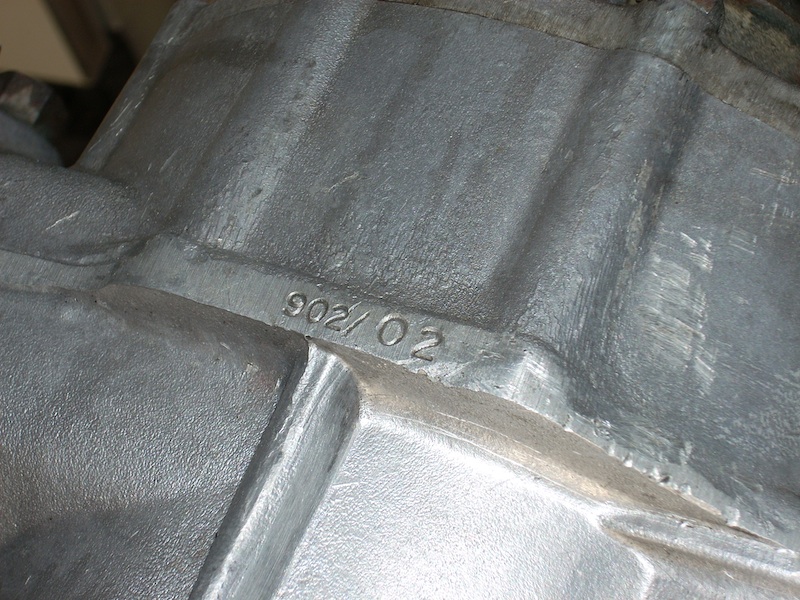

Are you sure the bottom is 90270? Usually those numbers are 902/0X, where X is some other number like 902/02.
Attached image(s)
|
|
|
|
| monkeyboy |
May 11 2011, 07:07 PM
Post
#3
|
|
Senior Member Group: Members Posts: 808 Joined: 8-June 08 From: Los Angeles, Ca Member No.: 9,147 Region Association: None |
I can post pictures, but it's definately 902/0. There is nothing else there.
|
|
|
|
| sww914 |
May 11 2011, 07:12 PM
Post
#4
|
|
Advanced Member Group: Members Posts: 2,439 Joined: 4-June 06 Member No.: 6,146 Region Association: None |
That's a type 902/02 aluminum 4 speed from a 911 or 912, or at least it was when it was new. A lot of these parts interchange. I usually build 911 race boxes out of 914 housings because 914s don't have enough horsepower to hurt it.
|
|
|
|
| monkeyboy |
May 11 2011, 07:12 PM
Post
#5
|
|
Senior Member Group: Members Posts: 808 Joined: 8-June 08 From: Los Angeles, Ca Member No.: 9,147 Region Association: None |

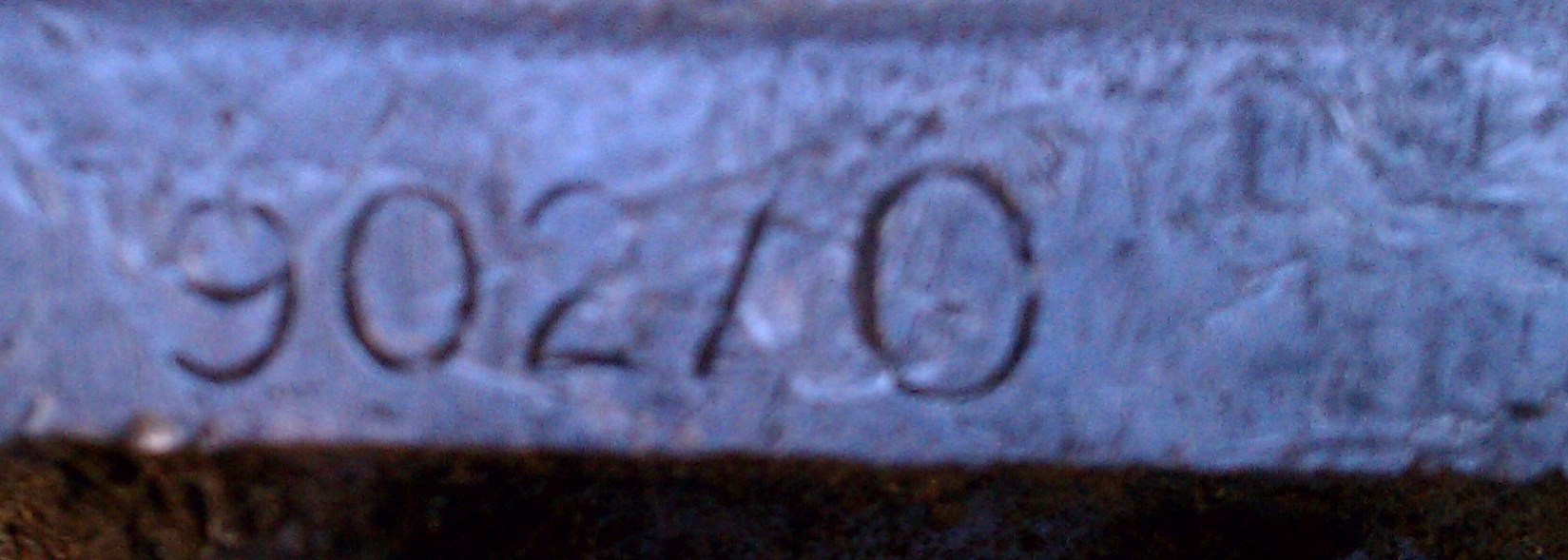

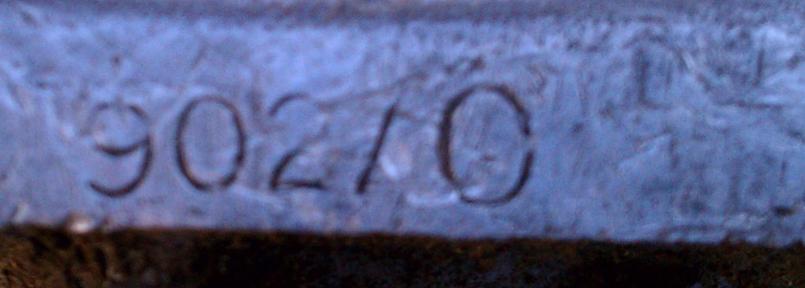

Here is the trans picture of that number.
 |
|
|
|
| monkeyboy |
May 11 2011, 10:05 PM
Post
#6
|
|
Senior Member Group: Members Posts: 808 Joined: 8-June 08 From: Los Angeles, Ca Member No.: 9,147 Region Association: None |
|
|
|
|
| sww914 |
May 11 2011, 10:53 PM
Post
#7
|
|
Advanced Member Group: Members Posts: 2,439 Joined: 4-June 06 Member No.: 6,146 Region Association: None |
If it was a 901 it would be worth a bundle, but it isn't. Check ebay.
|
|
|
|
| Richard Casto |
May 12 2011, 07:08 AM
Post
#8
|
|
Blue Sky Motorsports, LLC Group: Members Posts: 1,465 Joined: 2-August 05 From: Durham, NC Member No.: 4,523 Region Association: South East States |
Link to 901 info on my site...
http://www.blueskymotorsports.com/index.ph...17&Itemid=6 Info I have says the 902/0 is from a 4 speed from a 1965-66 911, 912 Here is a link on PP... http://forums.pelicanparts.com/porsche-912...-4-5-speed.html Says it should have A, H, Q, X gearing. Richard |
|
|
|
| monkeyboy |
May 12 2011, 08:52 AM
Post
#9
|
|
Senior Member Group: Members Posts: 808 Joined: 8-June 08 From: Los Angeles, Ca Member No.: 9,147 Region Association: None |
Thanks everyone. I don't need it so it's time to see if it shifts and start cleaning it up to sell.
|
|
|
|
|
