Hi All,
Here's a pic of the back of the ignition switch and a drawing of the terminal locations. I have a hunch which terminal is #30 (+12v from battery) but I'd like confirmation. (And maybe identify the others as well!) (IMG:http://www.914world.com/bbs2/uploads_offsite/i221.photobucket.com-11163-1311627019.1.jpg) (IMG:http://www.914world.com/bbs2/uploads_offsite/i221.photobucket.com-11163-1311627020.2.jpg) Thanx, (IMG:style_emoticons/default/beerchug.gif) Bob |
Dr Evil |
![]()
Post
#2
|
Send me your transmission! ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 23,038 Joined: 21-November 03 From: Loveland, OH 45140 Member No.: 1,372 Region Association: MidAtlantic Region ![]() ![]() |
Just to be sure, what year is it?
|
streetrover |
![]()
Post
#3
|
Member ![]() ![]() Group: Members Posts: 87 Joined: 22-December 09 From: Inland Empire Member No.: 11,163 Region Association: Southern California ![]() |
Pulled column out of a '74.
|
Dr Evil |
![]()
Post
#4
|
Send me your transmission! ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 23,038 Joined: 21-November 03 From: Loveland, OH 45140 Member No.: 1,372 Region Association: MidAtlantic Region ![]() ![]() |
Yes, 30 is Red-12+ in.
50 is yellow to starter (ignition signal) If you can tell me what numbers are near the terminals I can tell you what color and what they do. |
streetrover |
![]()
Post
#5
|
Member ![]() ![]() Group: Members Posts: 87 Joined: 22-December 09 From: Inland Empire Member No.: 11,163 Region Association: Southern California ![]() |
OMG!!! It REALLY SUCKS to get old! I went back and inspected the switch with my reading glasses on and, presto, all the numbers were clearly marked. On a good note, the tab that I suspected was #30 by using the ohm meter was indeed correct. So the brain is working ... just not the eyes (guess that's the second thing to go ... LOL!).
MANY APOLOGIES! Bob (IMG:style_emoticons/default/beer3.gif) |
Dr Evil |
![]()
Post
#6
|
Send me your transmission! ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 23,038 Joined: 21-November 03 From: Loveland, OH 45140 Member No.: 1,372 Region Association: MidAtlantic Region ![]() ![]() |
It happens (IMG:style_emoticons/default/smile.gif)
|
ThePaintedMan |
![]()
Post
#7
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 3,887 Joined: 6-September 11 From: St. Petersburg, FL Member No.: 13,527 Region Association: South East States ![]() ![]() |
Oh God, I'm going to get flamed for bringing up and old thread.... but I'm curious anyone can fill in the rest of the diagram from the OP? I would like to know what each of the terminals on the ignition switch is for as I'm re-wiring my car with a cutoff switch, master ignition on, and starter button. I could not find the actual switch in the wiring diagram for a 1973 (which is what my car is). Thanks for you help!
-George |
Bob L. |
![]()
Post
#8
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 848 Joined: 7-August 11 From: Austin TX Member No.: 13,411 Region Association: Southwest Region ![]() |
|

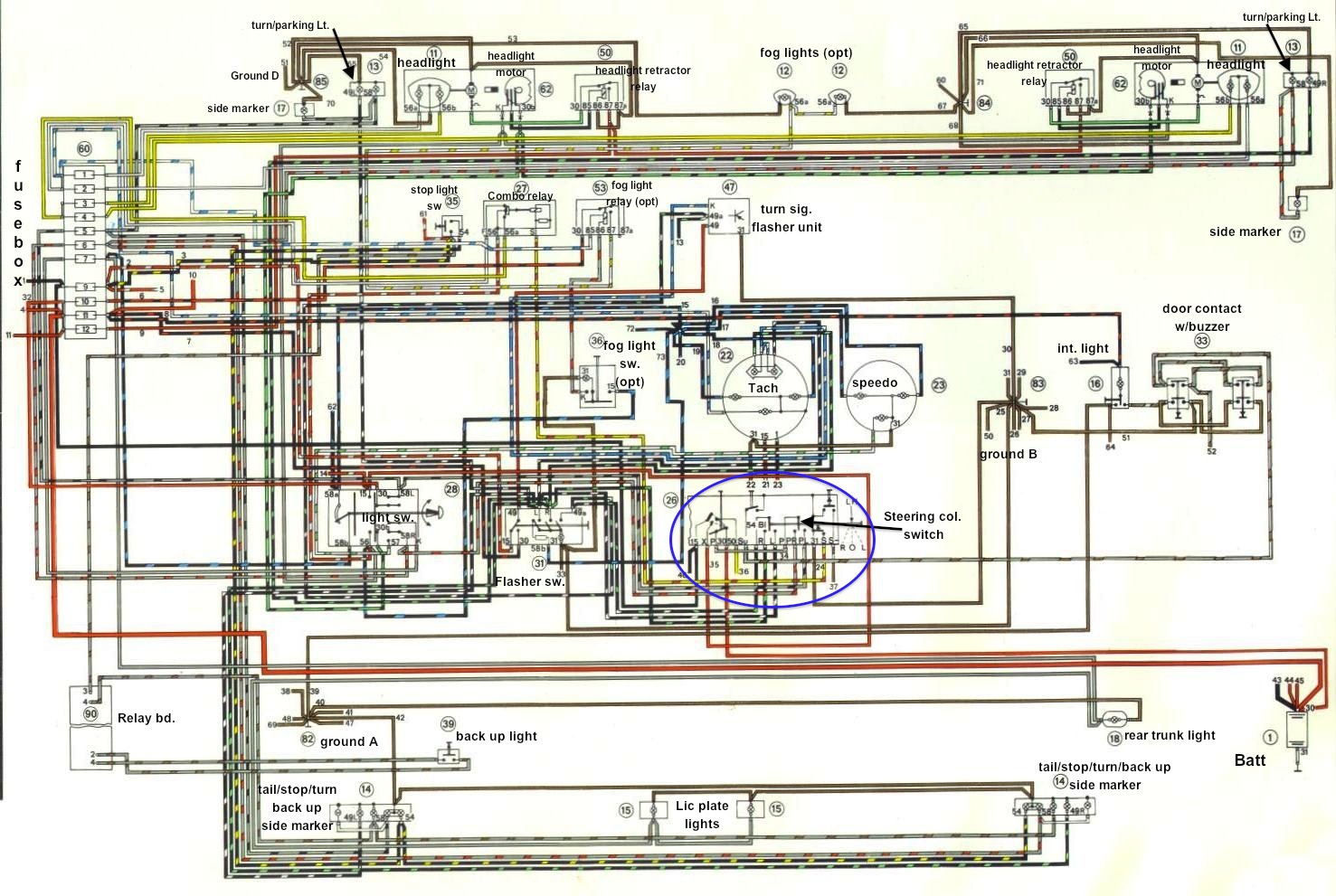

ThePaintedMan |
![]()
Post
#9
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 3,887 Joined: 6-September 11 From: St. Petersburg, FL Member No.: 13,527 Region Association: South East States ![]() ![]() |
Ah, thank you sir. I'm still not sure I can figure this out, but this helps a lot!
|
Bob L. |
![]()
Post
#10
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 848 Joined: 7-August 11 From: Austin TX Member No.: 13,411 Region Association: Southwest Region ![]() |

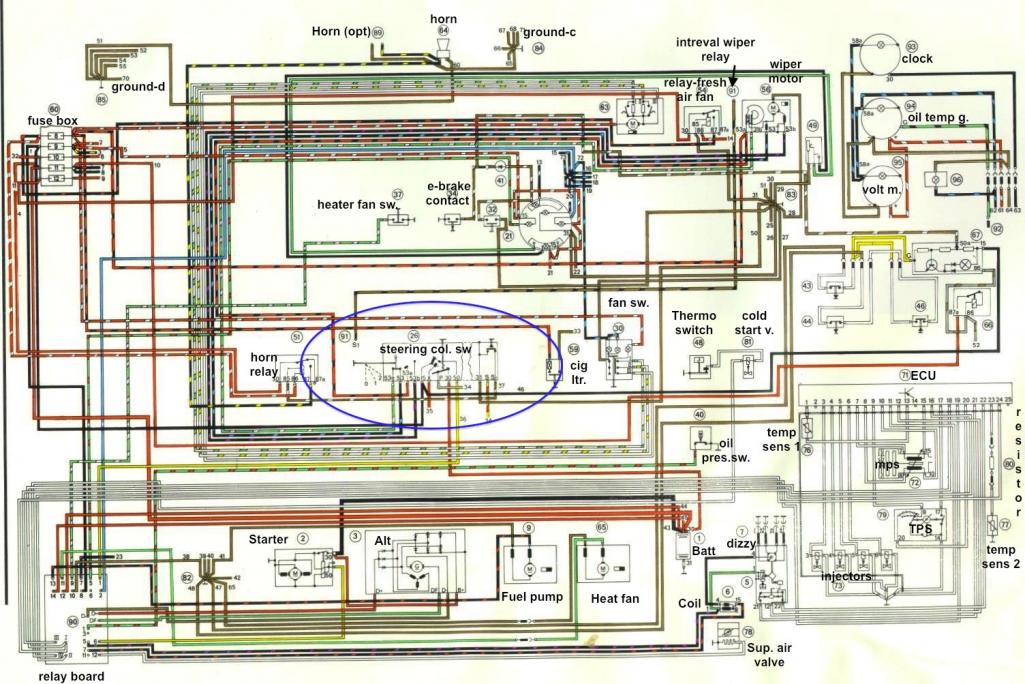

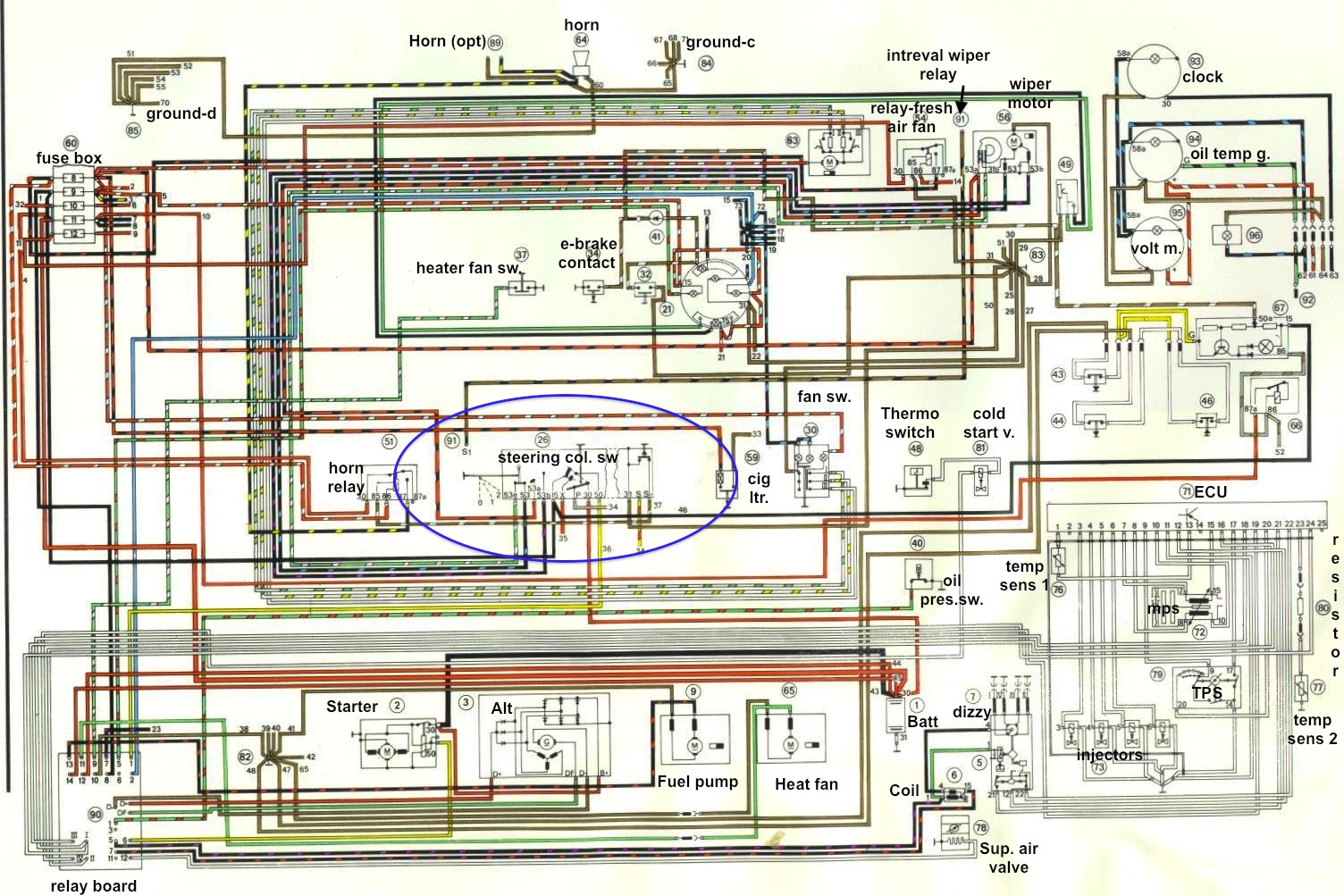

By the way, does anybody know which of the 2 temp sensors in the lower right of the diagram(FI harness) is the oil temp sensor (in the taco plate)?
|
JeffBowlsby |
![]()
Post
#11
|
914 Wiring Harnesses & Beekeeper ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,900 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None ![]() ![]() |
Temp sensor 2 is the cyl head temp sensor. THe poil temp sensor is not in the FI harness. Its a green/black wire and varies on location depending on model year.
|
Bob L. |
![]()
Post
#12
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 848 Joined: 7-August 11 From: Austin TX Member No.: 13,411 Region Association: Southwest Region ![]() |
Well, I have a '73 that I'm trying to wire a '76 2.0 into. Soooo.....?
|
Bob L. |
![]()
Post
#13
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 848 Joined: 7-August 11 From: Austin TX Member No.: 13,411 Region Association: Southwest Region ![]() |
|
![]() ![]() |
![]() |
