Whats New at Tangerine Racing Products, most recent product additions Options

[ChrisFoley]

Link to my Whats New Page


My most recent additions are:
1) Sideshift Linkage Kit - replaces the stock shift rod under the engine.
No welding required. Kits are available for -4 and -6 cars.
Also available for V8 and 915 conversions.
Price is $489.95.

2) Firewall Spherical Bearing for the shift rod coming through the tunnel.
This is about as easy to install as a replacement stock bushing.
For sideshift cars and tailshift cars converted to sideshift.
Price is $59.95.

3) 914-4 Cable Linkage for Dual Carbs.
Universal kit fits a variety of setups including ITBs.
Retains the stock throttle cable.
Price is $329.95.

Prices include shipping/handling.
When multiple items are ordered I generally recalculate the shipping and refund a portion of your payment.
Order direct on my website using Paypal or call my office to place a credit card order. 860-643-1550

Edited 05/18/17 to update prices.

[ChrisFoley]

*** A Tangerine Racing Exclusive ***
D-Jetronic MPS Repair Kits

Repair Kit includes a brand new beryllium copper diaphragm assembly, paper gasket, and two o-rings.
A Tuning Kit is available which includes a special hollow 7mm hex tool, small flat blade screwdriver, and a new Full Throttle Stop Screw, redesigned for easier adjustments.

Prices:
Repair Kit - $127.95 (regular price starting 12/01/12 - $139.95)
Tuning Kit - $46.95 (regular price - $46.95)
Both together - $166.95 (regular price - $178.95)
Units are scheduled to start shipping in late September.

Order with Paypal from our Whats New Page.
See my signature.

Edit 09/02/12: Updated prices.

[ThePaintedMan]

This stuff is truly a marvel of engineering and eye candy. As life progresses and cash flow increases (with a steady job) I'll be a customer in the future for sure.

[ChrisFoley]

I recently updated the Tangerine Racing Products home (index) page.
It now has links to all the main Products and Services pages.

Check it out!

Stay tuned for a completely revised website.

[ChrisFoley]

914 Grill Spatulas are here!
Made of waterjet cut, 16ga Polished T304 Stainless.
$84.95, includes US shipping.

[ChrisFoley]

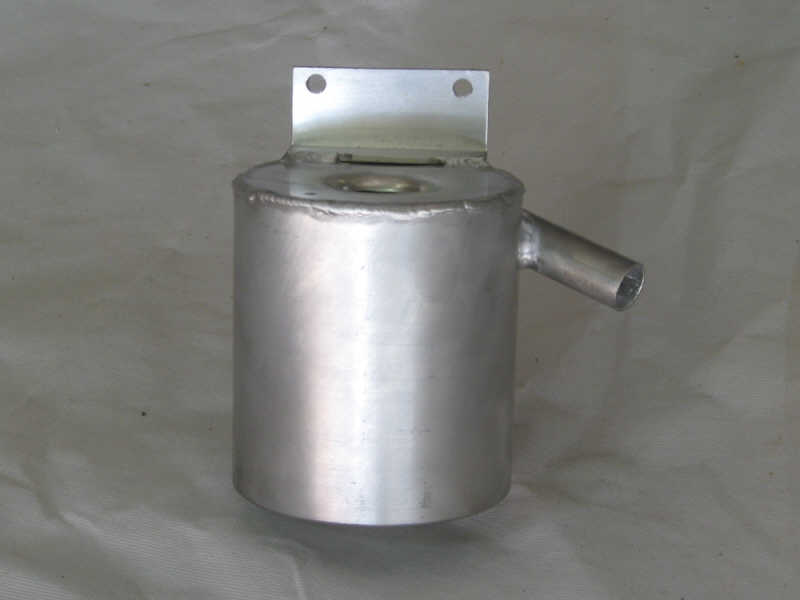

New breather can with a single large inlet for engines with no head vents.
Same internal design as the 3 port unit with swirl separation, a foam insert to improve oil droplet removal from the vapor, and an auto drain-back hose on the bottom.

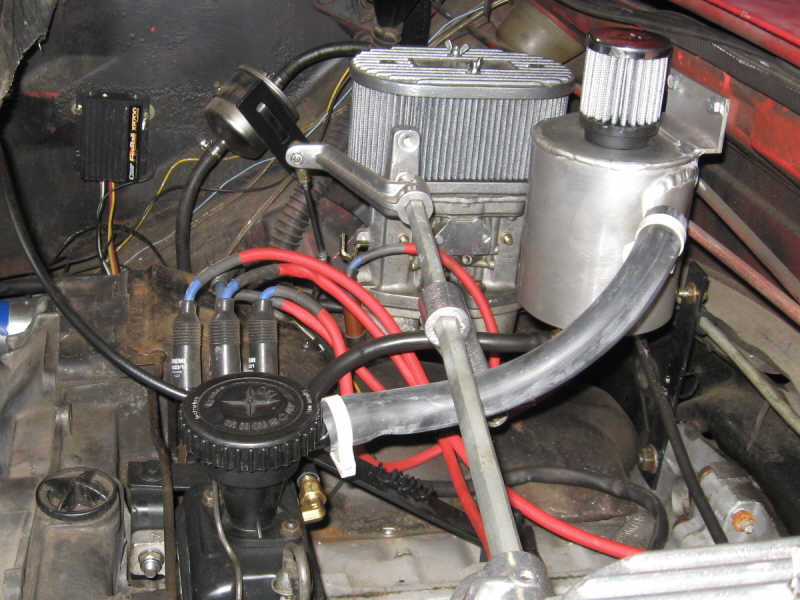

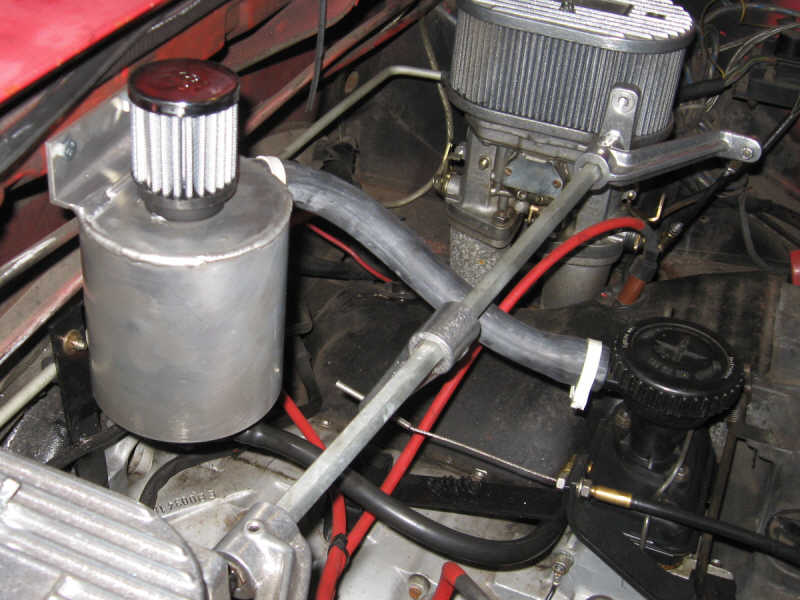

This is the prototype installation.

[aircooledtechguy]

Just wanted to thank Chris for the MPS kit I received today. Something so simple can make such a HUGE difference to my client's car. (IMG:style_emoticons/default/beerchug.gif) (IMG:style_emoticons/default/driving.gif)

If you're on the fence about ordering one of his MPS kits; get off the fence and man-up. You'll be glad you did.

[cary]

Chris, any progress on the center dual pipe muffler? aka, Boxster looking one?

[ChrisFoley]

Chris, any progress on the center dual pipe muffler? aka, Boxster looking one?

Nothing to report yet.
This winter has really slowed some of my R&D.

[0396]

Chris,
Any updates on the master cylinder " brace " for those of us that have the updated aluminum cross bar?
Thanks

[ChrisFoley]

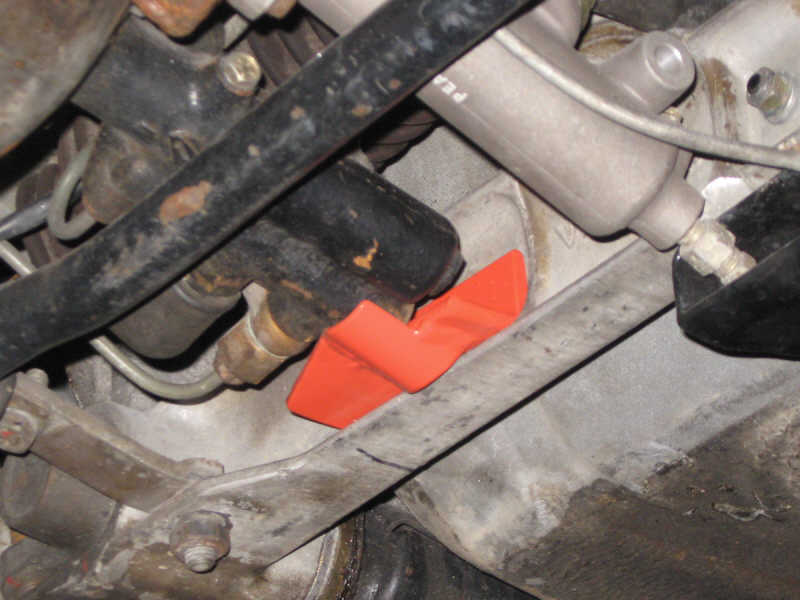

I found the pics I took of the one we made a few years ago.
Somehow they had been stored in the wrong folder. (IMG:style_emoticons/default/rolleyes.gif)

Unfurtunately, we didn't take measurements, and I haven't seen that car at my shop for some time.
I'll need another one on the lift to do it again and make a reproducible component.

I think that's a 23mm master in the pic.

[0396]

Great. I'm sure there's a few that will need one. I will need one for a 23 master too. Thanks

[ChrisFoley]

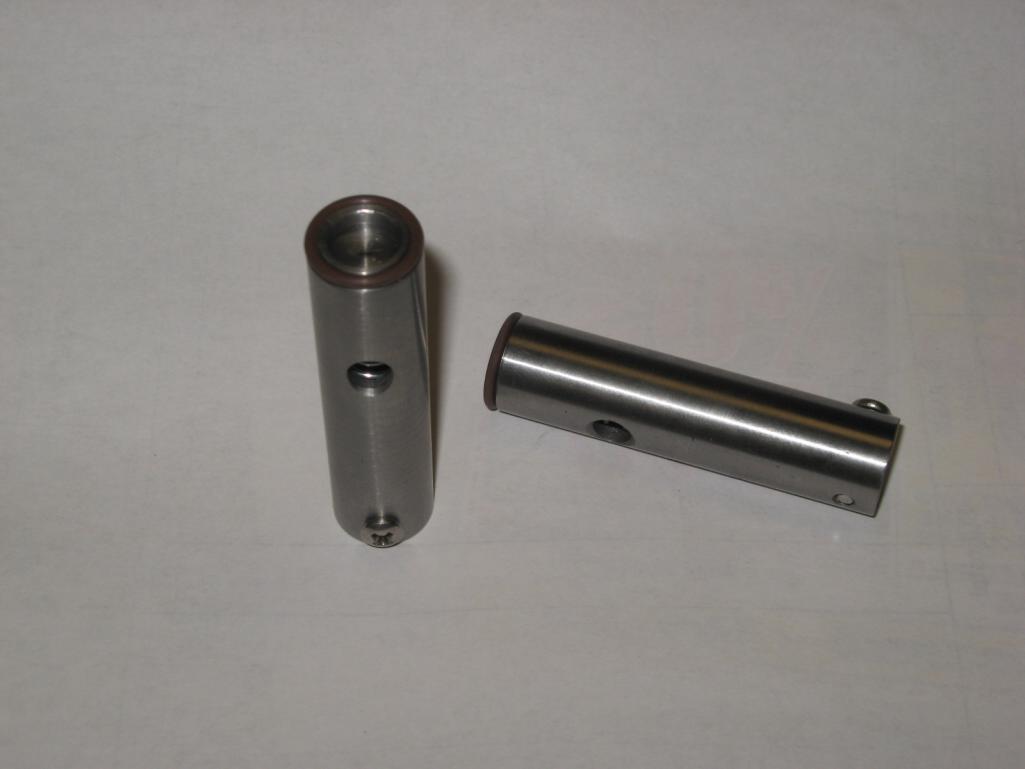

Our newest product is for the Type 4 engine oil system.
This pressure relief valve replaces the factory piston and spring located in the bottom of the crankcase near the oil filter.
It eliminates the oil cooler bypass portion of the stock oil circuit and raises the peak operating pressure to 70psi.
Peak pressure can be raised or lowered by installing a different length piston.
The aluminum bore for the pressure relief assembly is well worn after 40 years of operation and often bypasses a significant amount of oil, lowering available pressure to the bearings.

Our assembly has a steel sleeve with close tolerance stainless steel piston for many years of troublefree performance.
It will cure many high oil temp/low oil pressure issues and is essential for modified engines with external oil coolers - to achieve optimal oil temperature control.
A perfect complement to our remote oil cooler kits which are designed to eliminate the stock cooler from the engine.





Use the link below to add the pressure relief to your shopping cart.
Tangerine Racing Oil Pressure Relief Shopping Cart Button
Price: $79.95, shipping included.
Feel free to continue shopping on our website:
Tangerine Racing Products

Edit 05/18/17: price updated

[ChrisFoley]

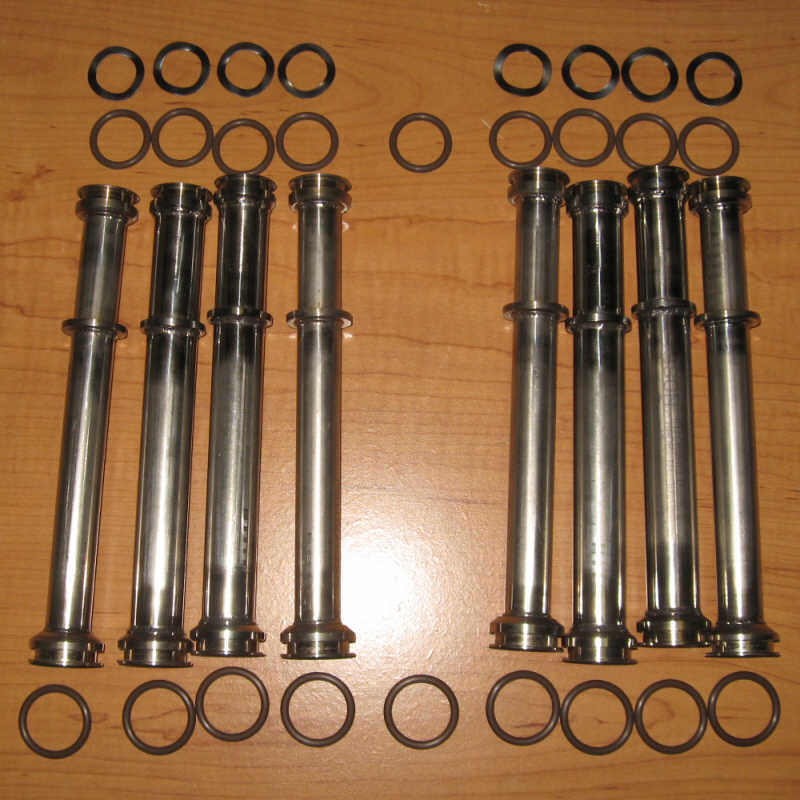

Stainless Steel Pushrod Tubes
Price: $299.95/set of 8. Includes: 8 Tubes, 18 Viton O-rings, 8 Spacers

Tired of dealing with oil leaks, or having to decide which sealant will actually work this time? (IMG:style_emoticons/default/unsure.gif)
O-rings are supposed to work without a need for additional sealants.

Our pushrod tubes are fabricated to precise tolerances.
The o-ring grooves provide proper support and compression to function as designed without needing messy sealants.

Made from T304 Stainless Steel, they will outlast the life of your engine.
We use two sizes of tubing to provide added clearance to exhaust pipes, while retaining good oil drainage back to the sump.

The o-rings fit tightly enough that the tubes can't be installed/removed by hand without added leverage.
A simple installation procedure is outlined in the instructions and
a heavy ring is welded on the tubes to aid in removal.

We make the tubes in stock and custom lengths - shorter for high compression engines and longer for stroker engines.
Wave washer spacers (3mm) are included for the crankcase end, to be used when the length of tubes purchased ends up a little too short for the specific application.



Order on my website - What's New page or Engine page.

[0396]

I found the pics I took of the one we made a few years ago.
Somehow they had been stored in the wrong folder. (IMG:style_emoticons/default/rolleyes.gif)

Unfurtunately, we didn't take measurements, and I haven't seen that car at my shop for some time.
I'll need another one on the lift to do it again and make a reproducible component.

I think that's a 23mm master in the pic.

Anyway to contact the owner for a " look see " for measurements. This way you will have another new product to sell to everyone that's needs any upgrade.
(IMG:style_emoticons/default/piratenanner.gif)

[Mblizzard]

Stainless Steel Pushrod Tubes
Introductory price: $259.95/set of 8. Includes: 8 Tubes, 18 Viton O-rings, 8 Spacers

Tired of dealing with oil leaks, or having to decide which sealant will actually work this time? (IMG:style_emoticons/default/unsure.gif)
O-rings are supposed to work without a need for additional sealants.

Our pushrod tubes are fabricated to precise tolerances.
The o-ring grooves provide proper support and compression to function as designed without needing messy sealants.

Made from T304 Stainless Steel, they will outlast the life of your engine.
We use two sizes of tubing to provide added clearance to exhaust pipes, while retaining good oil drainage back to the sump.

The o-rings fit tightly enough that the tubes can't be installed/removed by hand without added leverage.
A simple installation procedure is outlined in the instructions and
a heavy ring is welded on the tubes to aid in removal.

We make the tubes in stock and custom lengths - shorter for high compression engines and longer for stroker engines.
Wave washer spacers (3mm) are included for the crankcase end, to be used when the length of tubes purchased ends up a little too short for the specific application.



Until I have them on my website use this method to order:
Send Paypal to sales@tangerineracing.com along with a note specifying length: -4mm, -2mm, Stock (208.5mm), +2mm, +4mm, other custom length.

These will go on my engine next time I drop it!

[ChrisFoley]

More new products available now:

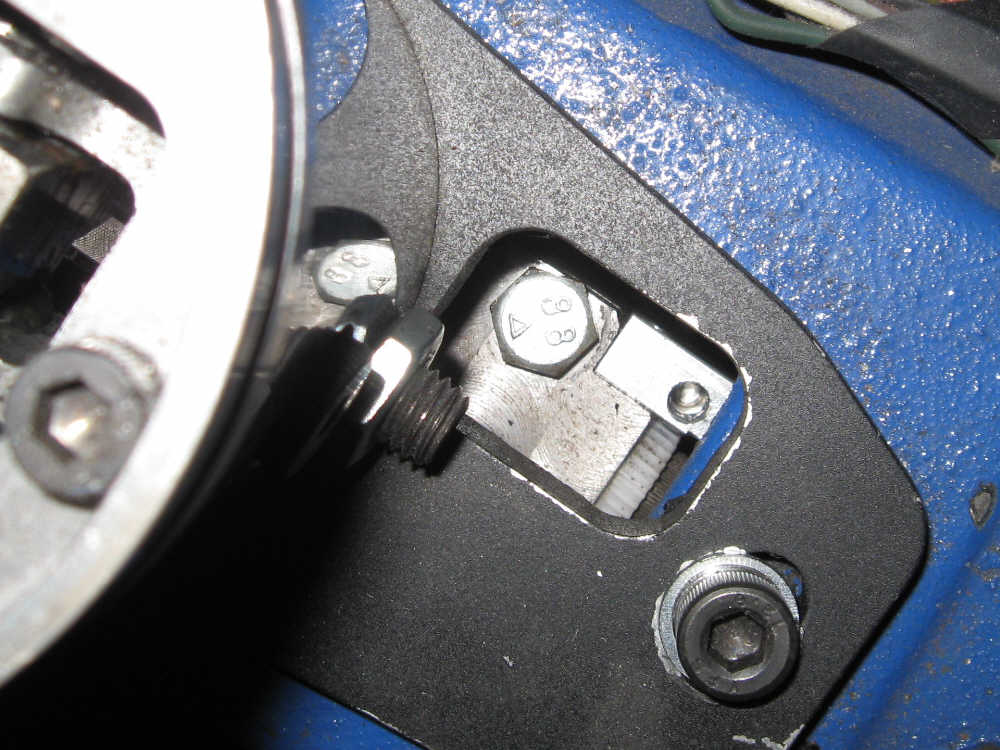

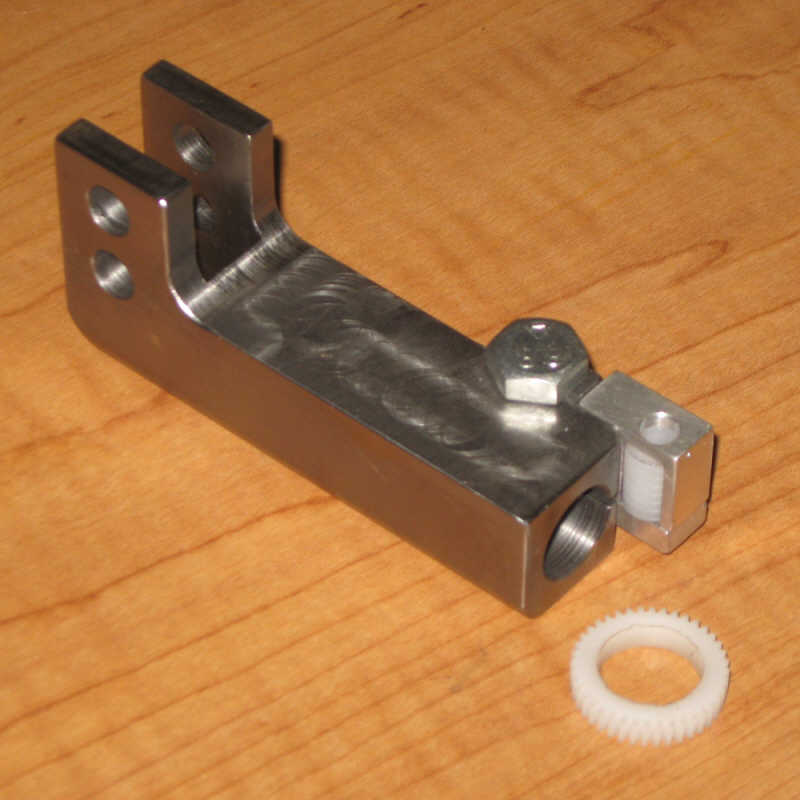

Precision Shift Adjuster - $199.95

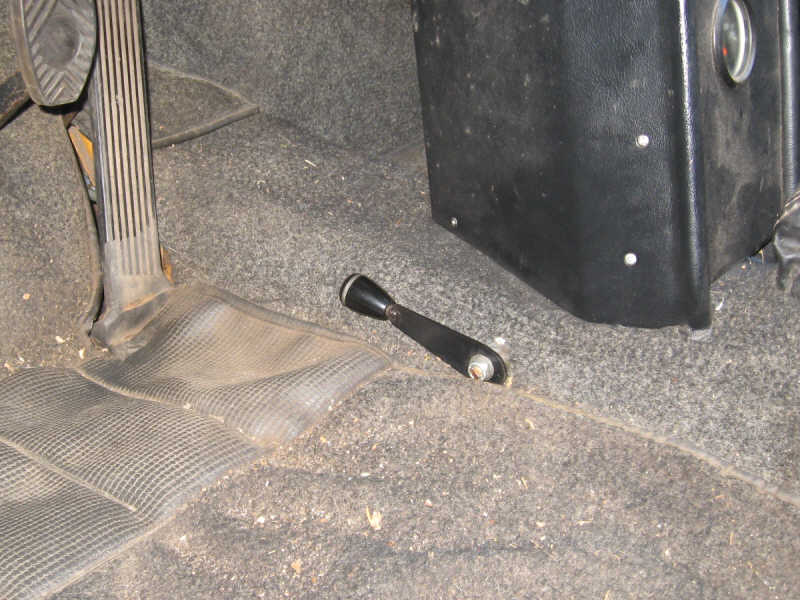

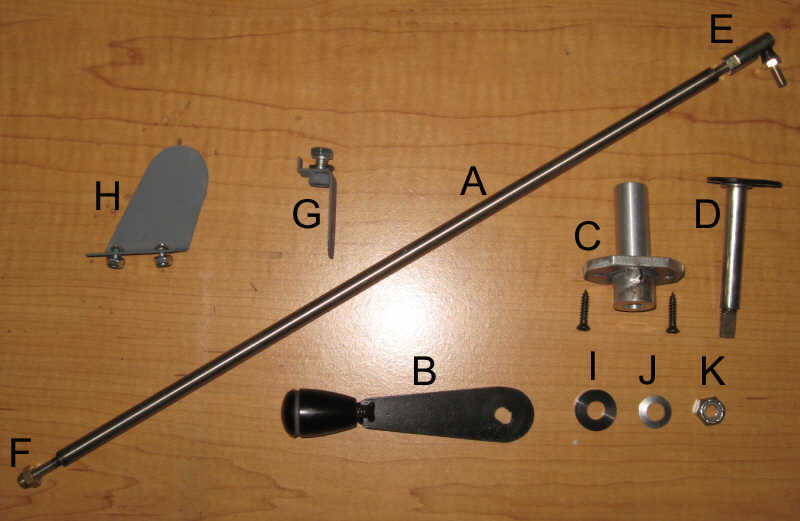

Hand Throttle Kit, works just like the factory six hand throttle but mounts differently on the tunnel.
Perfect for use with Rennshift and with factory center console - $139.95

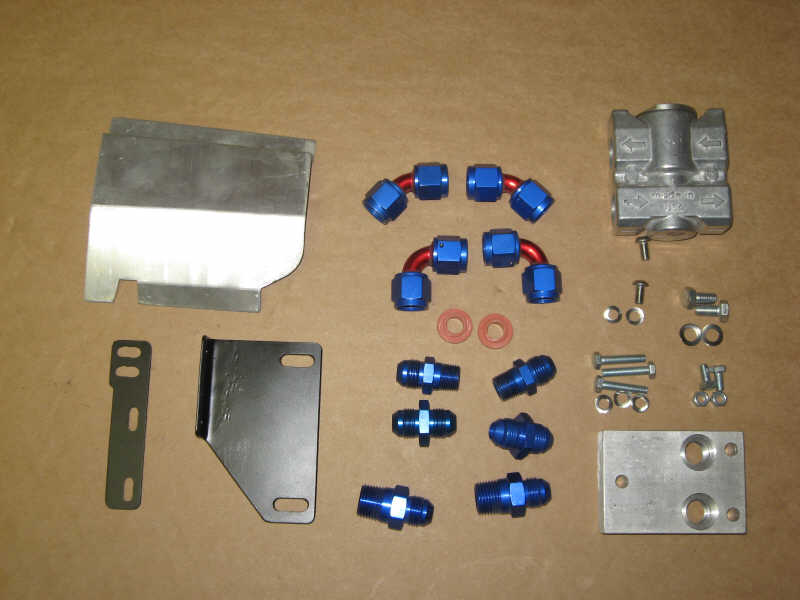

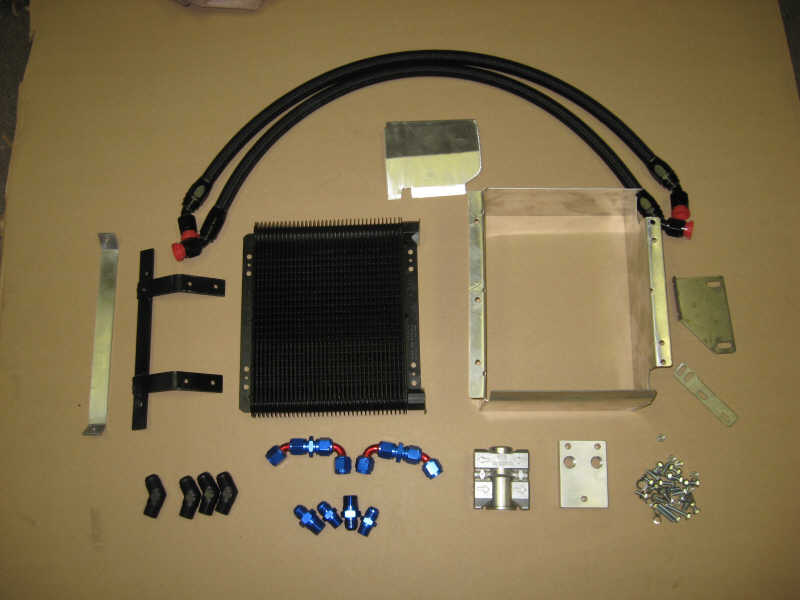

Remote Oil Cooler Kits - Basic thermostat take-off for use with your existing cooler, Rear mounted kit with or without thermostatically controlled fan, and front mounted cooler kit.
Basic Kit:


Rear Mounted Kit:

[ChrisFoley]

Chris, any progress on the center dual pipe muffler? aka, Boxster looking one?

We're assembling 5 of the revised Tangerine EVO IV Silencers right now.
They're available with Twin Center Tips or a single tip at either corner of the valence.
The single tip silencers are quiet, the twin tip is not.
Both have a nice tone, not too deep and not tinny.

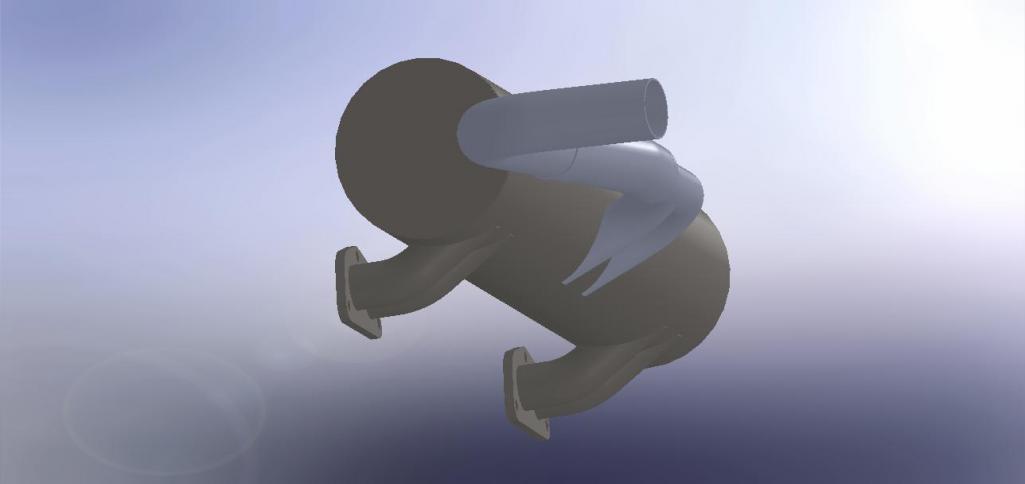

Solidworks:

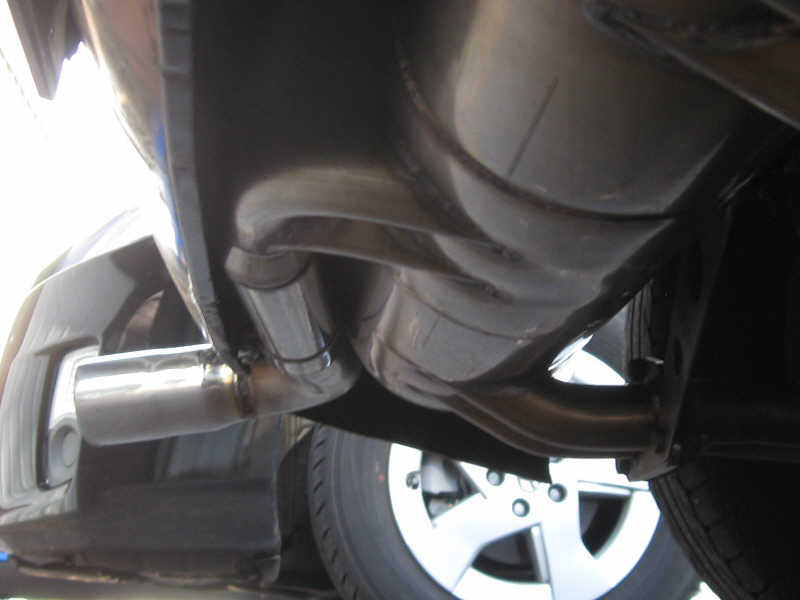

This is the prototype on my car:


Price is $895 plus shipping.

[ChrisFoley]

I just updated my website to include mobile device compatibility.
Now you can browse/shop from your smartphone or iPad.
I've also added a full product listing page with links to each product detail page.

[mepstein]

I just updated my website to include mobile device compatibility.
Now you can browse/shop from your smartphone or iPad.
I've also added a full product listing page with links to each product detail page.

I was using my iPhone last week and the site gave me trouble. Just tried it again today and it works great.

Thanks for supporting the 914!!!
