> Aluminium fuel tank for stock location., Trial fit and some modifications
phillstek
post Sep 15 2011, 12:53 AM
Post #1


Member
**

Group: Members
Posts: 350
Joined: 19-May 10
From: Byron Bay, Australia
Member No.: 11,741
Region Association: None

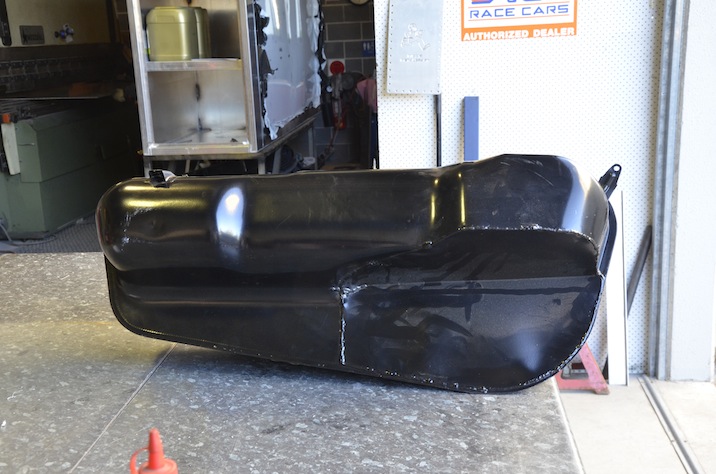

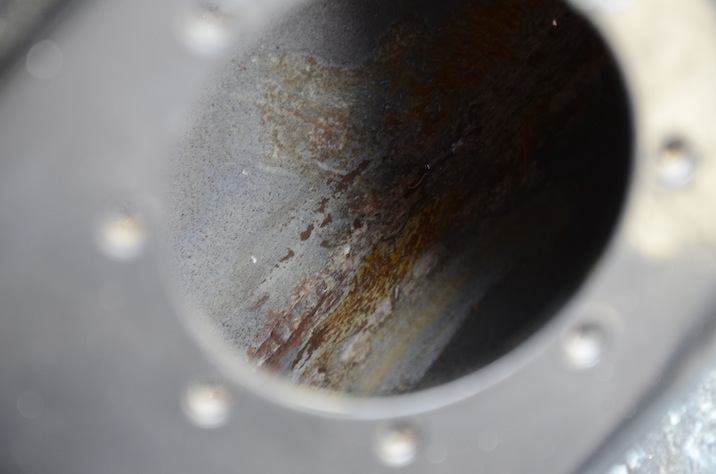

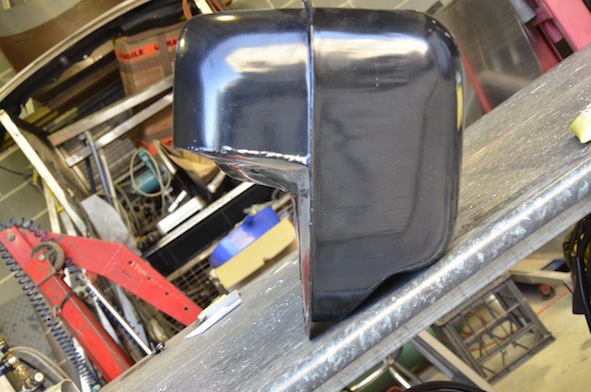

Ever since cutting and welding my original tank it had a rust problem. Ultra fine rust particles were constantly being sucked through the lines blocking the fuel sock and despite 3 in-line filters, clogging the jets and giving me the shits.

I know I could have just got a kit and treated it but I kept getting conflicting opinions on whether or not that works.

Checked out the Fuel Safe option and they couldn't modify the bladder for rhd applications so the only bullet proof solution was to make one.

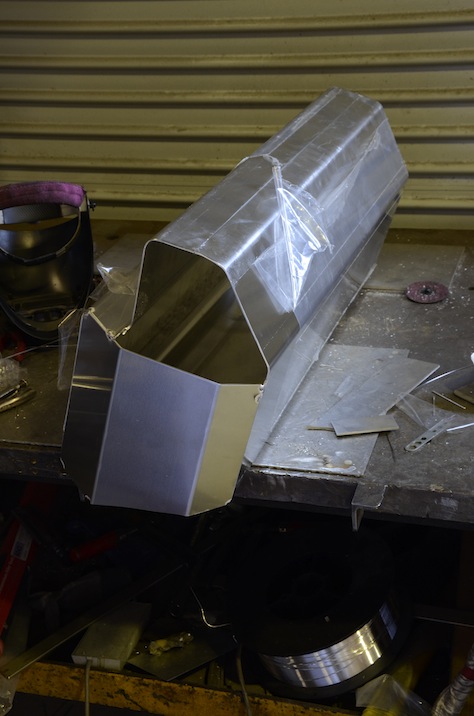

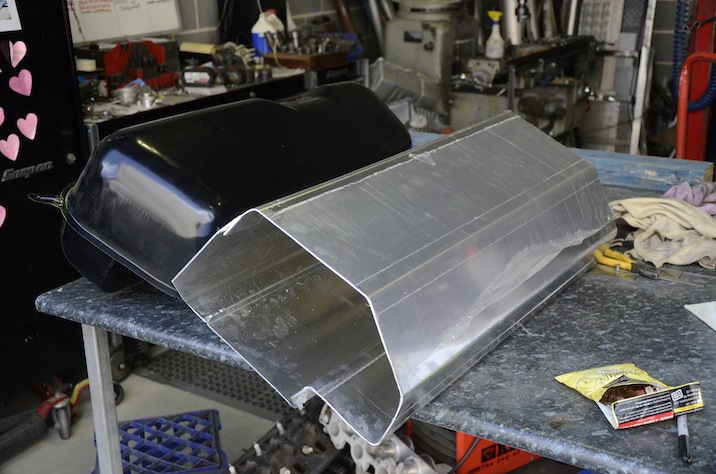

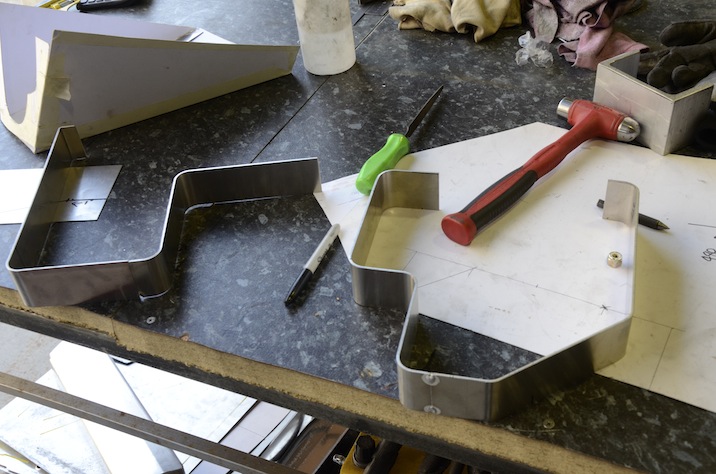

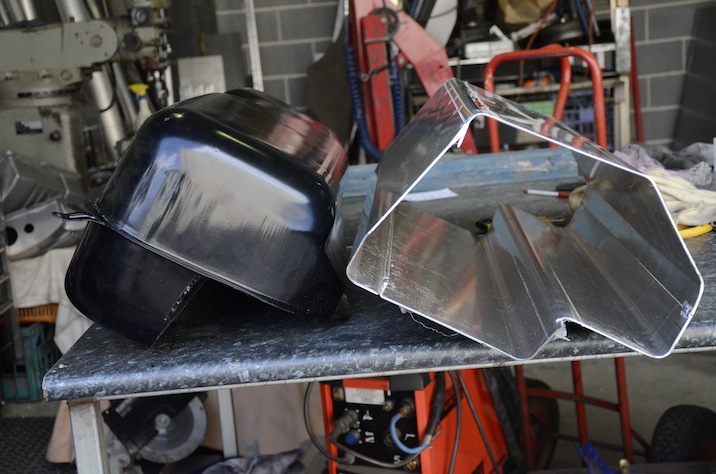

Started by profiling the tank bulkhead and then folding some sheet to suit.

Tank will have internal baffling, swirl sump for future efi conversion and a roll over valve for venting.

Also doing an expansion tank that will mount on the front side of the bulkhead.

Not sure what the exact capacity will be but I reckon it'll be around 60 litres

Here are some progress pictures, all thoughts and comments welcome.

Phil


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Sep 15 2011, 03:12 AM
Post #2


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,453
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Very nice idea. The only suggestion I have would be to use a "T" dolly in a vise to strike the edges over slightly. Round them over to meet each other. Here's a diagram of what I'm explaining.

Attached Image

Sorry for the crude drawings. But if you can break the corners where they meet they are less likely to warp as you try to weld them. It gives them a nicer round look. Also when butt welding two panels with the kind of heat transfer aluminum has you want to crease the panels like the lower example. This will help the panels stay aligned and make for less work straightening when your done. It gives you a nice crown to fillet. (IMG:style_emoticons/default/welder.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
phillstek
post Oct 10 2011, 02:25 AM
Post #3


Member
**

Group: Members
Posts: 350
Joined: 19-May 10
From: Byron Bay, Australia
Member No.: 11,741
Region Association: None
Thanks for the tip rick, although my welder friend managed to keep the distortion under control and apart from a couple ugly, fat-arse welds on the ends, it came out looking pretty good.

The internal pump routes fuel to the expansion/accumulator tank (small tank in pic). The e/a tank will mount up behind the main tank, under the cowl and feed to main pump, breather and charcoal can.

Using flexible stainless lines between the tanks and Tangerine lines through the tunnel.

Trial fitting of the tank went well, it fits like a finger in a place where a finger shouldn't go (polite version of an Australian colloquialism). I will use a piece of conveyor belt rubber under the tank and mount tabs to isolate chassis vibrations and rattles.

We can do more of these if there is any interest. It was made for left or right hand drive cars.

Comments and criticisms welcome.

Phil


Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Oct 10 2011, 05:04 AM
Post #4


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 120,544
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
How much does it hold?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
phillstek
post Oct 10 2011, 05:26 AM
Post #5


Member
**

Group: Members
Posts: 350
Joined: 19-May 10
From: Byron Bay, Australia
Member No.: 11,741
Region Association: None
QUOTE(URY914 @ Oct 10 2011, 10:04 PM) *

How much does it hold?


I haven't filled it yet but the estimate is 55-60 litres.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hontec
post Oct 10 2011, 06:20 AM
Post #6


I see things.....
**

Group: Members
Posts: 261
Joined: 23-September 10
From: Netherlands
Member No.: 12,210
Region Association: Europe
Very nice!! did you sump/baffle/foam it by any chance?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Oct 10 2011, 07:01 AM
Post #7


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States
That's extremely well done. Nice job.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Oct 10 2011, 07:04 AM
Post #8


PMB Performance
***************

Group: Admin
Posts: 19,275
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Excellent Phil.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ptravnic
post Oct 10 2011, 07:10 AM
Post #9


Senior Member
***

Group: Members
Posts: 1,231
Joined: 27-May 03
From: Chicago, IL
Member No.: 747
Region Association: None
Ambitious project - very nicely done. (IMG:style_emoticons/default/beerchug.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Niklas
post Oct 10 2011, 07:18 AM
Post #10


Porsche 914 Sweden
**

Group: Members
Posts: 366
Joined: 20-June 09
From: Sweden - Skivarp
Member No.: 10,488
Region Association: Scandinavia
Nice work!!

You should sell them.

Do you make if I order ?
Can you send to sweden ?
Maybe it is to expensive to send to sweden ??

Niklas
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Oct 10 2011, 08:26 AM
Post #11


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,500
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
No baffles?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
phillstek
post Oct 10 2011, 12:55 PM
Post #12


Member
**

Group: Members
Posts: 350
Joined: 19-May 10
From: Byron Bay, Australia
Member No.: 11,741
Region Association: None
Thanks for all the positive comments (IMG:style_emoticons/default/beerchug.gif)

Hontec, the tank has 2 baffles and a swirl sump but no bladder or foam. By comparison to the work you do, my tank is pretty crude.

Niklas, yes we can make it if you want one. Not sure as to price and I would imagine that shipping from here to Sweden would be prohibitive. It depends on your definition of expensive.

Thanks again to all. I'm glad you guys like it.

Phil
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wingnut86
post Oct 10 2011, 01:07 PM
Post #13


...boola la boo boola boo...
***

Group: Members
Posts: 1,053
Joined: 22-April 10
From: South Carolina
Member No.: 11,645
Region Association: South East States
Phil,

You have to ignore Hontec sometimes.

He's all about the "Bling" factor as we say in Yankee land.

I mean really, green lines in the floor?

He's not even Irish (IMG:style_emoticons/default/happy11.gif)

Excuse the hijack > Image of Hontec when we meet finally (IMG:style_emoticons/default/chair.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Oct 10 2011, 01:11 PM
Post #14


914 Guru
*****

Group: Members
Posts: 5,426
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Very cool...I've always been jealous of those English car guys that have stainless and alumn fuel tanks for good prices on the aftermarket.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
phillstek
post Oct 31 2011, 02:02 AM
Post #15


Member
**

Group: Members
Posts: 350
Joined: 19-May 10
From: Byron Bay, Australia
Member No.: 11,741
Region Association: None
Tanks for all the positive comments. Trial fitting the new tank revealed a couple of minor clearance issues. Had to modify the filler neck and counter sink the fuel level sender aperture as they just fouled the bonnet when attempting to close it. Other than that it turned out really nice.

Phil


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mikea100
post Oct 31 2011, 07:56 AM
Post #16


Member
**

Group: Members
Posts: 180
Joined: 28-December 09
From: Edison, NJ
Member No.: 11,182
Region Association: North East States
Great job, Phil. Are you planning on mass producing it? There're many threads on cleaning rusty fuel tanks, but making an new aluminum piece trumps them all. Well done.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rwilner
post Oct 31 2011, 09:16 AM
Post #17


No Ghosts in the Machine
***

Group: Members
Posts: 953
Joined: 30-March 10
From: Boston, MA
Member No.: 11,530
Region Association: North East States
with this tank in place, can you install the fresh air blower?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
phillstek
post Oct 31 2011, 01:11 PM
Post #18


Member
**

Group: Members
Posts: 350
Joined: 19-May 10
From: Byron Bay, Australia
Member No.: 11,741
Region Association: None
Blower fits fine but I removed the right-side splitter as that's where I'm locating the expansion/accumulator tank.

Making a tank from scratch was probably 'overkill' but I wanted the fuel system to be as bullet-proof as possible. We can manufacture to order if required but as far as 'mass production', I don't think so. Shipping costs from Australia would be hellishly expensive as well.

Thanks for looking and all the feedback.

Phil
