> High Mileage EA motor teardown, 330,000 miles +
mgphoto
post Sep 28 2011, 05:56 PM
Post #1


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,374
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
The time has come to rebuild the original EA motor in my '72.

I am most of the way though teardown, I will add some photos of the worn parts in a later post.

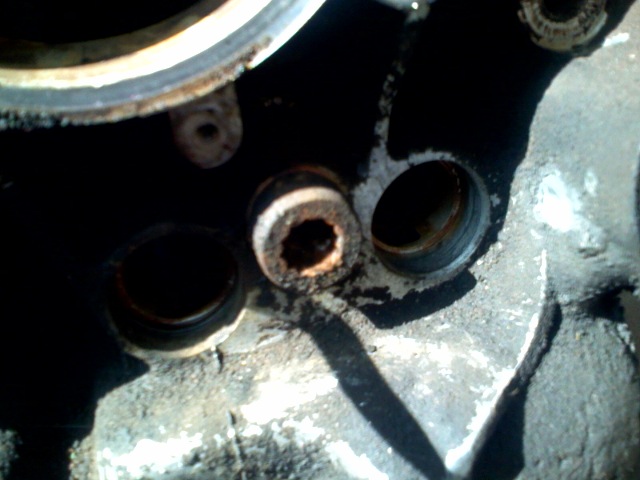

I am trying to figure out the size of the tool to use to remove this fastener, the cover for the second oil pressure relief piston and spring.

Attached Image

Factory service manual has it as M14 internal head socket. I searched for it but all I could find is the AST Tool # S 54 X-14 at the link listed below

http://www.asttool.com/detail_page.php?too...r=S%2054%20X-14


Does anyone know if this is the correct tool?

Thanks for looking,
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Sep 28 2011, 06:06 PM
Post #2


I drive my car everyday
*****

Group: Members
Posts: 8,335
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
If I recall correctly, its the same tool you use for the cv joints.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Sep 28 2011, 06:15 PM
Post #3


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,374
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
Hey vsg914, just checked and the axle tool is much smaller, although it seems to have the same number of points.
Thanks,
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RON S.
post Sep 28 2011, 06:20 PM
Post #4


9140430841, FINALLY RUNNING
***

Group: Members
Posts: 1,216
Joined: 22-May 03
From: WALTERBORO,S.C.
Member No.: 724
Region Association: South East States



When I needed an internal 12pt tool for my CV's, I found that the local Autozone had them in a 4pc. assortment for around 10 bucks.

check them out, I'll bet your local auto parts chain still carries them.




Ron
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
'73-914kid
post Sep 28 2011, 06:20 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,473
Joined: 1-November 08
From: Vista, CA
Member No.: 9,714
Region Association: Southern California
3/8 inch drive socket extension worked for me....it's only 4 points of contact, butmine wasn't "stuck" so it came out without too much force.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Sep 28 2011, 06:24 PM
Post #6


I drive my car everyday
*****

Group: Members
Posts: 8,335
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
You are correct. Its called a tripple square, among other things. Available at oriellys. M14 is the size
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Sep 28 2011, 09:36 PM
Post #7


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,374
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
QUOTE(vsg914 @ Sep 28 2011, 05:24 PM) *

You are correct. Its called a tripple square, among other things. Available at oriellys. M14 is the size

Hey vsg914,
Just got back from O'Reilly's "all we have is what's on the shelf" I live in Los Angeles, very difficult to find anything here. They did not have it, but they did have a Lisle 62200, it is used to remove broken heater hose couplers on GM cars, fits perfectly!
Thanks everyone,
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Sep 28 2011, 09:50 PM
Post #8


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,923
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Wow! 330K? Very cool! (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Sep 28 2011, 11:17 PM
Post #9


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Yup, never used anything but a 3/8" drive extension with no socket on it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Sep 29 2011, 12:25 PM
Post #10


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,374
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
I ran into a small snag, trying to remove the head studs, double nutting them, I was able to remove all but 2, the forward drivers side lower studs.
I tried with an open end wrench and than with the impact driver, the nuts just turn off the stud.
I was going to try some heat using MAPP gas but I don't want to melt the case.
How much heat and for how long?
Any suggestions are welcome.
Thanks,
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Sep 29 2011, 04:48 PM
Post #11


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,698
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(rick 918-S @ Sep 28 2011, 08:50 PM) *

Wow! 330K? Very cool! (IMG:style_emoticons/default/popcorn[1].gif)

That's what I want to hear about. Maybe in another thread you can share with us what it took to get here. How many top overhauls, rings, etc. Maybe Jake or Brad Penn would want to ink a deal with you to endorse their oil. (IMG:style_emoticons/default/av-943.gif) (IMG:style_emoticons/default/lol-2.gif) Whatever you do, don't come back and tell us you've been using off the shelf oil. It could cause an uprising. (IMG:style_emoticons/default/happy11.gif) Incredible. You da man. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Sep 29 2011, 05:12 PM
Post #12


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
To remove that triple square fastener give it two licks with a hammer and unscrew it with your fingers.. Might need a little help from a 3/8 extension.

The most miles I have seen from a TIV is 321k..

Off the shelf oil wasn't crap until 2001... Engines that were well worn beyond that point didn't care so much about the oil they used.. Fresh, tight and well built high performing engines are much more critical oil wise..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Sep 30 2011, 06:46 PM
Post #13


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,374
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
I bought the car in the '80's, 96k on the odo. I don't think the engine has ever been apart. No rings, valve jobs as long as I've owned it.

Pulled the motor at 337,xxx broke 2 angle drives in the time I've had the car, so I can add 2-3k miles on top of that.

Now reading 345,xxx.

Started using Quaker State 10w-40 when I lived in NYC.

'86 finds me in MIA FL and switching to Castrol 20w-50

'89 a move to LA (left coast) and I stick with the Castrol, stored a bunch of the orange top stuff in my garage, when it ran out, (that is when I found out about the zinc disappearing). I used the current stuff for an oil change until I could find a local guy selling Brad Penn.

Every oil change has been between 1500 and 3000 miles with out missing, shorter intervals when the engine was being stressed, also changed the filter 80% of the time (usually a shortage of cash issue).

And to top it all off, 8 oz. of Marvel Mystery Oil with every oil change, (I also add 4 oz. to the fuel at every fill up, original fuel pump).

Any endorsement contracts welcome!!!
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Valy
post Sep 30 2011, 07:12 PM
Post #14


Senior Member
***

Group: Members
Posts: 1,677
Joined: 6-April 10
From: Sunnyvale, CA
Member No.: 11,573
Region Association: Northern California
QUOTE(mgphoto @ Sep 30 2011, 05:46 PM) *

Pulled the motor at 337,xxx broke 2 angle drives in the time I've had the car, so I can add 2-3k miles on top of that.

Now reading 345,xxx.



Hmmm, my odometer only has 5 digits. What am I missing here (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Oct 1 2011, 11:48 AM
Post #15


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,698
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
[quote name='Valy' date='Sep 30 2011, 06:12 PM' post='1547272']
[quote name='mgphoto' post='1547261' date='Sep 30 2011, 05:46 PM']
Pulled the motor at 337,xxx broke 2 angle drives in the time I've had the car, so I can add 2-3k miles on top of that.

Now reading 345,xxx.

[/
Hmmm, my odometer only has 5 digits. What am I missing here (IMG:style_emoticons/default/confused24.gif)
[/quote]
He got it in the 80's w/ 97k and has rolled the odo twice
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Oct 5 2011, 01:27 PM
Post #16


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,374
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
I took the case over to Engine Machine Services, they cleaned it and they measured it today, Bruce said the case is used but not worn, woo who.....

He also said that after cleaning, the case is a bit stained, so I will have to look at it to see it I want it bead blasted, any advice here???

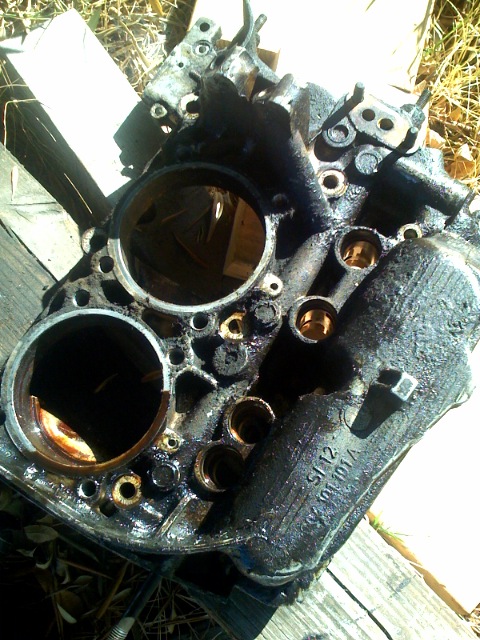

before
Attached Image

Worst of the damage was the valves stuck in the retainers, a brass mallet and a little pressure on the retainer freed them up.
Also one of the pushrods had contacted the pushrod tube retaining wire and wore the pushrod slightly, (my fault, I fiddled with the rocker arm to determine usage of 911 adjusters and installed the wire incorrectly.)


OK so here are some photos of the internals.

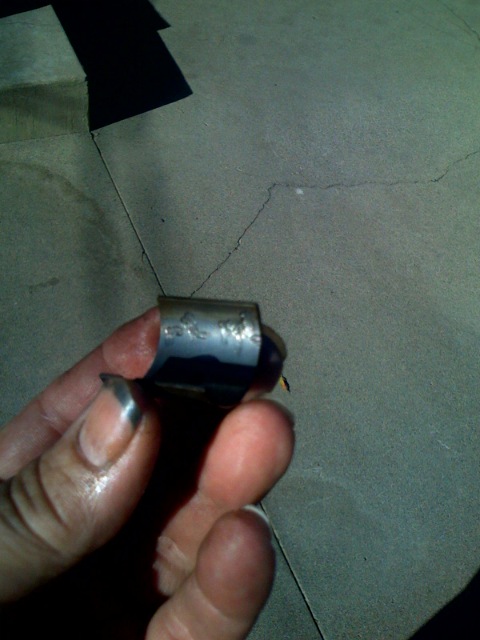

1st the worst of the bearing,
Cam bearing center position
Attached Image

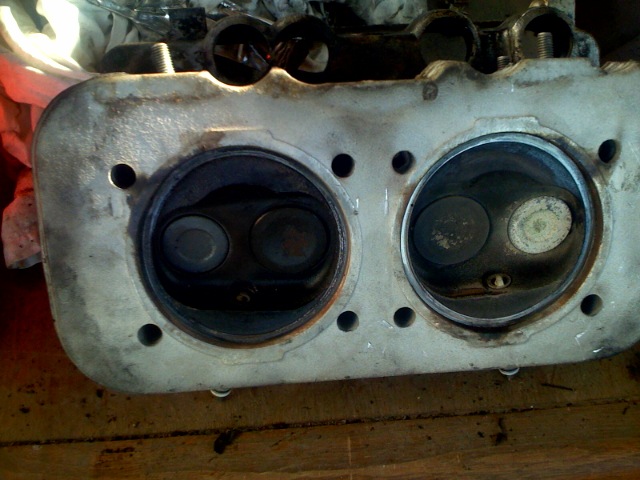

The forward exhaust valves have white deposits while the rears where a bit black and oily.

Attached Image

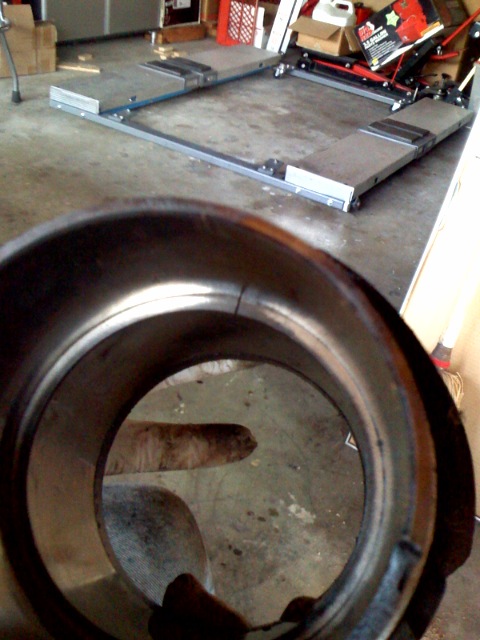

OK top ring gap!

Attached Image


more to come!
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Oct 5 2011, 01:35 PM
Post #17


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Dont glass bead it, you wont see it after you build it...
Waste of money and it could imbed beads into the surface..not cool.
Also will require you to super clean the case after.

Do have him remove all the freeze plugs and tap them for threaded plugs...

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Oct 5 2011, 04:16 PM
Post #18


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,374
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
QUOTE(r_towle @ Oct 5 2011, 12:35 PM) *

Dont glass bead it, you wont see it after you build it...
Waste of money and it could imbed beads into the surface..not cool.
Also will require you to super clean the case after.

Do have him remove all the freeze plugs and tap them for threaded plugs...

Rich


Thanks Rich for responding, I had just those same thoughts about the bead blasting, and yes next stage is to tap and thread the oil galleys!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Oct 12 2011, 06:22 PM
Post #19


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,374
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California

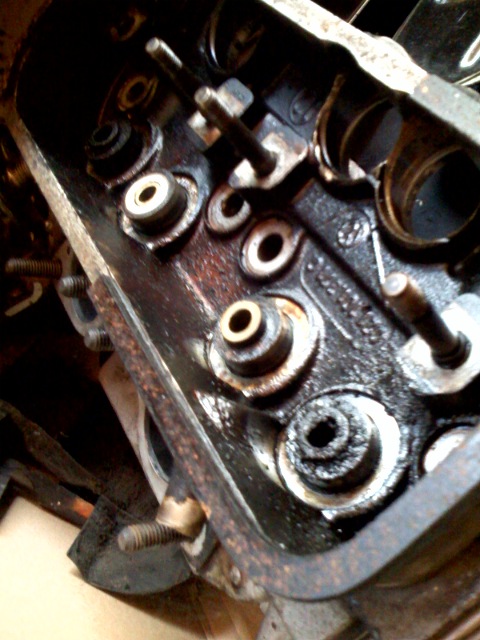

OK dismantled the heads, there is one odd item, one of the intake valve guides seems to be flush with the base which is different from the others, see image below.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Oct 12 2011, 06:50 PM
Post #20


En Garde!
**********

Group: Admin
Posts: 13,715
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
That is an intake valve guide dropping into the head. Eventually it would have let to valve/piston contact.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
