 Vent controls Which cable is which?, Been so long I can't remember |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| LotusJoe |
 Oct 27 2011, 02:33 PM
Post
#1
|
|
Europa Twink Driver  Group: Members Posts: 406 Joined: 30-November 09 From: Southern California Member No.: 11,085 Region Association: Southern California  |

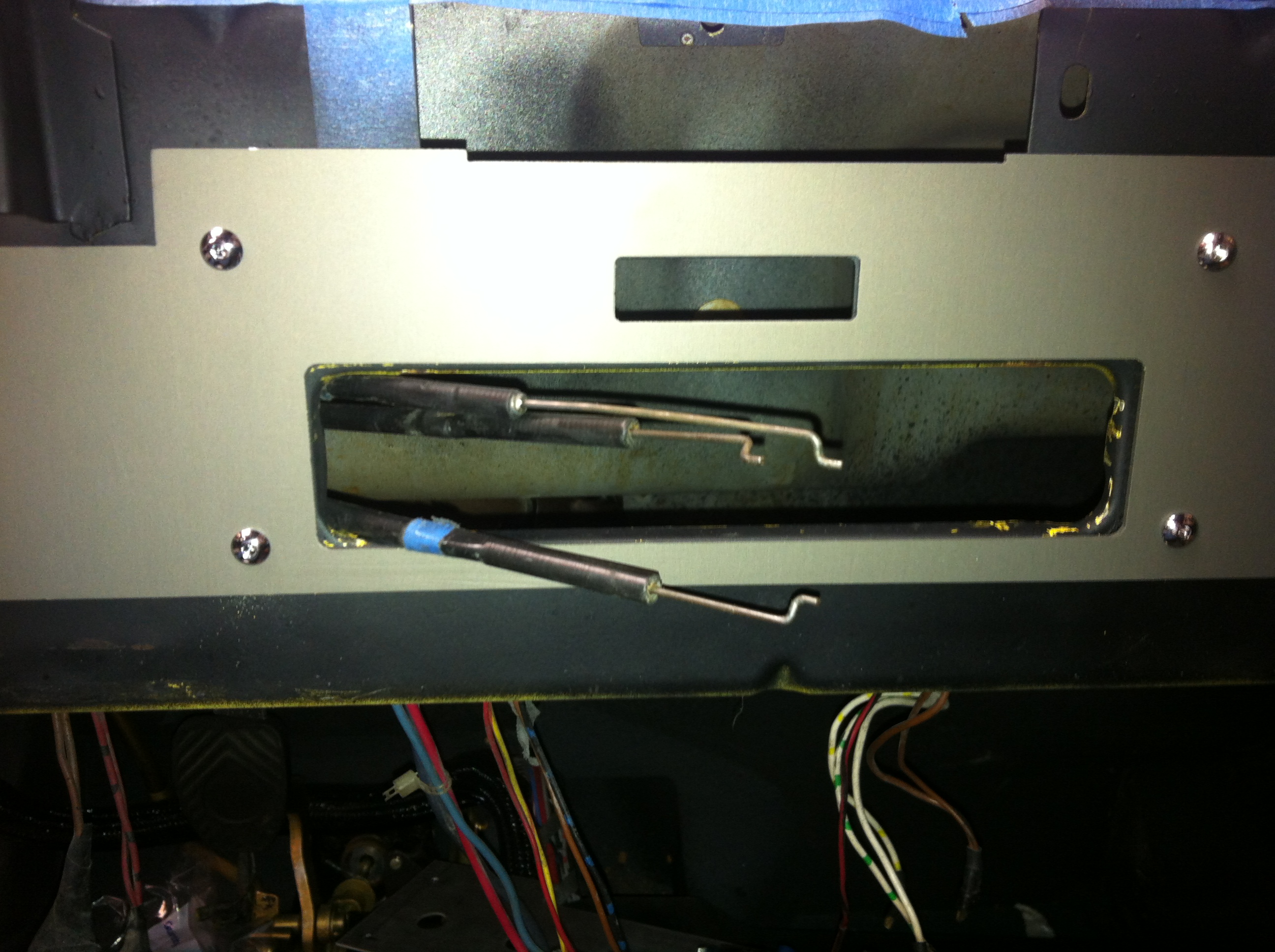

I'm putting the dash back together and can't remember which cable goes where. I think the cable that goes to the center blower box goes to the one on top. The cable that controls the passenger side goes in the middle and the one for the driver side goes on the bottom control arm. Is this correct?
 Thanks |
   |

|
| r_towle |
Oct 27 2011, 02:55 PM
Post
#2
|
|
Custom Member Group: Members Posts: 24,574 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States
|
Top lever is for fresh air, on and off and the fresh air fan.
Middle is for warm air distribution... Bottom one is for mixing fresh air and warm air throught the same vent. rich |
|
|
|
| LotusJoe |
Oct 27 2011, 03:01 PM
Post
#3
|
|
Europa Twink Driver Group: Members Posts: 406 Joined: 30-November 09 From: Southern California Member No.: 11,085 Region Association: Southern California |
QUOTE(r_towle @ Oct 27 2011, 01:55 PM)  Top lever is for fresh air, on and off and the fresh air fan. Middle is for warm air distribution... Bottom one is for mixing fresh air and warm air throught the same vent. rich Thanks Rich, I just don't know which cable goes where on the control switch (IMG:style_emoticons/default/confused24.gif) |
|
|
|
| r_towle |
Oct 27 2011, 04:17 PM
Post
#4
|
|
Custom Member Group: Members Posts: 24,574 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States
|
one cable opens up the main center box...follow it.
That is the top one. One cable opens up both ofthe side valves you see under the hood, but it opens them for hot air mixing between upper dash vents and lower foot vents. That is the middle valve. The lower cable opens the same side valves, but it lets cold air in from the freshair box into those valves. Rich |
|
|
|
| LotusJoe |
Oct 27 2011, 05:48 PM
Post
#5
|
|
Europa Twink Driver Group: Members Posts: 406 Joined: 30-November 09 From: Southern California Member No.: 11,085 Region Association: Southern California |
QUOTE(r_towle @ Oct 27 2011, 03:17 PM) one cable opens up the main center box...follow it. That is the top one. One cable opens up both ofthe side valves you see under the hood, but it opens them for hot air mixing between upper dash vents and lower foot vents. That is the middle valve. The lower cable opens the same side valves, but it lets cold air in from the freshair box into those valves. Rich Thanks again Rich. Got it all hooked up. |
|
|
|
|
