> Rocker Panel Swap, 5 pounds of crud
Allan
post Aug 3 2004, 07:30 PM
Post #1


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California

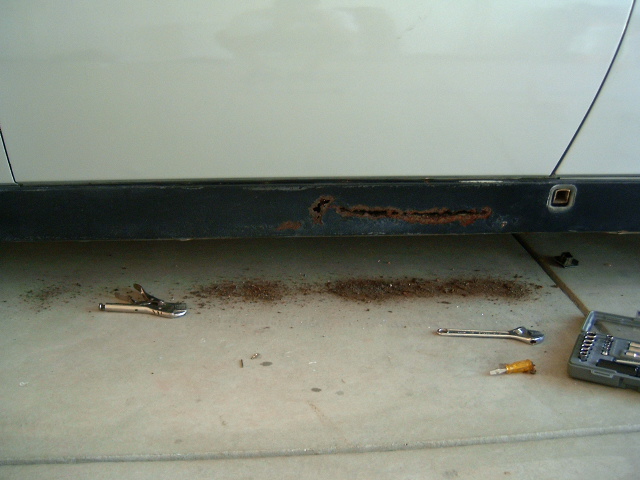

Got my rocker panel back from a body repair guy today. Started the swap and wanted to post a few pictures of the process and of what I found lurking under the old one (IMG:style_emoticons/default/smash.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Aug 3 2004, 07:31 PM
Post #2


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
Another with the panel off.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Aug 3 2004, 07:33 PM
Post #3


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
A little closer of the rust. Not too bad I think.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Aug 3 2004, 07:35 PM
Post #4


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
Found one small hole that I can weld up. Will POR-15 after a good cleaning with a wire brush and drill work on this?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Aug 3 2004, 07:35 PM
Post #5


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
Last one. I will add more when done.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Aug 4 2004, 06:16 AM
Post #6


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
Looks like you caught it just in time!

cheers,

Jeroen
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Aug 4 2004, 08:57 AM
Post #7


Village Idiot
*****

Group: Members
Posts: 8,320
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Yeah, I think you caught this in time to make it a quick fix. I used POR15 for the first time this week. Seems like great stuff! Only the test of time will tell.

Check this out, not as much as what you had, but still, look at all the dirt packed up there!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
john rogers
post Aug 4 2004, 12:20 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,525
Joined: 4-March 03
From: Chula Vista CA
Member No.: 391
I pull the rocker panels yearly on our stock 1974 and several times a year on the race car for this very reason. I did three races and got very little klagg from the tires and track and then did one DE event at the stadium in San Diego to do some testing and had about 2 pounds in each side!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Aug 4 2004, 12:52 PM
Post #9


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,062
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Uh... I remove the jack plate and repaire that damage as well (IMG:style_emoticons/default/sad.gif)
BTDT. the OE plates have holes on the top and bottem of the plate, I assume to drain water (IMG:style_emoticons/default/wacko.gif) (IMG:style_emoticons/default/confused24.gif)
These get caked with crap and rust from to the inside the jacktube and long.
at the least take a wire hanger and flashlight and do so exploritorry work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Aug 4 2004, 02:31 PM
Post #10


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
I will be doing alot of exploration while I have it off to see if there is some hidden areas. I was also wondering if anyone has ever used shallow head stainless screws to attach the top of the panel along the sill plate to facilitate easier removal for periodic inspections?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Aug 4 2004, 03:00 PM
Post #11


Village Idiot
*****

Group: Members
Posts: 8,320
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
QUOTE(Headrage @ Aug 4 2004, 12:31 PM)
I was also wondering if anyone has ever used shallow head stainless screws to attach the top of the panel along the sill plate to facilitate easier removal for periodic inspections?

You know, I haven't used rivets or screws in years. Doesn't seem to be needed? I haven't had any troubles so far? You have the mounts at each end (fenders) then 3 more screws along the bottom. Seems to hold everything on just fine. So mine are easy to take off 1-2 times a year.

Am I wacked here? I have done some pretty good speeds and well, they're still on! (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
red914
post Aug 4 2004, 03:19 PM
Post #12


...i believe in coyotes and time as an abstract...
***

Group: Members
Posts: 862
Joined: 8-February 04
From: poulsbo, washington
Member No.: 1,641
i am probably packing enough sand and crud in there for me to bury my head in and thus ignore the problem. (IMG:style_emoticons/default/wacko.gif)

gotta drill out those rivets for a look see... even though i won't like what i find. (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
redshift
post Aug 4 2004, 05:12 PM
Post #13


Bless the Hell out of you!
**********

Group: Members
Posts: 10,926
Joined: 29-June 03
Member No.: 869
From the rear, and front wheel wells...

When you are washing your car (at a high-pressure place) just get down on the ground, and aim the tube up into the rockers, until the water runs clear. Shit will shoot out of the jack tube area like you won't believe.

(IMG:style_emoticons/default/smile.gif)

I do the back, the front, and then the back again.. never had a rust problem down there yet.


M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
