> OT: What's this strange shroud?, Unusual shroud and fan on '69 912
smontanaro
post Dec 11 2011, 01:10 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,190
Joined: 3-June 05
From: Evanston, IL
Member No.: 4,197
Region Association: Upper MidWest

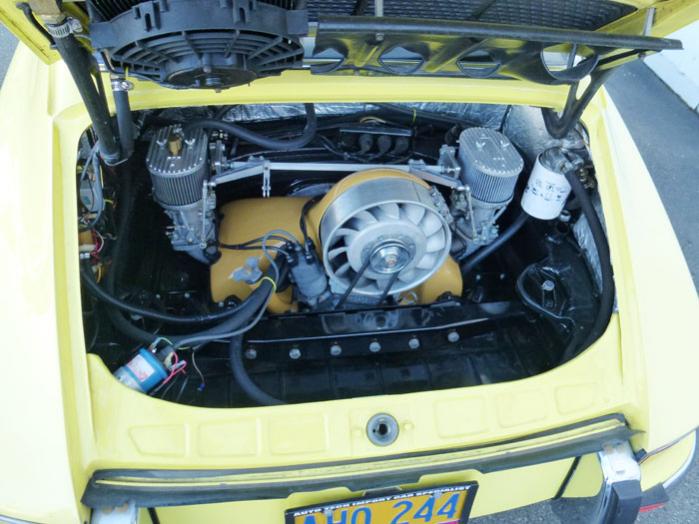

Saw this shot of a 912 engine compartment on the 912bbs.org forums:

Attached Image

That certainly doesn't look stock. It's from a for sale ad and the poster said nothing about a Type IV or anything. What is it?

Skip
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Dec 11 2011, 01:30 PM
Post #2


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
FAT
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Dec 11 2011, 01:33 PM
Post #3


En Garde!
**********

Group: Admin
Posts: 13,444
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
(IMG:style_emoticons/default/agree.gif)
Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 11 2011, 03:08 PM
Post #4


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
Yep and it is a type 4....wait...or is it a type 1???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wingnut86
post Dec 11 2011, 03:19 PM
Post #5


...boola la boo boola boo...
***

Group: Members
Posts: 1,053
Joined: 22-April 10
From: South Carolina
Member No.: 11,645
Region Association: South East States
Yep, 4 main designs that I am aware of.

1) FAT - Upright cooling
2) RABY Automotive Machine - Down The Middle "DTM"
3) Tangerine Racing (Chris) - Horizontal Fan Cooling System similar to what the original Corvair used, but nicer
4) Sharpbuilt/Australia - Shorter Upright unit cooling/requires custom cutting and shortening of oil breather riser

There are additional companies out there that complete similar upgrades.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dion9146
post Dec 11 2011, 03:21 PM
Post #6


Member
**

Group: Members
Posts: 469
Joined: 16-May 04
From: Buckner, KY
Member No.: 2,071
Region Association: MidAtlantic Region
A friend of mine has one of these hanging on his wall. Bought it to put in a 914 but has never gotten around to it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 11 2011, 03:33 PM
Post #7


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
Hard to tell but I'm thinking it is a type 1
Note the runners on the manifolds look narrow. Also the bottom edge of the shroud looks odd. Can't tell for sure, but are those exhaust cut-outs where a T1 port would be?
I'm wondering if it's a CSP for T1.

I've used Sharpbuilt (as well as a DTM and FAT) so I know that's not one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 11 2011, 03:35 PM
Post #8


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
Look at where the plugs are...Type one for sure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom_T
post Dec 11 2011, 04:21 PM
Post #9


TMI....
*****

Group: Members
Posts: 8,318
Joined: 19-March 09
From: Orange, CA
Member No.: 10,181
Region Association: Southern California
QUOTE(smontanaro @ Dec 11 2011, 11:10 AM) *

Saw this shot of a 912 engine compartment on the 912bbs.org forums:

Attached Image

That certainly doesn't look stock. It's from a for sale ad and the poster said nothing about a Type IV or anything. What is it?

Skip


Skip - I think it's a FAT cooling fan on a T-4, but Ron also puts the fan tower on 356 & 912 motors.

http://fatperformance.com/home/

http://www.fatperformance.com/type4.htm

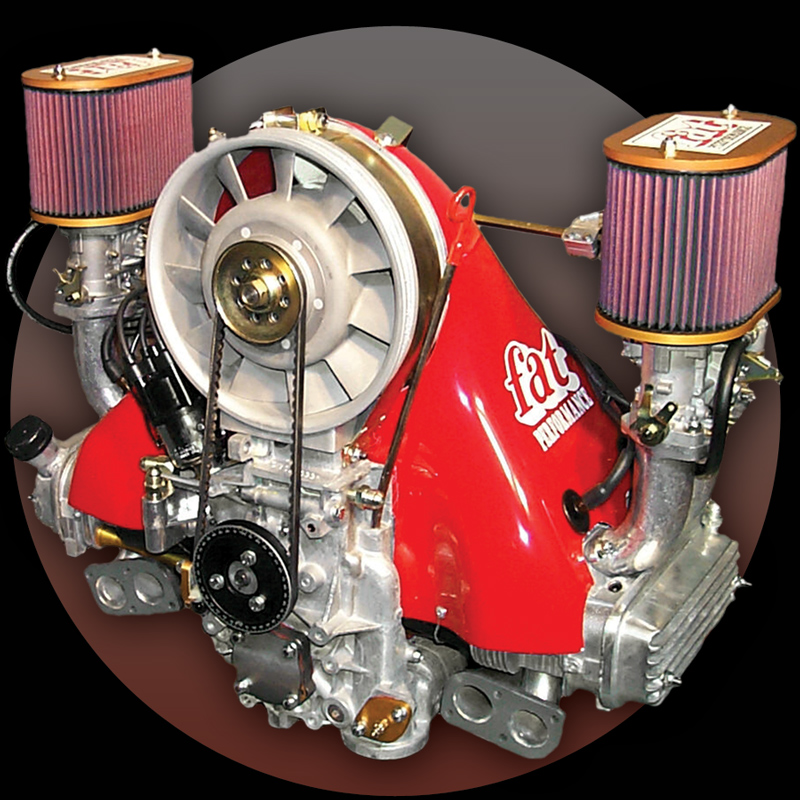

Attached Image

We had a 912 at the OCR-PCA Zone 8 Concours last June with theis set-up that we had to put in the modified division due to a similar engine mod.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Dec 11 2011, 04:48 PM
Post #10


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
(IMG:style_emoticons/default/rolleyes.gif) So what makes you think it's a FAT shroud eh Tom ?? (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 11 2011, 05:41 PM
Post #11


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
I'm not convinced.
How come your pic shows the fan belt almost 90* vertical and the one on the 912 the belt is definitely offset?
The manifold doesn't look T4 to me and the plug wire looks almost beside the head intake (like a T1) instead of slightly above it.

Many have made 911 shrouds for both T4 and T1
http://www.thesamba.com/vw/classifieds/detail.php?id=1142364

Wish it was a better pic.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 11 2011, 06:00 PM
Post #12


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
Here's the ad, It's a 912 (356) engine.
http://www.912bbs.org/vb/showthread.php?38...ecial-912-Coupe

QUOTE
This is a numbers matching 912 on which the former owner just spent over $14000 on brakes, engine and what have you.
The engine is upgraded with large pistons, has the 911 package with electric fuel pump, thermostatically controlled oil cooler, full flow oil filter, extractor exhaust and more.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Dec 11 2011, 06:41 PM
Post #13


Engine Surgeon
*****

Group: Members
Posts: 9,394
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
Its a Bergmann shroud. I can tell by the fan, shape of the shroud and the strap across the top of the fan. The engine looks like a 616 to me, and not a T1 or TIV. See that angle under the alternator stand and the dizzy clamp?

Bergmann has been making 356/616 shroud kits for a while now.

This is not a FAT system, FAT is wise enough not to use the water-cooled VW alternator with their kits, all of them I have seen utilize the OEM 911, 11 blade fan, not the 12 blade fan like this one.

In our world we refer to this type of cooling solution as a "dumb blonde". It looks good, but its just plain dumb.

AWESOME place for the oil cooler.. Lets pull hot air off the oil and preheat the air thats going to cool the cylinders and heads. Thats a great idea in the Arctic. Looks kill.

This post has been edited by Jake Raby: Dec 11 2011, 06:43 PM
