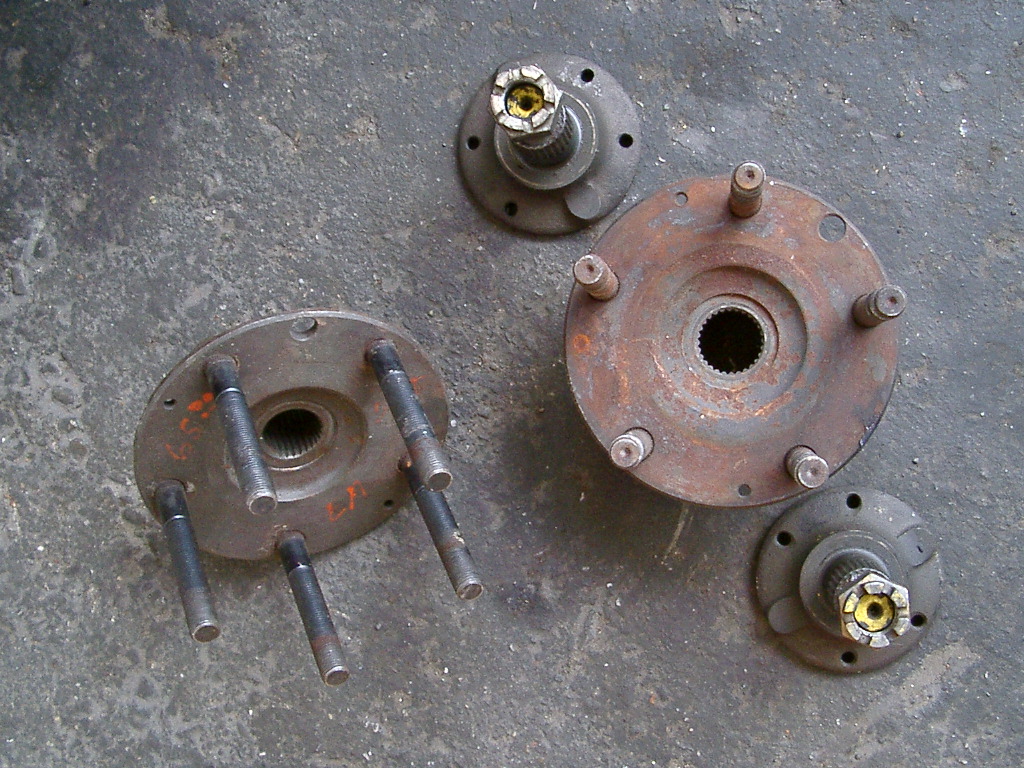

Here's an example of what not to do. This guy came to me and said his wheels didnt fit right on his car and he has a vibration at higher speeds. He also said he did his own 5-lug conversion.
For those of you who dont have the right tools to do this dont do it. Also use quality parts too. The carnage is below. |
736conver |
Aug 29 2004, 02:48 PM
Post
#2
|
Advanced Member Group: Members Posts: 2,117 Joined: 25-May 03 From: SE Wisconsin Member No.: 736 Region Association: None |

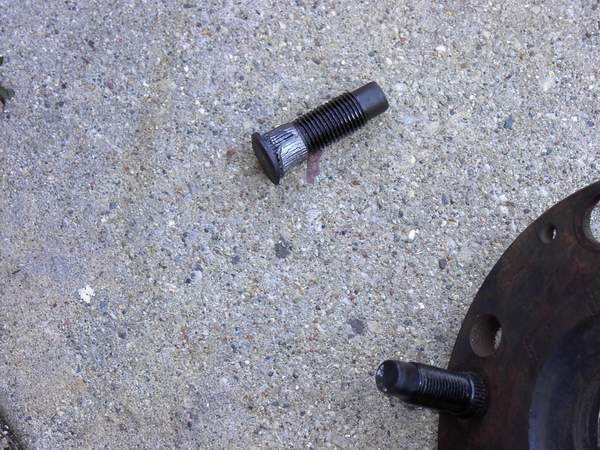

Cheap wheel studs.....Looks like Bug Pack strikes again
Attached image(s) |
736conver |
Aug 29 2004, 02:48 PM
Post
#3
|
Advanced Member Group: Members Posts: 2,117 Joined: 25-May 03 From: SE Wisconsin Member No.: 736 Region Association: None |

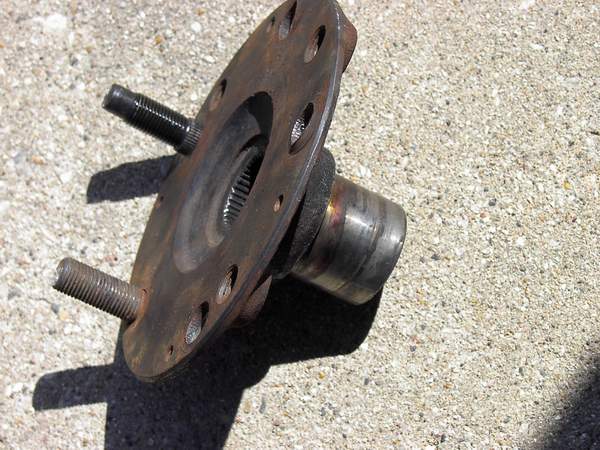

These were then Hammer in.
Attached image(s) |
736conver |
Aug 29 2004, 02:49 PM
Post
#4
|
Advanced Member Group: Members Posts: 2,117 Joined: 25-May 03 From: SE Wisconsin Member No.: 736 Region Association: None |

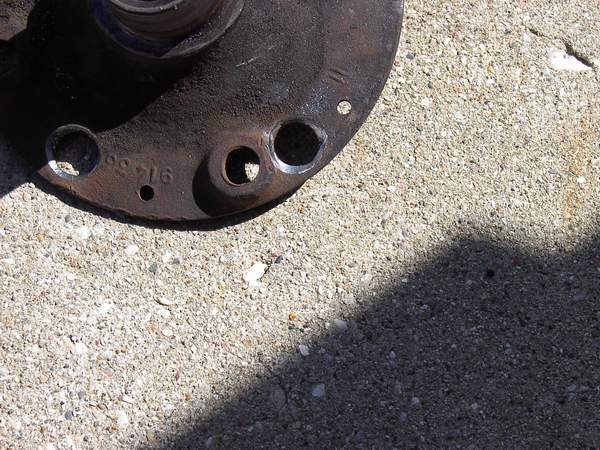

Heres his way of countersinking.
Attached image(s) |
736conver |
Aug 29 2004, 02:51 PM
Post
#5
|
Advanced Member Group: Members Posts: 2,117 Joined: 25-May 03 From: SE Wisconsin Member No.: 736 Region Association: None |

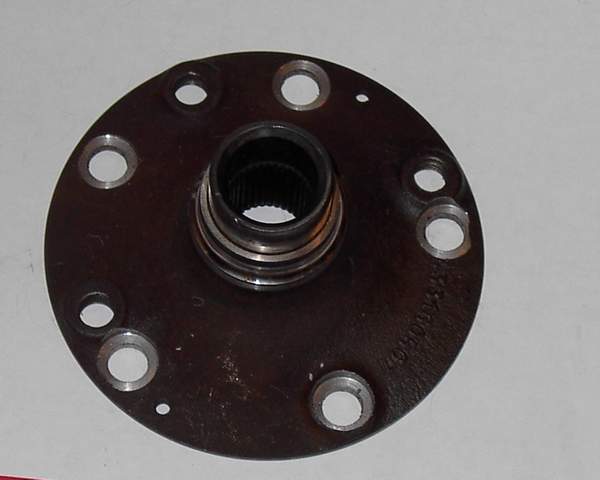

He use a hand drill to make this. They werent straight and the holes were not milled right for the studs to sit flush. Here is the correct way to do it. Dont mind the piece of bearing still on the hub.
Attached image(s) |
Brad Roberts |
Aug 29 2004, 02:53 PM
Post
#6
|
914 Freak! Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None |
Come on... everyone is trying to save a buck or two... (IMG:style_emoticons/default/laugh.gif) It takes 5 minutes to do it right. It takes 5 hours to fix it when it is wrong.
[B] |
736conver |
Aug 29 2004, 02:57 PM
Post
#7
|
Advanced Member Group: Members Posts: 2,117 Joined: 25-May 03 From: SE Wisconsin Member No.: 736 Region Association: None |
Not only that, he's out the whole $2.95 or whatever he spent on studs. (IMG:style_emoticons/default/wink.gif)
Plus new bearings at $35 a pop. Didnt save a dime. Cost more in the long run. |
Aaron Cox |
Aug 29 2004, 02:59 PM
Post
#8
|
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
are the hubs really strong enuff for the studs to hold without any additional bossed or hub thickness? i had a set and they were way to thin to put studs on IMHO without any sort of backing/boss
|
Brad Roberts |
Aug 29 2004, 03:01 PM
Post
#9
|
914 Freak! Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None |
This is why I get BIG money for the early rear hubs with the raised bosses for 5 lug. It has both patterns cast into it. I stopped counting how many conversion cars have loose rear studs because of the thin material.
B |
J P Stein |
Aug 29 2004, 06:25 PM
Post
#10
|
Irrelevant old fart Group: Members Posts: 8,797 Joined: 30-December 02 From: Vancouver, WA Member No.: 45 Region Association: None |
QUOTE(Brad Roberts @ Aug 29 2004, 01:01 PM) This is why I get BIG money for the early rear hubs with the raised bosses for 5 lug. It has both patterns cast into it. I stopped counting how many conversion cars have loose rear studs because of the thin material. B I figure I can sell my rear hubs and oil tank and get enuff to retire.....plan A. Plan B is work till I die...... |
markb |
Aug 29 2004, 09:59 PM
Post
#11
|
914less :( Group: Members Posts: 5,449 Joined: 22-January 03 From: Nipomo, CA Member No.: 180 Region Association: Central California |
Damn, my plan A is your plan B.... (IMG:style_emoticons/default/sad.gif)
|
Aaron Cox |
Aug 29 2004, 10:02 PM
Post
#12
|
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
QUOTE(markb @ Aug 29 2004, 08:59 PM) Damn, my plan A is your plan B.... (IMG:style_emoticons/default/sad.gif) whats ur plan b? (IMG:style_emoticons/default/lol2.gif) play the lotto until your broke? (IMG:style_emoticons/default/biggrin.gif) |
redshift |
Aug 29 2004, 10:02 PM
Post
#13
|
Bless the Hell out of you! Group: Members Posts: 10,926 Joined: 29-June 03 Member No.: 869 |
|
machina |
Aug 29 2004, 10:08 PM
Post
#14
|
Advanced Member Group: Benefactors Posts: 2,030 Joined: 21-June 03 From: Miami Beach, FL Member No.: 848 |

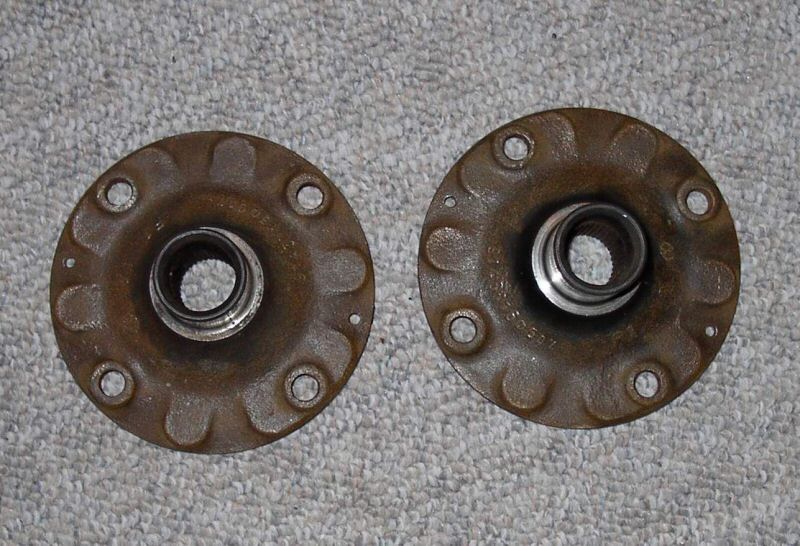

QUOTE(Brad Roberts @ Aug 29 2004, 05:01 PM) This is why I get BIG money for the early rear hubs with the raised bosses for 5 lug. It has both patterns cast into it. I stopped counting how many conversion cars have loose rear studs because of the thin material. Yup, I actually switched from the thin hubs to the early hubs with the raised bosses. Just piece of mind. dr Attached image(s) |
McMark |
Aug 29 2004, 11:38 PM
Post
#15
|
914 Freak! Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |
What about...
1. Machine off all bosses on the late style hub to get a nice flat circle. 2. Get a ring made of steel that you can then weld onto the newly machined surface. 3. Drill your holes and install your lugs in your new 360 degree thick hub. Well? |
Brad Roberts |
Aug 29 2004, 11:45 PM
Post
#16
|
914 Freak! Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None |
30lbs of rotating mass... We actually had a set of those floating around the shop. They weigh a ton when you are done.
B |
SirAndy |
Aug 30 2004, 12:01 AM
Post
#17
|
Resident German Group: Admin Posts: 41,623 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |
Attached thumbnail(s) |
McMark |
Aug 30 2004, 12:38 AM
Post
#18
|
914 Freak! Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |
Spoken like a racer. (IMG:style_emoticons/default/bootyshake.gif)
|
watsonrx13 |
Aug 30 2004, 04:34 AM
Post
#19
|
Advanced Member Group: Members Posts: 2,734 Joined: 18-February 03 From: Plant City, FL Member No.: 312 Region Association: South East States |
Brad, Andy's showing off again. (hahahahaha) (IMG:style_emoticons/default/biggrin.gif)
|
eeyore |
Aug 30 2004, 02:58 PM
Post
#20
|
Senior Member Group: Members Posts: 889 Joined: 8-January 04 From: meridian, id Member No.: 1,533 Region Association: None |
QUOTE(Brad Roberts @ Aug 29 2004, 02:01 PM) This is why I get BIG money for the early rear hubs with the raised bosses for 5 lug. It has both patterns cast into it. I stopped counting how many conversion cars have loose rear studs because of the thin material. B For re-drilled (and studded?) early model hubs, how many places to the left of the decimal point are we talking about filling? Is installing converted 5 lug hubs a 'simple' (250 ft/lb) bolt on? If so, then I wouldn't need to source new stub axles, rotors, and calipers or worry about the parking brake issue either. |
