> Sasquatch Part III Audi 1.8t transplant..., New battery switch finally...
Andyrew
post Jun 11 2012, 12:38 AM
Post #21


Spooling.... Please wait
**********

Group: Members
Posts: 11,933
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California



QUOTE(tscrihfield @ Jun 10 2012, 07:03 PM) *

I have loved the Sasquatch build btw... I actually wanted to comment on the K04 upgrade... If I can talk you out of it, I will try. The turbo is not a good add on for this engine stock. The efficiency is all at the wrong points and often blows these engines. If you want a good upgrade there is an outfit called frankenturbo that builds a hybrid for the 1.8t that is a perfect match. I drive an 02 GTI as my DD and spend a lot of time with these engines. I have thought about this same swap and I am glad to see someone doing it. Can't wait to see the progress!


I agree, This or a Disco Potato (GT2560 aka GT28RS) that was run in the APR stage 3 are wonderful turbo's... The K04 is almost the exact same as a KO3.


Mmmm I love this build (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Jun 11 2012, 11:06 AM
Post #22


Advanced Member
****

Group: Members
Posts: 2,086
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None



Here's a photo of an 012 trans with the flanges that are compatible with the Porsche CV's.

Andys



Attached File(s)
Attached File  012_trans.bmp ( 147.32k ) Number of downloads: 208
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
smj
post Jun 11 2012, 12:29 PM
Post #23


"Dude, Steve from Berkeley."
***

Group: Members
Posts: 589
Joined: 28-August 05
From: Berkeley, CA
Member No.: 4,691
Region Association: Northern California



QUOTE(andys @ Jun 11 2012, 09:06 AM) *

Here's a photo of an 012 trans with the flanges that are compatible with the Porsche CV's.

Could you please shrink that image a little more? It's way too big on my 14" CRT monitor... (IMG:style_emoticons/default/poke.gif) (IMG:style_emoticons/default/biggrin.gif)

I'm going down the road of trying to live with the 901 I've got, but a Boxster/Audi 5 speed swap is of great interest - otherwise I wouldn't give you any grief over this. (Probably.) (IMG:style_emoticons/default/sunglasses.gif)

Part numbers for those compatible output flanges or adapters? I'll also accept a smack upside the head with a pointer to a build thread...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 11 2012, 09:26 PM
Post #24


Resident Electrician
*****

Group: Members
Posts: 8,150
Joined: 22-June 09
From: San Ramon, CA
Member No.: 10,496
Region Association: Northern California




QUOTE(smj @ Jun 11 2012, 11:29 AM) *

QUOTE(andys @ Jun 11 2012, 09:06 AM) *

Here's a photo of an 012 trans with the flanges that are compatible with the Porsche CV's.

Could you please shrink that image a little more? It's way too big on my 14" CRT monitor... (IMG:style_emoticons/default/poke.gif) (IMG:style_emoticons/default/biggrin.gif)

I'm going down the road of trying to live with the 901 I've got, but a Boxster/Audi 5 speed swap is of great interest - otherwise I wouldn't give you any grief over this. (Probably.) (IMG:style_emoticons/default/sunglasses.gif)

Part numbers for those compatible output flanges or adapters? I'll also accept a smack upside the head with a pointer to a build thread...

Fixed it (IMG:style_emoticons/default/poke.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 11 2012, 09:29 PM
Post #25


Resident Electrician
*****

Group: Members
Posts: 8,150
Joined: 22-June 09
From: San Ramon, CA
Member No.: 10,496
Region Association: Northern California




If the flanges are held in with a circlip, they look easy to pop out. Anyone have an Audi PET file with tranny parts?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Justinp71
post Jun 11 2012, 10:58 PM
Post #26


Senior Member
***

Group: Members
Posts: 1,180
Joined: 11-October 04
From: Sacramento, CA
Member No.: 2,922
Region Association: None



Mike you do have ADD, ha! Your 914 is like a drivable engine test stand... (IMG:style_emoticons/default/smile.gif)

Nice project though, engine swaps are always the fun part.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yellowporky
post Jun 11 2012, 11:15 PM
Post #27


Member
**

Group: Members
Posts: 209
Joined: 18-October 09
From: Martinez, Ca.
Member No.: 10,948
Region Association: Northern California



Mike,
If i remember correctly the drive flanges just pop out. I just went out and looked at my car and can not remember removing any hidden clips or anything. Pretty sure about that.
Chris
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 11 2012, 11:22 PM
Post #28


Resident Electrician
*****

Group: Members
Posts: 8,150
Joined: 22-June 09
From: San Ramon, CA
Member No.: 10,496
Region Association: Northern California




QUOTE(Chris Scott @ Jun 11 2012, 10:15 PM) *

Mike,
If i remember correctly the drive flanges just pop out. I just went out and looked at my car and can not remember removing any hidden clips or anything. Pretty sure about that.
Chris

Is this what they look like?

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yellowporky
post Jun 12 2012, 12:03 AM
Post #29


Member
**

Group: Members
Posts: 209
Joined: 18-October 09
From: Martinez, Ca.
Member No.: 10,948
Region Association: Northern California



That is what I remember
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 15 2012, 11:37 PM
Post #30


Resident Electrician
*****

Group: Members
Posts: 8,150
Joined: 22-June 09
From: San Ramon, CA
Member No.: 10,496
Region Association: Northern California




Sent the Passat to the wrecking yard today. Fuching tow truck driver stole my wheel chock. They did pick it up for free. Not much left but some interior and suspension. Body was rough, no cherry panels. Glad its gone. Now it's time to clean up the garage and get the 914 inside and stripped apart... again... (IMG:style_emoticons/default/dry.gif)

Parts heaven wants $100ea for the axle stubs and $250 for the complete Boxster shift setup. This includes all the parts from the PET shifter page. I can get the shifter stuff from ebay cheaper but not complete. It will take weeks/months of waiting for items to pop up online. I can buy a complete but unknown Boxster tranny from ebay for as little as $400 (on a good day). Most have the axle stubs and 1/3 of the shifter parts (Tranny linkage). PH wants $2500 for a Boxster tranny with warranty (no shifter). I think I will wait for the right opportunity to jump on cheap parts. I am a CSOB 914 owner (IMG:style_emoticons/default/biggrin.gif) I do need the Boxster tranny mounts to get started. The Audi mounts interfere with the Boxster shifter. Those are cheap online; About $30 each.

Anybody ever pulled the axle flange on a Boxster or Audi transaxle? No bolts but there is a circlip on the stub In the diff. Not exactly sure how to pull it. Slide hammer? Puller tool? Pry bar? (IMG:style_emoticons/default/smash.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Jun 16 2012, 01:36 AM
Post #31


Senior Member
***

Group: Members
Posts: 1,644
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California



QUOTE(kg6dxn @ Jun 15 2012, 10:37 PM) *

Anybody ever pulled the axle flange on a Boxster or Audi transaxle? No bolts but there is a circlip on the stub In the diff. Not exactly sure how to pull it. Slide hammer? Puller tool? Pry bar? (IMG:style_emoticons/default/smash.gif)

VW says:

Place a chisel or spacer -A- behind drive flange.
Pull drive flange shaft out of differential gears by turning bolt -B-.

Attached Image

Jim

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 16 2012, 09:46 AM
Post #32


Resident Electrician
*****

Group: Members
Posts: 8,150
Joined: 22-June 09
From: San Ramon, CA
Member No.: 10,496
Region Association: Northern California




QUOTE(jcd914 @ Jun 16 2012, 12:36 AM) *

QUOTE(kg6dxn @ Jun 15 2012, 10:37 PM) *

Anybody ever pulled the axle flange on a Boxster or Audi transaxle? No bolts but there is a circlip on the stub In the diff. Not exactly sure how to pull it. Slide hammer? Puller tool? Pry bar? (IMG:style_emoticons/default/smash.gif)

VW says:

Place a chisel or spacer -A- behind drive flange.
Pull drive flange shaft out of differential gears by turning bolt -B-.

Attached Image

Jim

I was considering doing this but it think it was the "correct" way. (IMG:style_emoticons/default/confused24.gif) I guess I will go for it... Maybe I'll use 2 so I don't bend anything. Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rohar
post Jun 16 2012, 01:08 PM
Post #33


Senior Member
***

Group: Members
Posts: 924
Joined: 25-October 08
From: spokane
Member No.: 9,685
Region Association: None



AWESOME swap!

I did an ABA 16v in a teener last time and it was amazing even using the 914 tranny. I'm guessing the 012 will just put the bow on the package.

If it helps any, I share your ADD. I've got a 3.6l v8 that'll bolt up to that bellhouseing. Needs a clutch solution. You could have it for shipping 'cause the wife limits me to 3 engines in the shop at a time and I've got my eye on something "better".

...gotta poke the ADD...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 16 2012, 02:33 PM
Post #34


Resident Electrician
*****

Group: Members
Posts: 8,150
Joined: 22-June 09
From: San Ramon, CA
Member No.: 10,496
Region Association: Northern California




QUOTE(rohar @ Jun 16 2012, 12:08 PM) *

AWESOME swap!

I did an ABA 16v in a teener last time and it was amazing even using the 914 tranny. I'm guessing the 012 will just put the bow on the package.

If it helps any, I share your ADD. I've got a 3.6l v8 that'll bolt up to that bellhouseing. Needs a clutch solution. You could have it for shipping 'cause the wife limits me to 3 engines in the shop at a time and I've got my eye on something "better".

...gotta poke the ADD...

Sounds like fun but I have my hands full with this engine. But I should have JRust pick it up and bring it to me. He has to come here anyway...

I have a barely broken in SPEC Stage 3 clutch for a 914 I will be listing in the classifieds soon... (IMG:style_emoticons/default/poke.gif) V8 and big 6 guys... (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stanthedog
post Jun 16 2012, 02:36 PM
Post #35


Newbie
*

Group: Members
Posts: 24
Joined: 3-February 11
From: portland, Or.
Member No.: 12,656
Region Association: None



Those 1.8T motors can make insane HP. For engine goodies/upgrades, might try Bahn Brenner in bend, Or. He has a corrado with a T motor that makes 480WHP.
John know his sh*t when it comes to water cooled VW/Audi. Sounds like an awesome build, wish I had the patience for a swap like that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MartyYeoman
post Jun 16 2012, 02:56 PM
Post #36


Senior Member
***

Group: Members
Posts: 1,369
Joined: 19-June 03
From: San Ramon, CA
Member No.: 839
Region Association: Northern California



This one I'm going to have to stop by and see for myself! (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stanthedog
post Jun 16 2012, 03:02 PM
Post #37


Newbie
*

Group: Members
Posts: 24
Joined: 3-February 11
From: portland, Or.
Member No.: 12,656
Region Association: None



It's downright scarey to be next to when he starts it up, sounds like nothing iv'e ever heard. rattles windows for 4 blocks (IMG:style_emoticons/default/evilgrin.gif) .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lennies914
post Jun 16 2012, 05:43 PM
Post #38


Slacker
***

Group: Members
Posts: 828
Joined: 9-January 10
From: NorCal
Member No.: 11,216
Region Association: Northern California




1999 5 spd Boxster M/T in Roseville. $640

http://sacramento.craigslist.org/ptd/3056620666.html
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 16 2012, 07:20 PM
Post #39


Resident Electrician
*****

Group: Members
Posts: 8,150
Joined: 22-June 09
From: San Ramon, CA
Member No.: 10,496
Region Association: Northern California




Got the flanges out. Just the the VW manual said to. The shaft looks just like the one I posted above. Seems like an easy swap to Boxster flange. Looks like no need to buy a compltete trans.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Aug 11 2012, 09:17 PM
Post #40


Resident Electrician
*****

Group: Members
Posts: 8,150
Joined: 22-June 09
From: San Ramon, CA
Member No.: 10,496
Region Association: Northern California




Been taking it slow on the conversion. Here's something...

I found a Boxster shifter and cables on ebay super cheap. The hard part to find is the linkage on the tranny. I found one at a local recycler way too expensive. So I ordered some 10mm balls ($4) and with some stuff on hand fabricated the stuff I needed. I had some heim joints and rod, all the bits you see.

Since this is an Audi tranny and not a true Boxster, the threaded boss on the case for the factory pivot is not drilled or tapped. I had to fab a new pivot point and re-align the geometry a little. I used the factory linkage mounting holes to build from and picked up a mount in the rear to carry the pivot point. The pivot I used is a ball bearing adjustable bell crank from a 6-71 blower; Very stout. 3/8 rod and 1/8 flat stock make up the rest. All parts went through a heat treatment with a dirty oil bath.

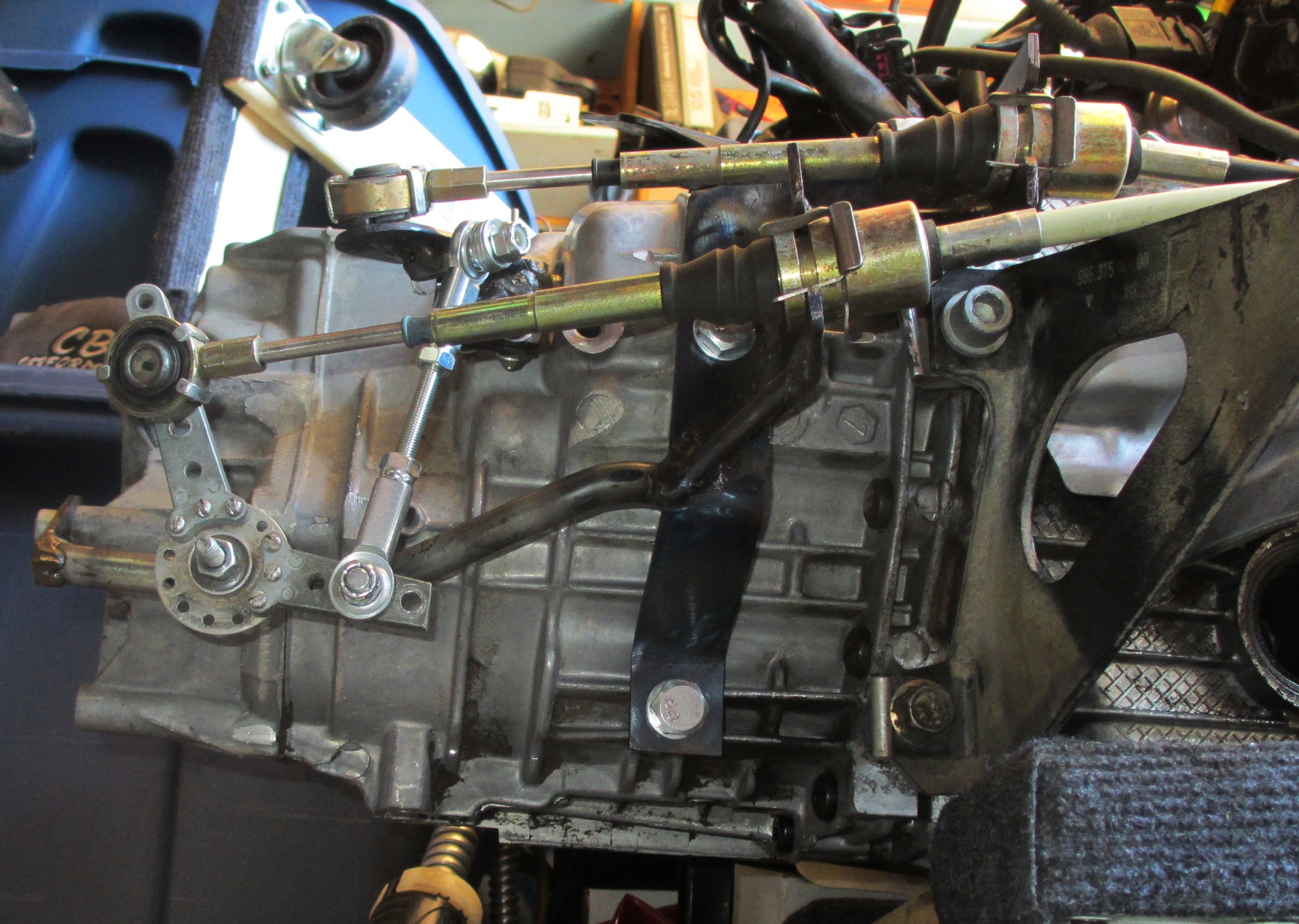

Here's the working prototype. I plan to move the Neutral gate cable more inboard to reduce the angle a little. This thing shifts super nice! I have 2-3mm of end play on the shifter. I used the Porsche design to inspire me since they did all the R&D for me. I can hardly wait to drive a 914 with a modern transaxle.

Attached Image

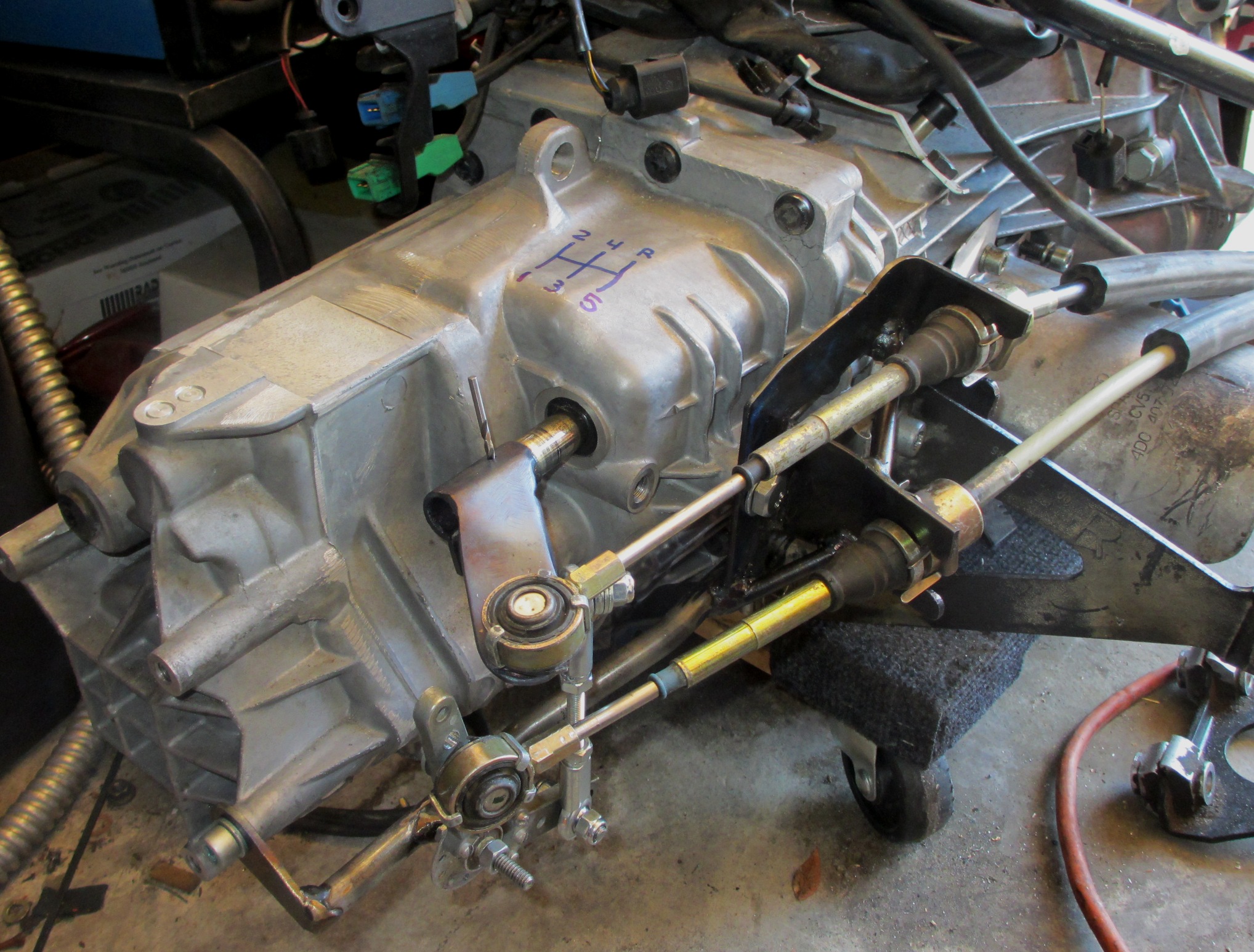

Second Gear

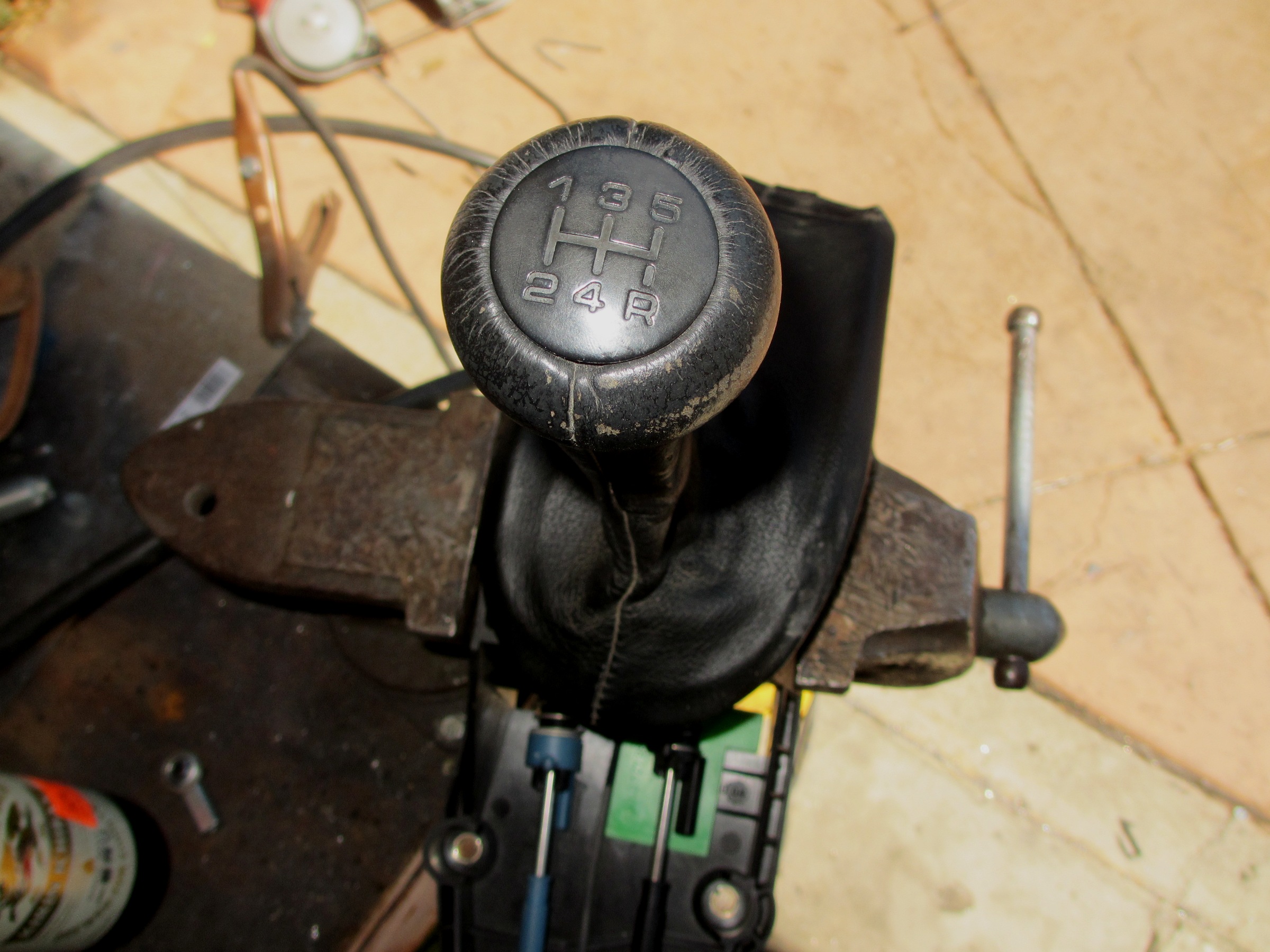

Attached Image

Attached Image

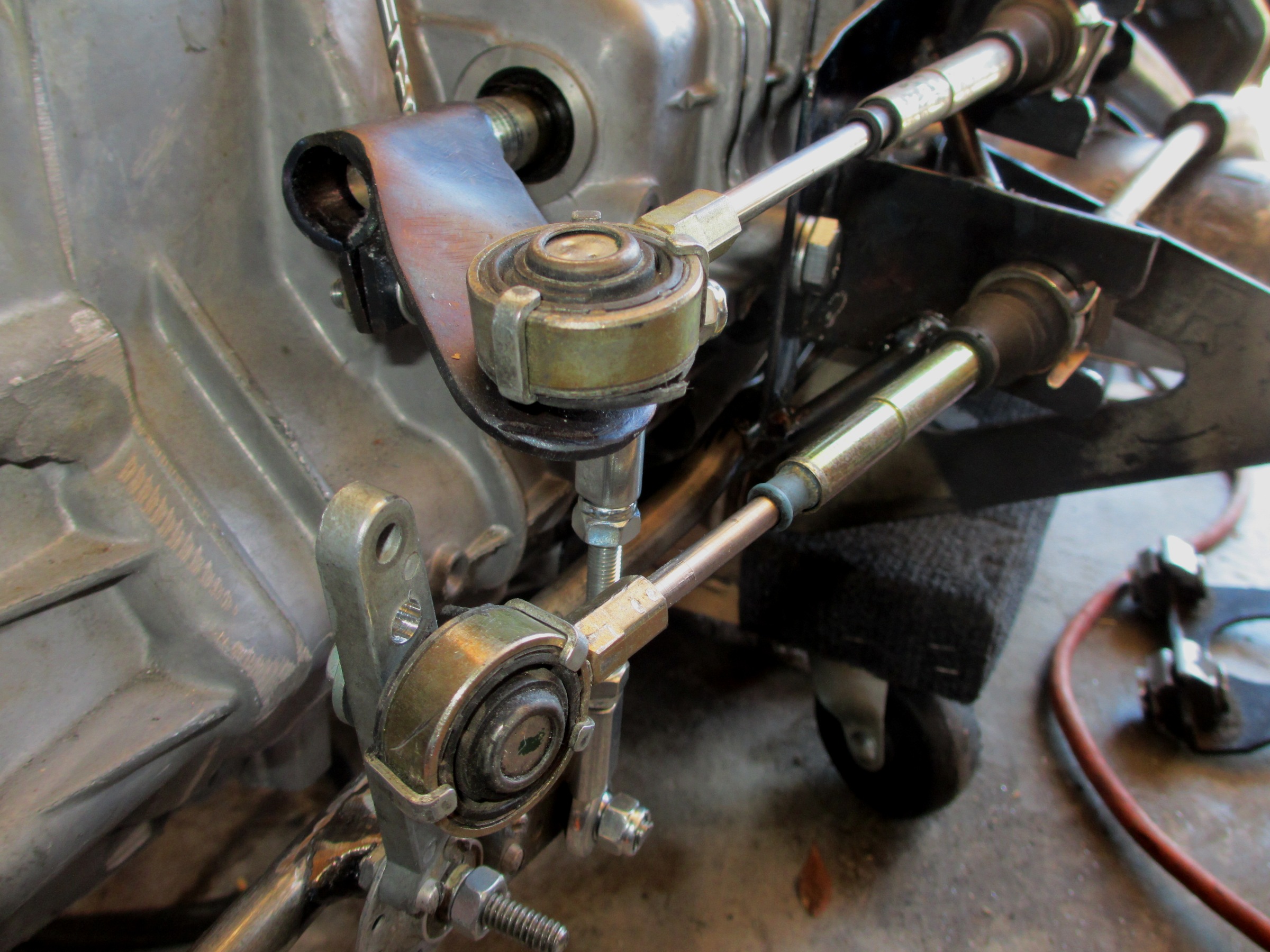

I designed the cable bracket to accept the factory locking design. Need to maching deeper and move the divots for the locking clips.

Attached Image

I used 0.75"/0.120" DOM to make the shift bracket. My ghetto hardening gives it a cool blue/black color, stiffens everything up real well.

Attached Image

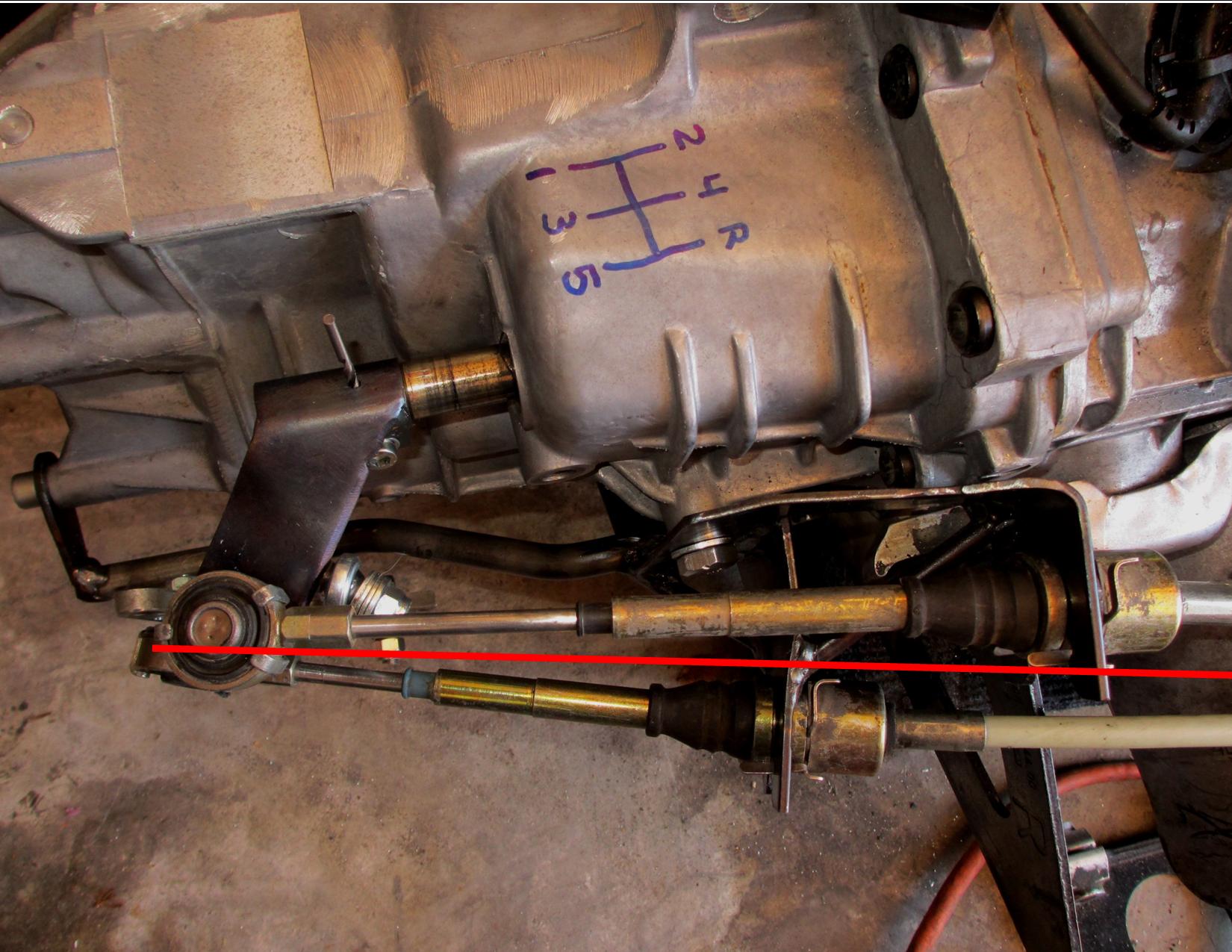

Re-aligned cable angle

Attached Image
