> Gears gone yet again
bongo monkey
post Oct 17 2004, 03:03 PM
Post #1


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011
I was adjusting my gearshift linkage, when the gears stopped engaging. I checked the whole linkage from the Rennshifter to the roll pin, and everything is working. The shift lever gives absolutely no resistance whatsoever moving from R-4-5-1. I cannot select any gears. The first time this happened, the roll pin got sheared. I checked, and the pin is still in snugly and moving the selector. So the problem is somewhere inside the tranny.

I was adjusting the linkage because I was having problems with 3rd gear not giving me any input, and only engaging half of the time. I thought it might be because the new motor mounts had shifted the pattern forward (the old ones were falling apart), so I tried to adjust the linkage. All the other gears were working fine.

What do you think the problem is and how much will it cost me?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Oct 17 2004, 03:38 PM
Post #2


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
Have you tried shifting with the linkage disconnected, by hand at the tranny end?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 17 2004, 04:56 PM
Post #3


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011
QUOTE(Red-Beard @ Oct 17 2004, 04:38 PM)
Have you tried shifting with the linkage disconnected, by hand at the tranny end?

I shifted by hand at the cage (although the linkage was still hooked up) and tried to run it in R/1 on jackstands. Nothing. I had someone shift for me while I observed the linkage, and nothing is hitting anything or generally siezing up. The linkage had been adjusted maybe 1 mm from where it was.

If you really think it'll make a difference, tomorrow I'll unhook the rear shift rod and try again.

Oh I almost forgot- my car is a tailshifter.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Oct 17 2004, 05:54 PM
Post #4


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None

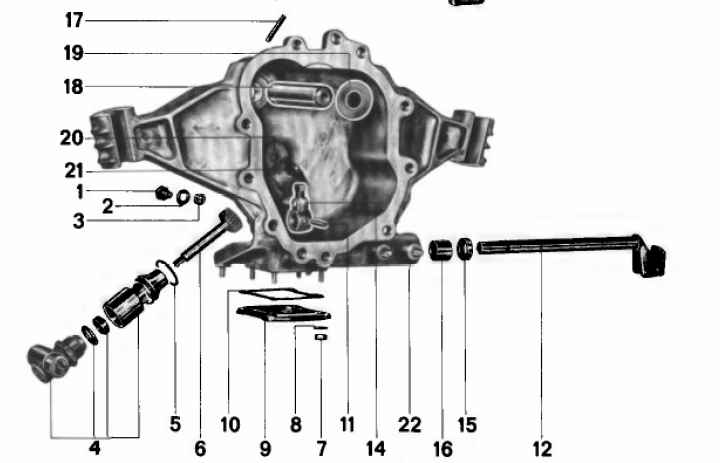

Is the pivot wedge gone? This is the part the roll pin connects to the tailshift input shaft. Sometimes, the top of the wedge breaks. This would prevent all shifting. You would be able to spin the input shaft around 360 if this were broken.

Item #14


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Oct 17 2004, 05:56 PM
Post #5


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
Let me make it more clear...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 17 2004, 07:43 PM
Post #6


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011
No, it's still there. I can see the linkage moving and working up to #20 on this (Shift rod), that's as far as I can see through the plate.

(IMG:http://www.pelicanparts.com/914/Parts/Transmission/tail_shift_tranny_big.jpg)

Maybe #22, the selector shaft, is broken. Where could I get one and how much would it run me?

EDIT:
SHIFT FORK
- This is a special-order, non-returnable, part
(availability and shipping charges may vary).
OEM-91430311700 $74.51
from Pelican Parts.

That's not too bad... this week I'll drop the tranny and order the part. That is, unless you have a different idea as to what's wrong or what I should do. (Can't afford a rebuilt tranny)

This post has been edited by bongo monkey: Oct 17 2004, 07:52 PM
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Oct 17 2004, 07:52 PM
Post #7


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
To check, pull the small side cover/shoulder. You can look up in there with a flashlight.

I'm talking about the sort of oval thing with 2 nuts on the driver side of the transmission. This is the spot where the sideshift connects for the later transmissions.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 17 2004, 08:03 PM
Post #8


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011
QUOTE(Red-Beard @ Oct 17 2004, 08:52 PM)
To check, pull the small side cover/shoulder. You can look up in there with a flashlight.

I'm talking about the sort of oval thing with 2 nuts on the driver side of the transmission. This is the spot where the sideshift connects for the later transmissions.

I don't suppose it would be possible to replace the fork through that hole, only removing the end cover?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Oct 17 2004, 09:43 PM
Post #9


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
no. You need to pull the gear stack. But...you can do that and leave the tranny case in the car.

see:

http://home.san.rr.com/pb914/rebuild/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 18 2004, 01:43 PM
Post #10


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011
First of all, thanks for helping me out, Red-Beard.

I had a look today, and the selector was still there. Nothing obviously broken, but then again, I don't know how a regular one is supposed to look. The selector does not move the r/1, 2/3 or 4/5 shift forks. The ball on the selector is in the notches, and the shift rod moves the selector (which sort of hinges on the rod, I don't know if that's normal). The ball does not move, and the selector pivots around the ball. This may have something to do with the cover I removed, which appeared to be a bracket for the selector.

I can't manually put the car in gear by moving the shift forks around (around 1/4 inch either direction), but then again, I don't have much leverage and I don't want to damage the rods. When I spin the tires, I can see reverse, 2nd, 4th and 5th gears move. 1st and 3rd do not move.

Any more ideas? I hope my description was good enough.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Oct 18 2004, 04:51 PM
Post #11


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
With a little leverage with a long screwdriver, you should be able to move the shift rods. You will not be able to shift "normally" with the shoulder out. Try putting it back in and snug, but don't torque the nuts. Try shifting now.

From the spot you are looking, you may be able to see:

4th and 5th, right near the opening. You might be able to see 2nd/3rd, but they are up against the intermediateplate. 1st and rev are on the other side of the intermediate plate...unless the tail cover is off, not chance of seeing them.

All gears move at the same time, all the time. They move at different rates. The sliders/dogteeth interface couple a set of gears so that both shafts are connected. It is really easy to see when the gear stack is pulled out. You are about 5 minutes away from pulling the gear stack...

(IMG:http://home.san.rr.com/pb914/rebuild/Image13.jpg)

(IMG:http://home.san.rr.com/pb914/rebuild/Image15.jpg)

Bottom to the back gear stack

(IMG:http://home.san.rr.com/pb914/rebuild/Image1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 18 2004, 06:00 PM
Post #12


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011

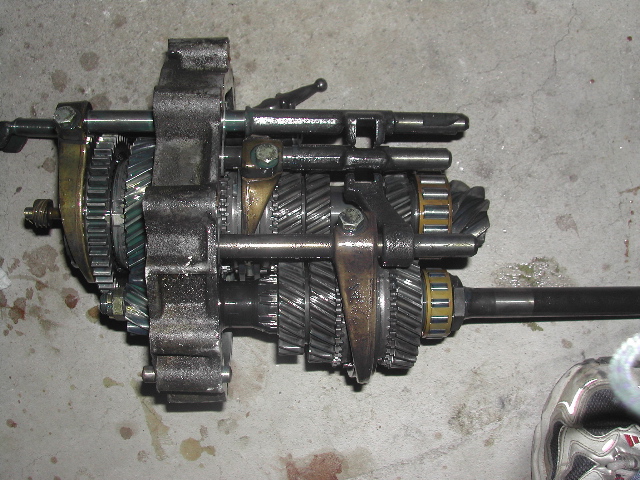

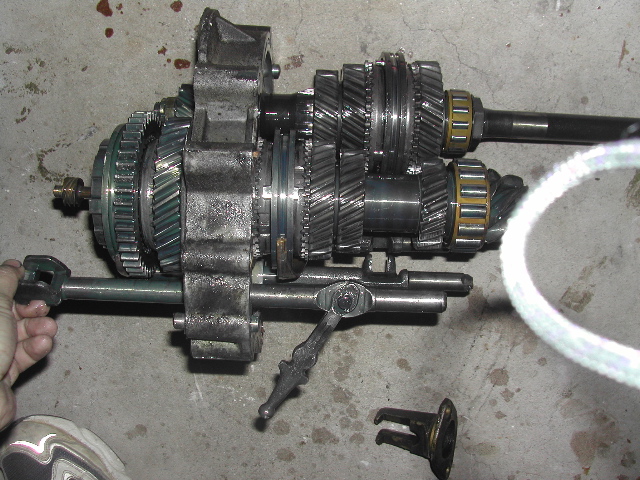

Make that 5 minutes after I've pulled the gear stack...

I still can't see anything wrong. Can you? I'm thinking of just putting everything back together and seeing if it works. Maybe something just popped out of place.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 18 2004, 06:00 PM
Post #13


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011

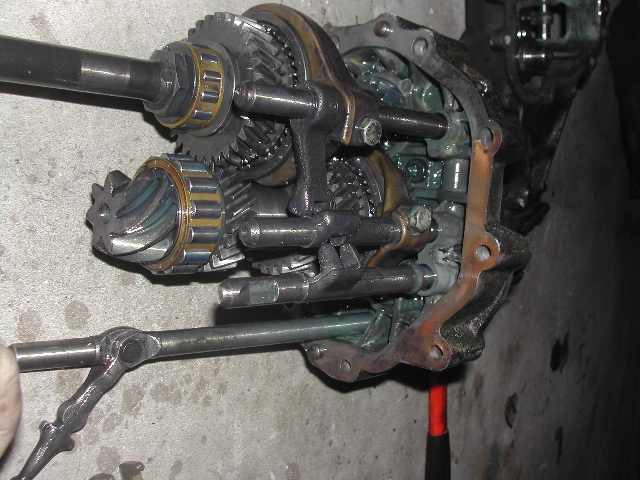

more


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 18 2004, 06:01 PM
Post #14


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011

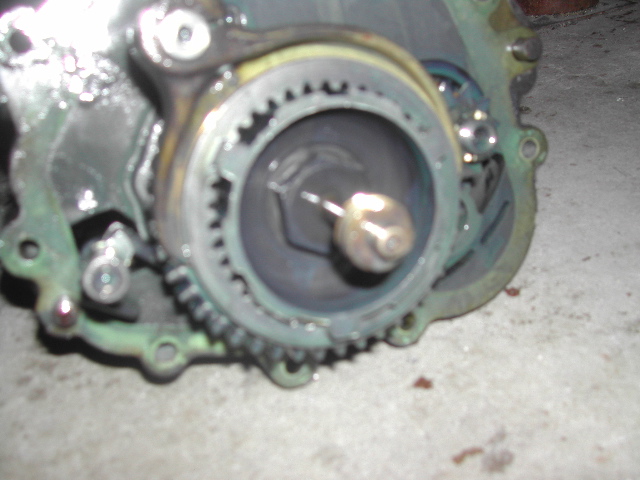

Look, that's got gears.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 18 2004, 06:02 PM
Post #15


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011

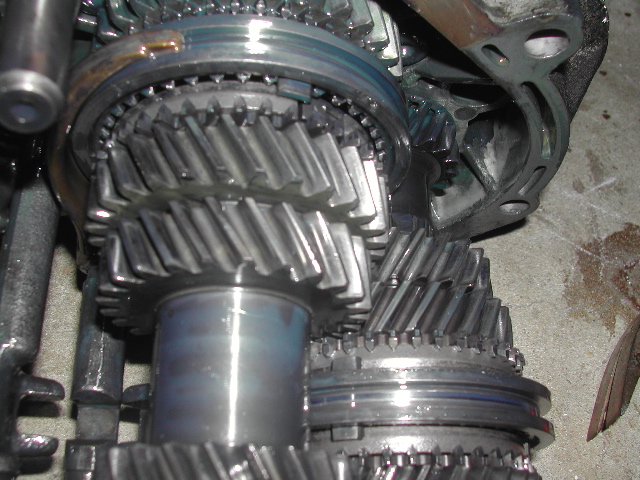

Wow, there's metal in here.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 18 2004, 06:03 PM
Post #16


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011
One last shot of the R/1 fork.. sorry it's fuzzy.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Oct 18 2004, 06:57 PM
Post #17


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
Before you re-assemble, I want you to look really close at the intermediateplate bearings. Take photos on both sides and try to see if the bearing cages are whole.

Before you re-install, remove the backup switch and the little pin.

You might want to spray some cleaner on the synchros and dogteeth and take shots, and I'll evaluate the condition of the tranny.

Then, re-assemble the tranny. Use hylomar or another non-hardening gasket sealant to help prevent leaks.

James
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 22 2004, 09:50 PM
Post #18


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011

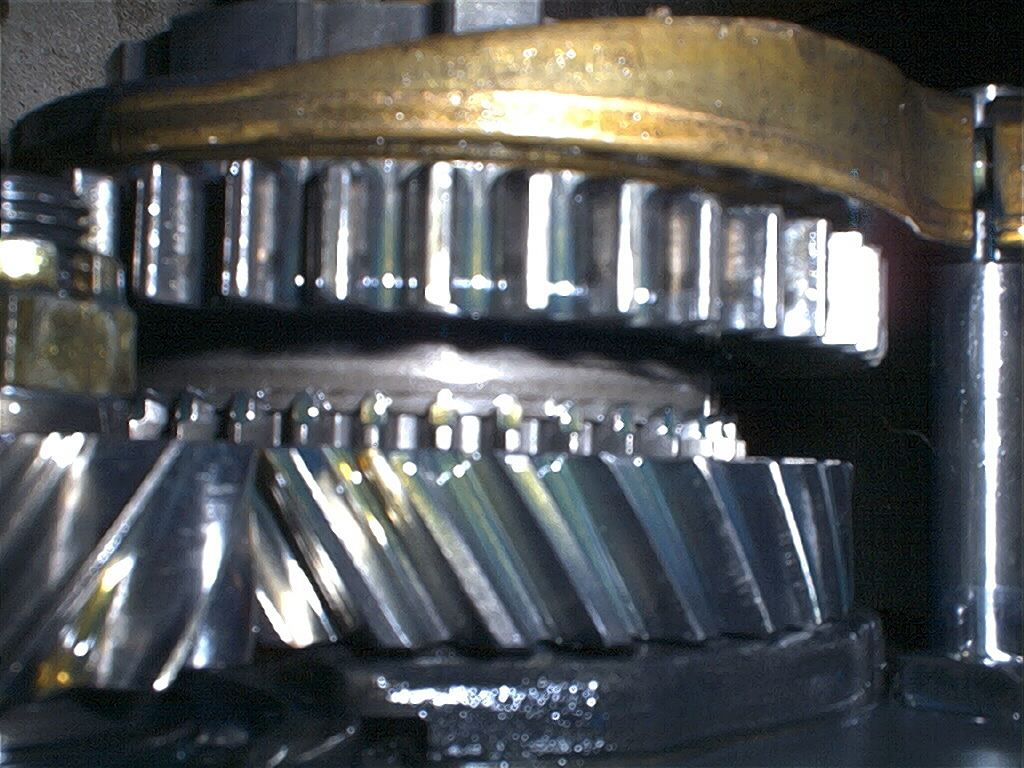

I got my new gasket set and I'm ready to reinstall. First, some last pics of the gears to make sure you can't see anything wrong.

Better shot of the R/1 fork.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 22 2004, 09:51 PM
Post #19


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011

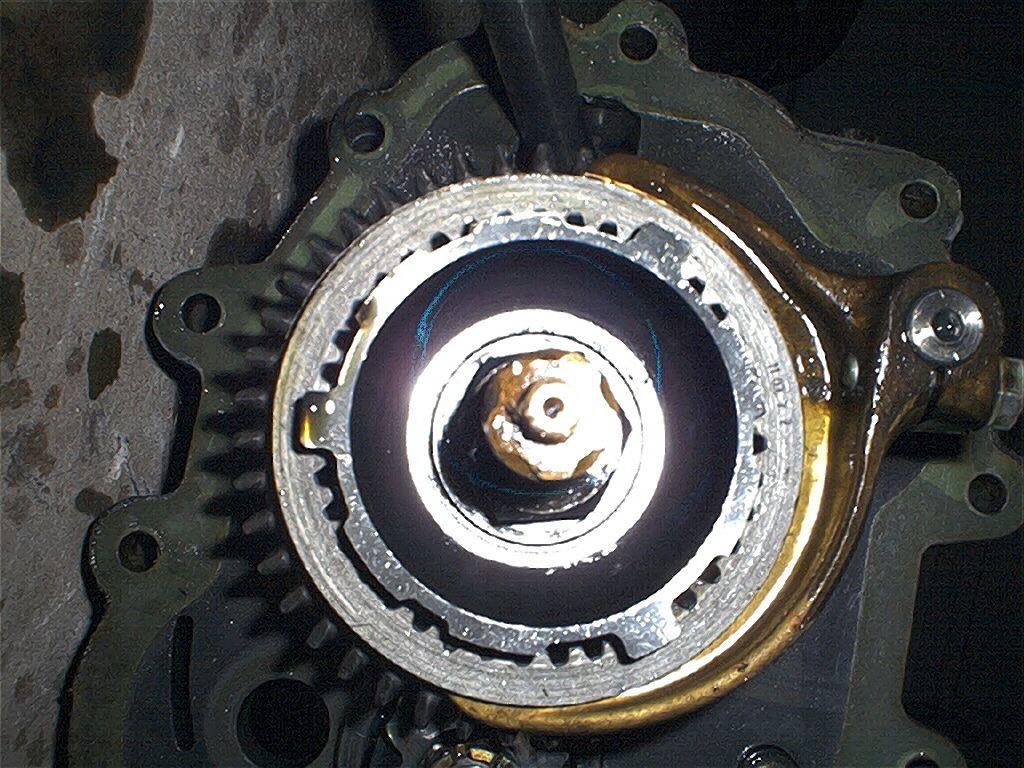

Bearing.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bongo monkey
post Oct 22 2004, 09:52 PM
Post #20


Dented member
**

Group: Members
Posts: 164
Joined: 10-August 03
From: Hamilton, NJ
Member No.: 1,011

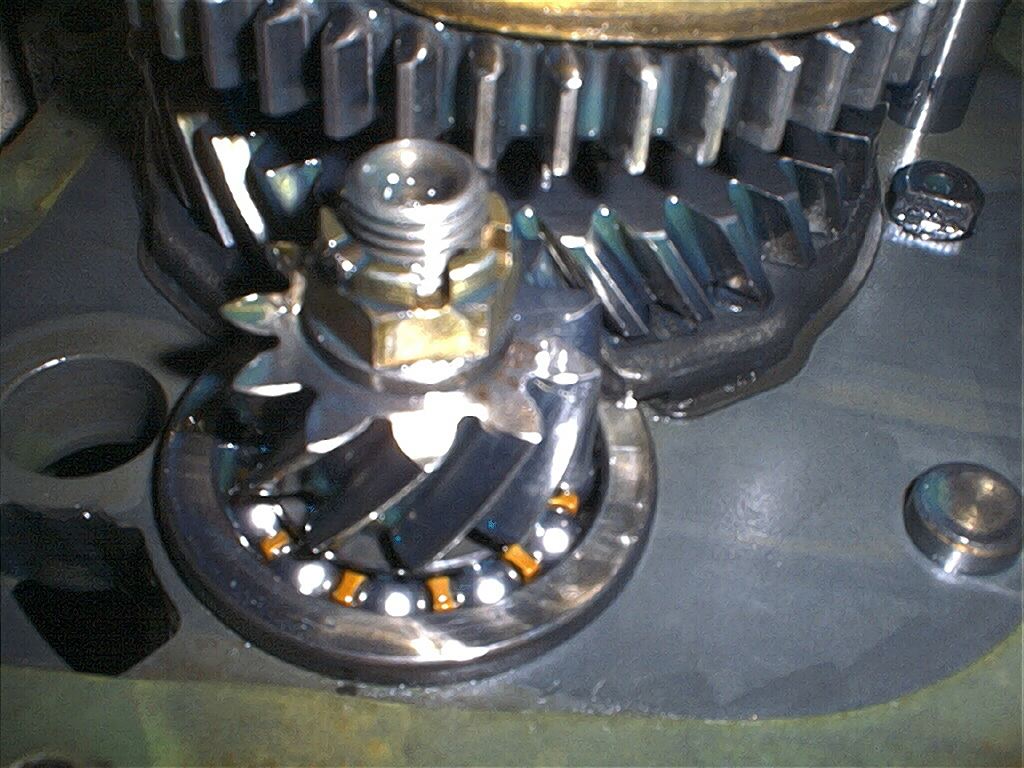

That's the reverse and 1st, sir.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
