> What model OPTIMA battery fits a 914-4
chris914
post Oct 18 2004, 09:50 PM
Post #1


Member
**

Group: Members
Posts: 489
Joined: 24-July 04
From: San Diego, CA
Member No.: 2,393
Region Association: Southern California
What model OPTIMA gell cell battery fits a 72' 914-4?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 18 2004, 10:02 PM
Post #2


Resident German
*************************

Group: Admin
Posts: 42,257
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
the orange top has the terminals in the right configuration for the 914 (reversed),
i have the red top which is the same except it has the standard terminal configuration.
i simply turned it 180 deg. ... my wires were long enough, but your mileage may vary ...

(IMG:style_emoticons/default/cool.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
fiid
post Oct 18 2004, 11:44 PM
Post #3


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California
(IMG:style_emoticons/default/agree.gif) I have a red top turned 180degrees. It's actually a little better since the terminals are under the lid instead of under the side panel - meaning there is slightly less chance of shorting the positive terminal to the body with a wrench - which is generally regarded as a bad start to the day.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
skline
post Oct 19 2004, 12:12 AM
Post #4


Born to Drive
*****

Group: Members
Posts: 7,910
Joined: 26-December 02
From: Costa Mesa, CA
Member No.: 17
Region Association: Southern California
They are all the same physical size, so get whichever one you want. I use a red top which is the most common.

And always remove the negative side first!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
chris914
post Oct 19 2004, 12:13 AM
Post #5


Member
**

Group: Members
Posts: 489
Joined: 24-July 04
From: San Diego, CA
Member No.: 2,393
Region Association: Southern California
Is there a model number or is it just by the color? Also will the stock hold down work?

The reason I ask is the the OPTIMA web page can not find a match for the 914.

Please enter the following information about your car,
and find which OPTIMA is right for you.

PORSCHE
All Models
1976-1970 914
There are no matches available for this vehicle.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
skline
post Oct 19 2004, 12:13 AM
Post #6


Born to Drive
*****

Group: Members
Posts: 7,910
Joined: 26-December 02
From: Costa Mesa, CA
Member No.: 17
Region Association: Southern California
QUOTE(chris914 @ Oct 18 2004, 11:13 PM)
Is there a model number or is it just by the color? Also will the stock hold down work?

34 and yes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Oct 19 2004, 01:14 AM
Post #7


Spooling.... Please wait
**********

Group: Members
Posts: 13,380
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
34 is what I got.. Red top..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Oct 19 2004, 01:22 AM
Post #8


914 Freak!
***************

Group: Retired Admin
Posts: 20,180
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
NAPA carries a competing line called Orbital. Same design. Just FYI, in case you can't find the Optima locally.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
smg914
post Oct 19 2004, 11:37 AM
Post #9


Sahara Beige Steve
***

Group: Members
Posts: 1,977
Joined: 22-February 04
From: Tampa, FL
Member No.: 1,695
Region Association: None
Here's the one you want.........

OPTIMA Red Top
Model number: 34R
NSN: 6140 01 475 9357

The 34R is the one with the reversed posts which is needed for the 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ArtechnikA
post Oct 19 2004, 12:31 PM
Post #10


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None
QUOTE(markd@mac.com @ Oct 18 2004, 11:22 PM)
NAPA carries a competing line called Orbital. Same design. Just FYI, in case you can't find the Optima locally.

Exide product. Pep Boys sold me one of those after i drove clear across town when they assured me on the phone they had Optimas.

died in less than 3 years. not the same.

real Optimas for me -- Coscto has them at great prices, but i wouldn't count on them to have the 34R that's best in a 914.

34R's were evidently unavailable for a long while (changeover from orange to red?). anyway, the Optima site says they have them now.

i won't use anything but a sealed battery in a Porsche -- in the 911 i use two little bitty Hawker Genesis 26Ah batteries that have better specs than the 36 Ah wet cells originally specified 35 years ago. ain't technology wonderful ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
StratPlayer
post Oct 19 2004, 12:36 PM
Post #11


StratPlayer
****

Group: Members
Posts: 3,335
Joined: 27-December 02
From: SLC, Utah
Member No.: 27
Region Association: Rocky Mountains
Look here

http://www.914world.com/bbs2/index.php?act...=optima+battery
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Oct 19 2004, 01:30 PM
Post #12


914 Guru
*****

Group: Members
Posts: 5,585
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Looking at the link above, what do people think about the model 34M, the marine one (blue top) same specs/size as the red-top model 34...but has extra positive and negative pegs. Would this be good for running the extra wires I have connected to my (+) terminal on my standard battery?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ArtechnikA
post Oct 19 2004, 01:44 PM
Post #13


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None
Marine batteries are designed to run things for a long time and withstand deep discharge without damage. the price you pay for that is limited Cold-Cranking Amp ratings.

automotive batteries are designed to deliver a lot of amps in a hurry - like for starting a car.
there are automotive batteries with both top and side terminals - i think Optima has some...

[okay - nevermind - i looked at the specs and indeed, their "blue top 'Marine'" battery has the same specs and is -not- a deep cycle battery.] donno why manufacturers do stuff like this...

so i donno what that battery's claim to fame is, unless it's the additional posts...]
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lapuwali
post Oct 19 2004, 01:57 PM
Post #14


Not another one!
****

Group: Benefactors
Posts: 4,526
Joined: 1-March 04
From: San Mateo, CA
Member No.: 1,743
The Optima batteries that can be picked up at Pep Boys/Costco/etc, are all the Group 34 battery, which fits the 914 just fine. The orange/red/yellow top seems to denote differences that are not well explained on Optima's site, but have to do with battery internals, not the number or position of the posts.

There ARE other sizes besides the Group 34. I saw a much different Optima in a taildragger awhile back, and looking at Optima's site, they recommend their Group 51 battery for early 911/912 cars. This battery is smaller in length and width, but taller, than the Group 34 battery. It also has less power capacity. Most importantly, it weighs a lot less (26lbs instead of 43lbs). All of this from Optima's site. I have no idea where to get the Group 51 batteries, but they make them.

Sounds like if you're trying to lighten your 914 for racing, a 51 would be better suited than a 34.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 19 2004, 02:10 PM
Post #15


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
mazda miata battery is the smaller unit I believe if you want to save some weight
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Martin Baker
post Oct 19 2004, 02:11 PM
Post #16


I just heard I sold my cars!
***

Group: Members
Posts: 1,140
Joined: 11-February 03
Member No.: 290
Region Association: Northern California
Optima recommended to me the 51 on the phone, but I could not find one locally, even the local dealer said he had never heard of it. I bought the 34. but still requires the spacers (included with the 34 I bought) to work correctly. Foot print of the battery is to narrow for the original clamp.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ArtechnikA
post Oct 19 2004, 02:19 PM
Post #17


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None
this is the Hawker Genesis I use in the 911:

G12V26EP 26.0Ah 6.92" x 6.56" x 4.96" 22.3 lbs M6 Screw 1000 CCA
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Korijo
post Oct 19 2004, 02:56 PM
Post #18


[]D o [] o []V[] o []D
***

Group: Members
Posts: 1,308
Joined: 16-July 03
From: North Bend, WA
Member No.: 914
I plan on bite'n this style, 2 6V
(IMG:http://www.914world.com/bbs2/uploads/post-2-1082856881.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-2-1082856930.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Qarl
post Oct 19 2004, 03:09 PM
Post #19


Shriveled member
*****

Group: Benefactors
Posts: 5,233
Joined: 8-February 03
From: Florida
Member No.: 271
Region Association: None
Here are all the optima batteries...

http://www.1st-optima-batteries.com/

The 51 and 51R look like Marine batteries

But they are yellow, so they must be faster (reduced weight advantage!!!)

Anybody got a pic of the Hawker Genesis 1000 Battery?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ArtechnikA
post Oct 19 2004, 03:19 PM
Post #20


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None
QUOTE

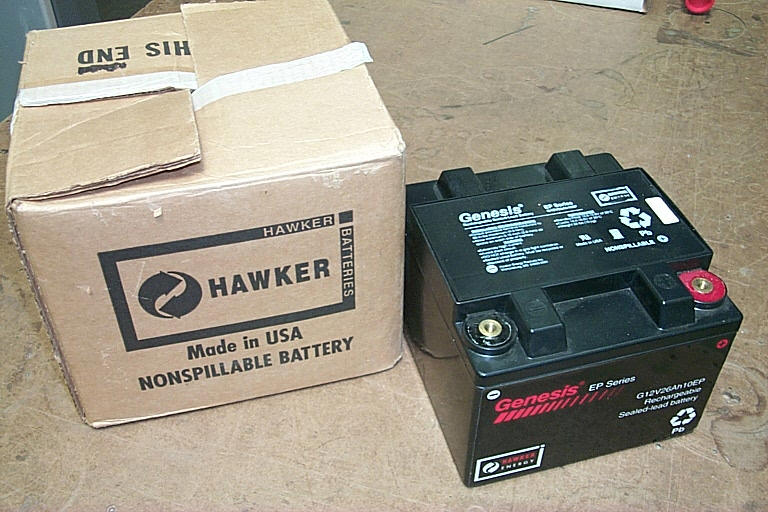

Anybody got a pic of the Hawker Genesis 1000 Battery?


you have but to ask ...

Roger Kraus Racing wants $165 for these new. i get them (per Chris Zach's recommendation) from www.surplusEV.com for $65...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
