> Need wiring help!, What are these two wires
Krieger
post Jul 1 2012, 03:26 PM
Post #1


Advanced Member
****

Group: Members
Posts: 4,707
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

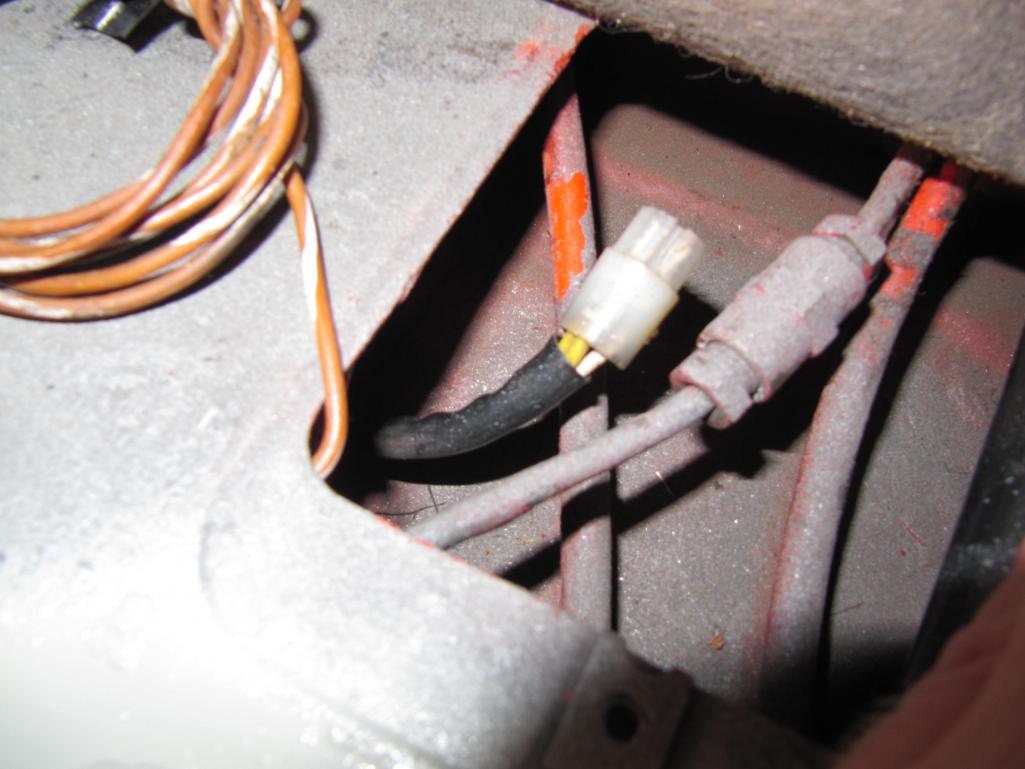

The car is a 72. I am trying to figure out what some of the wires are for on the car to reuse for other purposes. The first is actually a round plug that sits in the access panel between the two seat. It has two yellow wires going to the plug. One of those wires runs forward on the tunnel. The second yellow wire goes? There is also a white wire to that same plug?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47
post Jul 1 2012, 03:48 PM
Post #2


Viermeister
****

Group: Members
Posts: 4,254
Joined: 7-August 03
From: Vienna, VA
Member No.: 994
Region Association: MidAtlantic Region
best I can do:

http://www.pelicanparts.com/914/parts/elec...lectric_71A.jpg

http://www.pelicanparts.com/914/parts/elec...lectric_71b.jpg

I can't see any component wth 2 yellows and a white.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jsayre914
post Jul 1 2012, 03:55 PM
Post #3


Speed Up !!!
****

Group: Members
Posts: 3,188
Joined: 10-February 08
From: Timonium MD 21093
Member No.: 8,696
Region Association: MidAtlantic Region

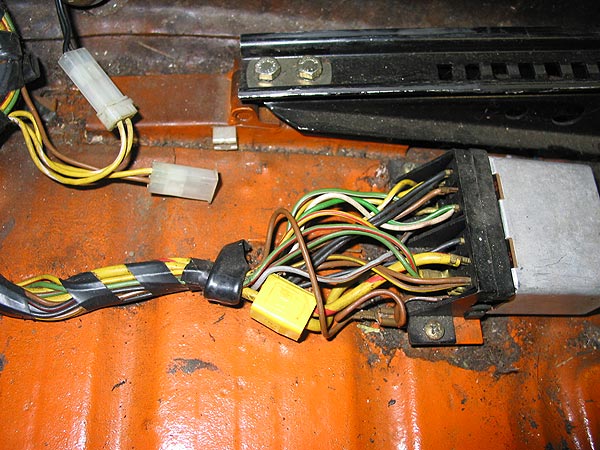

its not part of the seatbelt buzzer is it?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 1 2012, 04:04 PM
Post #4


Advanced Member
****

Group: Members
Posts: 4,707
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
I found the old seat belts. There is a plug coming off the two seat belt receivers that plugs into it. So now still the question where does the yellow and white wires go?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jul 1 2012, 04:04 PM
Post #5


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(jsayre914 @ Jul 1 2012, 02:55 PM) *

its not part of the seatbelt buzzer is it?

If i'm not mistaken, the '72 cars didn't have a seat belt buzzer ...
(IMG:style_emoticons/default/idea.gif)

PS: Pictures would help!
(IMG:style_emoticons/default/thisthreadisworthlesswithoutpics.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 1 2012, 04:24 PM
Post #6


Advanced Member
****

Group: Members
Posts: 4,707
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
I have a new computer and this may be too big.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 1 2012, 04:26 PM
Post #7


Advanced Member
****

Group: Members
Posts: 4,707
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Maybe too small?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 1 2012, 04:29 PM
Post #8


Advanced Member
****

Group: Members
Posts: 4,707
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Too big?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 1 2012, 04:51 PM
Post #9


Advanced Member
****

Group: Members
Posts: 4,707
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

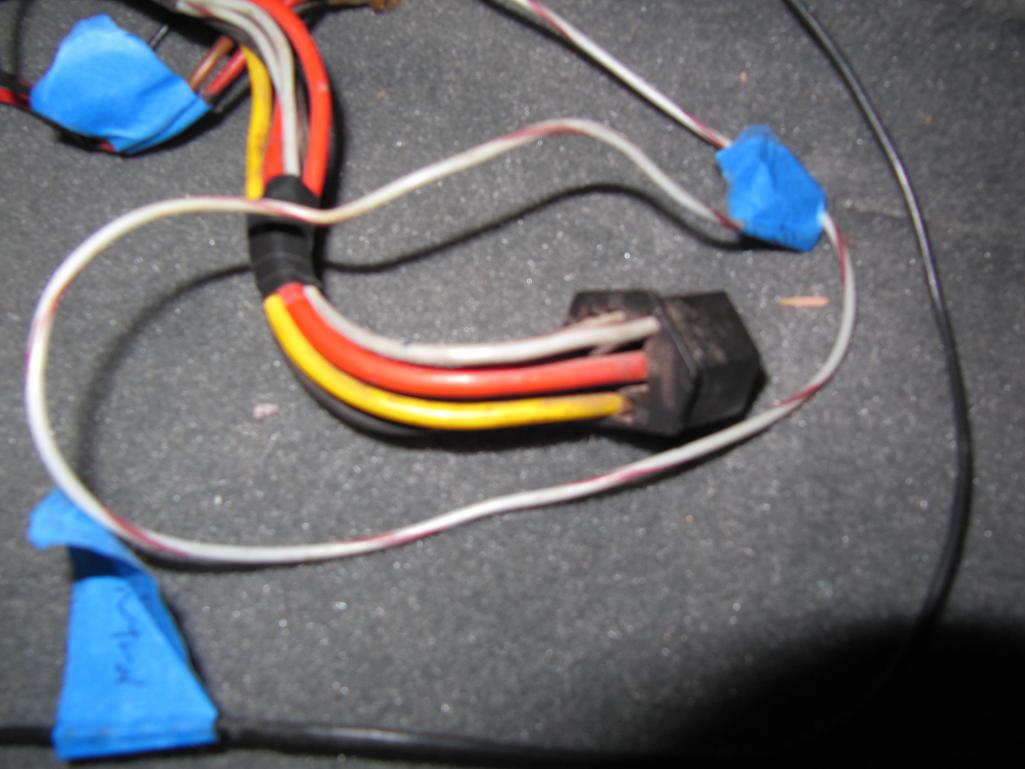

Here is another one Im tackling. I removed the door buzzer switches and most of the wiring. I will not use them. Im left with this gray wire with a redish brown spiraling stripe coming from the ignition switch. It eventually, through the switches, ran to a plug with no relay on the fuse box....I think Can I just use shrink tubing over the end from the ig switch?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 1 2012, 04:59 PM
Post #10


Advanced Member
****

Group: Members
Posts: 4,707
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

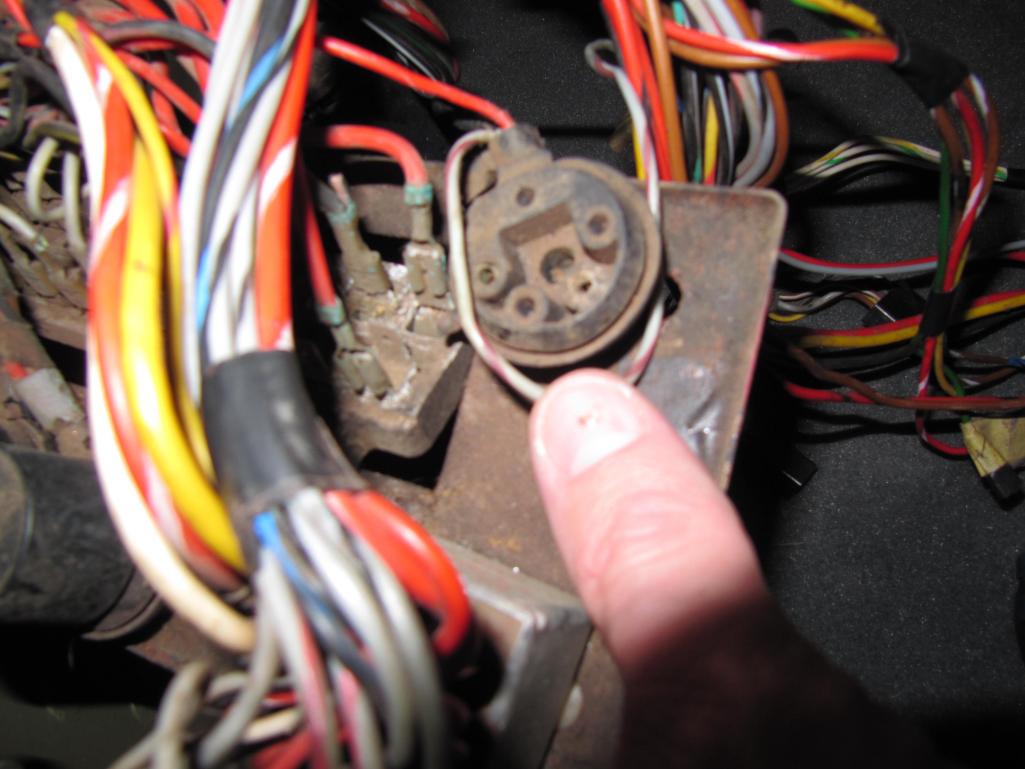

This is where there is another matching wire from door contacts. Hook up to wire dangling from ig switch? Or cut off at the fuse box and use the wire danging from ignition to power something else in future?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47
post Jul 1 2012, 06:44 PM
Post #11


Viermeister
****

Group: Members
Posts: 4,254
Joined: 7-August 03
From: Vienna, VA
Member No.: 994
Region Association: MidAtlantic Region
I suggest you look for wiring colors in the later track current flow diagrams on pelican; they are the 74-> (there is a link in my signature). I think there are fewer differences in color; more similarities with your 72 so you "should" be able to find your items...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jul 1 2012, 08:52 PM
Post #12


914 Idiot
**********

Group: Members
Posts: 14,985
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
Relay with a gray/red wire on the fuse panel looks to be a fog light relay. Are there also red/black, white/blue, and white/yellow wires?

The yellows and white does not look familiar, but I'm not very familiar with 72s, nor with the center tunnel wires. Are the wires a solid yellow and solid white?

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 1 2012, 09:38 PM
Post #13


Advanced Member
****

Group: Members
Posts: 4,707
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Hey Dave, the relay only has one solid red and two of the gray/reds.
The yellow and whites are solid as best I can tell.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jul 1 2012, 10:19 PM
Post #14


PMB Performance
***************

Group: Admin
Posts: 19,275
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Yellow and white turns the red light on on the dash... "Fasten Seat Belt" when there's a butt in the passengers cushion.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cwpeden
post Jul 2 2012, 01:03 AM
Post #15


Great White North, huh?
***

Group: Members
Posts: 916
Joined: 20-August 06
From: Victoria BC
Member No.: 6,693
Region Association: Canada
QUOTE(Eric_Shea @ Jul 1 2012, 09:19 PM) *

Yellow and white turns the red light on on the dash... "Fasten Seat Belt" when there's a butt in the passengers cushion.


I agree, my 72 had sensor cushions with no lights or associated electronics? (IMG:style_emoticons/default/huh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 2 2012, 08:16 AM
Post #16


Advanced Member
****

Group: Members
Posts: 4,707
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
DOH! I have been looking at the wrong wiring diagram. I was not seeing the word "except" printed next to USA. I feel like a dummy. Its for seat belts.
