> Wheel Weights, Wheel weights by the ounce
toadman
post Jul 4 2012, 12:00 PM
Post #1


Member
**

Group: Members
Posts: 168
Joined: 26-December 05
From: Cincinnati, OH
Member No.: 5,316
Just got back from the post office. I used their scale to weigh, to the ounce, several common 914 wheels. All of these weights are for clean, bare wheels with no wheel weights, no valve stems or lug bolts. I am preparing a set of autocross wheels and a set of track wheels and want to start with the lightest, commonly available wheel possible. Thought that others might be able to use this info so here it is.

All wheels are 4X130 bolt pattern. The Minilite wheel is 6.5" X 15". The rest of the wheels are 5.5" X 15". Weights are from lightest to heaviest.

Mahle - 13 lbs. 4 oz.
Fuchs - 13 lbs. 15 oz.
914 Steel "Sport" wheel - 17 lbs. 0 oz.
914 Steel "Beetle" wheel - 17 lbs. 1 oz.
Minilite - 17 lbs. 15 oz.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Jul 4 2012, 12:17 PM
Post #2


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region
4 lug wheels
four lug wheels

thanks for this info

associated thread of 4 lug wheels
http://www.914world.com/bbs2/index.php?sho...our+bolt+wheels

jim


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mskala
post Jul 4 2012, 09:19 PM
Post #3


R
***

Group: Members
Posts: 1,925
Joined: 2-January 03
From: Massachusetts
Member No.: 79
Region Association: None
Yes this is good info.

There have been tons of other threads where people post weights
that are usually worthless due to the equipment used.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jul 5 2012, 05:01 AM
Post #4


914-6 GT in waiting
***************

Group: Members
Posts: 19,277
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Mahle gasburners are 10.4lbs but you have to go 5 lug.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
sixerdon
post Jul 5 2012, 06:20 AM
Post #5


Member
**

Group: Members
Posts: 466
Joined: 23-May 03
From: Dartmouth, MA
Member No.: 731
QUOTE(mepstein @ Jul 5 2012, 03:01 AM) *

Mahle gasburners are 10.4lbs but you have to go 5 lug.


Interesting, Mark. From where is your source? Mine weigh in at a hair under 10 lbs. They are listed at being 9.9 lbs or 4.5 kg.
Don
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johannes
post Jul 5 2012, 06:38 AM
Post #6


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France
QUOTE(toadman @ Jul 4 2012, 10:00 AM) *

Just got back from the post office. I used their scale to weigh, to the ounce, several common 914 wheels. All of these weights are for clean, bare wheels with no wheel weights, no valve stems or lug bolts. I am preparing a set of autocross wheels and a set of track wheels and want to start with the lightest, commonly available wheel possible. Thought that others might be able to use this info so here it is.

All wheels are 4X130 bolt pattern. The Minilite wheel is 6.5" X 15". The rest of the wheels are 5.5" X 15". Weights are from lightest to heaviest.

Mahle - 13 lbs. 4 oz.
Fuchs - 13 lbs. 15 oz.
914 Steel "Sport" wheel - 17 lbs. 0 oz.
914 Steel "Beetle" wheel - 17 lbs. 1 oz.
Minilite - 17 lbs. 15 oz.


Funny because I always have read Fuchs_are_the_lightest_because_they_are_forged ...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jul 5 2012, 07:02 AM
Post #7


914-6 GT in waiting
***************

Group: Members
Posts: 19,277
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(sixerdon @ Jul 5 2012, 08:20 AM) *

QUOTE(mepstein @ Jul 5 2012, 03:01 AM) *

Mahle gasburners are 10.4lbs but you have to go 5 lug.


Interesting, Mark. From where is your source? Mine weigh in at a hair under 10 lbs. They are listed at being 9.9 lbs or 4.5 kg.
Don


My digital scale.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jul 5 2012, 07:03 AM
Post #8


914-6 GT in waiting
***************

Group: Members
Posts: 19,277
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(johannes @ Jul 5 2012, 08:38 AM) *

QUOTE(toadman @ Jul 4 2012, 10:00 AM) *

Just got back from the post office. I used their scale to weigh, to the ounce, several common 914 wheels. All of these weights are for clean, bare wheels with no wheel weights, no valve stems or lug bolts. I am preparing a set of autocross wheels and a set of track wheels and want to start with the lightest, commonly available wheel possible. Thought that others might be able to use this info so here it is.

All wheels are 4X130 bolt pattern. The Minilite wheel is 6.5" X 15". The rest of the wheels are 5.5" X 15". Weights are from lightest to heaviest.

Mahle - 13 lbs. 4 oz.
Fuchs - 13 lbs. 15 oz.
914 Steel "Sport" wheel - 17 lbs. 0 oz.
914 Steel "Beetle" wheel - 17 lbs. 1 oz.
Minilite - 17 lbs. 15 oz.


Funny because I always have read Fuchs_are_the_lightest_because_they_are_forged ...


Strength to weight ratio is probably better for the forged wheel.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
toadman
post Jul 5 2012, 08:01 PM
Post #9


Member
**

Group: Members
Posts: 168
Joined: 26-December 05
From: Cincinnati, OH
Member No.: 5,316
QUOTE(mepstein @ Jul 5 2012, 05:03 AM) *

QUOTE(johannes @ Jul 5 2012, 08:38 AM) *

QUOTE(toadman @ Jul 4 2012, 10:00 AM) *

Just got back from the post office. I used their scale to weigh, to the ounce, several common 914 wheels. All of these weights are for clean, bare wheels with no wheel weights, no valve stems or lug bolts. I am preparing a set of autocross wheels and a set of track wheels and want to start with the lightest, commonly available wheel possible. Thought that others might be able to use this info so here it is.

All wheels are 4X130 bolt pattern. The Minilite wheel is 6.5" X 15". The rest of the wheels are 5.5" X 15". Weights are from lightest to heaviest.

Mahle - 13 lbs. 4 oz.
Fuchs - 13 lbs. 15 oz.
914 Steel "Sport" wheel - 17 lbs. 0 oz.
914 Steel "Beetle" wheel - 17 lbs. 1 oz.
Minilite - 17 lbs. 15 oz.


Funny because I always have read Fuchs_are_the_lightest_because_they_are_forged ...


Strength to weight ratio is probably better for the forged wheel.


I agree. I am going to use Fuchs for my autox and track tire sets.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
shuie
post Jul 5 2012, 08:07 PM
Post #10


Member
**

Group: Members
Posts: 352
Joined: 17-May 04
From: baton rouge, la
Member No.: 2,075
Good info. Thanks for sharing.

I'm out of town right now and can't get a weight on these, but here is a 4 lug 15x7 that is really light. I don't have one handy for a comparison, but it seems almost as light as a 15x7 Fuchs in hand. I'll get an actual weight when I get back home.

(IMG:http://www.914world.com/bbs2/uploads_offsite/lh6.googleusercontent.com-2075-1341540520.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
toadman
post Jul 8 2012, 10:10 AM
Post #11


Member
**

Group: Members
Posts: 168
Joined: 26-December 05
From: Cincinnati, OH
Member No.: 5,316
QUOTE(shuie @ Jul 5 2012, 06:07 PM) *

Good info. Thanks for sharing.

I'm out of town right now and can't get a weight on these, but here is a 4 lug 15x7 that is really light. I don't have one handy for a comparison, but it seems almost as light as a 15x7 Fuchs in hand. I'll get an actual weight when I get back home.

(IMG:http://www.914world.com/bbs2/uploads_offsite/lh6.googleusercontent.com-2075-1341540520.1.jpg)


The ATS is my favorite 4-lug, 5-spoke wheel. I would like to know what you find out about the weight on your 7" X 15" ATS. I know these also came in 5.5" X 15" and would like to know what one of those weighs, too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Nov 29 2023, 09:26 AM
Post #12


burton73
****

Group: Members
Posts: 3,526
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California
I saw this old posting and I have pictures and weights of a couple of different wheels for the 914.

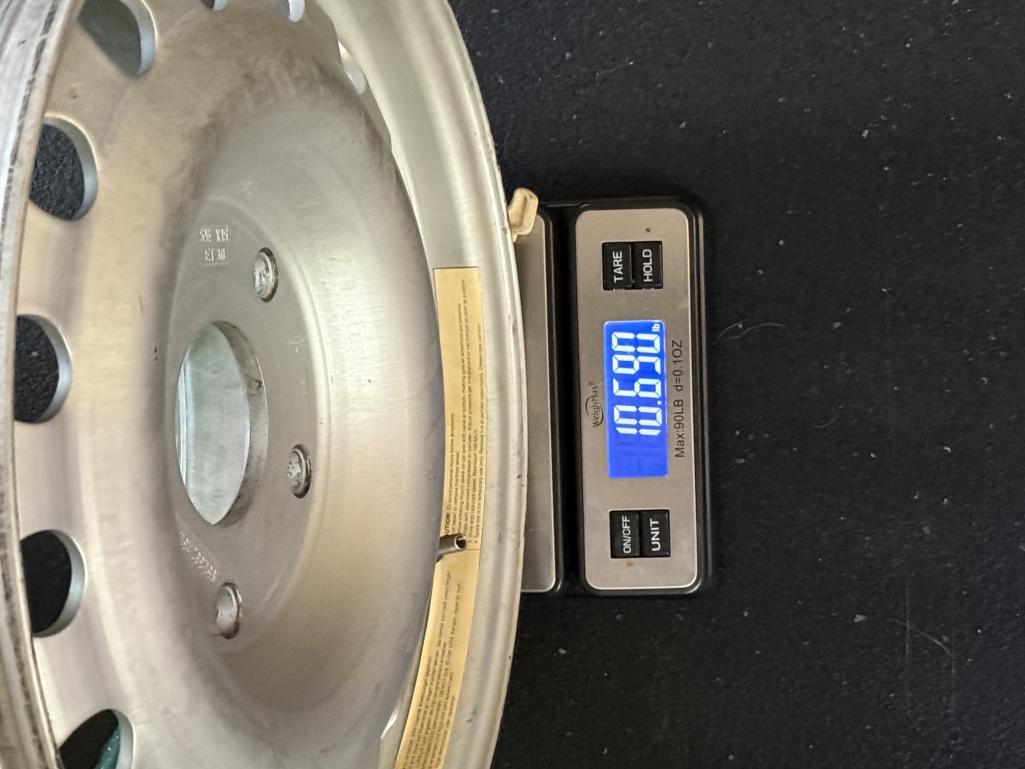

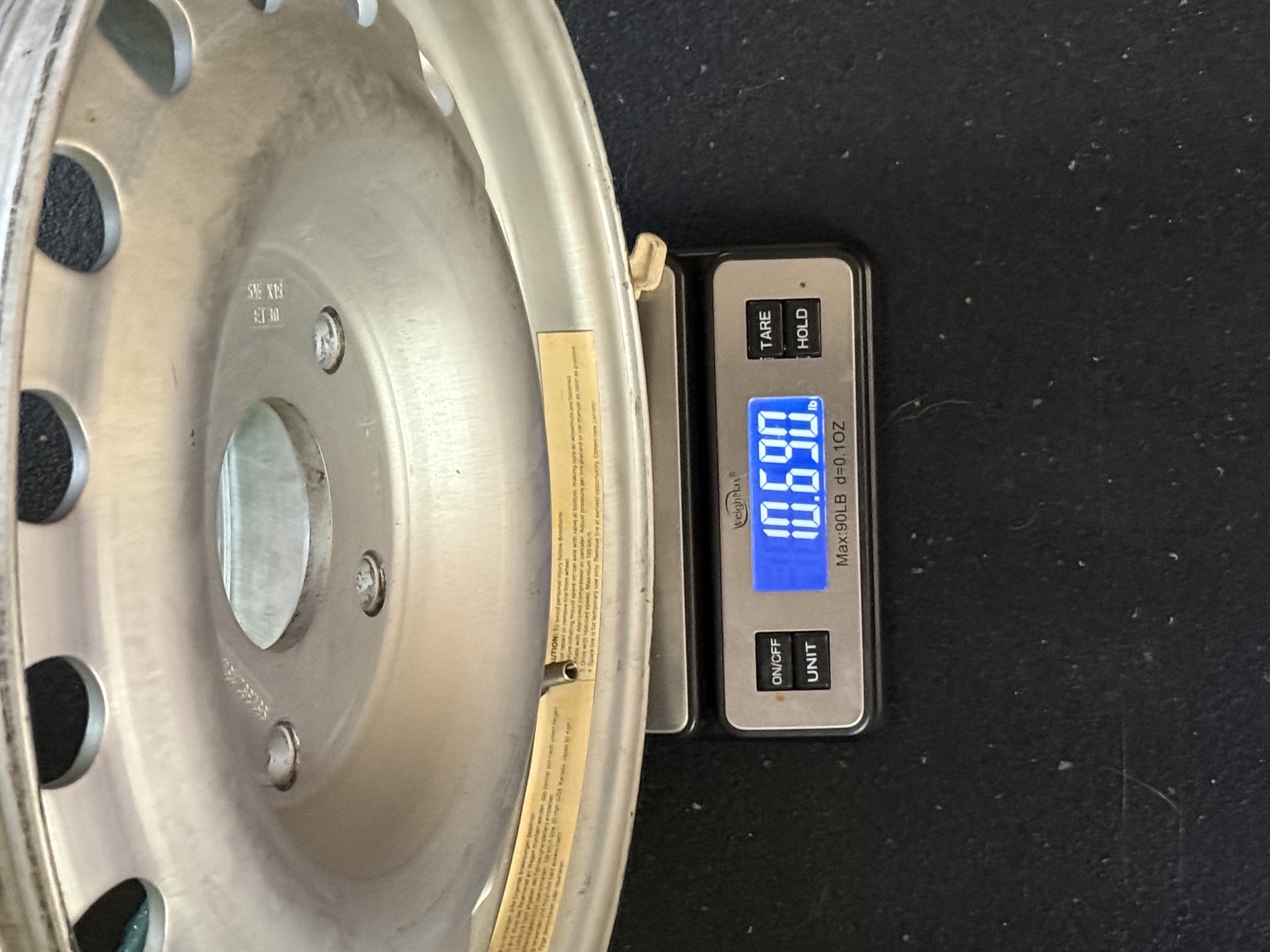

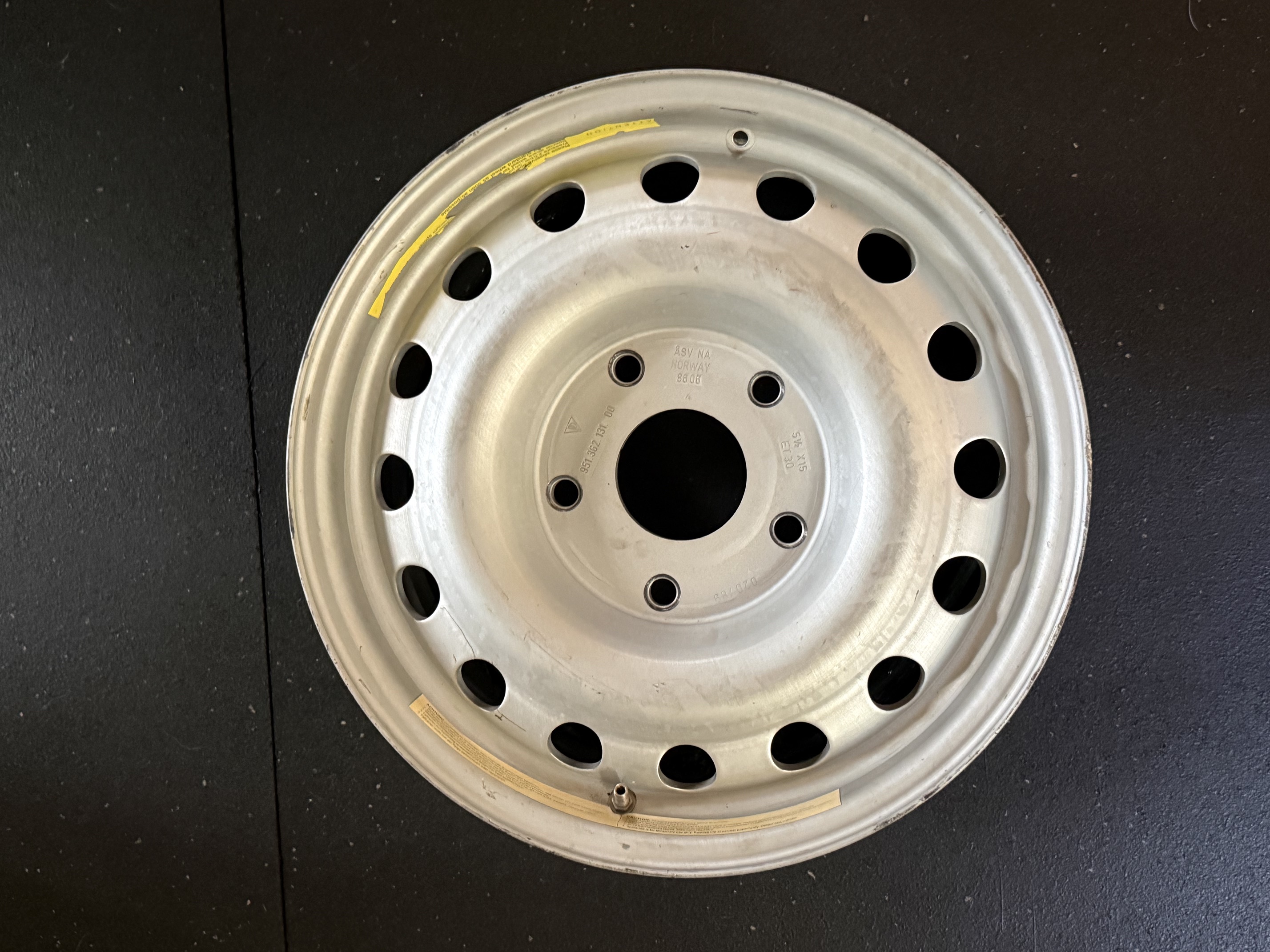

The Mahle 5 lug Gasburner is 10lb 2 oz ---
The Pedrini 4 lug is 14lb. 2 oz

Just so you know

Best Bob B
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Nov 29 2023, 11:34 AM
Post #13


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,081
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Pedrini? (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Nov 29 2023, 11:45 AM
Post #14


Senior Member
***

Group: Members
Posts: 973
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Enkei 92, Classic Series, 25mm, 4x100, only 15.1 lbs
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
