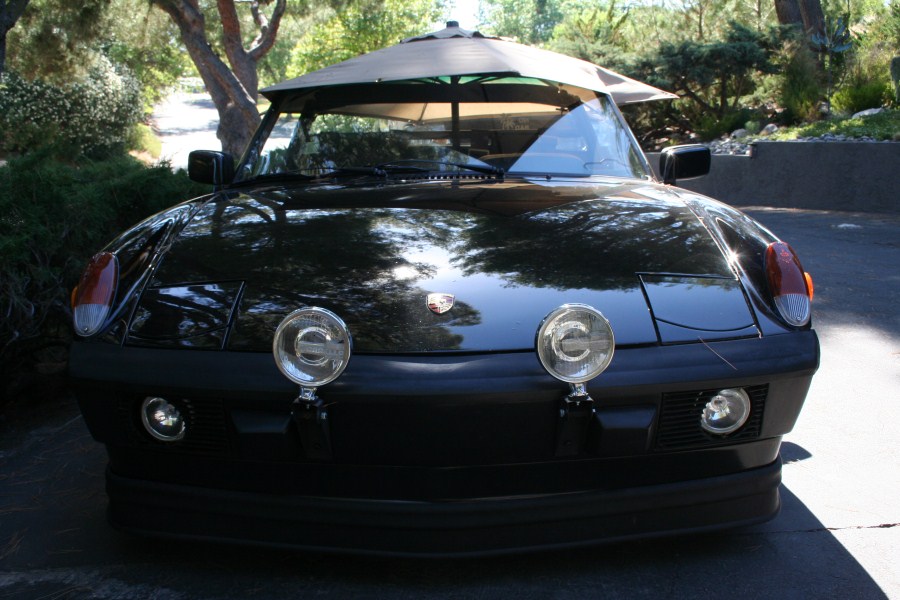

I just wired up these driving lights. I used a relay. Do I need to install an inline fuze? If so should it be between the battery and the relay? Or between the relay and the lights?
Cheers, Elliot
PS The one on the left isn't crooked anymore. (IMG:style_emoticons/default/laugh.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 31 2012, 06:25 PM
Post #2


Resident German
*************************

Group: Admin
Posts: 42,201
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(Elliot Cannon @ Aug 31 2012, 05:22 PM) *
If so should it be between the battery and the relay? Or between the relay and the lights?

Battery to relay.

The reason to use a relay in the first place is the fact that the relay trigger current is very low.
You'd run that off one of the existing fuses anyways.

So you want to fuse the 12V supply from the battery to the relay/lights.
(IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
toolguy
post Aug 31 2012, 06:58 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,275
Joined: 2-April 11
From: San Diego / El Cajon
Member No.: 12,889
Region Association: Southern California



you want to fuse the power lead from the battery that goes through the relay and on to the lights. . fusing the battery lead that energizes the relay itself will offer no protection if you have a ground on the wire to the lights. . maybe just semantics but rather be clear about it. .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Aug 31 2012, 07:08 PM
Post #4


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,698
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California



Hmmm, let's see. Two lights (IMG:style_emoticons/default/poke.gif) Would that be one or two trips to the EM. (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Aug 31 2012, 07:39 PM
Post #5


Resident Electrician
*****

Group: Members
Posts: 8,347
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None



The fuse should be within 18" of the battery for safety.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swl
post Sep 2 2012, 11:27 AM
Post #6


Senior Member
***

Group: Members
Posts: 1,409
Joined: 7-August 05
From: Kingston,On,Canada
Member No.: 4,550
Region Association: Canada



QUOTE(kg6dxn @ Aug 31 2012, 09:39 PM) *

The fuse should be within 18" of the battery for safety.

I agree. The closer to the power source the better.

Tom has done a lot of thinking about upgrading of fusing. Came up with a pretty slick design if you really want to get into protecting your electrical system.

http://www.914world.com/bbs2/index.php?showtopic=141317
