> Please post: V-8 conversion exhaust system pics
mittelmotor
post Sep 3 2012, 10:19 PM
Post #1


Member
**

Group: Members
Posts: 334
Joined: 21-May 12
From: SoCal
Member No.: 14,464
Region Association: None
Hi guys,

My project is getting into the exhaust system phase, and I've got a couple of bare manifolds waiting for some tubing and mufflers.

I'm having trouble deciding on exact configuration (twin tips straight out, single side exhaust with a collector, etc.). I'd like to keep it tucked away out of sight as much as possible, and keep the sound level reasonable.

Any pics of your system would be greatly appreciated!

--Doug
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Sep 3 2012, 10:26 PM
Post #2


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None

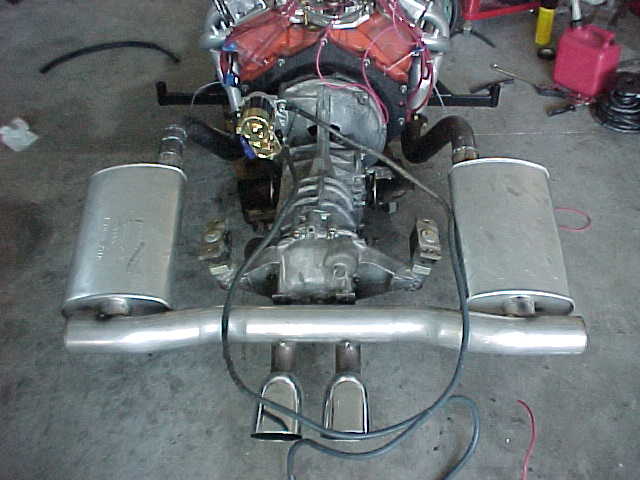

This is what mine looked like when I had a V8...

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Sep 4 2012, 12:15 AM
Post #3


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,443
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Sep 4 2012, 12:38 AM
Post #4


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
If you want to remove all drone, I would bring one side of the exhaust under the oil pan and merge it with the other side (like a factory exhaust). From that point run one large exhaust through a muffler in the factory location out one side. Even using a high flow cat would remove some stink.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr. Roger
post Sep 4 2012, 01:36 AM
Post #5


A bat out of hell.
****

Group: Members
Posts: 3,944
Joined: 31-January 05
From: Hercules, California
Member No.: 3,533
Region Association: Northern California
corvette c5 mufflers. cut 40% off of the length, gutted 3 of the 5 internal baffles, and welded the end back on.

c5 location worked perfectly on 914 after shortening.

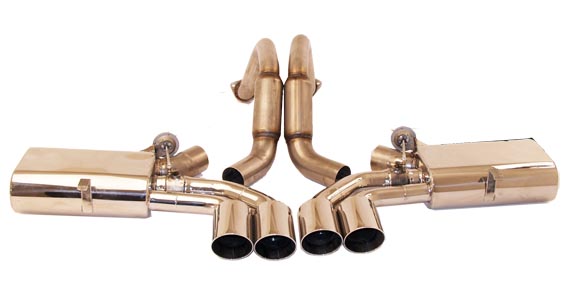

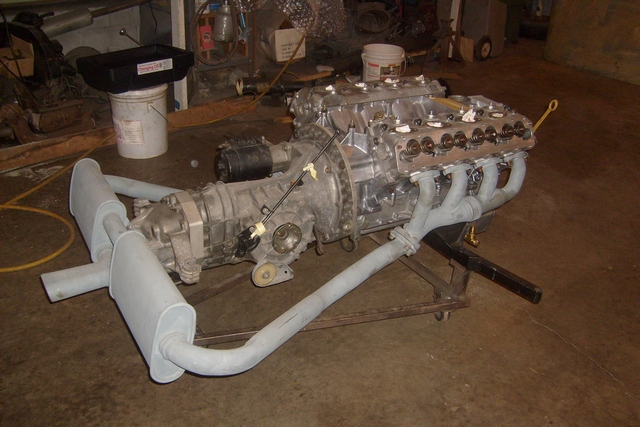

size and configuration similar to this pic.

(IMG:http://www.914world.com/bbs2/uploads_offsite/www.bbexhaust.com-3533-1346744185.1.jpg)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bulitt
post Sep 4 2012, 05:15 AM
Post #6


Achtzylinder
****

Group: Members
Posts: 4,188
Joined: 2-October 11
Member No.: 13,632
Region Association: South East States

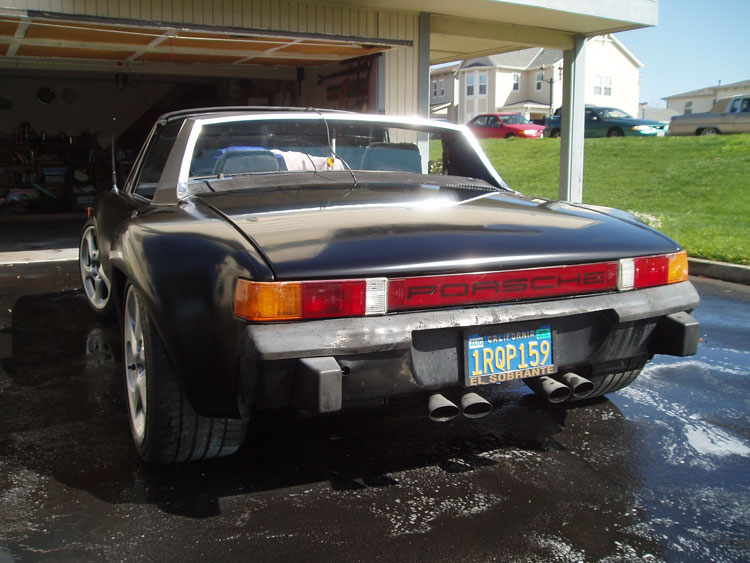

Nice V8 over on ebay with side exhausts. Link wont stay up long.
V8
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Sep 4 2012, 09:35 AM
Post #7


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None
Flowmaster 50 series three chamber mufflers.

Andys


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
v82go
post Sep 4 2012, 10:44 AM
Post #8


Resident Contrarian
**

Group: Members
Posts: 249
Joined: 9-December 04
From: Lakeland, Fl.
Member No.: 3,250

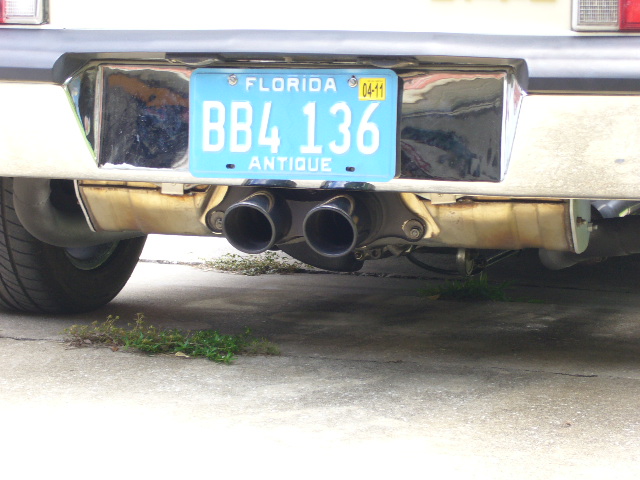

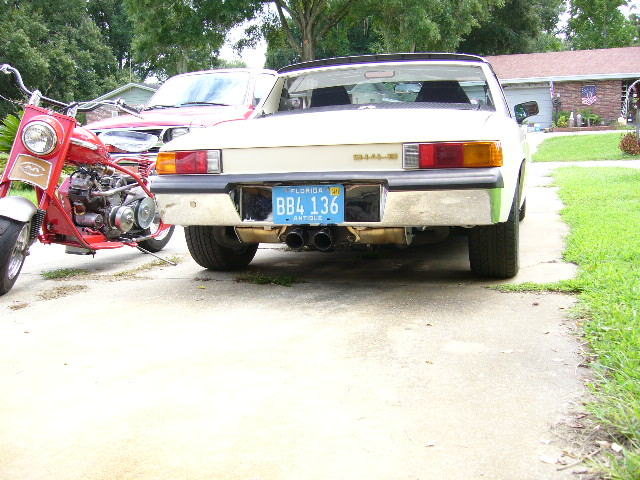

SBC with long tube headers and a Porsche GT3 muffler, I have built 4 different

exhaust systems (turbo mufflers, flowmasters, Ferrari mufflers, GT3) the GT3

sounds the best by far and is fairly quiet but still mean sounding and no drone


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mittelmotor
post Sep 4 2012, 11:48 AM
Post #9


Member
**

Group: Members
Posts: 334
Joined: 21-May 12
From: SoCal
Member No.: 14,464
Region Association: None
Thanks, guys. Keep 'em coming! I love the ingenuity of all these different approaches.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
clow
post Sep 4 2012, 07:21 PM
Post #10


The Kid
**

Group: Members
Posts: 164
Joined: 7-September 10
From: Ontario, Canada
Member No.: 12,151
Region Association: Canada

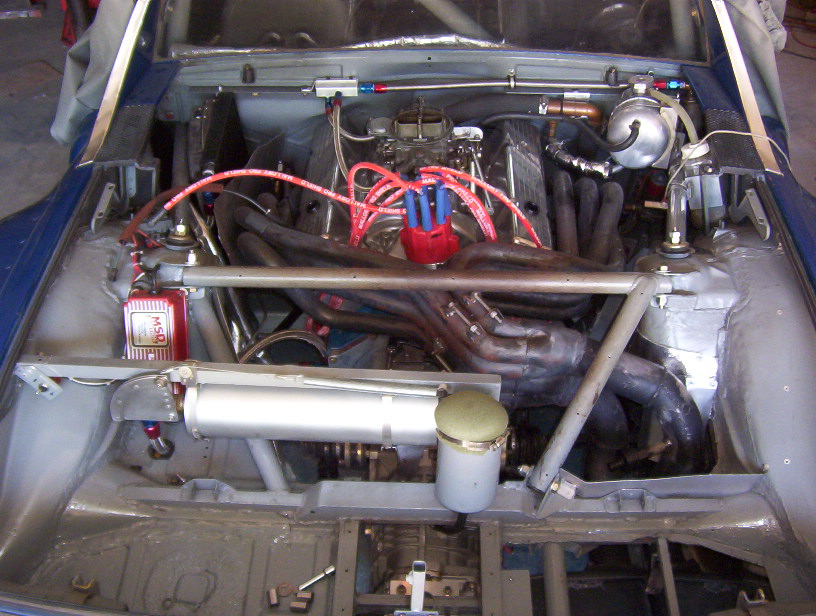

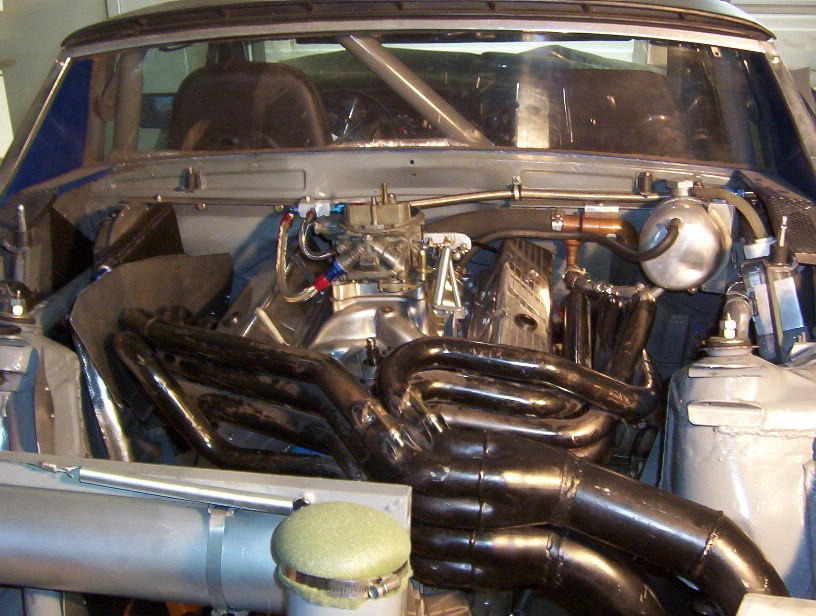

Very interesting one.

'strewteral' posted it in one of my v8 threads


(IMG:http://www.914world.com/bbs2/uploads/post-8424-1313986065.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-8424-1313986037.jpg)


Clow
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 4 2012, 07:23 PM
Post #11


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,852
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
OMG that's a monster exhaust!!! (IMG:style_emoticons/default/ohmy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Sep 4 2012, 08:50 PM
Post #12


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
Those 180 degree headers sound awesome too. Kind of like a European super car. They just take up way too much room...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
computers4kids
post Sep 4 2012, 09:35 PM
Post #13


Love these little cars!
****

Group: Members
Posts: 2,443
Joined: 11-June 05
From: Port Townsend, WA
Member No.: 4,253
Region Association: None

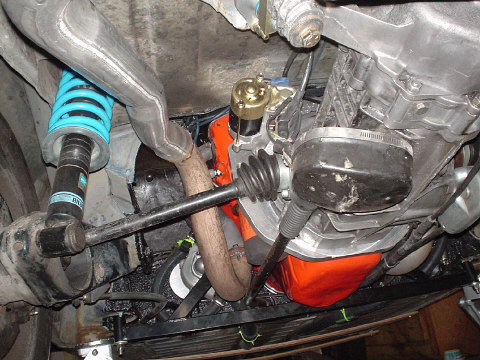

SBC with Turbo mufflers with crossover pipe
(IMG:http://www.914world.com/bbs2/uploads/post-4253-1233890821.jpg) (IMG:http://www.914world.com/bbs2/uploads/post-4253-1235879612.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mittelmotor
post Sep 7 2012, 01:13 PM
Post #14


Member
**

Group: Members
Posts: 334
Joined: 21-May 12
From: SoCal
Member No.: 14,464
Region Association: None
She's a runner! A few teething problems; I understimated the amp draw for the fans, so a fuse blew, and some starter solenoid circuit issues that I hope will be fixed with a relay, on the advice of Steve at Renegade.

Car is everything I thought it would be with the V-8, and I haven't even given it more than half throttle! (breaking in the clutch, y'know). Smooth effortless torque, super well mannered with the fuel injection.

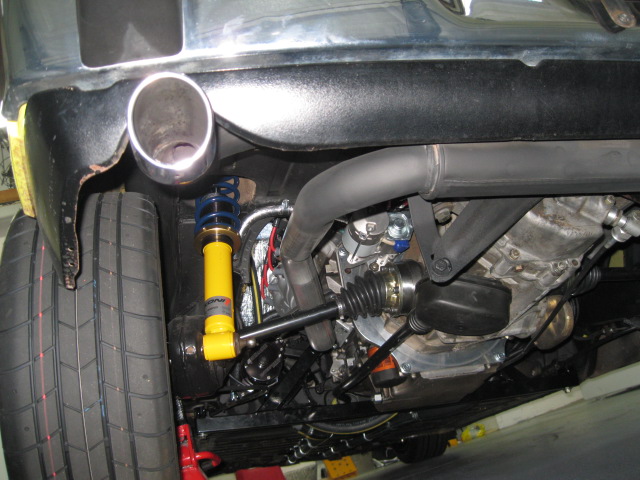

Exhaust is great!! Maybe too subdued for some, but for my semi-sleeper build it's just right. Nice quiet burble, very refined. Particulars:

--2.25" tubing
--dual inlet/dual outlet muffler from a 1967-1968 Mustang
--stock valance exit on driver's side, hidden dump pipe on passenger side

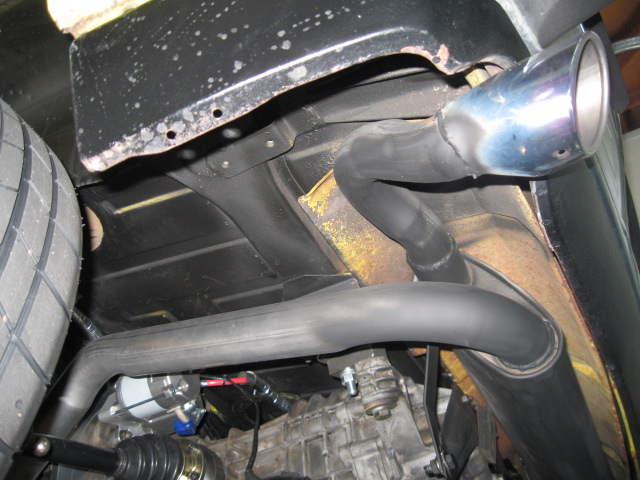

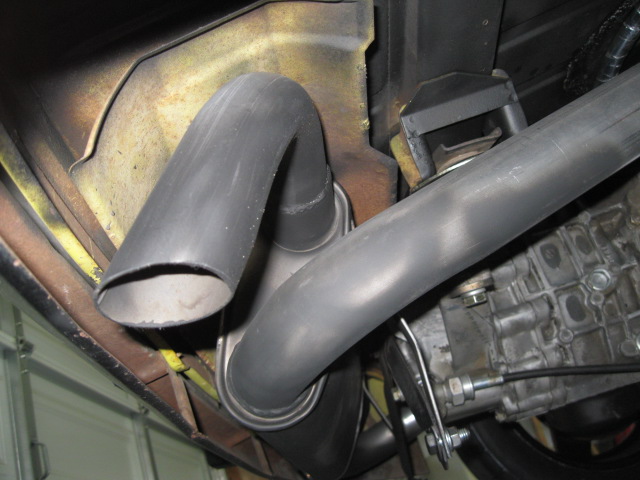

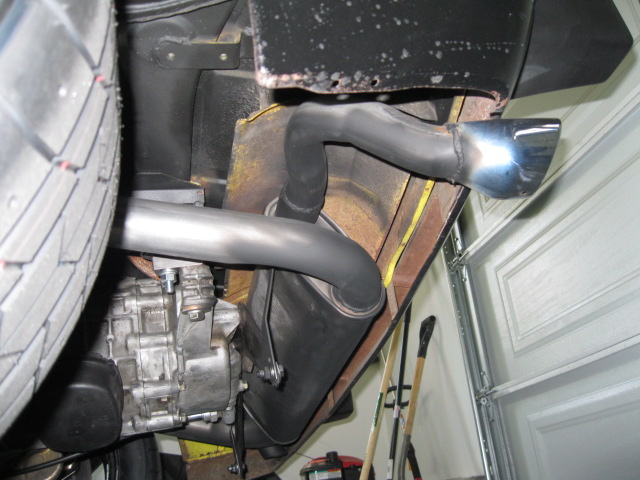

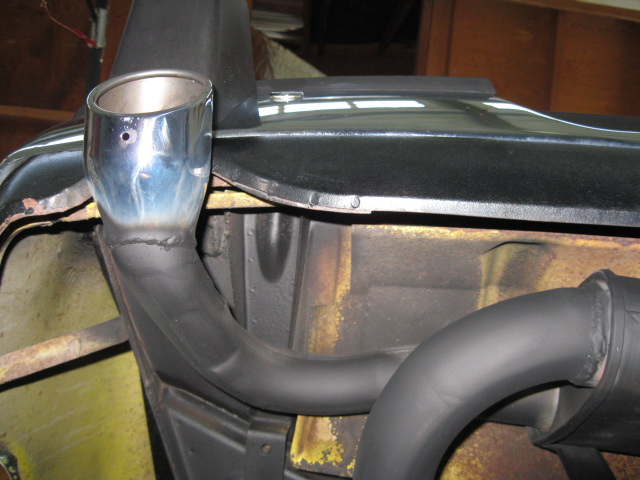

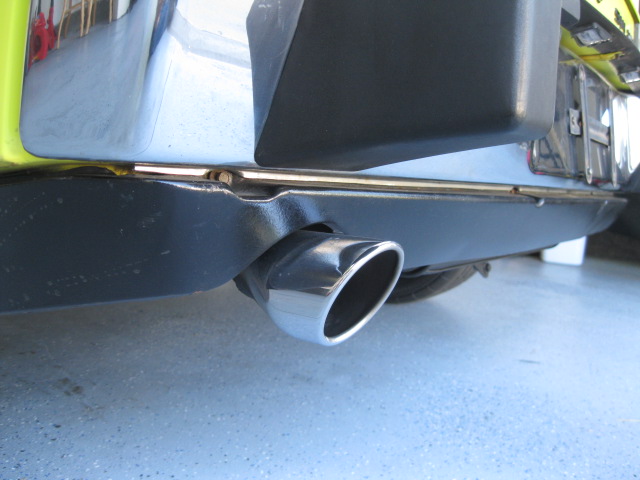

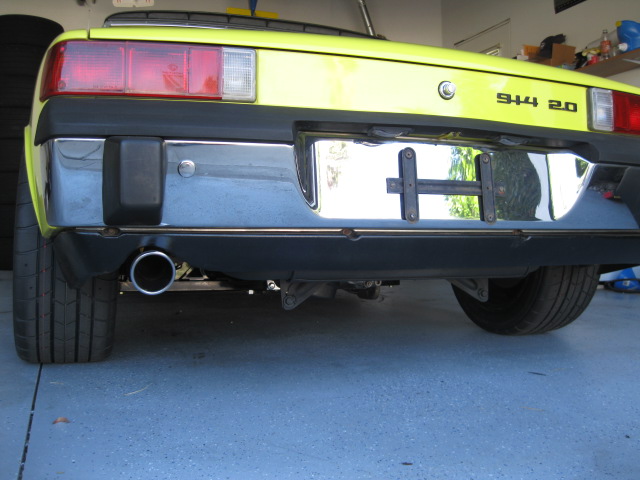

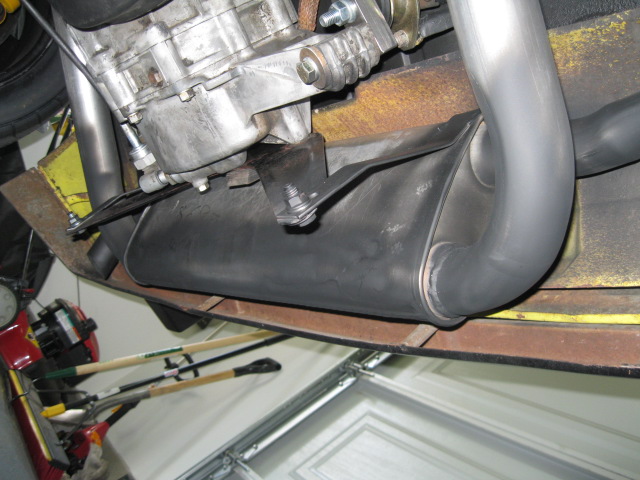

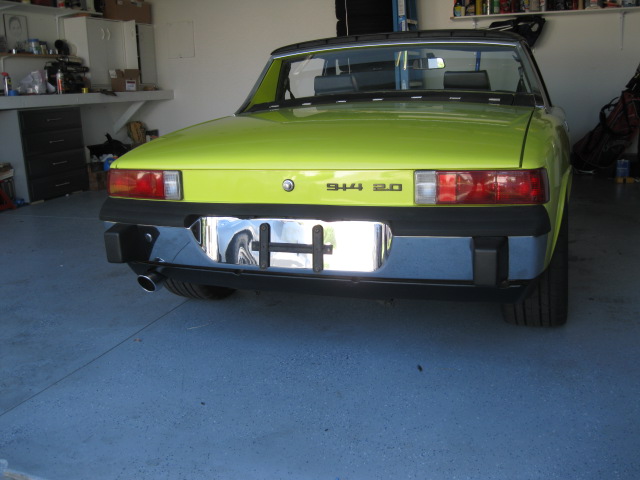

I'm really happy with the tip...looks like it was made for the car. Muffler tucks up so nice that all you see is the exhaust hanger, and I could clean that up later with a straight-across piece.

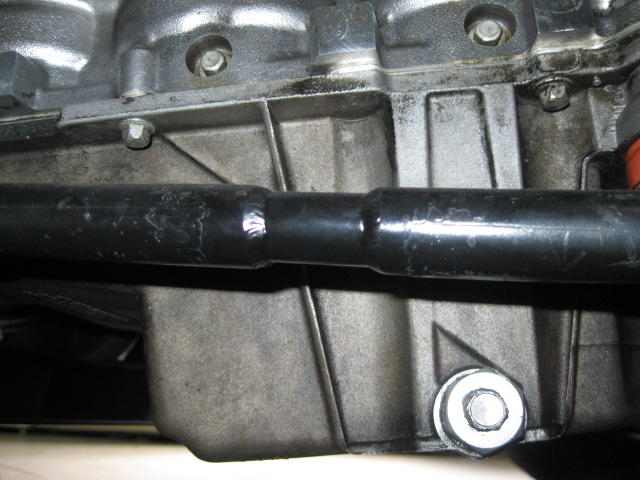

Frank at Laguna Muffler Service in SoCal did the whole thing for $300, but I insisted it was worth $350. The final touch will be some muffler wrap for the tubes going over the axles, to keep heat away from the CV joints and starter.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
db9146
post Sep 7 2012, 02:34 PM
Post #15


Senior Member
***

Group: Members
Posts: 953
Joined: 21-December 04
From: Atlanta, GA
Member No.: 3,315
Region Association: None
Mittelmotor,

Nice solution.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Sep 7 2012, 03:32 PM
Post #16


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Not enough heat in the exhaust to worry about muffler wrapping. FYI.


Great looking setup!

I have two magnaflows over the axles after the axles right by the bumper. Simple, works, and sounds great (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nick mironov
post Sep 7 2012, 03:52 PM
Post #17


nickm
**

Group: Members
Posts: 204
Joined: 12-June 05
From: San Francisco, CA
Member No.: 4,264

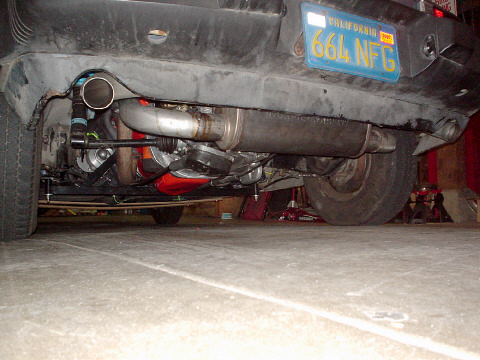

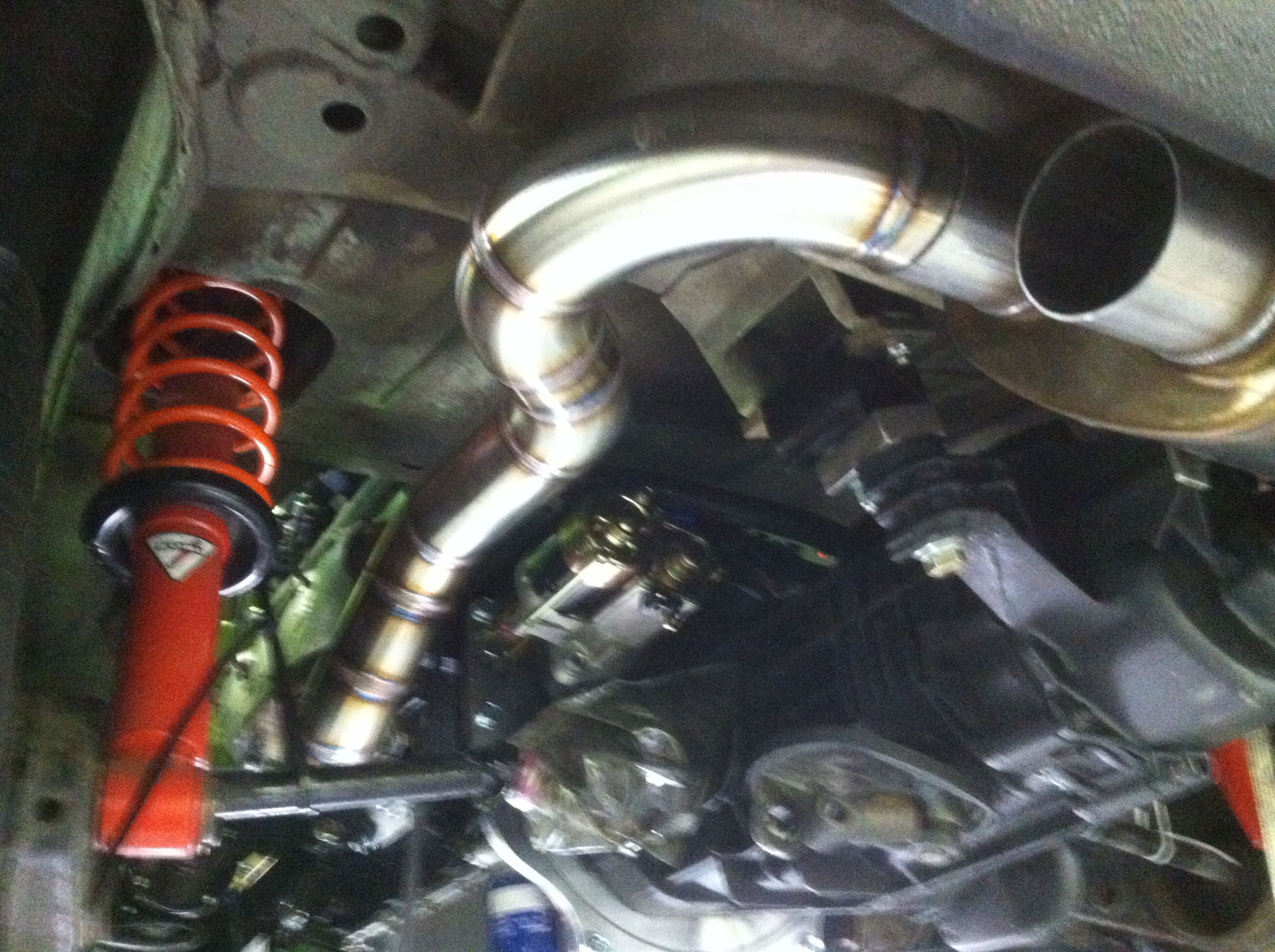

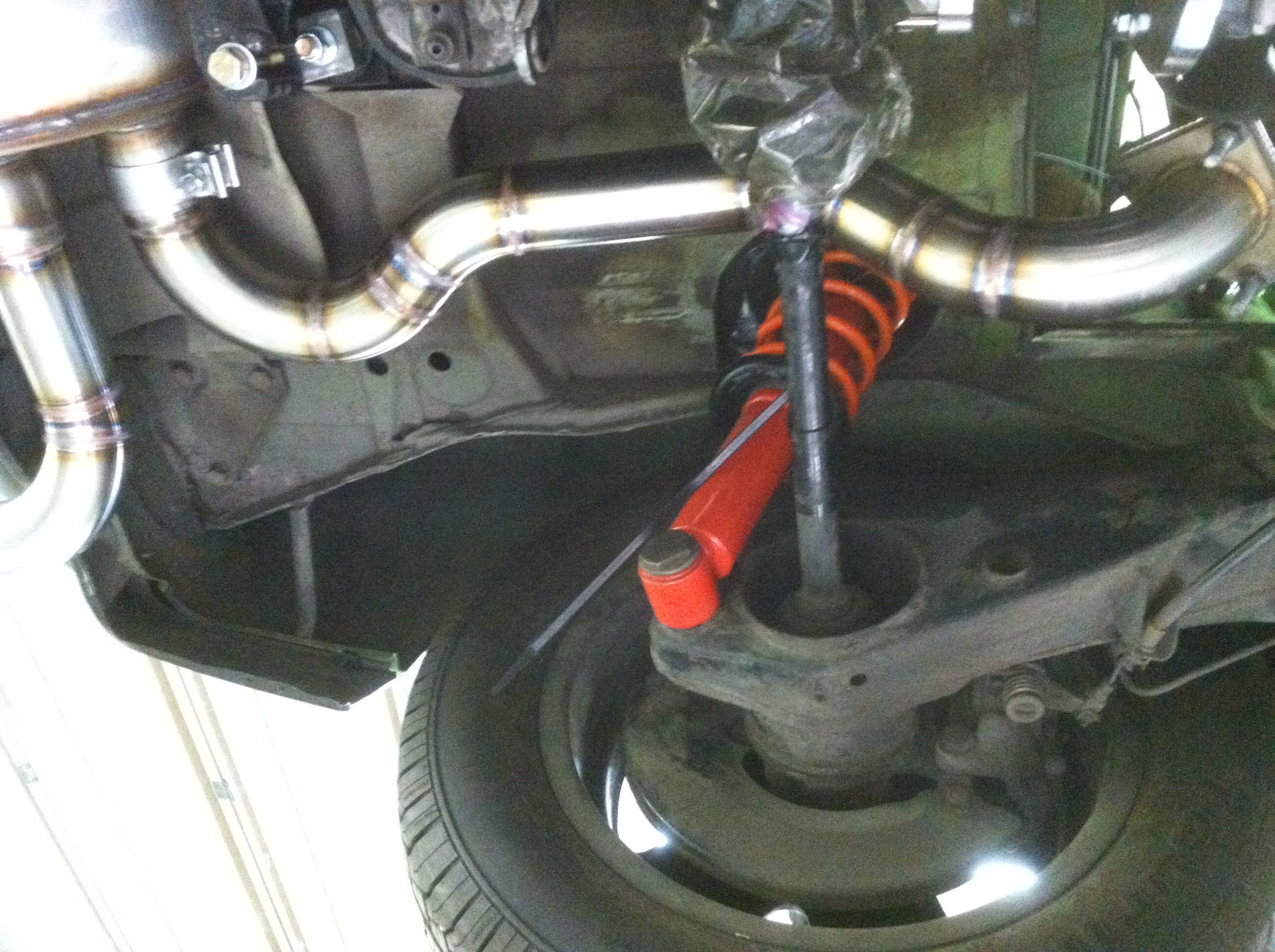

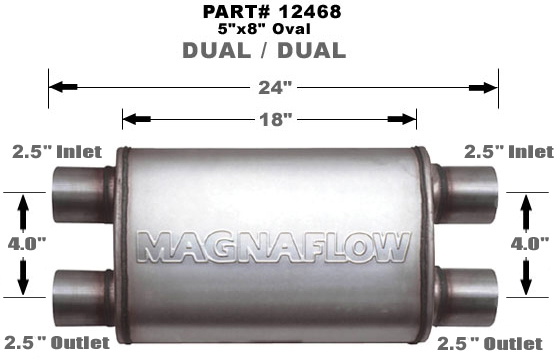

I used a Magnaflow dual-in dual out-muffler.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dadaDaveed
post Sep 7 2012, 04:17 PM
Post #18


Member
**

Group: Members
Posts: 111
Joined: 19-February 09
From: San Antonio, TX
Member No.: 10,071
Region Association: Southwest Region
QUOTE(nick mironov @ Sep 7 2012, 04:52 PM) *

I used a Magnaflow dual-in dual out-muffler.



Nick, how does that setup sound? I'm thinking about using the same muffler on my LS1 conversion.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mittelmotor
post Sep 7 2012, 04:19 PM
Post #19


Member
**

Group: Members
Posts: 334
Joined: 21-May 12
From: SoCal
Member No.: 14,464
Region Association: None
Great setups. That Magnaflow looks pretty burly! Andrew, I think I'll wrap the pipes anyhow. I had a 944 where the pipe pan-fried a CV joint. Maybe overkill, but the JEGS order has been placed.

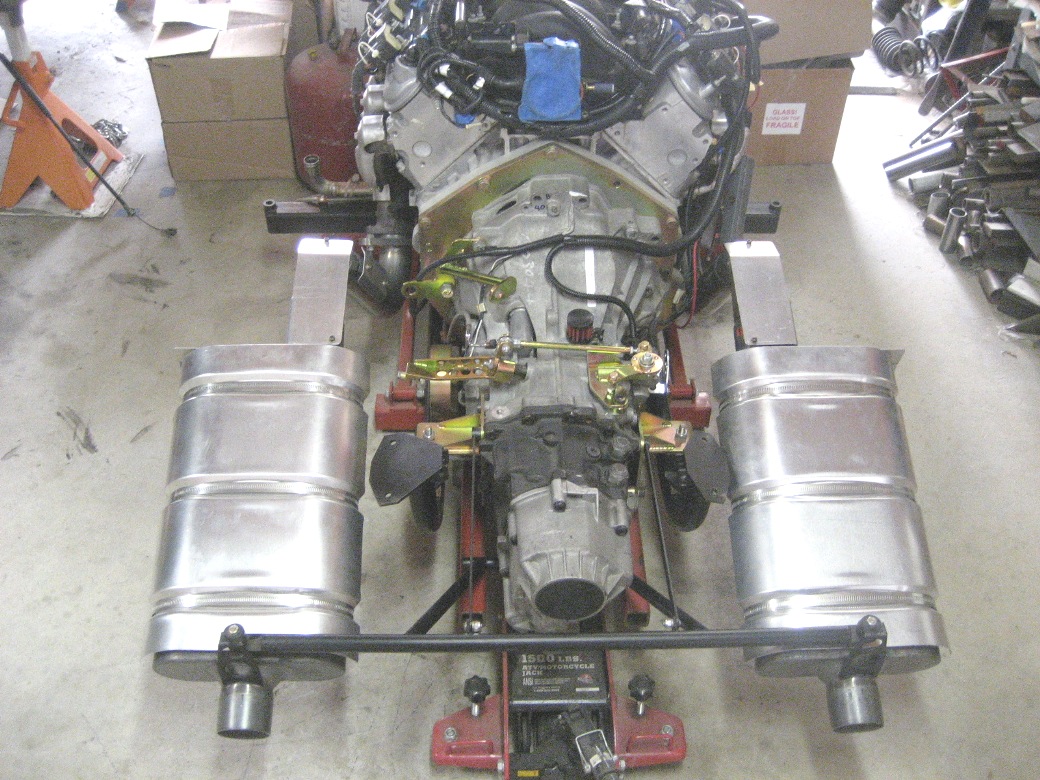

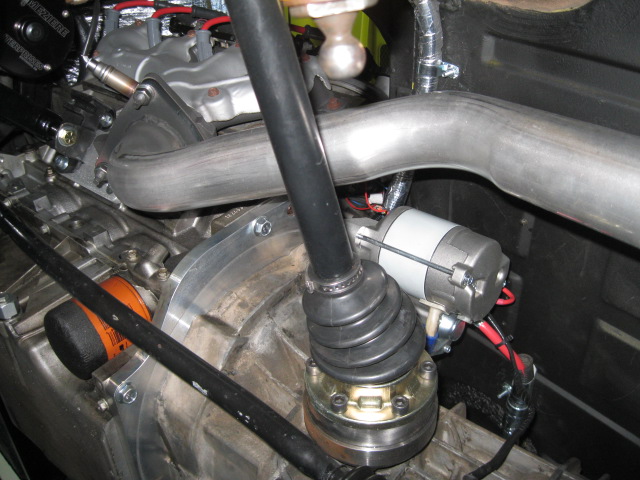

Here's a pic of the shift rod extension. Somebody PM'd me and I didn't know how to send a pic directly, so here it is. You can see the cut was made on the straightest part of the rod. You can either sleeve it on the outside, or do like I did and weld rod stock inside the tube.

Also note side bolts for the LS1's 6-bolt mains! (IMG:style_emoticons/default/blink.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
speed metal army
post Sep 13 2012, 09:03 PM
Post #20


Waiting for the rain to stop...
***

Group: Members
Posts: 1,068
Joined: 4-September 10
From: PNW
Member No.: 12,137
Region Association: Canada
Attached Image
Attached Image
2.5" SS Magnaflow SS 2in/out (IMG:style_emoticons/default/beer3.gif)
Sorry bout the cell phone pics.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
