> Oil Squirters, In the valve covers...How do ya do it?
Britain Smith
post Nov 2 2004, 11:00 PM
Post #1


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
So I am running Pauter roller rockers on my turbo motor and there has been some concerns raised by Jake Raby and Charles Navarro about them failing because they are not self-oiling. Does anyone have any information or pictures on installing a set of oil squirters in the valve covers to lubricate the rockers? Where would be the best place to tap into the engine's oil system? What kind or nozzles do you run and how much oil should be routed to them? These are just a couple of questions that I have...I am sure that more will come up as the discussion begins.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Nov 2 2004, 11:05 PM
Post #2


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Picture of the rocker please. (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Nov 2 2004, 11:10 PM
Post #3


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
(IMG:http://www.britainsmith.com/Porsche/912Project/TurboMotor/CoatedParts/images/130_3093_JPG.jpg)

I am also running the carbon fiber valve covers from Carbon Joe...

(IMG:http://www.britainsmith.com/Porsche/CarbonFiber/images/2%20black_jpg.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brett W
post Nov 2 2004, 11:17 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,856
Joined: 17-September 03
From: huntsville, al
Member No.: 1,169
Region Association: None
You need to get some very small tubing. I guess you could use brake line if you are running steel valve covers and run it the length of each valve cover on the inside. and out one end. You will need to weld it to the underside of each valve cover. You will also have to add a small AN fitting to the outside of the rocker cover. 3-4 AN should work OK. Then you will need to drill some very small holes in the tubing in line with each of the rockers. I would start with nothing larger than .020 and run it and see what happens. I would pull oil from a source right after the pump. Maybe a small T-fitting off the pressure side of the pump.

These are roller rockers so they don't need lots of oil. What happens to the oil being carried up the pushrods? I would also add some extentions to feed the springs as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Nov 2 2004, 11:27 PM
Post #5


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
What about pin holes in the actual push rods? They're full of oil.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brett W
post Nov 2 2004, 11:49 PM
Post #6


Advanced Member
****

Group: Members
Posts: 2,856
Joined: 17-September 03
From: huntsville, al
Member No.: 1,169
Region Association: None
Bad idea. You do not want a part under that much stress to have any possible points of fracture.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Nov 3 2004, 12:40 AM
Post #7


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
damn! thems purty! (IMG:style_emoticons/default/wub.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Nov 3 2004, 06:51 AM
Post #8


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(markd@mac.com @ Nov 3 2004, 01:27 AM)
What about pin holes in the actual push rods?  They're full of oil.

If I remember right that's one solution (one pin hole near the tip) that Jake has used and I "think" it worked for him. Again I “think” that he also welded the one tip shut on these pushrods.
I'd have the same concerns as Brett.

If you went the tubing route I'd tap them right into the head, It would be a PITA adjusting valves if they were in the cover.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Walter
post Nov 3 2004, 07:53 AM
Post #9


Member
**

Group: Members
Posts: 70
Joined: 10-August 04
From: The Netherlands, Europe
Member No.: 2,499
QUOTE(Britain Smith @ Nov 2 2004, 09:00 PM)
Does anyone have any information or pictures on installing a set of oil squirters in the valve covers to lubricate the rockers?  Where would be the best place to tap into the engine's oil system?  What kind or nozzles do you run and how much oil should be routed to them?  These are just a couple of questions that I have...
-Britain

Hello Britain,

In the STF, in the performance section, Jake published some very detailed pictures of an engine where he had used squirters to the valve covers also on a Pauter roller rocker set-up.
Maybe do a search in that forumsection.
Looked very trick, but also a lot of work. All braided lines and AN blue anodized fittings, very nice.

The problem of the not-self oiling bit is (if I understood correctly) that the oil doesn't get splashed to the valveguides (lubrication) and the valve gets too hot and snaps. The rocker itself is OK because of the needle bearing of course.
Also, when mostly high revving is done, there seemed no need for the oil squirters either since then there will be enough splashing around in the head (drag racers use them without squirters without any troubles), but with a turbo engine, its the opposite right?

Regards,
Walter
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Nov 4 2004, 12:46 AM
Post #10


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
I looked around in the STF's, but couldn't find any posts discussing in detail on how to do it. Jake? Anyone?

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Nov 4 2004, 01:06 AM
Post #11


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
sorry, not a P-car, but the mods to this Volvo block will give you an idea to think about....

piston oil squirters

another squirter picture album, BMW oil squirters used

I'm pretty sure you can buy the 911 engine squirters seperately....these should have the check valves in them as well (like the BMW units)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Walter
post Nov 4 2004, 01:19 AM
Post #12


Member
**

Group: Members
Posts: 70
Joined: 10-August 04
From: The Netherlands, Europe
Member No.: 2,499
QUOTE(Britain Smith @ Nov 3 2004, 10:46 PM)
I looked around in the STF's, but couldn't find any posts discussing in detail on how to do it. Jake? Anyone?

-Britain

Well, I did a search in the STF VW Speed and Drag racing forum on 'Pauter rockers' and voila:
http://shoptalkforums.com/viewtopic.php?t=...er=asc&start=15

More specific then this would be difficult to find (IMG:style_emoticons/default/wink.gif)

Greetings,
Walter
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cnavarro
post Nov 4 2004, 06:09 AM
Post #13


Cylinder Guru
**

Group: Members
Posts: 472
Joined: 30-December 02
From: Chicagoland!
Member No.: 49
Region Association: None
I have no qualms with the rockers themselves, they are really nice pieces, but as Wally mentioned, they don't lube the valve guides. My failure resulted in the valve guide coming apart and valve snapping, destroying one JE and very badly chewing up the combustion chamber. At least with nikasil, the cylinders didn't even get marked. I think it's a great idea Mueller mentioned using squirters from a non- P-car, something with a low pressure cut-off. The extra oil will drain back to the sump, but it might be prudent in the worse case scenario to put a tuna can or deep sump, just in case the oil takes longer than expected to drain back.

Charles Navarro
LN Engineering
http://www.LNengineering.com
Aircooled Precision Performance
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
machina
post Nov 4 2004, 07:21 AM
Post #14


Advanced Member
****

Group: Benefactors
Posts: 2,030
Joined: 21-June 03
From: Miami Beach, FL
Member No.: 848
I thought there is already too much oil dumped in the valve cover area. I found this pic of a TI but I'm sure the TIV has a similar condition.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Nov 4 2004, 11:58 AM
Post #15


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,027
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Walter what are the ratio of thos Rockers?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Walter
post Nov 4 2004, 01:17 PM
Post #16


Member
**

Group: Members
Posts: 70
Joined: 10-August 04
From: The Netherlands, Europe
Member No.: 2,499
QUOTE(rdauenhauer @ Nov 4 2004, 09:58 AM)
Walter what are the ratio of thos Rockers?

Pauter advertises them as 1:1,48 , but measurement done by Jake and others showed it was more 1:1,5-ish
Stock is 1:1,3 average, so they are quite huge. Too much for almost any cam.
Pauter has two special grinds for just those rockers. Jake is not a fan of them IIRC, probably just because of the non-self oiling part and the work involved to make it right.
I really like the design as well.
The only time when you really would NEED to use them is with a very large stroke like a 86mm. Then you can't have big cam lift because of crank-cam lobe interference and need the high ratio of the Pauters to have any valve lift (IMG:style_emoticons/default/sad.gif)

Best regards,
Walter
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
aircooledboy
post Nov 4 2004, 01:31 PM
Post #17


Sweet Pea's 1st ride in daddy's "vroom -vroom"
***

Group: Members
Posts: 1,672
Joined: 4-February 04
From: Rockford, IL
Member No.: 1,629
Region Association: Upper MidWest
Hijack warning!!!!!!!!!!! Please remain calm.

Stupid Q. from the special education section of the audience: Why would you need to squirt oil on the bottom of the piston? Is wrist pin lubrication a big issue(since I has a P car with an en-gine that looks sorta like that)?

Hijack over. You may return to your seats now.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
J P Stein
post Nov 4 2004, 01:40 PM
Post #18


Irrelevant old fart
*****

Group: Members
Posts: 8,797
Joined: 30-December 02
From: Vancouver, WA
Member No.: 45
Region Association: None
Piston cooling.
911 case squirters don't open till about 45psi oil pressure is built up, so cross them off your list.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
anthony
post Nov 4 2004, 02:56 PM
Post #19


2270 club
****

Group: Benefactors
Posts: 3,107
Joined: 1-February 03
From: SF Bay Area, CA
Member No.: 218
Britain, why use these? They sound like they are more trouble than they are worth.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Nov 4 2004, 03:09 PM
Post #20


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364

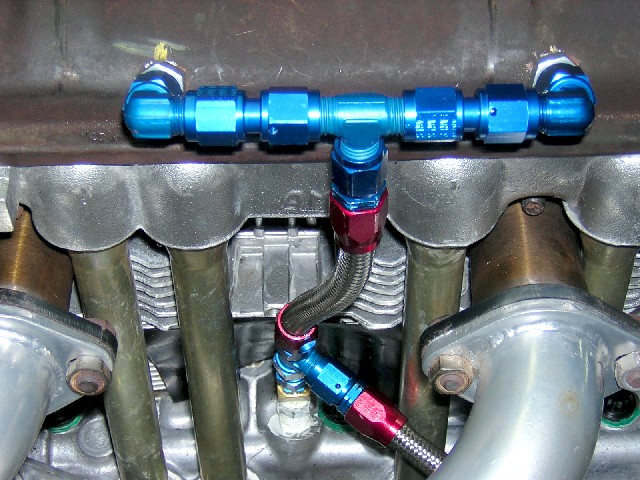

Well..for several reasons. First of all, I have them already. Also, I am using a 78mm crank and I already have a cam that Jake designed to go with this combo. It's all in the combo as Jake puts it. I will just go down the oil squirter path using the suggestions from all...it doesn't seem like too much of an issue.

Here are some pics that were from STF but the links were broken...I email the guy and asked for copies. I believe that this is Jake's set-up.

-Britain


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
