> is this the lead for the thero-time switch?, help!
markyb
post Dec 15 2012, 12:00 PM
Post #1


Member
**

Group: Members
Posts: 100
Joined: 27-November 11
From: Rochester, Michigan
Member No.: 13,823
Region Association: None

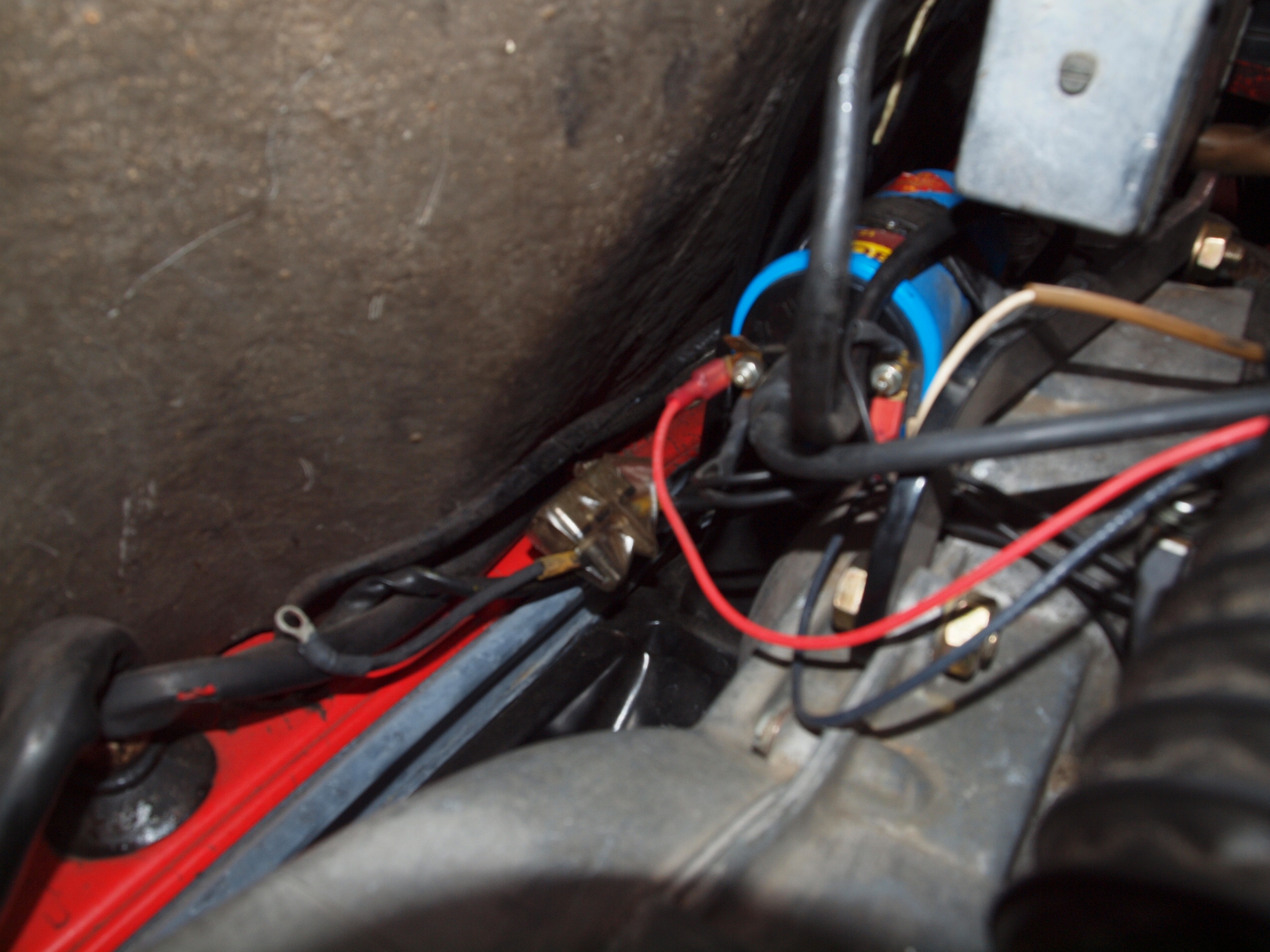

Just setting up for testing my new timing light an I saw this lead disconnected. I pulled out my trusty Haynes and my guess is that it's the thermo-time lead wire?
Is this supposed to be on the positive terminal of the coil?Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Dec 15 2012, 12:04 PM
Post #2


Advanced Member
****

Group: Members
Posts: 4,800
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None



I do not think that is the thermo time. That would be on the base of the plenum.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Dec 15 2012, 12:12 PM
Post #3


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region



bowlsby has links to every harness - 3/4 down page

http://bowlsby.net/914/WiringHarnesses/

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markyb
post Dec 15 2012, 12:13 PM
Post #4


Member
**

Group: Members
Posts: 100
Joined: 27-November 11
From: Rochester, Michigan
Member No.: 13,823
Region Association: None



I had a Pertronix installed maybe the old lead to the distributor? I can't trace it since it tucks behind the firewall mat and is wrapped with the factory binding tape. It looks like an inline relay of some sort? I can do a lot of mechanical stuff, but reading the schematic is giving me a bit'o trouble...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markyb
post Dec 15 2012, 12:34 PM
Post #5


Member
**

Group: Members
Posts: 100
Joined: 27-November 11
From: Rochester, Michigan
Member No.: 13,823
Region Association: None



I traced it down and see that it joins up with a second wire fed down through the engine tin. This is an A/C car and it's currently disconnected, judging by the size of the wire and the inline relay, I'll bet it has something to do with that. Thanks for the effort, I thought that I was on to something bigger....if it isn't that, as Arnold would say, I'll be bak!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Dec 15 2012, 02:55 PM
Post #6


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



QUOTE(markyb @ Dec 15 2012, 01:34 PM) *

I traced it down and see that it joins up with a second wire fed down through the engine tin. This is an A/C car and it's currently disconnected, judging by the size of the wire and the inline relay, I'll bet it has something to do with that. Thanks for the effort, I thought that I was on to something bigger....if it isn't that, as Arnold would say, I'll be bak!



You are correct. It's for the A/C Unit.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markyb
post Dec 15 2012, 06:37 PM
Post #7


Member
**

Group: Members
Posts: 100
Joined: 27-November 11
From: Rochester, Michigan
Member No.: 13,823
Region Association: None



QUOTE(dlee6204 @ Dec 15 2012, 03:55 PM) *

QUOTE(markyb @ Dec 15 2012, 01:34 PM) *

I traced it down and see that it joins up with a second wire fed down through the engine tin. This is an A/C car and it's currently disconnected, judging by the size of the wire and the inline relay, I'll bet it has something to do with that. Thanks for the effort, I thought that I was on to something bigger....if it isn't that, as Arnold would say, I'll be bak!



You are correct. It's for the A/C Unit.


Thanks dlee, at least I won't have to hunt for those wires when I put the a/c back in service next spring! I would suspect that those are the trigger wires for the compressor, I have a bit of research to do this winter on which parts I'll use for the new system, originally a VPC unit. I've been saving up lots of info and suggestions from the "Garage" prior posts.

And thanks to all others for the suggestions. I showed this forum to a friend that owns an old Mercedes , he couldn't believe the camaraderie and quick responses to technical issues of other members (other than the battle going on with the dude and his "first look at a 914" post (IMG:style_emoticons/default/lol-2.gif) )
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Dec 15 2012, 09:11 PM
Post #8


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



QUOTE(markyb @ Dec 15 2012, 07:37 PM) *


Thanks dlee, at least I won't have to hunt for those wires when I put the a/c back in service next spring! I would suspect that those are the trigger wires for the compressor, I have a bit of research to do this winter on which parts I'll use for the new system, originally a VPC unit. I've been saving up lots of info and suggestions from the "Garage" prior posts.



Have you seen this thread? It also has a VPC wiring diagram... (IMG:style_emoticons/default/smile.gif)


http://www.914world.com/bbs2/index.php?showtopic=192917
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markyb
post Dec 16 2012, 07:14 PM
Post #9


Member
**

Group: Members
Posts: 100
Joined: 27-November 11
From: Rochester, Michigan
Member No.: 13,823
Region Association: None



I'm not sure how I missed that post, but you saved me a lot of work by pointing it out! I have to read it later when I have some free time. From some older posts I remember that there is an adapter bracket sold by Bus Depot that will allow me to put the Sanden unit on my York mount.

Thanks again
