Early and Late Console Clock, With and with out Quartz movement |
914Sixer |
Dec 25 2012, 06:48 PM
Post
#1
|
914 Guru Group: Members Posts: 8,872 Joined: 17-January 05 From: San Angelo Texas Member No.: 3,457 Region Association: Southwest Region |

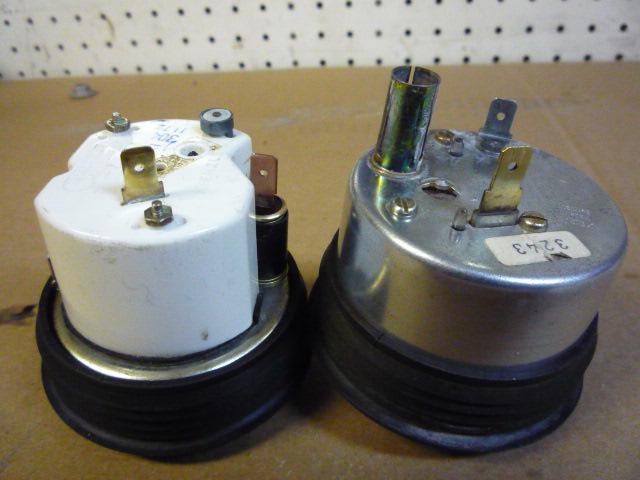

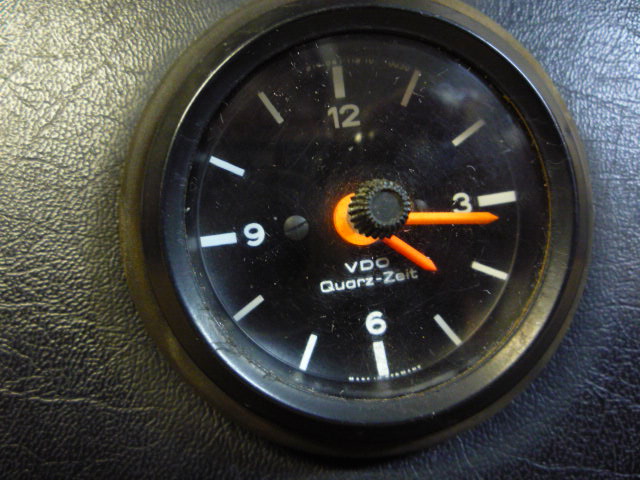

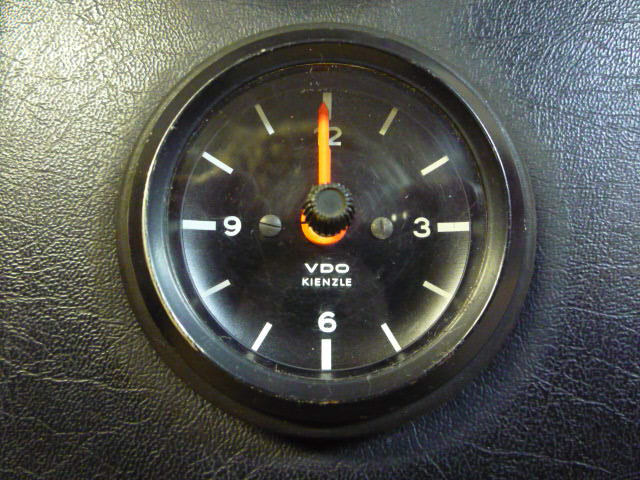

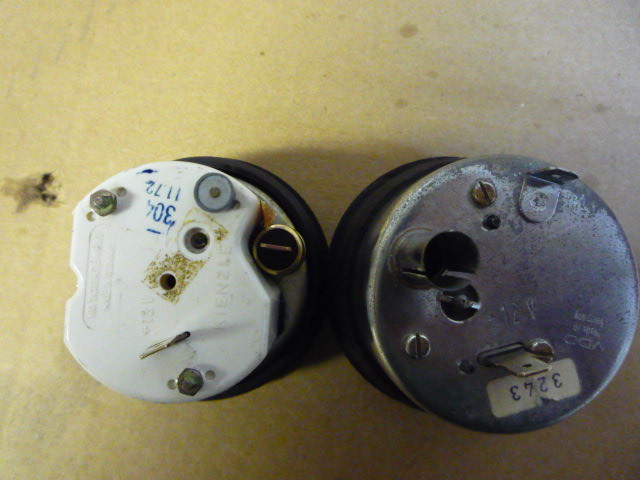

I thought I would add some pictures of the difference in the gauges. The early non quartz clock is the 1st one I have ever seen in 25+ years. It is based on the 911 clock of the time period. It has the white plastic back and the later one is encased. The second later clock is the one we are used to.
Attached image(s) |
bembry |
Dec 25 2012, 08:39 PM
Post
#2
|
Senior Member Group: Members Posts: 529 Joined: 29-July 05 From: Bakersfield, CA Member No.: 4,499 Region Association: MidAtlantic Region |
I was under the impression that they switched from the electro-mechanical Kienzle to the Quartz-zeit between 73 and 74 MY.
|
bembry |
Dec 25 2012, 08:41 PM
Post
#3
|
Senior Member Group: Members Posts: 529 Joined: 29-July 05 From: Bakersfield, CA Member No.: 4,499 Region Association: MidAtlantic Region |
|
Tom_T |
Dec 26 2012, 12:15 PM
Post
#4
|
TMI.... Group: Members Posts: 8,318 Joined: 19-March 09 From: Orange, CA Member No.: 10,181 Region Association: Southern California |
Yes Brent, they 73 like ours was the only year 914 which had Kienzle clocks.
More good clocks info here too... http://p914.com/p914_gauges_clock.htm . General Gauges info here... http://p914.com/p914_gauges.htm . This p914.com site has some really well researched & presented info on O&H topics relative to our 914s, with all illustrated by photos.... http://p914.com/p914_home.htm |
dlkawashima |
Dec 26 2012, 05:01 PM
Post
#5
|
914 Guru Group: Members Posts: 9,749 Joined: 1-October 10 From: San Jose Member No.: 12,234 Region Association: Northern California |
Thanks Tom for those links. I didn't realize there was an adjustment screw to speed up or slow down the clock. My clock loses about 5 minutes a day, so hopefully I can get it adjusted to be reasonably accurate.

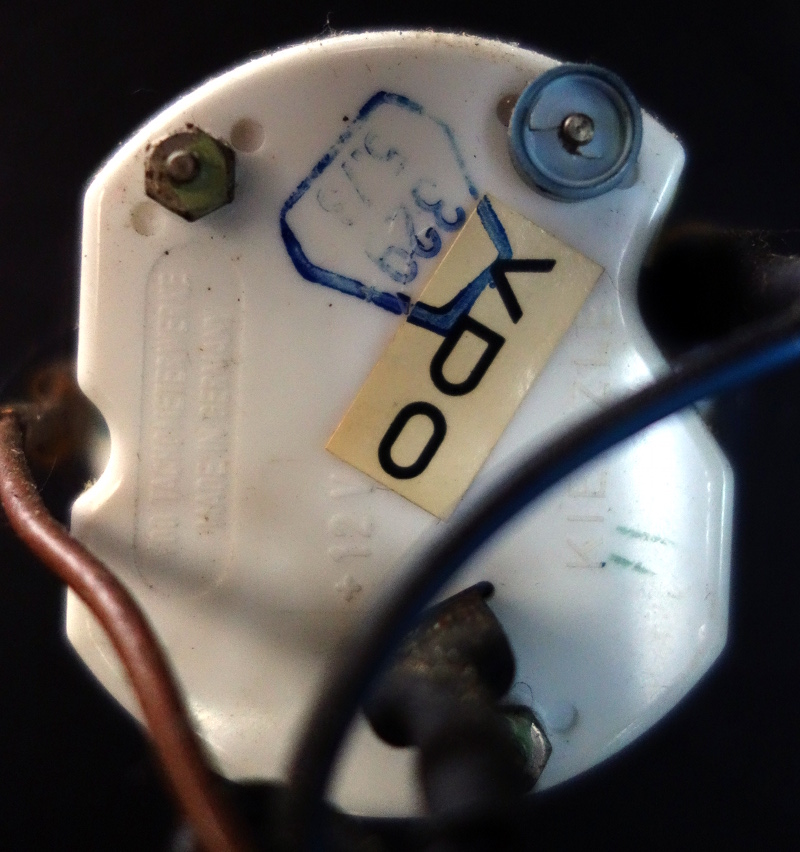

BTW, I pulled my clock and it looks like the gauge has been untouched for the past 39 years, including the VDO paper sticker still attached. For reference, here is a shot of the back of my gauge. |
Steve Snyder |
Jan 1 2013, 09:46 AM
Post
#6
|
Member Group: Members Posts: 241 Joined: 10-June 08 From: Graham, NC Member No.: 9,158 Region Association: South East States |
Thanks Tom for those links. I didn't realize there was an adjustment screw to speed up or slow down the clock. My clock loses about 5 minutes a day, so hopefully I can get it adjusted to be reasonably accurate. BTW, I pulled my clock and it looks like the gauge has been untouched for the past 39 years, including the VDO paper sticker still attached. For reference, here is a shot of the back of my gauge. Dave, You likely missed the adjustment screw because, as you noted, the VDO sticker is still attached, and it covers the adjuster. I just looked, and the few 914 Kienzle clocks I still have all display indications of having that sticker in the same location at one point (as does Mark's), but none actually retain it. Would you mind if I use your picture on the Clocks page of my site as reference for the original VDO sticker? That is very cool to see... |
dlkawashima |
Jan 4 2013, 12:25 PM
Post
#7
|
914 Guru Group: Members Posts: 9,749 Joined: 1-October 10 From: San Jose Member No.: 12,234 Region Association: Northern California |
I just looked, and the few 914 Kienzle clocks I still have all display indications of having that sticker in the same location at one point (as does Mark's), but none actually retain it. Would you mind if I use your picture on the Clocks page of my site as reference for the original VDO sticker? That is very cool to see... I answered Steve in a PM, but just to be thorough and tidy, I did say it was fine to use the pic of the back of my clock. |
Steve Snyder |
Jan 6 2013, 12:16 PM
Post
#8
|
Member Group: Members Posts: 241 Joined: 10-June 08 From: Graham, NC Member No.: 9,158 Region Association: South East States |
|
KeithVonLaws |
Aug 17 2016, 04:00 AM
Post
#9
|
Member Group: Members Posts: 57 Joined: 19-July 16 From: Napoleon , Ohio 43545 Member No.: 20,205 Region Association: North East States |
Just chiming in on an old Topic:
My 8/73 built Car has the same clock with the plastic white housing. Its never been apart. ....lol I hope it works. The car has been off the road a very long time. |
