> Main wiring Looms, ID
914work
post Jan 14 2013, 11:25 PM
Post #1


Member
**

Group: Members
Posts: 291
Joined: 9-November 11
Member No.: 13,762
Region Association: None
So This one has puzzled me for a while (IMG:style_emoticons/default/idea.gif)
In different MY cars the loom had different "features" or options ..

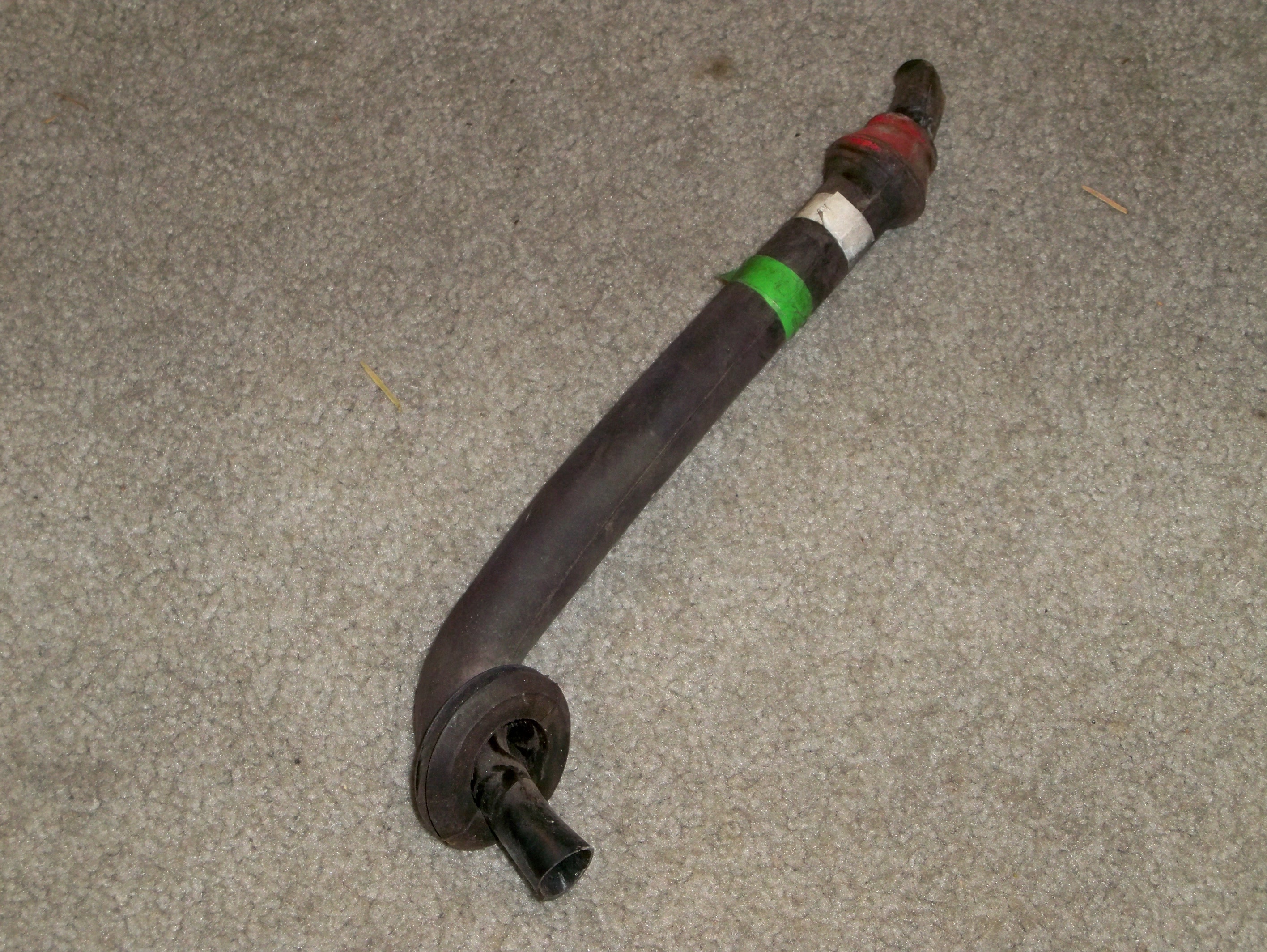

For instance certain cars had a sub- R. window defrost loom routed thru this snorkle.

I think that the tape bands denoted for which vehical & what options this particular loom was intended.

Is there a legend somewhere that defines this "feature" or form of ID? (IMG:style_emoticons/default/shades.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 15 2013, 11:16 AM
Post #2


914 Wiring Harnesses
*****

Group: Members
Posts: 8,484
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
My chassis harness ID is a work in progress, but I have a high level of confidence in it to date. It can be found here: http://bowlsby.net/914/WiringHarnesses/ and is attached.

I have no information that the tape bands on the double grommet (snorkel tube) mean anything.

PS the rear window defroster circuits were an optional add on, not part of the chassis harness. Routing the power and groud wires through the double grommet was the way to connect them at the relay board



Attached File(s)
Attached File  914WiringHarnessIDGuide.pdf ( 10.6k ) Number of downloads: 351
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jan 15 2013, 06:27 PM
Post #3


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,027
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
So Jeff you are suggesting that the defrost wiring was installed post the the main harness installation?

Im not so sure.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 15 2013, 09:43 PM
Post #4


914 Wiring Harnesses
*****

Group: Members
Posts: 8,484
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Thats my thinking, what are your thoughts Rich?

The rear window defroster cables are a separate part number and plug into the various relay board, window and switching separately. These were factory options so they were installed on the assembly line, but that would be easy enough to do.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Peashooter
post Jan 16 2013, 11:43 AM
Post #5


Member
**

Group: Members
Posts: 163
Joined: 17-December 11
From: SW Ohio
Member No.: 13,903
Region Association: None
My 914-6 came with a rear window defroster and the wiring for it is part of the main harness. I believe if the dealer installed it, there was a separate harness available, but not sure about that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Jan 19 2013, 10:51 AM
Post #6


914 Guru
*****

Group: Members
Posts: 8,870
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Rear window was made into the 914-6 harness. I know this from the two NOS -6 harnesses I had. It was not made into the -4 harness as Jeff said.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 19 2013, 08:15 PM
Post #7


914 Wiring Harnesses
*****

Group: Members
Posts: 8,484
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Did all /6 have rear window defrosters MarK?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Jan 19 2013, 09:06 PM
Post #8


I. I. R. C.
*****

Group: Members
Posts: 6,714
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
No, all 6's did not come with a rear defroster
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Jan 19 2013, 10:14 PM
Post #9


914 Guru
*****

Group: Members
Posts: 8,870
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
The harness was in the wiring BUT they were tied back unless the heated back window was installed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 20 2013, 12:42 AM
Post #10


914 Wiring Harnesses
*****

Group: Members
Posts: 8,484
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Thats interesting. Some of the /4s have the wiper relay wire taped to the harness. So all /6 harnesses have the rear window defroster wiring and it is taped to the main harness...good to know. The wiring includes branches up to the dash for the switch and ground and to the relay board for power. I wonder how those branches are integrated with the harness? Maybe they are just taped? I am pretty sure there were two /6 chassis harnesses, 70-71 and 72. I wonder if they both had the defroster wiring?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jan 21 2013, 10:42 AM
Post #11


Michael
*****

Group: Members
Posts: 9,716
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Wow! That is good to know. I have a nicely restored (thank you Jeff) defroster harness for the perfect condition defroster window for my Six. My Six did not have a defroster window but it will when it is put together.

I have also been able to purchase a brand new complete NOS Six wiring harness for my car - still in the factory box. I will make sure that Scotty B knows this and we will see.

Thanks,
Michael
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Jan 31 2013, 06:24 PM
Post #12


914 Guru
*****

Group: Members
Posts: 8,870
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Yes, there were two -6 harnesses that I know about :
914.612.019.10 70-71
914.612.018.13 72
However I have found a 3rd unidentified harness, I am guessing in might be European version. I no longer have my old paper parts book to verify. Anybody have the paper parts book to look this up?
914.612.021.02
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jan 31 2013, 10:04 PM
Post #13


914 Wizard
**********

Group: Members
Posts: 10,412
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
I have and will, There is a euro harness, Over the years most for sale were euro spec.


Do you have the engine harness also ??
