Dr Evil
post Nov 17 2004, 02:57 AM
Post #1


Send me your transmission!
***************

Group: Members
Posts: 23,001
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Well, I promised a while ago that if I could get ahold of a program for drawing scematics I would make some quick troubleshooting diagrams for us all. I got Visio2000 and it seems to be adequate for this so I will start posting my schematics as I draw them. If no one is interested let me know and I'll just keep this to myself. Just thought that I might help.

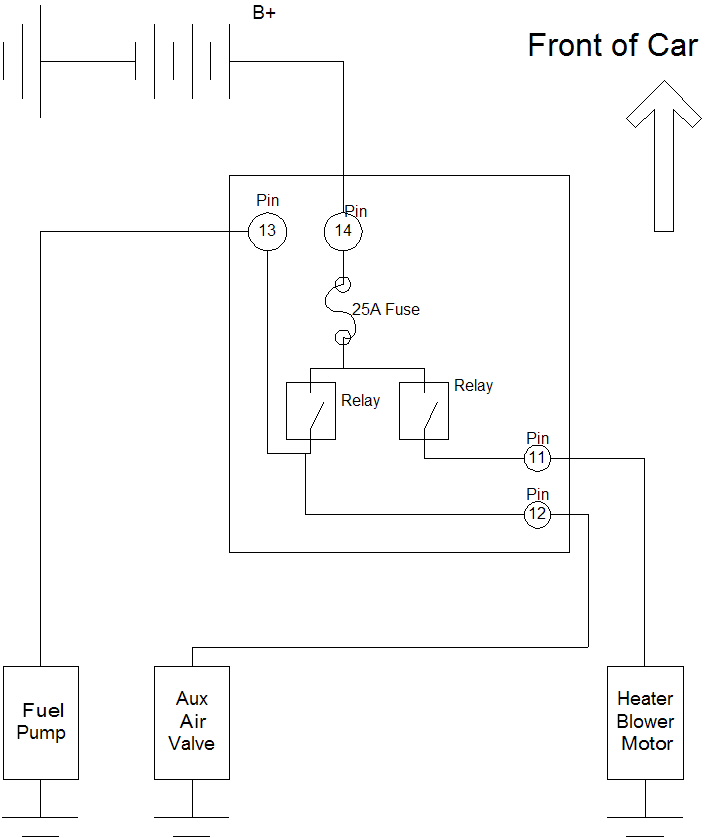

First is the circuit that causes much head ach with the D-jet system. "Why is my fuel pump fuse blowing?" Usually it is because the Auxilary Air Valve is shorting to the block at the plug, but here are the other things involved.

This is of the fuse/relay panel in the left engine compartment:

B+ is the positive side of the battery.

The pointy parts at the end of some of the lines are ground. Consider all grounds to be the same place and to be connected to the negative side of the battery through the cars body. Ask questions if you need clarification.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Posts in this topic
Dr Evil   Free electrical resource   Nov 17 2004, 02:57 AM
Dr Evil   I am looking for ideas for other trouble circuits ...   Nov 17 2004, 02:59 AM
Carlitos Way   Great idea! Looking forward to seeing more.   Nov 17 2004, 11:37 AM
Mueller   I like it !!!! how about the head...   Nov 17 2004, 01:52 PM
Dr Evil   - Head / Running lights - Turn Signals - Reverse l...   Nov 17 2004, 01:58 PM
lapuwali   Before you get too far along, I'd like to poin...   Nov 17 2004, 03:36 PM
jim_hoyland   I would like to see the headlight system. I want t...   Nov 17 2004, 06:11 PM
mskala   Art Zapf also has primo 914-6 diagrams.   Nov 17 2004, 07:34 PM
Dr Evil   Well, anyone could go buy the book and get that di...   Nov 17 2004, 08:51 PM
jim_hoyland   I like the idea, could you label more for us non-t...   Nov 19 2004, 08:58 AM
Dr Evil   Jim, I put a little more detailed description in t...   Nov 19 2004, 02:59 PM
Dr Evil   Here is the first sub circuit of the headlight rea...   Dec 4 2004, 01:53 AM
Dr Evil   Headlight Lighting Circuit. Wire colors are as fol...   Dec 4 2004, 02:46 AM
Teknon   Exellent Doctor, Could you posibly make me a schem...   Dec 4 2004, 09:33 AM
ThinAir914   This is great stuff! What I particularly appr...   Dec 4 2004, 12:43 PM
Dr Evil   Thanks guys!
Dr Evil   Ask and you shall recieve :) Here is all I got fr...   Dec 5 2004, 04:29 AM
balthazar   Perfect! I would like to see the turn signal c...   Dec 19 2004, 10:21 PM
