> Porsche 914 - 8 GTT, March '24 Update
Maltese Falcon
post Apr 3 2022, 04:08 PM
Post #641


Advanced Member
****

Group: Members
Posts: 4,620
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

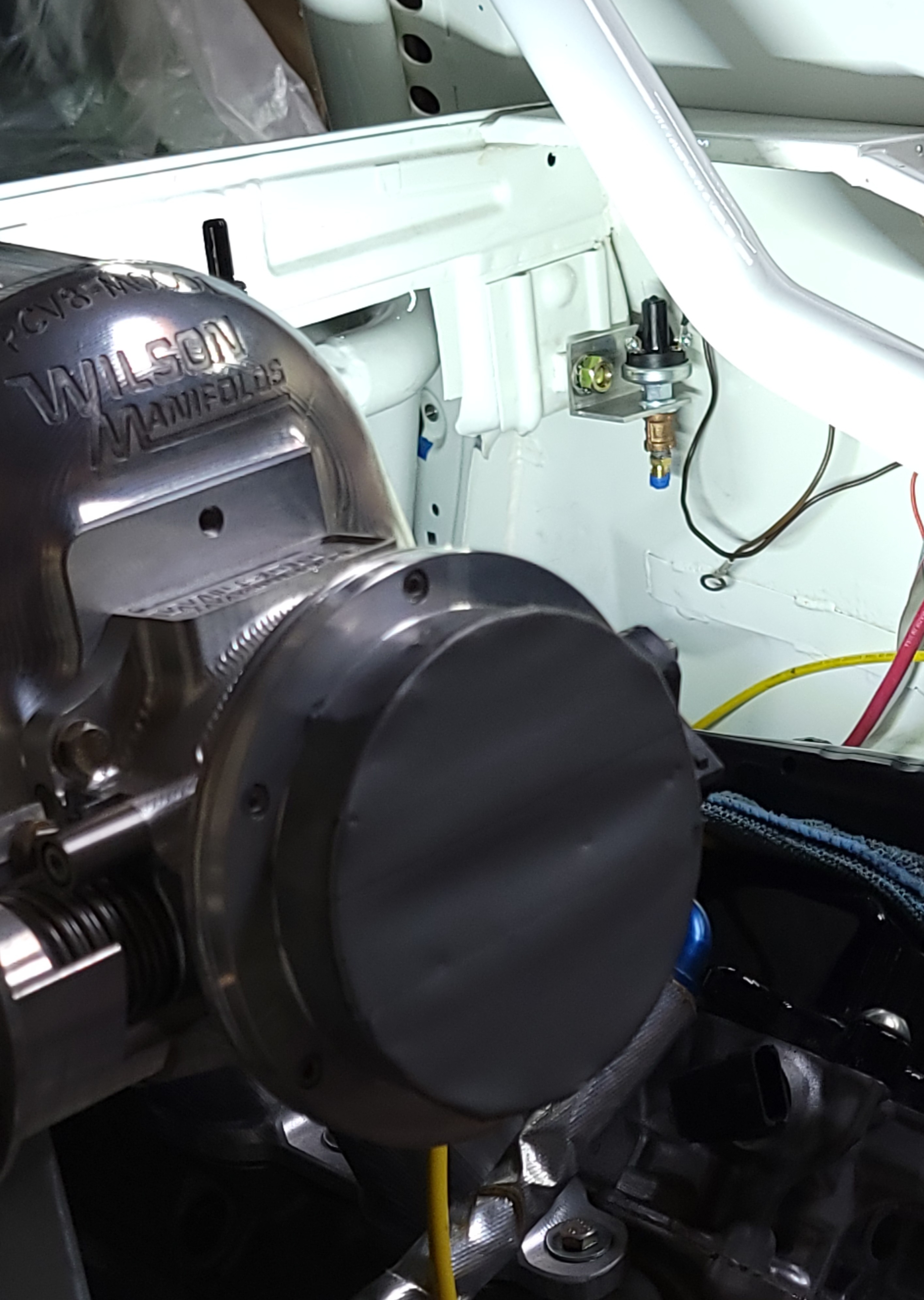

The "7psi boost" Fasten seat belt pressure switch bolted into the engine bay
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 13 2022, 06:26 PM
Post #642


Advanced Member
****

Group: Members
Posts: 4,620
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

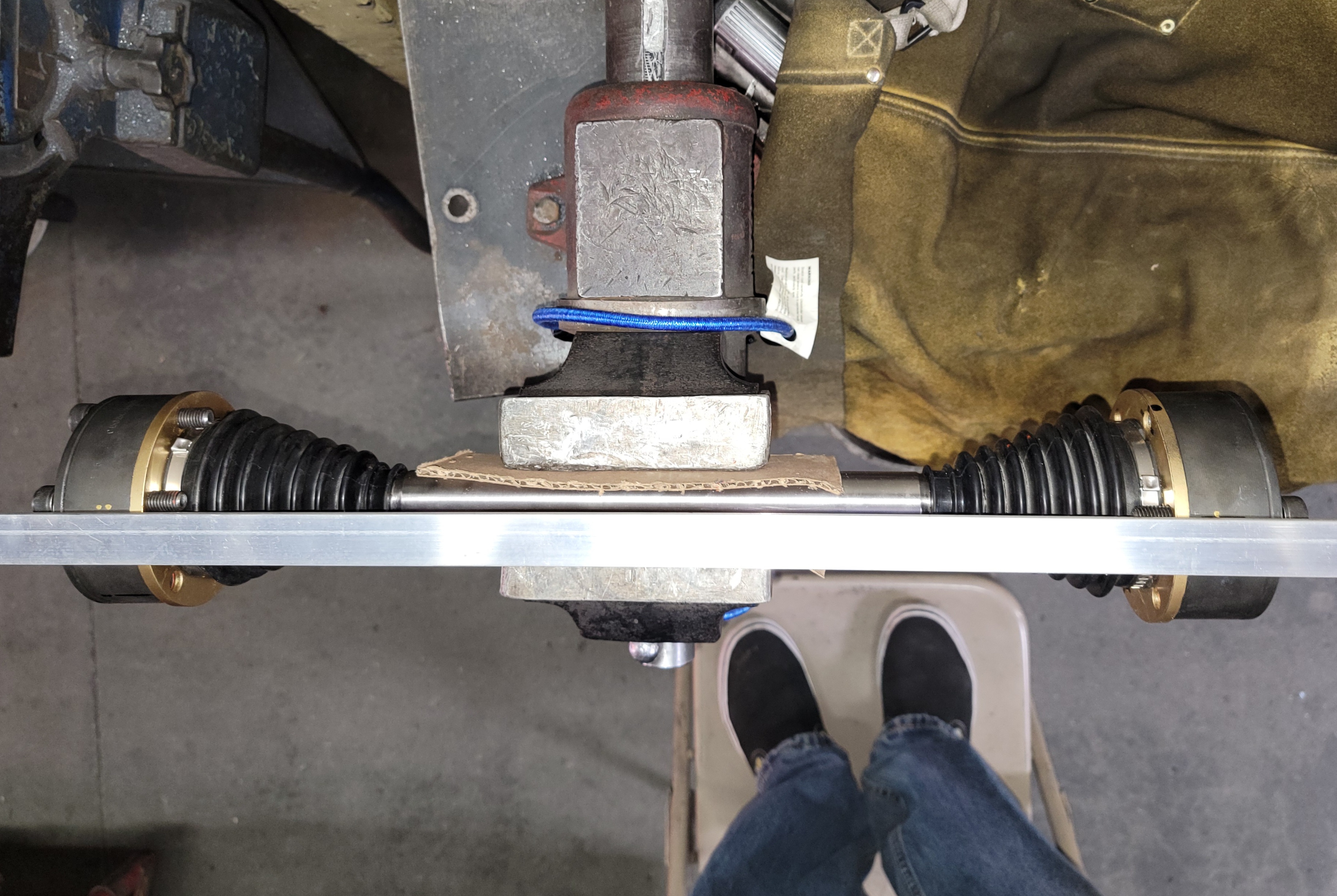

Setting up the "Phasing" of the 930 cv joints + Swayaway axles prior to installing them. A piece of .125 × 1" flatbar alum is the donor straight edge for the job. I use 1 gold dot= to indicate narrow area of the (inner) joint / 2 gold dots= wider area.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Apr 14 2022, 10:23 AM
Post #643


Newbie
*

Group: Members
Posts: 25
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None



QUOTE(Maltese Falcon @ Apr 13 2022, 06:26 PM) *

Setting up the "Phasing" of the 930 cv joints + Swayaway axles prior to installing them. A piece of .125 × 1" flatbar alum is the donor straight edge for the job. I use 1 gold dot= to indicate narrow area of the (inner) joint / 2 gold dots= wider area.
Attached Image

I didn't know that was a thing. Can you please explain a little more? Why it's done? How it's done? Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Apr 14 2022, 01:27 PM
Post #644


914 Idiot
**********

Group: Members
Posts: 14,974
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California



The "how" is pretty obvious. When you assemble the CV joints, you mark the outside where the wider and narrower gaps in the inner race. Then when you slide the joint onto the splines on the shaft, you make sure they are lined up so that the one side wide gap lines up with the other side's narrow gap.

As to "why", that I don't know. I speculate that it's a vibration-elimination kind of thing, like phasing the U-joints on a driveshaft. But CV joints aren't supposed to need that--it's one of the reasons for using CV joints, after all.

What's the real reason, Marty?

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Apr 14 2022, 05:47 PM
Post #645


Newbie
*

Group: Members
Posts: 25
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None



Attached Image Are these the narrow and wide gaps you're referring to?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Apr 14 2022, 05:55 PM
Post #646


Newbie
*

Group: Members
Posts: 25
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None



Attached Image or these? which essentially is the same thing as long they're opposite each other I guess.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 14 2022, 06:37 PM
Post #647


Advanced Member
****

Group: Members
Posts: 4,620
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None



QUOTE(NorCalScott @ Apr 14 2022, 04:47 PM) *

Attached Image Are these the narrow and wide gaps you're referring to?


@Dave_Darling Correct on the Wide and Narrow areas towards the outer portion of cv housing, for this "Phase" procedure. Most cv joint (stock operational angles) do not require this set up, but can't hurt to set up this way. The 930 joints (housing, cage + ball bearings) that I'm using are referred to as Deep-plunging and will operate at higher than stock angles. With the Phasing, I will gain another +3° to 4° of range, over the operational range of 15+°. The more-than-desired axle angles are created by the drive-flange locations of the "Flipped" 996gt2 transaxle, and me not wanting to lower it closer to the ground.
Same type of cv's are in use on 1,000+hp LS v8 sand rails...these are sourced from McKenzies Offroad in OC, California. Several Youtubes are online with DIY's for 930/ 934 cv joint phasing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Apr 15 2022, 10:39 AM
Post #648


Newbie
*

Group: Members
Posts: 25
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None



QUOTE(Maltese Falcon @ Apr 14 2022, 06:37 PM) *

QUOTE(NorCalScott @ Apr 14 2022, 04:47 PM) *

Attached Image Are these the narrow and wide gaps you're referring to?


@Dave_Darling Correct on the Wide and Narrow areas towards the outer portion of cv housing, for this "Phase" procedure. Most cv joint (stock operational angles) do not require this set up, but can't hurt to set up this way. The 930 joints (housing, cage + ball bearings) that I'm using are referred to as Deep-plunging and will operate at higher than stock angles. With the Phasing, I will gain another +3° to 4° of range, over the operational range of 15+°. The more-than-desired axle angles are created by the drive-flange locations of the "Flipped" 996gt2 transaxle, and me not wanting to lower it closer to the ground.
Same type of cv's are in use on 1,000+hp LS v8 sand rails...these are sourced from McKenzies Offroad in OC, California. Several Youtubes are online with DIY's for 930/ 934 cv joint phasing.

Thanks Dave! Makes sense and I'll check it out on YT. I had never heard of this before. One other thing I've heard is that plunging CV joints shouldn't be used on both the inner AND outer locations because the axle can tend to move inward and outward constantly, which is implied to be a bad thing, but it sounds like Marty and yourself aren't using a fixed CV joint at all and it's perfectly fine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post May 26 2022, 01:17 PM
Post #649


Newbie
*

Group: Members
Posts: 25
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None



I went back through this build thread again looking for pics of the pedals you're using, but couldn't find anything. Did I miss it or have you not posted anything on that yet? Just curious what pedal setup and master cylinders you're using. Not boosted I assume?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post May 26 2022, 07:04 PM
Post #650


Advanced Member
****

Group: Members
Posts: 4,620
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None



QUOTE(NorCalScott @ May 26 2022, 12:17 PM) *

I went back through this build thread again looking for pics of the pedals you're using, but couldn't find anything. Did I miss it or have you not posted anything on that yet? Just curious what pedal setup and master cylinders you're using. Not boosted I assume?

Here's the inventory* on the Tilton foot-pedal equip. It's all floor mount and I've made a few changes to the uneven 914 floorboard= will make for a better install/ operation. Not a vac boosted brake system.
The 3 different size (bores) master cylinders are matched for the requirements of the brakes; Front (6 piston), Rear (4 piston), and clutch.
*Pegasus Racing is my go to place*
So it's on the To-Do list...but all sourced !
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post May 27 2022, 01:48 PM
Post #651


Newbie
*

Group: Members
Posts: 25
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None



Cool. Nice setup. This has been my favorite build since discovering it a few years ago. It's looking awesome, can't wait to see it with wheels and tires at ride height. It's going to look freakin amazing! Thanks for sharing!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 9 2022, 03:09 PM
Post #652


Advanced Member
****

Group: Members
Posts: 4,620
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None



The new (custom hand made) main vehicle electrical harness is about ½ way wired. Haltech Elite 2500 ecu/mgmt harness is done and its installation will follow up after this is done.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 14 2022, 06:41 PM
Post #653


Advanced Member
****

Group: Members
Posts: 4,620
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

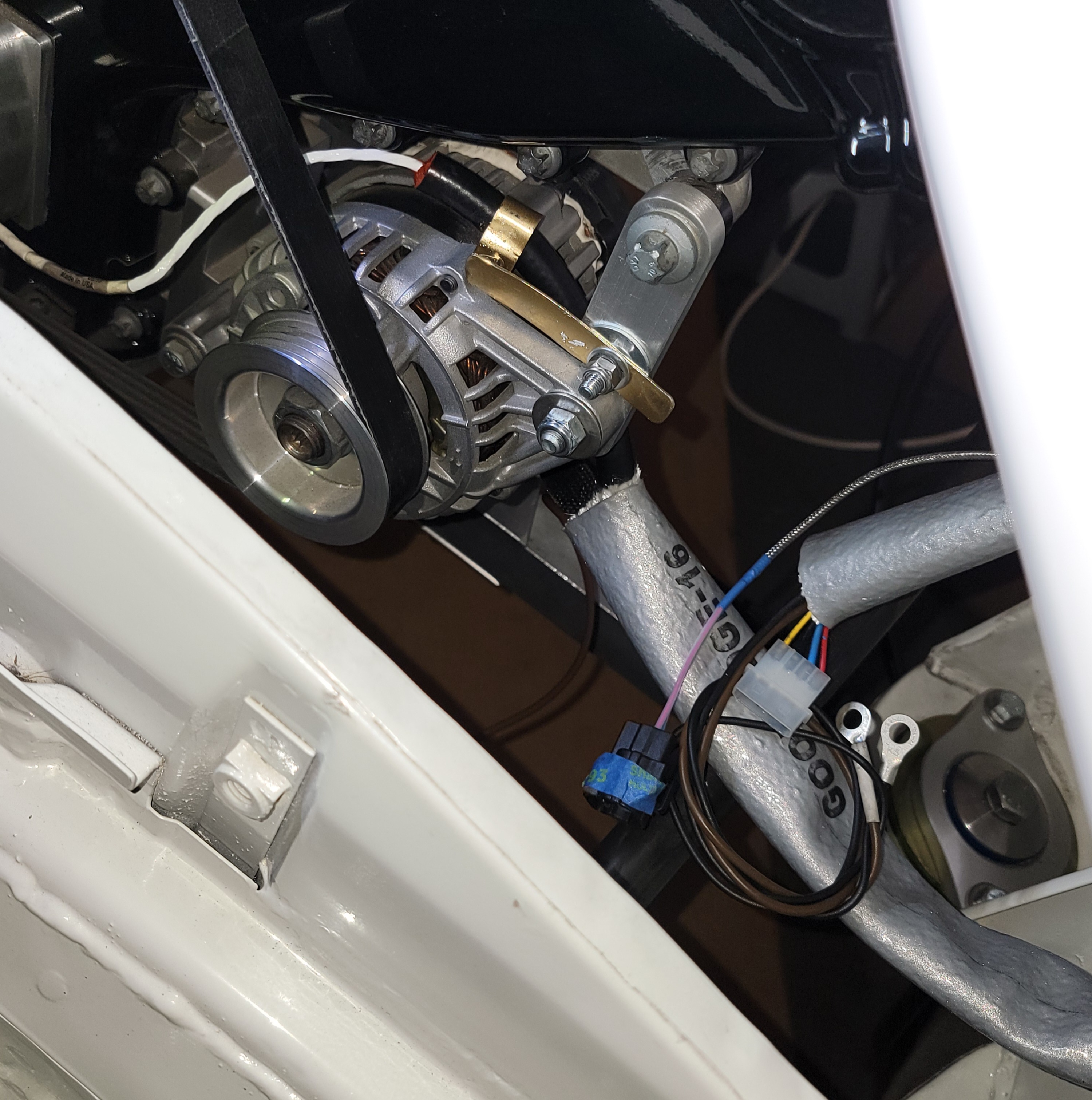

Non stop wiring...so this is small bracket that I came up with; keeps the crank trigger (small white) coax cable from running up into the alternator pulley/or belt. The #16 Goodridge firesleeve contains: the trigger cable, a couple grounds, the B+ charging cable* from alt to battery.
*B+ using a HD silicon insulated cable combined with another anti chaffe insulater inside the Goodridge...gotta be safe !
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tazz9924
post Aug 14 2022, 11:36 PM
Post #654


Senior Member
***

Group: Members
Posts: 703
Joined: 31-May 15
From: Mooresville NC
Member No.: 18,779
Region Association: None



When you say trigger wire, is that for the alternator or crank?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 15 2022, 08:19 AM
Post #655


Advanced Member
****

Group: Members
Posts: 4,620
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None



@tazz9924 crank trigger, follow the white cable (IMG:style_emoticons/default/smile.gif)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tazz9924
post Aug 16 2022, 07:18 AM
Post #656


Senior Member
***

Group: Members
Posts: 703
Joined: 31-May 15
From: Mooresville NC
Member No.: 18,779
Region Association: None



Some times high current wires like the main alternator wire can mess with the crank signal. Im not an expert, but i think a lot of times the cam and crank sort of get their own harness to prevent interference.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 16 2022, 08:16 AM
Post #657


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



So long as the sensors run shielded cable, properly grounded, they should be good in terms of draining any noise. I can't read the product lableing on that white wire (other than "Made in USA") but it certainly looks like the proper stuff. I'm betting Marty has this covered...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 16 2022, 09:48 AM
Post #658


Advanced Member
****

Group: Members
Posts: 4,620
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None



@tygaboy @tazz9924 thanks for looking out for me...good to have the "World's eyes" here for constructive critique !
Yes the coax shielding on the Haltech Elite (white trigger cable) is grounded at both ends of its run + I'll also check in with their tech nearby in Lake Forest.
If needed this small 18" run can be pulled out of the firesleeve in a minute + run independent
(IMG:style_emoticons/default/marty914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Aug 16 2022, 11:23 AM
Post #659


Its alive
****

Group: Members
Posts: 4,772
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



QUOTE(Maltese Falcon @ Aug 16 2022, 10:48 AM) *

@tygaboy @tazz9924 thanks for looking out for me...good to have the "World's eyes" here for constructive critique !
Yes the coax shielding on the Haltech Elite (white trigger cable) is grounded at both ends of its run + I'll also check in with their tech nearby in Lake Forest.
If needed this small 18" run can be pulled out of the firesleeve in a minute + run independent
(IMG:style_emoticons/default/marty914.jpg)

Grounded at both ends is usually not a good idea due to potential for ground loops. I typically lift at the sensor end.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 16 2022, 12:18 PM
Post #660


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



(IMG:style_emoticons/default/agree.gif)
You only want it grounded at one end. In my application, there's a pin in the ECU for all sensor grounds. Good move to verify with your ECU mfg it's set up correctly.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
