| peteyd |
  May 3 2013, 02:45 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 705 Joined: 27-March 08 From: Elora, Ontario, Canada Member No.: 8,858 Region Association: Canada  |
I'm starting this thread for people who need reference or a guide to install some of the parts that we produce. We will be making how to videos also that will be posted on our youtube channel.

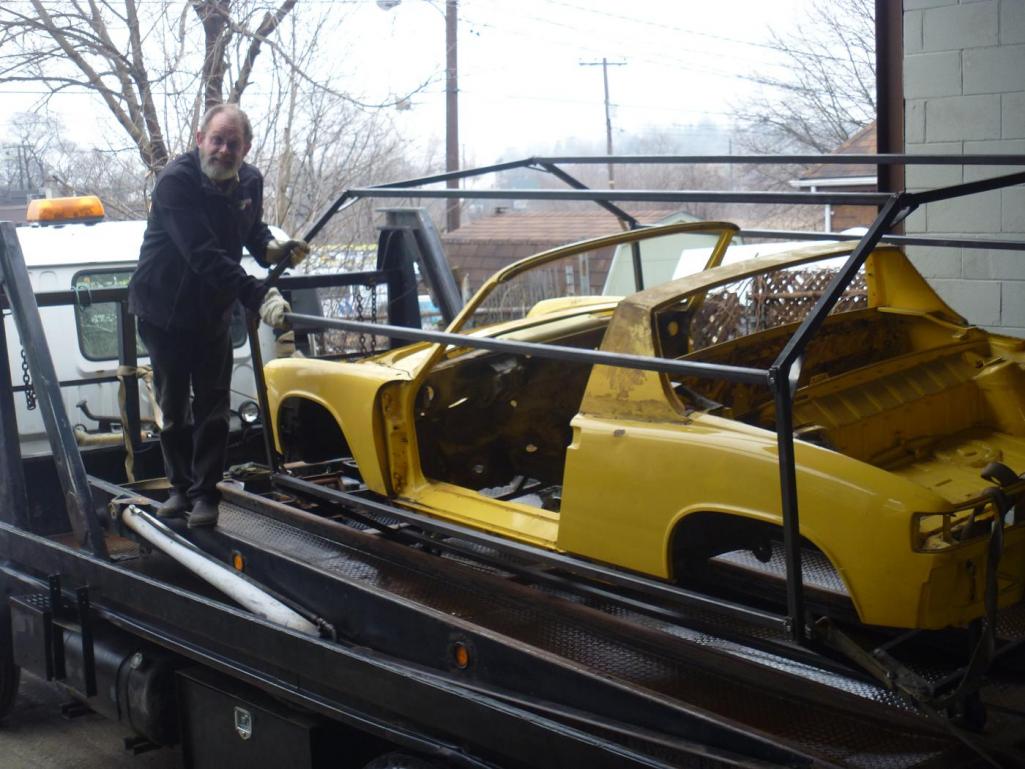

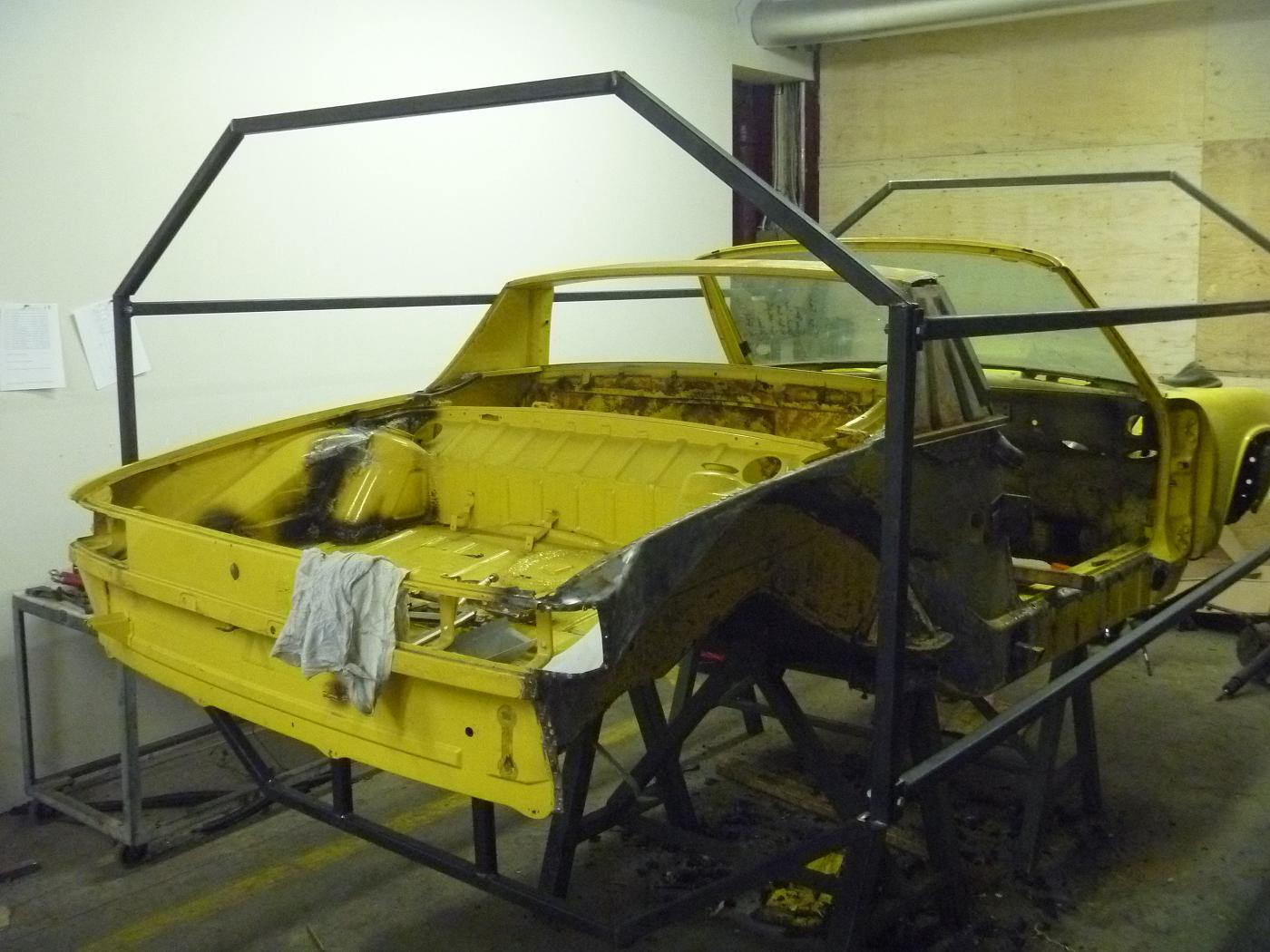

We bought this car off a member here, Enhoover. When we received the car we stripped it and built a rotisserie (plans for these are available). We removed the right rear quarter panel to better illustrate some of the installations that will be done. Here is the car right after we got the rear quarter removed.  the rotisserie we built  off to the blaster  |
   |

|
| veltror |
May 3 2013, 02:52 PM
Post
#2
|
|
Senior Member Group: Members Posts: 928 Joined: 27-April 08 From: Potters Bar Herts UK Member No.: 8,978 Region Association: None |
looks like mine !!! care to donate any parts (IMG:style_emoticons/default/smile.gif)
|
|
|
|
| peteyd |
May 3 2013, 02:57 PM
Post
#3
|
|
Senior Member Group: Members Posts: 705 Joined: 27-March 08 From: Elora, Ontario, Canada Member No.: 8,858 Region Association: Canada |
Now that we have the car back we can start to install some of the parts that we produce.

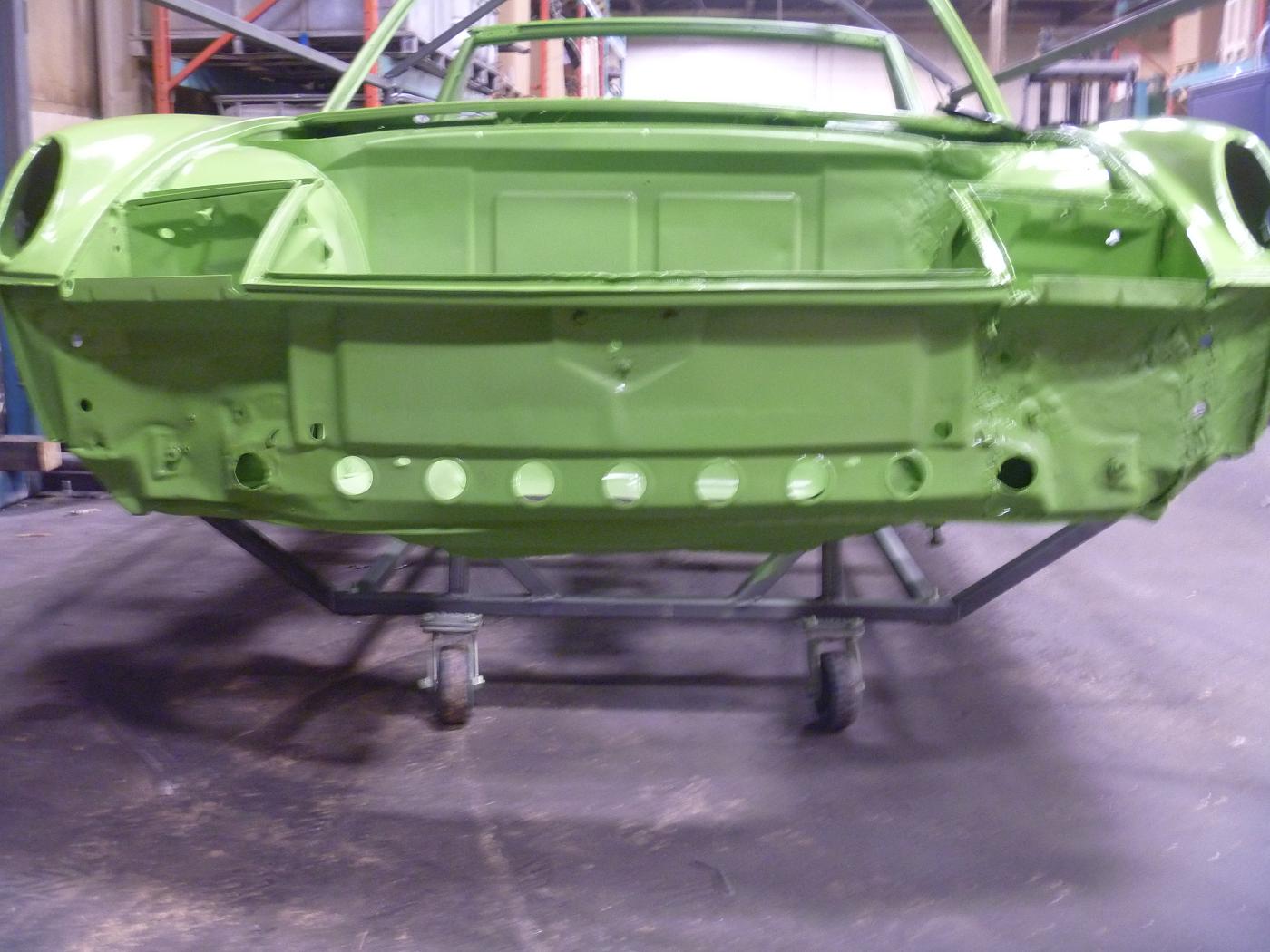

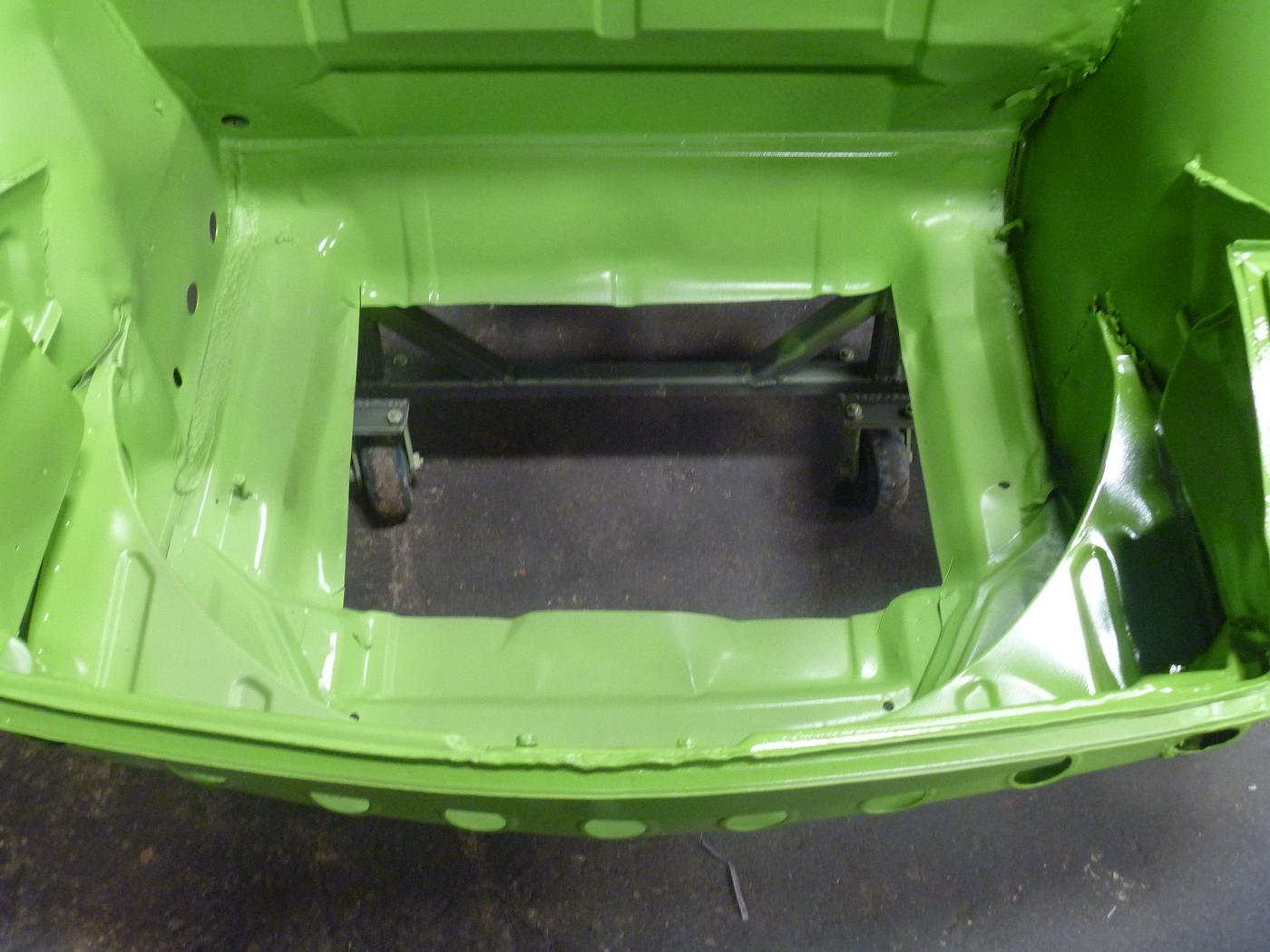

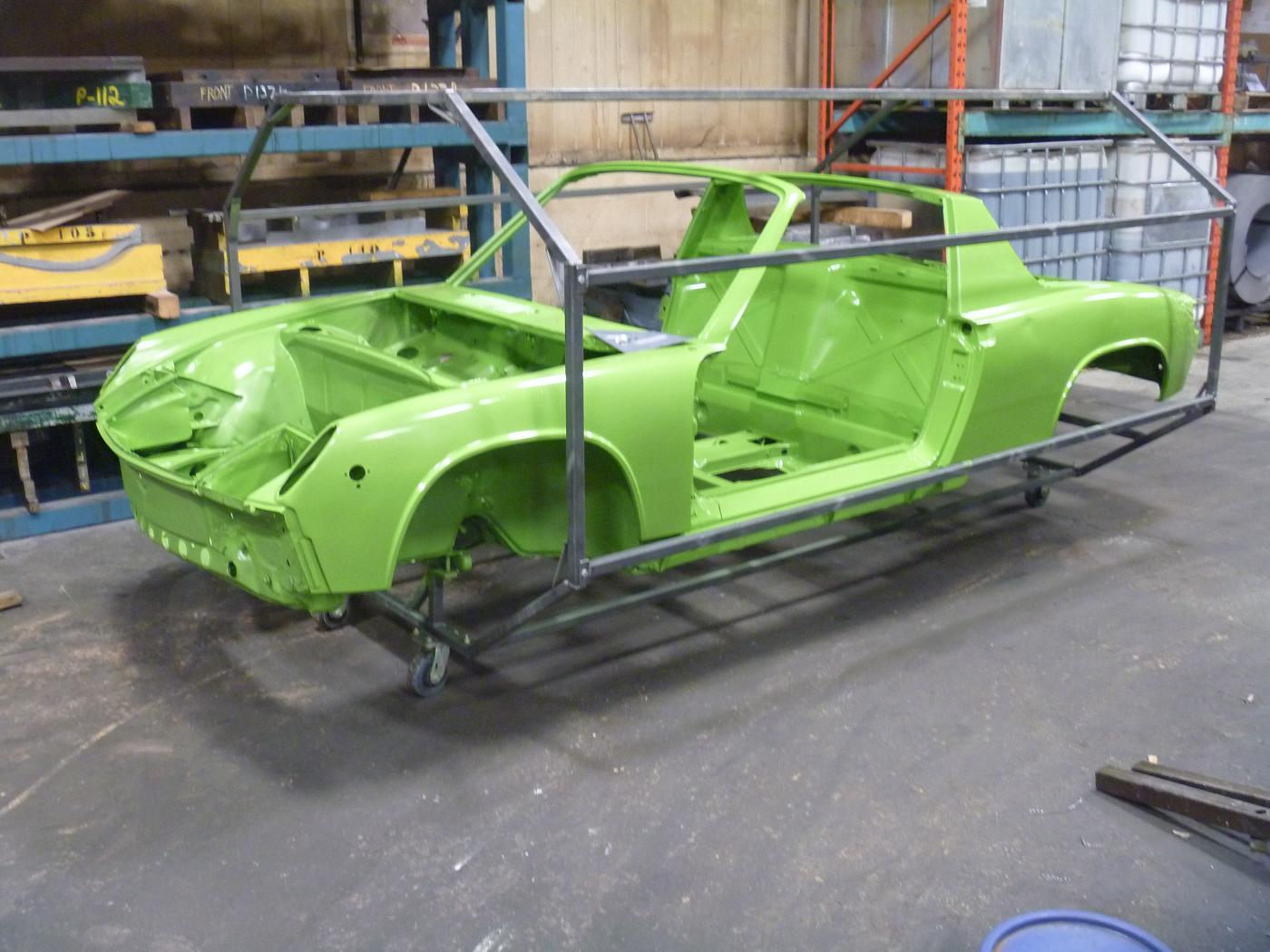

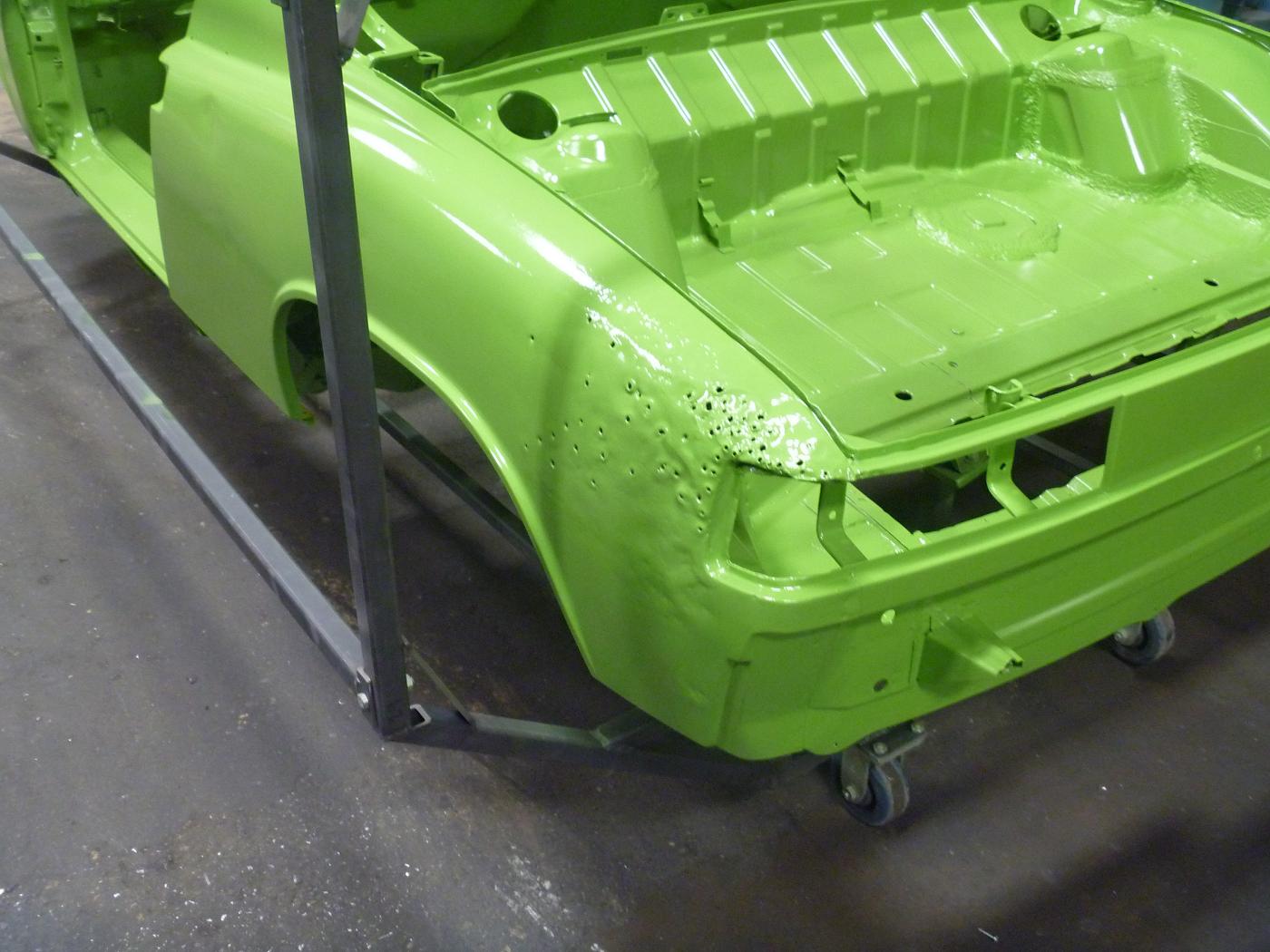

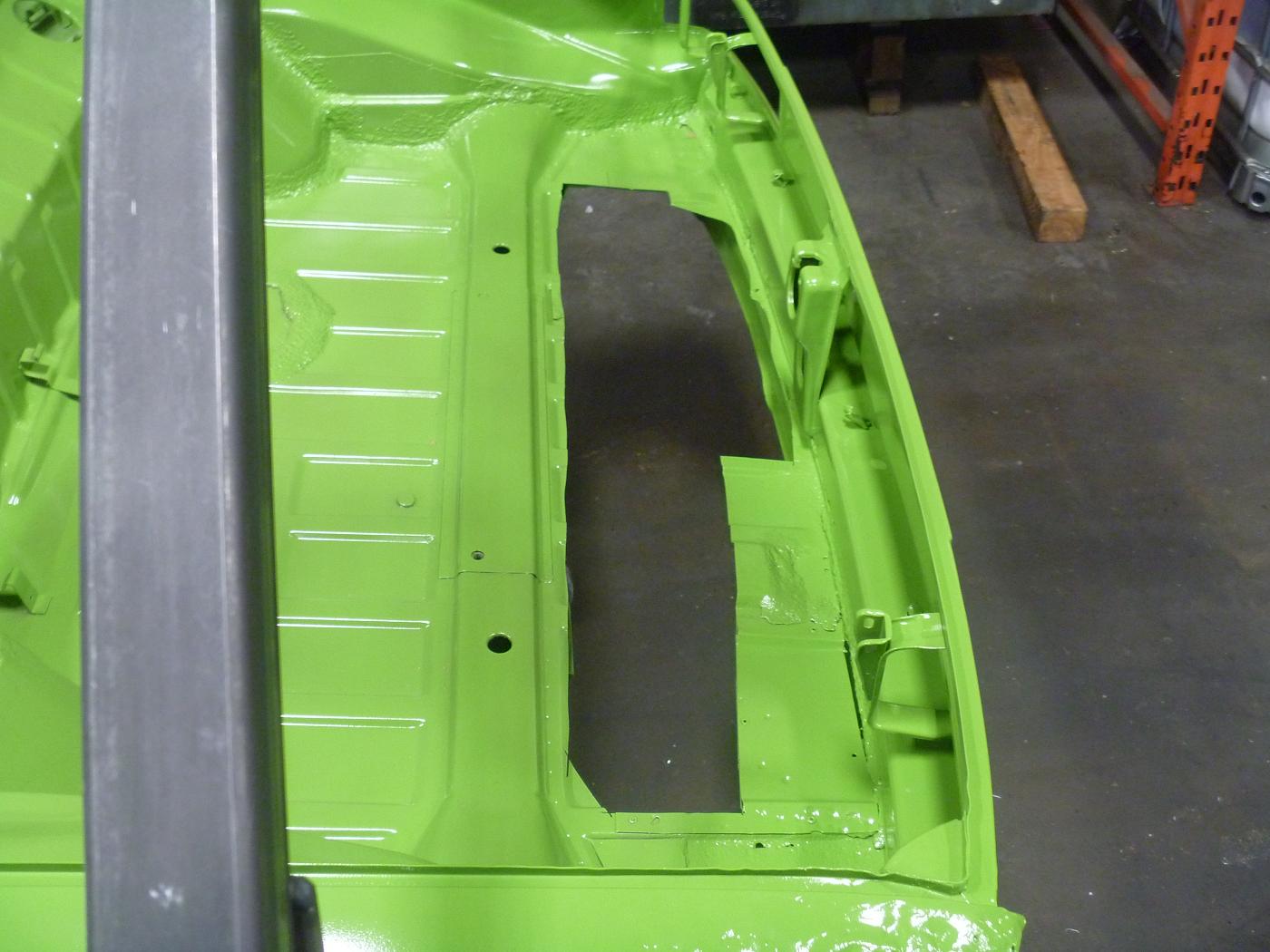

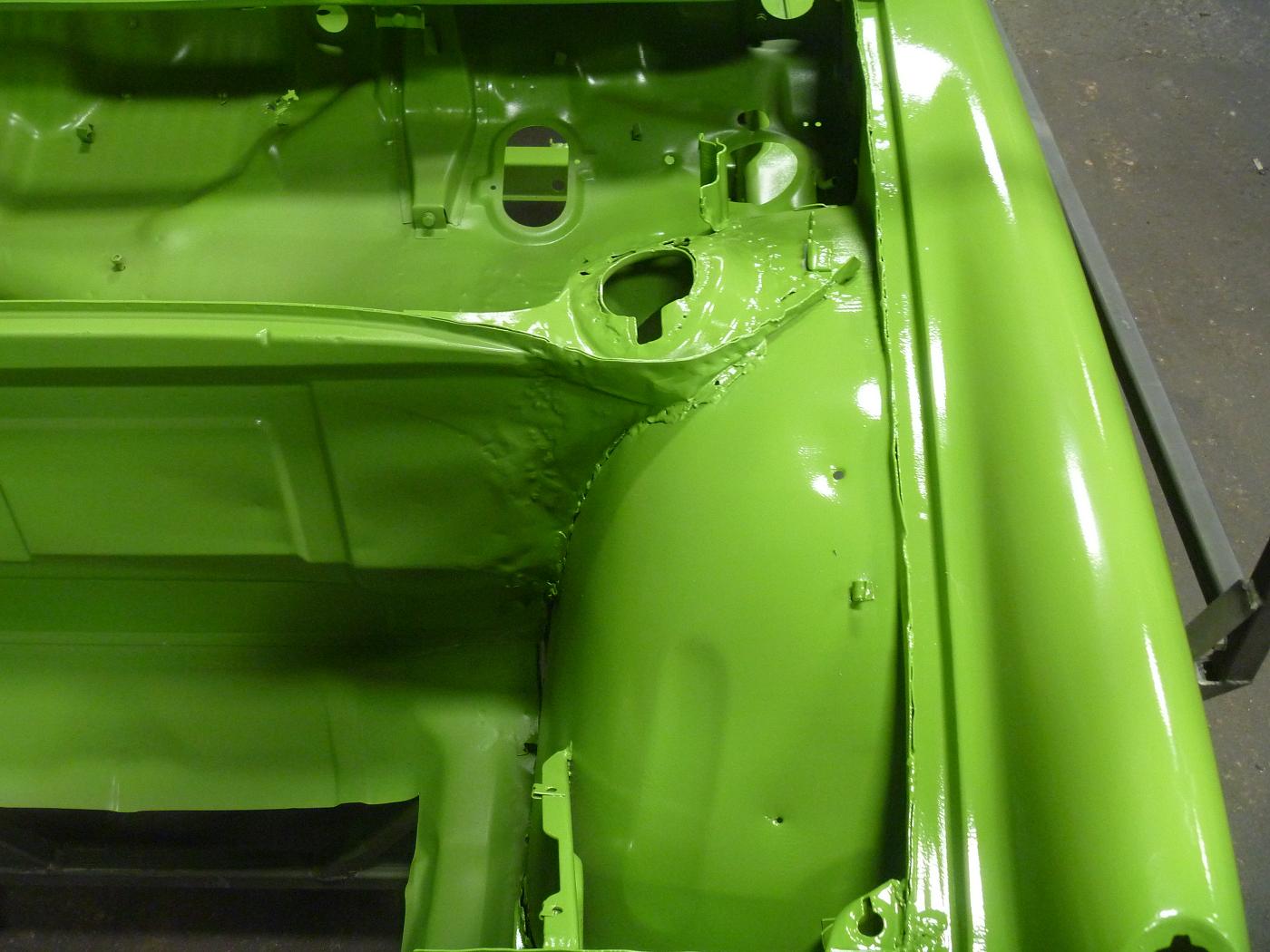

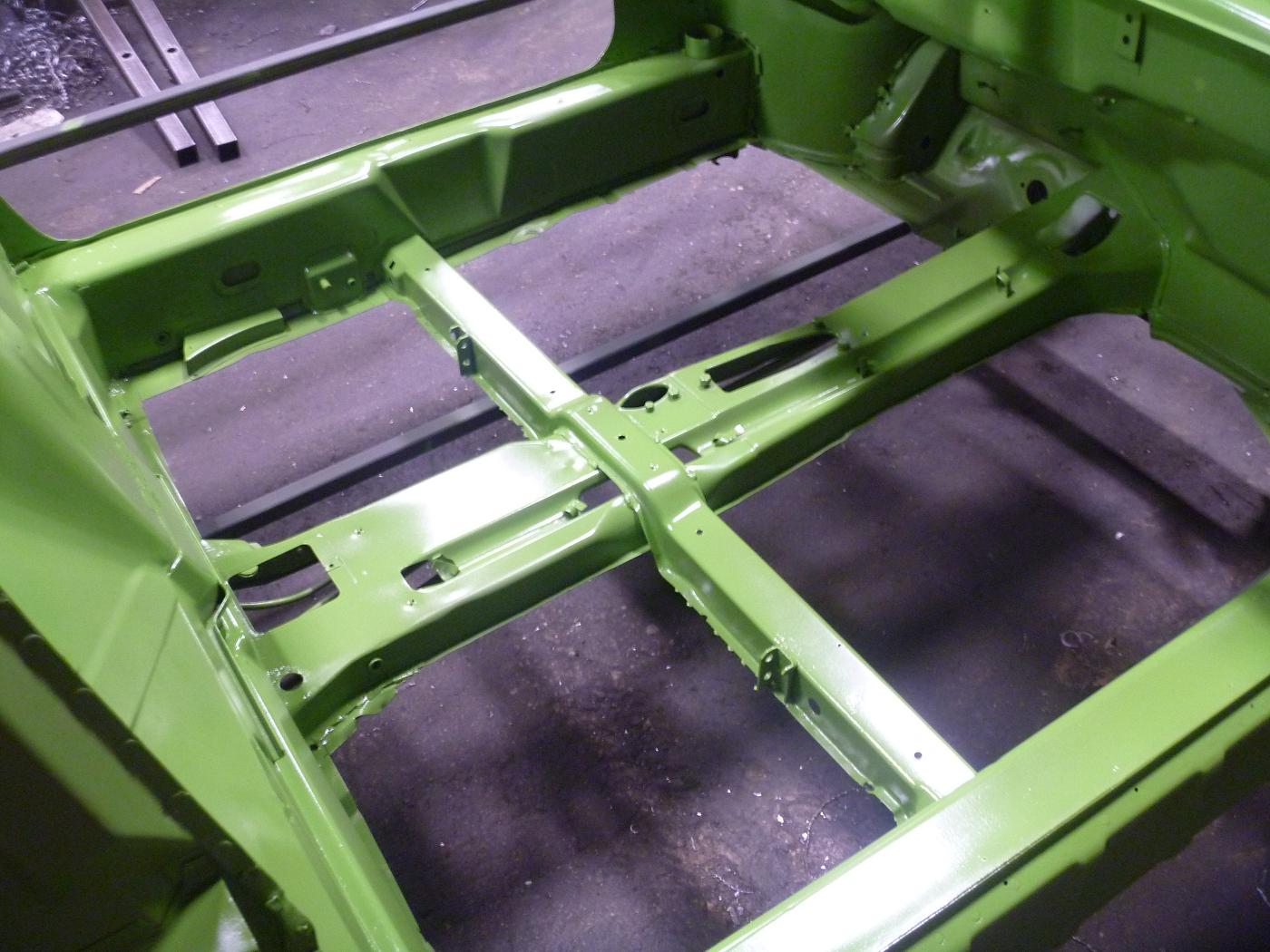

we will be starting with the clam shell stiffening kit we sell. We painted the car green so when we bring the car to shows it will stand out.  there was front end collision damage that was repaired at one point, so we will have to redo this properly.   we will also have to install floor pans, rear trunk floor, left rear quarter and the front trunk floor     |
|
|
|
| Cairo94507 |
May 3 2013, 03:07 PM
Post
#4
|
|
Michael Group: Members Posts: 9,723 Joined: 1-November 08 From: Auburn, CA Member No.: 9,712 Region Association: Northern California
|
What a great idea. Looking forward to seeing this all happen. (IMG:style_emoticons/default/first.gif)
|
|
|
|
| FourBlades |
May 3 2013, 04:53 PM
Post
#5
|
|
From Wreck to Rockin Group: Members Posts: 2,054 Joined: 3-December 07 From: Brevard, FL Member No.: 8,414 Region Association: South East States
|
I agree that this is an excellent idea. (IMG:style_emoticons/default/piratenanner.gif) Looking forward to watching this. (IMG:style_emoticons/default/chowtime.gif) John |
|
|
|
| gothspeed |
May 3 2013, 04:55 PM
Post
#6
|
|
Senior Member Group: Members Posts: 1,539 Joined: 3-February 09 From: SoCal Member No.: 10,019 Region Association: None |
Petey, how about an entire new chassis that we can just move our tags over to? (IMG:style_emoticons/default/wink.gif)
|
|
|
|
| doug_b_928 |
May 3 2013, 05:33 PM
Post
#7
|
|
Senior Member Group: Members Posts: 692 Joined: 17-January 13 From: Winnipeg Member No.: 15,382 Region Association: Canada |
This is going to be great to watch!
|
|
|
|
| bandjoey |
May 3 2013, 06:56 PM
Post
#8
|
|
bandjoey Group: Members Posts: 4,923 Joined: 26-September 07 From: Bedford Tx Member No.: 8,156 Region Association: Southwest Region |
At the end it needs to move to the Restoration thread area.
Is this Rotisserie simply a roll the entire cage over on its side and upside down or is there something I can't see? Waiting on the next edition! How 'bout showing us the presses in action - how you make the parts? and yes to complete bodies! |
|
|
|
| wingnut86 |
May 3 2013, 07:19 PM
Post
#9
|
|
...boola la boo boola boo... Group: Members Posts: 1,053 Joined: 22-April 10 From: South Carolina Member No.: 11,645 Region Association: South East States |
...agreed.
What they said;-P |
|
|
|
| bulitt |
May 3 2013, 08:55 PM
Post
#10
|
|
Achtzylinder Group: Members Posts: 4,188 Joined: 2-October 11 Member No.: 13,632 Region Association: South East States |
This can only help the end user because when you (the manufacturer) start installing metal, you will identify design tweeks to make them better and easier to install. Like the Engman kits that progressed over time through many iterations. And somewhere in the build process you are going to say to yourself "dang, I wish someone made this replacement master cylinder/pedal floor area". Then you will!
|
|
|
|
| Luke M |
May 4 2013, 08:07 AM
Post
#11
|
|
Senior Member Group: Members Posts: 1,370 Joined: 8-February 05 From: WNY Member No.: 3,574 Region Association: North East States
|
Hi Pete...
Perfect timing. My brother just placed that big order for the sheet metal this past week. Time to (IMG:style_emoticons/default/sawzall-smiley.gif) & (IMG:style_emoticons/default/welder.gif) .. I'm sure this will help in some areas. Any plans on installing the R/R inner control arm mount on your car? (IMG:style_emoticons/default/beerchug.gif) |
|
|
|
| peteyd |
May 4 2013, 09:54 AM
Post
#12
|
|
Senior Member Group: Members Posts: 705 Joined: 27-March 08 From: Elora, Ontario, Canada Member No.: 8,858 Region Association: Canada |
QUOTE(bandjoey @ May 3 2013, 04:56 PM)  Is this Rotisserie simply a roll the entire cage over on its side and upside down or is there something I can't see? How 'bout showing us the presses in action - how you make the parts? and yes to complete bodies! The rotis rolls right over. Its much easier with two people, but manageable with one. Maybe some day the whole car can be made! QUOTE(bulitt @ May 3 2013, 06:55 PM) This can only help the end user because when you (the manufacturer) start installing metal, you will identify design tweeks to make them better and easier to install. Like the Engman kits that progressed over time through many iterations. And somewhere in the build process you are going to say to yourself "dang, I wish someone made this replacement master cylinder/pedal floor area". Then you will! Ya for sure we will find areas we need to tweak, and then we will make improvements. If the pedal area get more demand, that is a possibility in the future. QUOTE(Luke M @ May 4 2013, 06:07 AM) Hi Pete... Perfect timing. My brother just placed that big order for the sheet metal this past week. Time to (IMG:style_emoticons/default/sawzall-smiley.gif) & (IMG:style_emoticons/default/welder.gif) .. I'm sure this will help in some areas. Any plans on installing the R/R inner control arm mount on your car? (IMG:style_emoticons/default/beerchug.gif) No immediate plans to replace the control arm. This car surprisingly does not have rust in that area. This will be a fun progression from start to finish. Im looking forward to giving updates on this project. Its going to take some time to install all these parts but be patient and I think the outcome will be very informative and fun to watch. Pete |
|
|
|
| Dave_Darling |
May 4 2013, 08:38 PM
Post
#13
|
|
914 Idiot Group: Members Posts: 14,981 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California
|
QUOTE(peteyd @ May 4 2013, 08:54 AM) No immediate plans to replace the control arm. This car surprisingly does not have rust in that area. Famous last words.... (IMG:style_emoticons/default/wink.gif) (They often rust from the inside out; it appears that a lot of them didn't get enough paint in between the multiple layers of metal.) --DD |
|
|
|
| rick 918-S |
May 5 2013, 03:27 PM
Post
#14
|
|
Hey nice rack! -Celette Group: Members Posts: 20,433 Joined: 30-December 02 From: Now in Superior WI Member No.: 43 Region Association: Northstar Region
|
|
 |
|
| kid914 |
May 5 2013, 05:44 PM
Post
#15
|
|
ALWAYS lead...NEVER follow!!!! Group: Members Posts: 2,534 Joined: 9-March 11 From: Canada Member No.: 12,811 Region Association: Canada |
WOW!
This is perfect timing as I will be doing my floors, and many other parts. Looking forward to seeing this unfold and learn at the same time. Thanks PETE! (IMG:style_emoticons/default/first.gif) (IMG:style_emoticons/default/beerchug.gif) (IMG:style_emoticons/default/piratenanner.gif) |
|
|
|
| r_towle |
May 5 2013, 05:51 PM
Post
#16
|
|
Custom Member Group: Members Posts: 24,571 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States
|
QUOTE(peteyd @ May 4 2013, 11:54 AM) QUOTE(bandjoey @ May 3 2013, 04:56 PM) Is this Rotisserie simply a roll the entire cage over on its side and upside down or is there something I can't see? How 'bout showing us the presses in action - how you make the parts? and yes to complete bodies! The rotis rolls right over. Its much easier with two people, but manageable with one. Maybe some day the whole car can be made! QUOTE(bulitt @ May 3 2013, 06:55 PM) This can only help the end user because when you (the manufacturer) start installing metal, you will identify design tweeks to make them better and easier to install. Like the Engman kits that progressed over time through many iterations. And somewhere in the build process you are going to say to yourself "dang, I wish someone made this replacement master cylinder/pedal floor area". Then you will! Ya for sure we will find areas we need to tweak, and then we will make improvements. If the pedal area get more demand, that is a possibility in the future. QUOTE(Luke M @ May 4 2013, 06:07 AM) Hi Pete... Perfect timing. My brother just placed that big order for the sheet metal this past week. Time to (IMG:style_emoticons/default/sawzall-smiley.gif) & (IMG:style_emoticons/default/welder.gif) .. I'm sure this will help in some areas. Any plans on installing the R/R inner control arm mount on your car? (IMG:style_emoticons/default/beerchug.gif) No immediate plans to replace the control arm. This car surprisingly does not have rust in that area. This will be a fun progression from start to finish. Im looking forward to giving updates on this project. Its going to take some time to install all these parts but be patient and I think the outcome will be very informative and fun to watch. Pete Well, I would like to see how you deal with that area in a transition between new floor pans and old thin rusted pedal area. Without super long arms, or a help, using a hammer and dolly is that area is challenging to say the least. One place I would like to have you observe closely as the installation of the pan happens. It's ugly, and a weld in panel would be small and helpful. Rich |
|
|
|
| cary |
May 6 2013, 10:53 PM
Post
#17
|
|
Advanced Member Group: Members Posts: 3,900 Joined: 26-January 04 From: Sherwood Oregon Member No.: 1,608 Region Association: Pacific Northwest
|
Ya for sure we will find areas we need to tweak, and then we will make improvements. If the pedal area get more demand, that is a possibility in the future.
Plus one for me. I had to buy a used one for my project. |
|
|
|
| peteyd |
May 14 2013, 11:24 AM
Post
#18
|
|
Senior Member Group: Members Posts: 705 Joined: 27-March 08 From: Elora, Ontario, Canada Member No.: 8,858 Region Association: Canada |

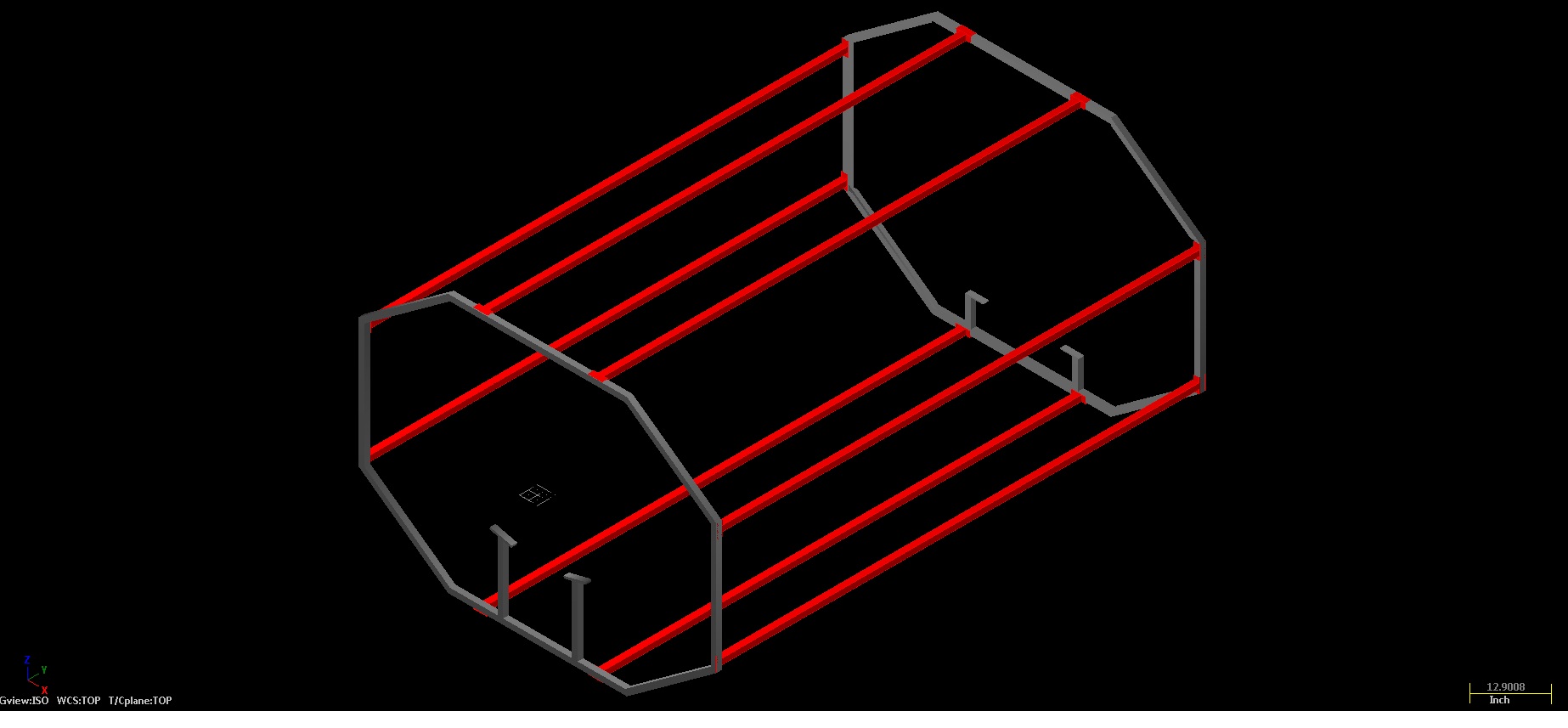

Here are the drawings for the rotisserie we made.

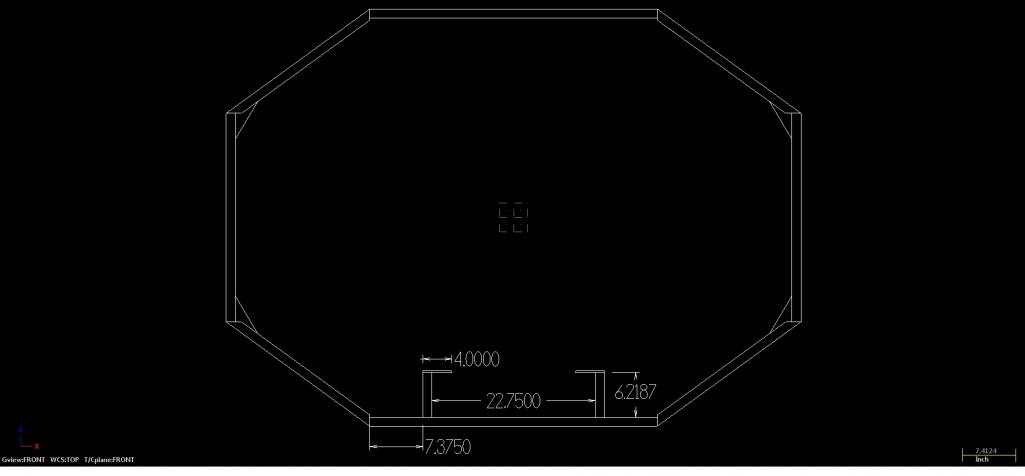

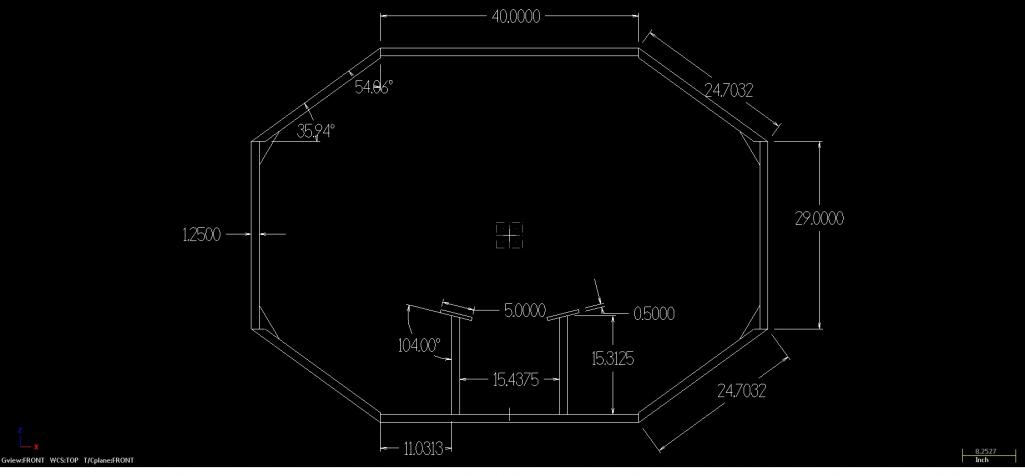

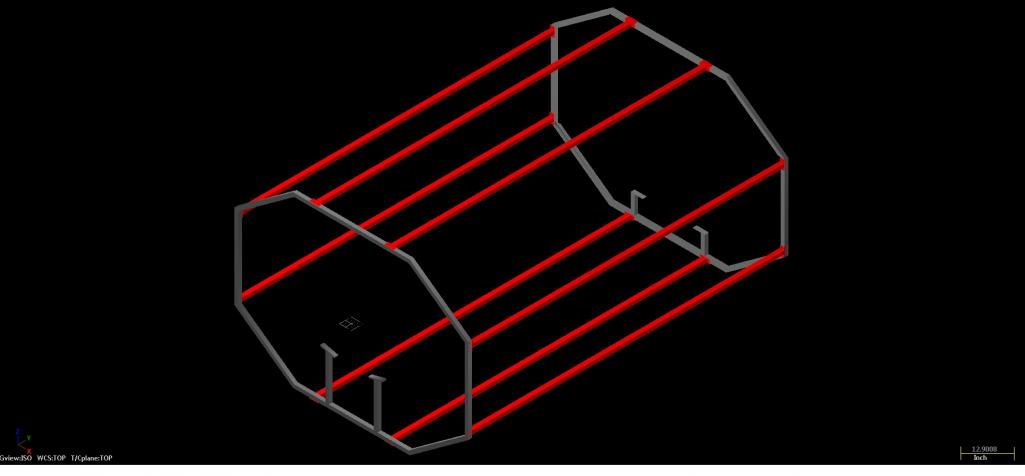

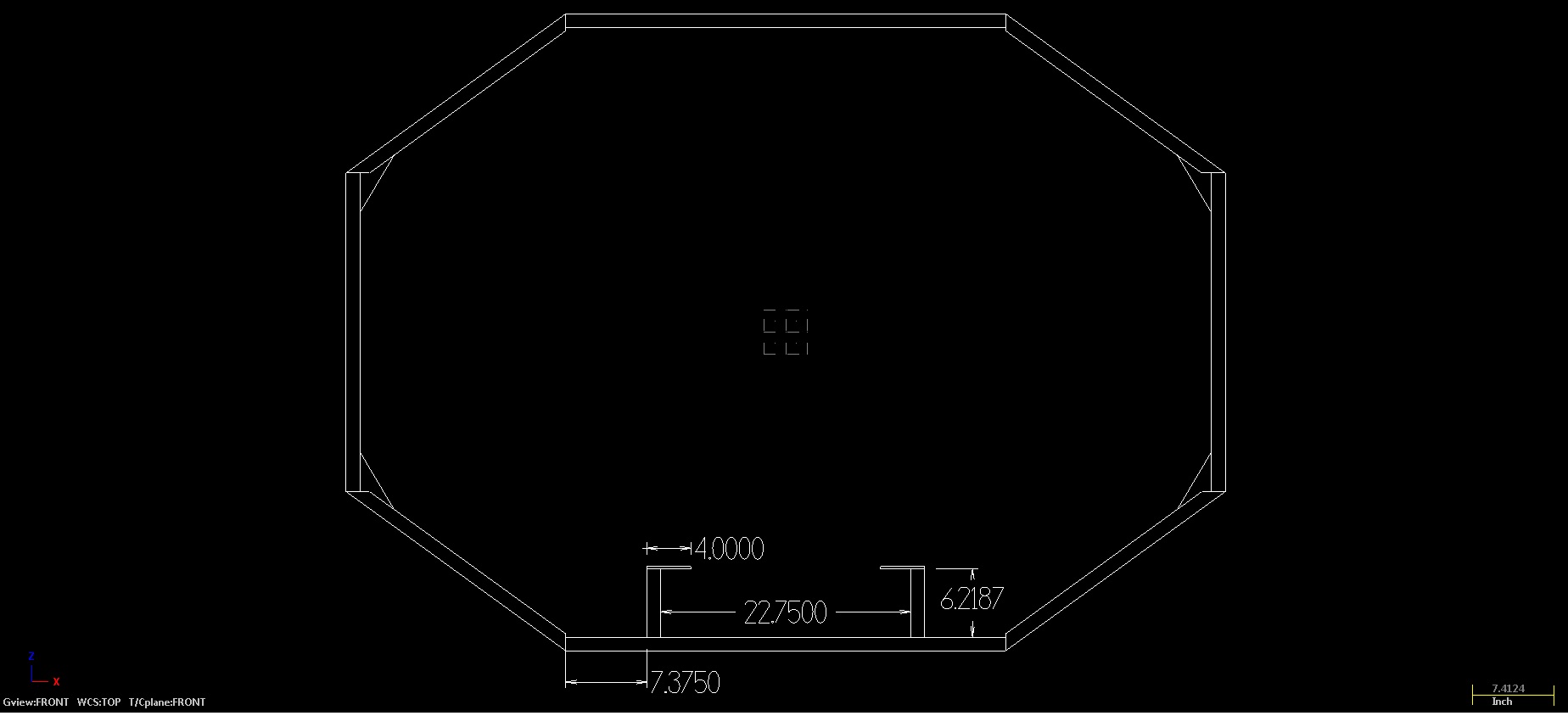

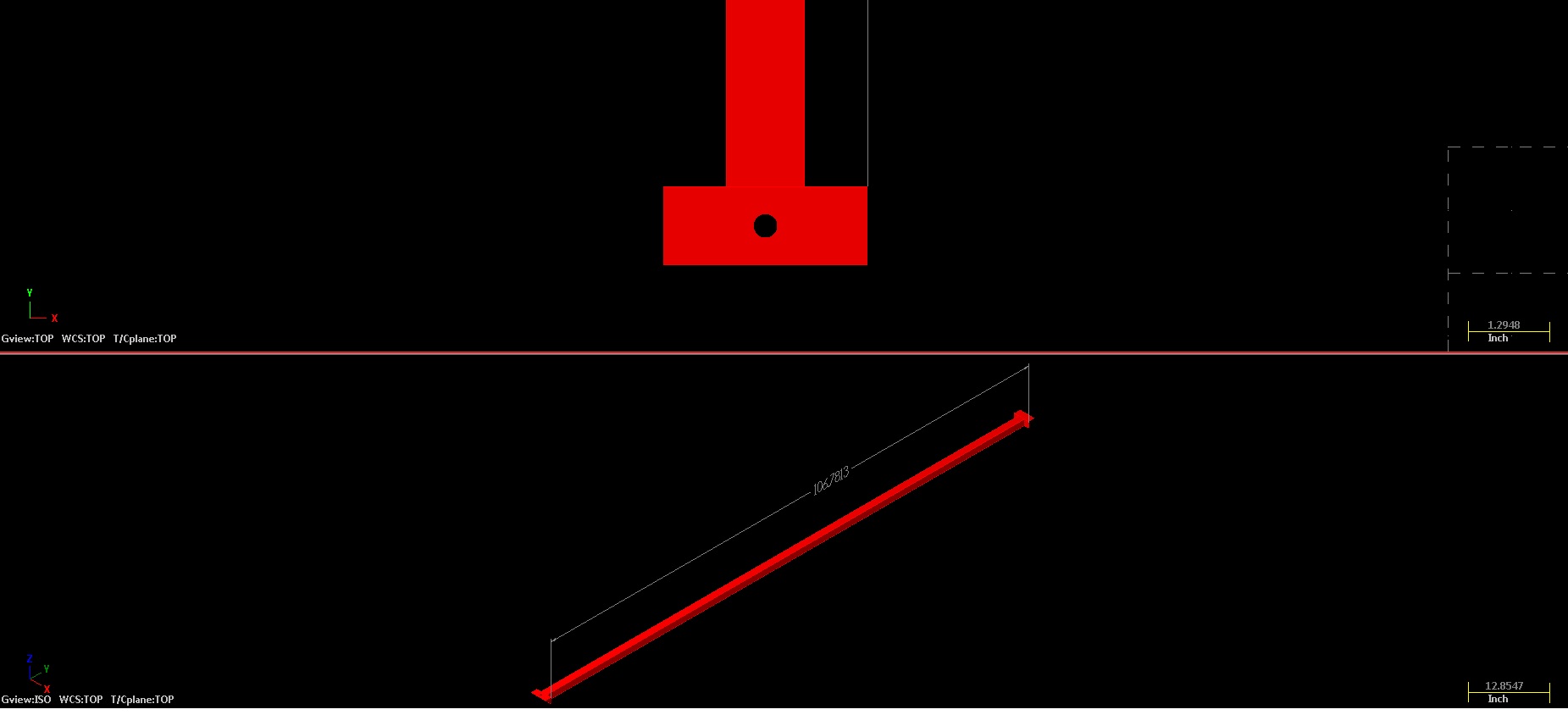

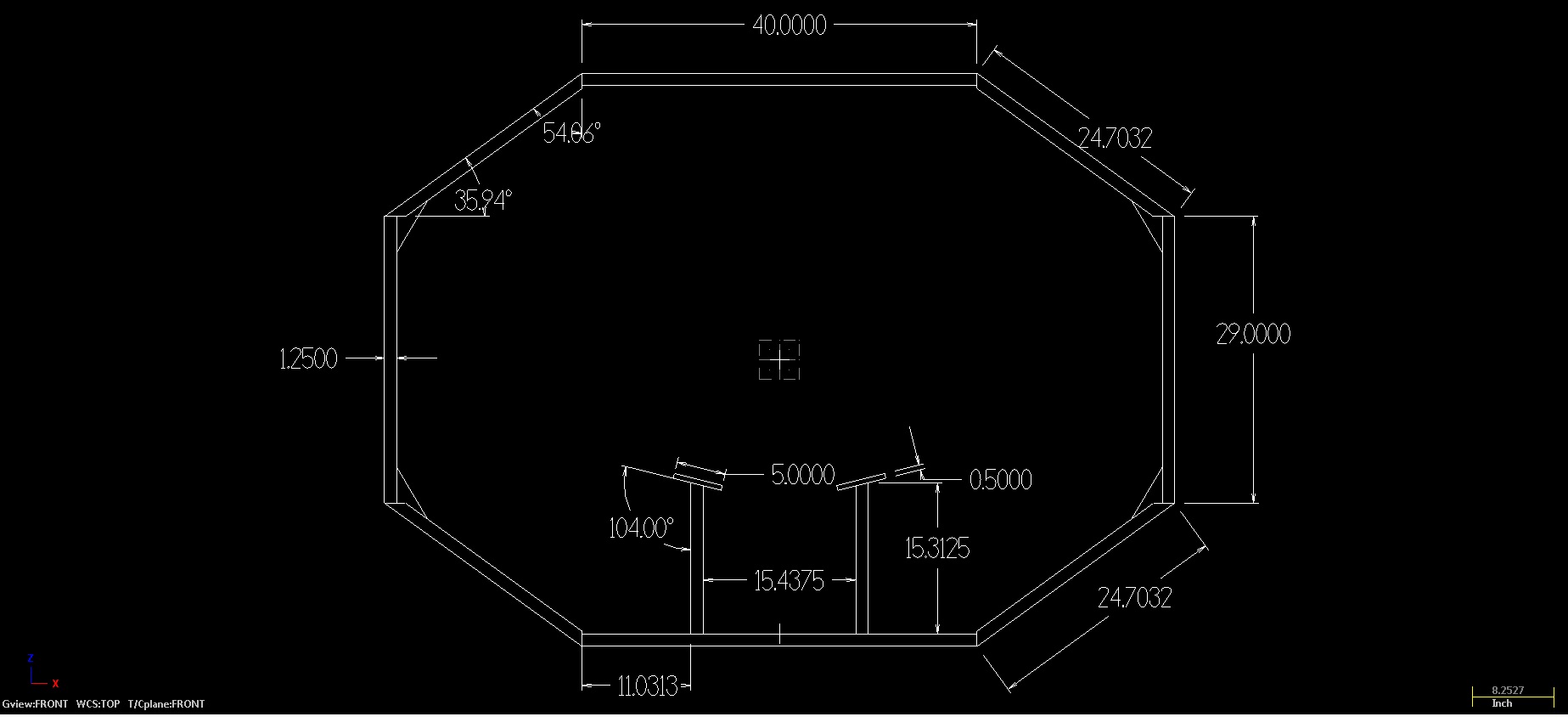

Rear hoop  Front hoop   close up of horizontal tubes.  |
|
|
|
| SirAndy |
May 14 2013, 11:29 AM
Post
#19
|
|
Resident German Group: Admin Posts: 41,610 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |
QUOTE(peteyd @ May 3 2013, 01:45 PM) We bought this car off a member here, Enhoover. You should add it to the VIN database under your name ... (IMG:style_emoticons/default/shades.gif) |
|
|
|
| peteyd |
May 14 2013, 11:44 AM
Post
#20
|
|
Senior Member Group: Members Posts: 705 Joined: 27-March 08 From: Elora, Ontario, Canada Member No.: 8,858 Region Association: Canada |
|
|
|
|
|
