> My lightweight project, some more pictures
URY914
post May 21 2003, 01:12 PM
Post #1


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 120,693
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None

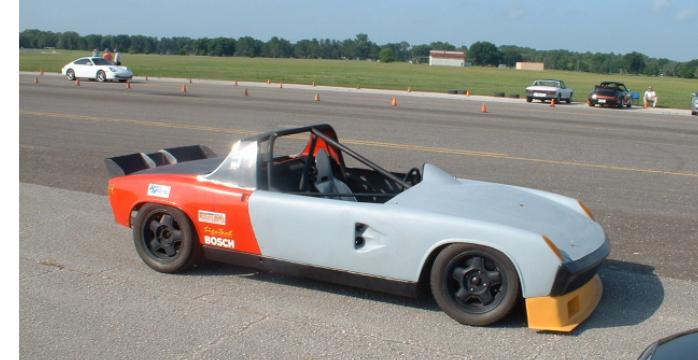

I ran an autox this past Sunday so I work on getting the body to the point that I could prime it. The body panels fit pretty well but I have some minor work to do.


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 11)
URY914
post May 21 2003, 01:13 PM
Post #2


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 120,693
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Here's another.

Paul


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
URY914
post May 21 2003, 01:17 PM
Post #3


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 120,693
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
I'm thinking of adding some material to front spoiler in front of the front tire area to close this up. It will be radiused to match the tire. You see this on the 911 GT3 race cars. It would have no effect other than being a little different.
Just something else to do.
Paul
User is online!Profile CardPM
Go to the top of the page
+Quote Post
URY914
post May 21 2003, 01:18 PM
Post #4


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 120,693
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Here is one big one...


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
maf914
post May 21 2003, 01:37 PM
Post #5


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None
Paul,

The area behind the spoiler at the wheel opening is a low pressure area that allows air to exit. You may want to leave it open. In fact for increased airflow you may want to pull the rear edge of the spoilerout ward to increase. Or add a small gurney lip like the ALMS sportscars sometimes have. Note how the European sedan racers go to a lot of trouble to provide relief louvers at this location. Also note that NASCAR stockers use this area for downforce tuning. The rules restrict the amount they can pull out the lower panel. In previous years the trailing edge of the front spoiler stuck out noticably. Less so now that rules govern the configuration.

What this really means on a short circuit sportscar, I don't know. You might want to check with some SCCA racers, since they probably know a lot of aero tricks.

Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post May 21 2003, 01:37 PM
Post #6


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,852
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
Hey!!

It looks like a car again!

Nice job Paul. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nine14cats
post May 21 2003, 01:58 PM
Post #7


Bill Pickering -- 914-6 GT aka....Leeloo
****

Group: Members
Posts: 2,618
Joined: 10-February 03
From: Campbell, CA
Member No.: 287
Region Association: None
Hi Paul,

The project looks great...I'm interested in your front spoiler....where did you get one that is so deep...I'm still trying to figure out what to do up front on my track car...

Thanks,

Bill P.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Qarl
post May 21 2003, 02:08 PM
Post #8


Shriveled member
*****

Group: Benefactors
Posts: 5,233
Joined: 8-February 03
From: Florida
Member No.: 271
Region Association: None
Looks pretty cool. Without the paint, it looks like a regular 914 ran into the back of a dragster and fused together. (IMG:style_emoticons/default/smlove2.gif)

It will look great painted. (IMG:style_emoticons/default/clap56.gif)

How did she run at the AX?

Regards,
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post May 21 2003, 02:09 PM
Post #9


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 120,693
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
The front spoiler started life as a "Deep Limited Edition" spoiler from AIR (American International Racing) and it had small brake ducts molded in it. I cut the lower section off and the small ducts out, lowered or deepened it with fiberglass and added the big ducts. The ducts came from Racer Wholesale and are ABS plastic. I added the bottom splinter out of fiberglass. As you can see it is very low and it rubs the ground from time to time.

Paul
User is online!Profile CardPM
Go to the top of the page
+Quote Post
URY914
post May 21 2003, 02:13 PM
Post #10


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 120,693
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Karl,
It ran pretty well-but several times I needed more HP. My foot was planted on the pedal but it won't give me any more. The new engine is on the stand awaiting parts.

I was second fastest overall- a three time SCCA Nat. Champ beat me by .3 of a second in a 944s2.

Paul
User is online!Profile CardPM
Go to the top of the page
+Quote Post
cha914
post May 21 2003, 03:30 PM
Post #11


MUSR 8 - 5lug conversion done wed - drive 500miles thrus
***

Group: Members
Posts: 739
Joined: 31-December 02
From: Austin, TX
Member No.: 63
Its strange how much longer the car looks (to me) when it doesn't have any seems and no windshield...

The project is comming along great, I really like the way its looking...great now I want to learn fiberglass along with welding/metal working (IMG:style_emoticons/default/tongue.gif)

The more I mess with this car the more I want to learn...

Thaks for sharing,

Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post May 21 2003, 05:07 PM
Post #12


Advanced Member
****

Group: Members
Posts: 2,734
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
Paul, the car really looks great, sorry I haven't been in touch lately alot of personal issues have come up. Congrats on second. I'm going through the fuel delivery system on the red car, so it's not going to be drivable any time soon.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
