Does anyone have a copy of the weltmeister front sway bar instructions? Options

[Scott S]

Hi All -
My weltmeister front bar needs new bushings (which I have in hand). Being that I didn't install it and have no experience with this bar, I was hoping to get some sort of schematic on how things go together before I pull off the retaining plate in the wheel well.

Anyone have a set of instructions? I looked on line and could not find anything. I even email Wayne at PP to see if he had anything he could provide.

Being that the bushings are linear and have no lip, I am not sure how they are held into the retaining plate.


Thanks very much -
Scott S

[stugray]

I actually think I DO have the hardcopy instructions with the paperwork from the PO.

I'll try to remember to check tonight when I get home.

STu

[Steve]

I will also look tonight.

[Scott S]

Thanks SO much to you both...

[r_towle]

Being that the bushings are linear and have no lip, I am not sure how they are held into the retaining plate.


Thanks very much -
Scott S

They are held in by magic.

I ended up buying two shaft collars to keep the bushings in place.
Added benefit was the bar now stays centered.

Rich

[Scott S]

Hi Rich -
Where did you source those?

The whole reason for replacing my bushings is to try and eliminate (reduce) a side to side clunk I get once in a while!

[BIGKAT_83]

Hi Rich -
Where did you source those?

The whole reason for replacing my bushings is to try and eliminate (reduce) a side to side clunk I get once in a while!

Try theseMcMaster Carr

Bob

[stugray]

It doesnt really show what you are interested in.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i366.photobucket.com-10819-1373348615.1.jpg)

There was only the one page.
(rear has more than one page)

If you want some pics, I can get some tomorrow.
I dont have a gas tank in the way, so you can see both sides.

I would also be interested in that collar part #.

Stu

[stugray]

Coincidentally, Here's some good pics in the FS forum (not mine):

http://www.914world.com/bbs2/index.php?showtopic=214128

(IMG:http://www.914world.com/bbs2/uploads/post-7036-1373309509.jpg)

Stu

[r_towle]

Summit racing or McMaster Carr have the clamps.

[r_towle]

It doesnt really show what you are interested in.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i366.photobucket.com-10819-1373348615.1.jpg)

There was only the one page.
(rear has more than one page)

If you want some pics, I can get some tomorrow.
I dont have a gas tank in the way, so you can see both sides.

I would also be interested in that collar part #.

Stu

It does not show it because its MAGIC...
They cannot reveal the secrets....

Seriously, use the shaft collars and forget about the side to side clunk....forever.
I also put a split piece of garden hose on the bar from side to side under the tank because I found that the bar would flutter at low speed and tap the tank....which get amplified and sounded like the car was having big problems.

I think Sir Andy and I chased this same noise for a while and while we may have different bars, I recall we ended up with a similar solution.

Rich

[Scott S]

Thanks a ton everyone.

I am off to order some parts - and rape a couple of feet from the garden hose (my neighbor is out of town - he will never notice!)

(IMG:style_emoticons/default/beerchug.gif)

[Retread]

If you follow those instructions the U-Bolts will eventually tear out the inner fender wall. Look at Elephant Racing's web site. read their PDF instructions for Front ARB installation. Elephant sells a pair of plates that properly back up the inside of the fender wall. Even with that plate, large tire fitment will strain the inner fender wall.

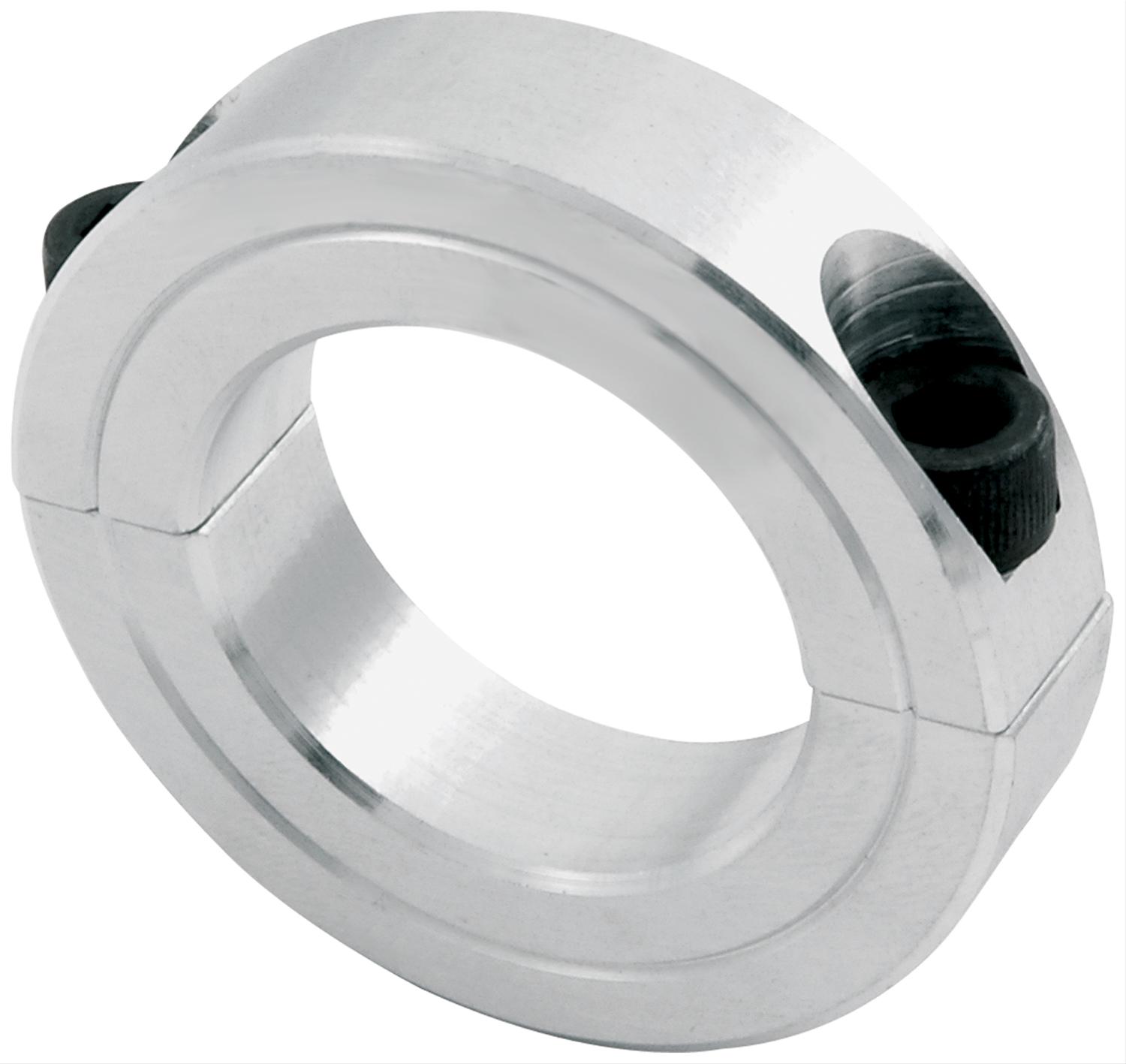

The split collar shown; Proper size collar on the steering rack shafts can be used to limit full lock steering travel to eliminate tire rub on the inner fender on full lock.
