| Harpo |
 Aug 9 2013, 07:48 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 1,304 Joined: 21-August 11 From: Motor City aka Detroit Member No.: 13,469 Region Association: None  |
I just got my new carpet but it has been so long I can remember how it all goes back together. There are obvious parts like the longs, driver & passenger foot well that are obvious
Thanks David |
   |

|
| Harpo |
Aug 9 2013, 08:07 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,304 Joined: 21-August 11 From: Motor City aka Detroit Member No.: 13,469 Region Association: None |

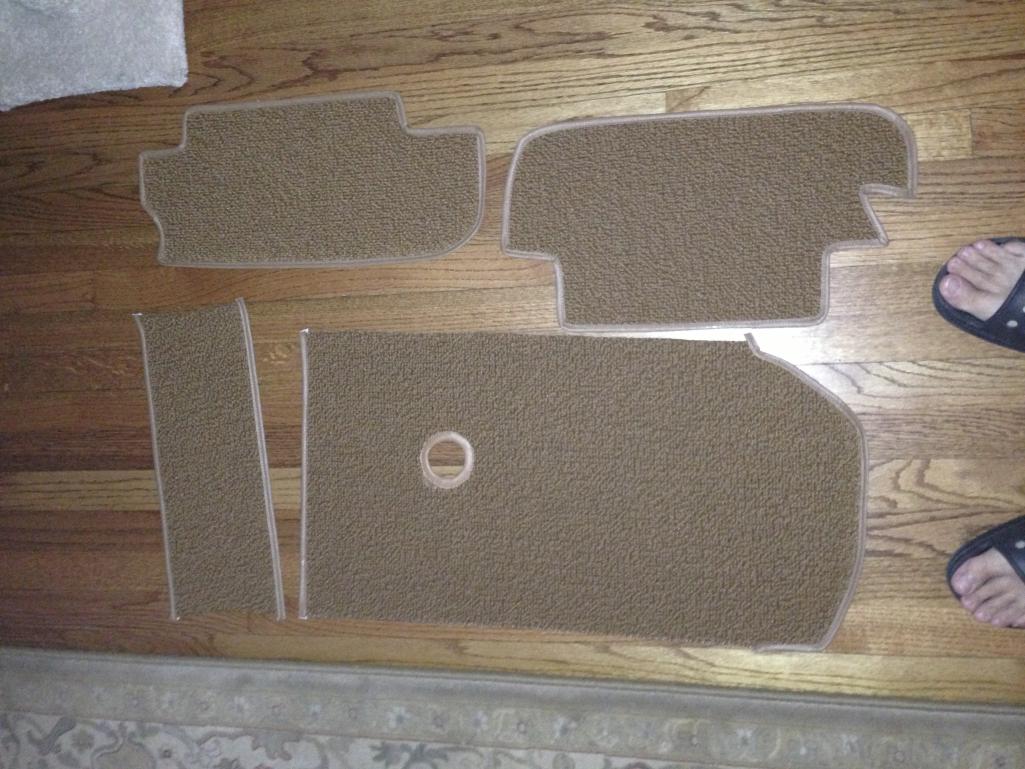

The large one with the hole is most the center tunnel with the shifter
However the other three I have no idea David Attached thumbnail(s)
|
|
|
|
| Harpo |
Aug 9 2013, 08:12 PM
Post
#3
|
|
Senior Member Group: Members Posts: 1,304 Joined: 21-August 11 From: Motor City aka Detroit Member No.: 13,469 Region Association: None |

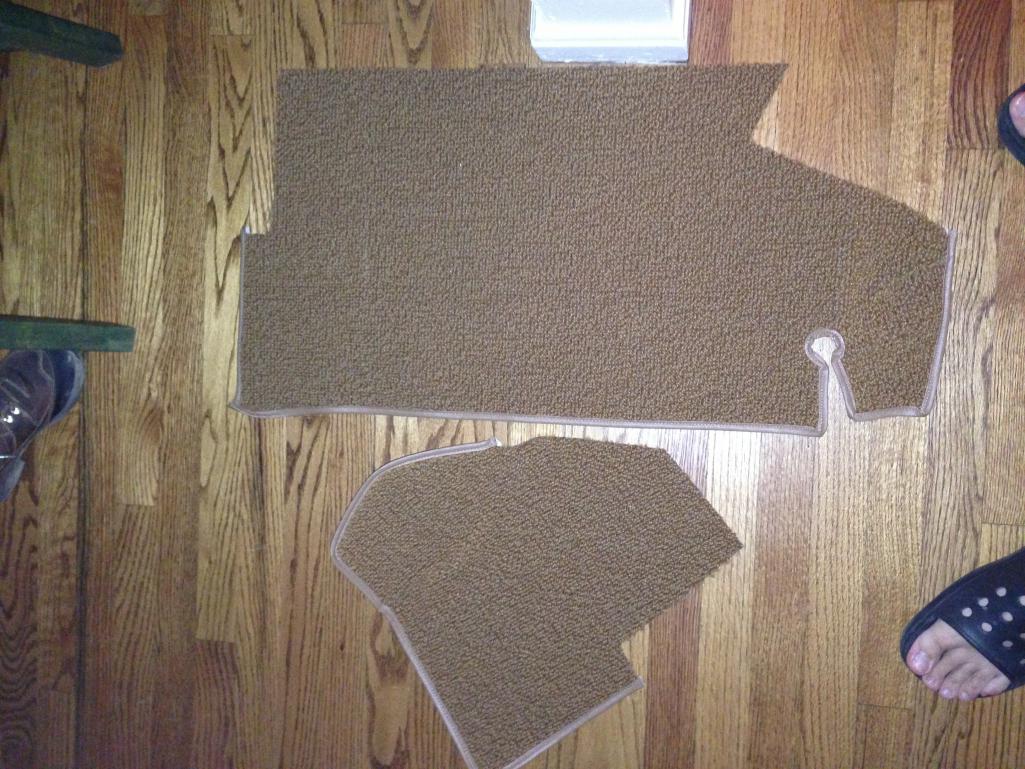

Both of these have have have some additional sewing on them possibly to fit in corners
 |
|
|
|
| Dave_Darling |
Aug 9 2013, 08:15 PM
Post
#4
|
|
914 Idiot Group: Members Posts: 14,986 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California
|
Lower-right looks like it goes over the shifter.
Upper-right looks like it goes on the driver's firewall above the pedals. If that's the case, the upper-left would go on the passenger-side firewall. Not sure about the small piece in lower-left. The other possibility for the two upper pieces would be behind the seats on the floorpan. EDIT: You added the next pic while I was posting. The one in your second pic with the cutout looks like it goes on the driver's long, with the handbrake handle pivot going through the hole. Dunno about the other one. --DD |
|
|
|
| poorsche914 |
Aug 9 2013, 08:55 PM
Post
#5
|
|
T4 Supercharged Group: Members Posts: 3,090 Joined: 28-May 09 From: Smoky Mountains Member No.: 10,419 Region Association: South East States |
|
 |
|

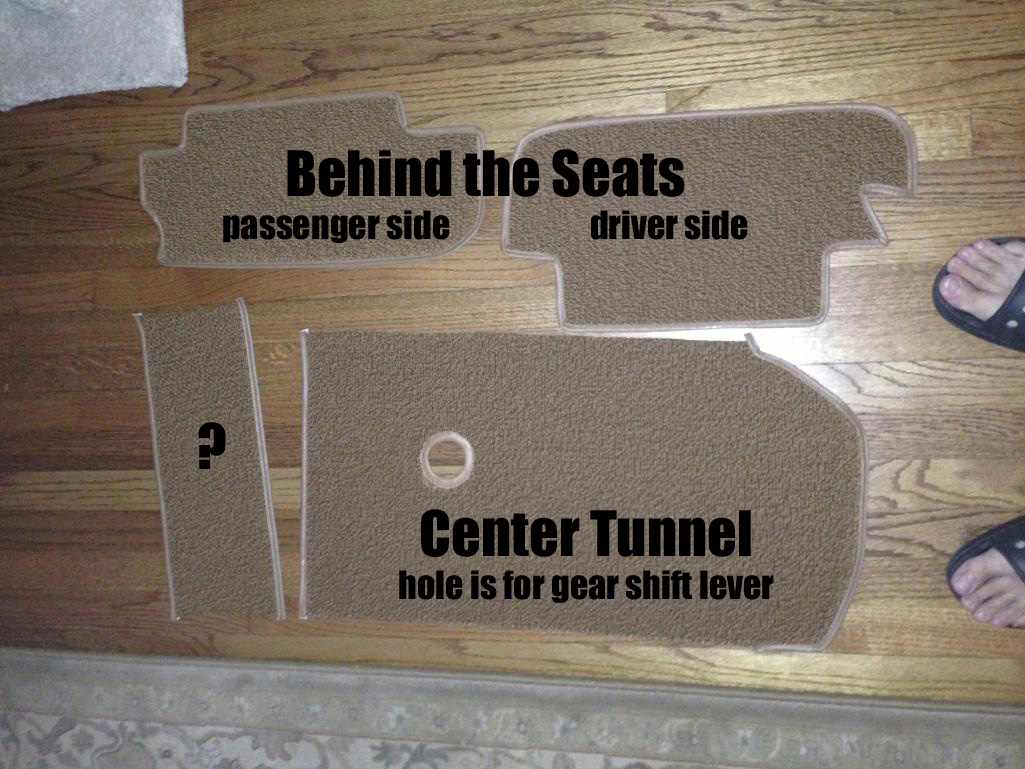

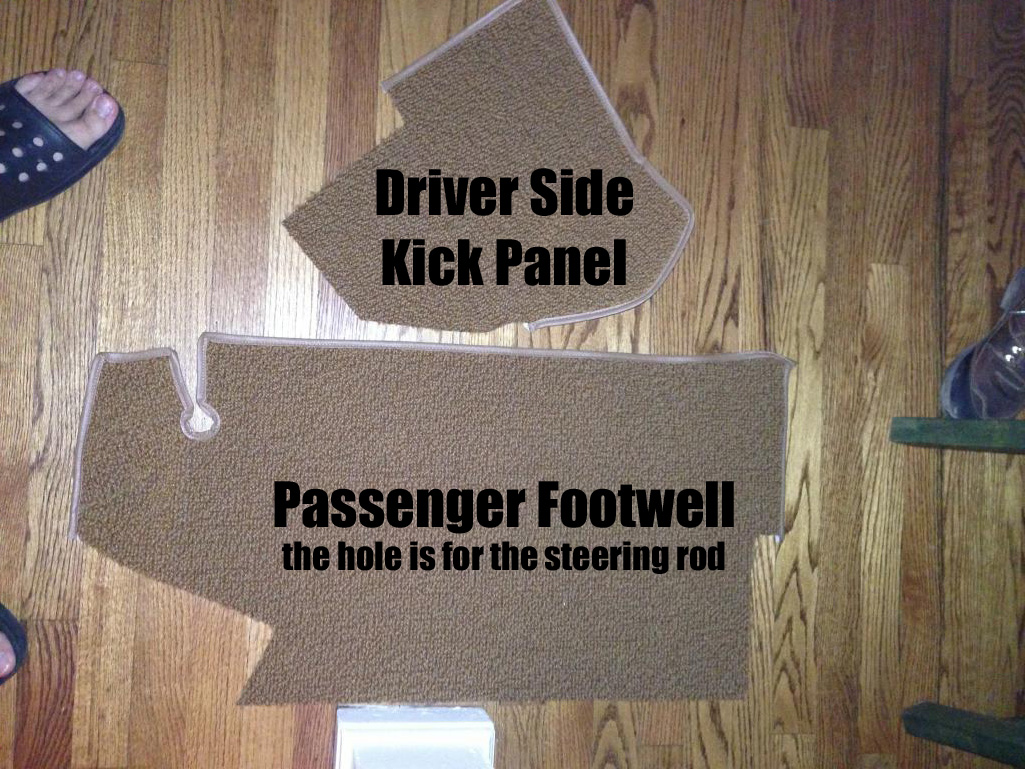

| tod914 |
Aug 9 2013, 10:56 PM
Post
#6
|
|
Advanced Member Group: Members Posts: 3,755 Joined: 19-January 03 From: Lincoln Park, NJ Member No.: 170 |
I think that "?" piece goes up by the pedal cluster.
|
|
|
|
| Harpo |
Aug 10 2013, 05:04 AM
Post
#7
|
|
Senior Member Group: Members Posts: 1,304 Joined: 21-August 11 From: Motor City aka Detroit Member No.: 13,469 Region Association: None |
Thanks everyone
|
|
|
|
| GaroldShaffer |
Aug 10 2013, 05:39 AM
Post
#8
|
|
You bought another 914? Group: Benefactors Posts: 7,622 Joined: 27-June 03 From: Portage, IN Member No.: 865 Region Association: None
|
QUOTE(tod914 @ Aug 9 2013, 11:56 PM)  I think that "?" piece goes up by the pedal cluster. Yep (IMG:style_emoticons/default/agree.gif) |
|
|
|
| GregAmy |
Aug 13 2013, 02:46 PM
Post
#9
|
|
Advanced Member Group: Members Posts: 2,301 Joined: 22-February 13 From: Middletown CT Member No.: 15,565 Region Association: North East States
|
From where did you buy the tan carpet?
|
|
|
|
| MrHyde |
Aug 13 2013, 02:53 PM
Post
#10
|
|
Senior Member Group: Members Posts: 525 Joined: 13-October 10 From: Ontario, Canada Member No.: 12,268 Region Association: None |
sorry to hijack, but its related... What kind of glue do you use when installing the carpet pieces ???
|
|
|
|
| TheCabinetmaker |
Aug 13 2013, 05:12 PM
Post
#11
|
|
I drive my car everyday Group: Members Posts: 8,300 Joined: 8-May 03 From: Tulsa, Ok. Member No.: 666 |
QUOTE(MrHyde @ Aug 13 2013, 03:53 PM) sorry to hijack, but its related... What kind of glue do you use when installing the carpet pieces ??? I use carpet glue. |
|
|
|
|
