> CptTripps' Restoration 2 - The Grey Matter Build, Back in Doug’s garage
Amenson
post Jul 31 2017, 07:08 PM
Post #1001


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



I picked up a little something for the project 2 weeks ago (IMG:style_emoticons/default/happy11.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Sep 5 2017, 08:30 PM
Post #1002


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



TIAL BOV arrived. I put it together to check fitment...will be perfect.

Attached Image

Just a bit of massaging on the weld flange to match the profile on the IC.

Cheers,
Scott

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Sep 6 2017, 06:53 PM
Post #1003


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California



This car is not driving yet ? (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Sep 6 2017, 08:56 PM
Post #1004


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



QUOTE(matthepcat @ Sep 6 2017, 08:53 PM) *

This car is not driving yet ? (IMG:style_emoticons/default/smile.gif)

No, I planned some projects on the PorSTI while Grey was transferring owners that got out of hand chasing rust and poorly done rust repair. Back at it now.

Cheers,
Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Sep 7 2017, 09:09 PM
Post #1005


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



The AFCO Scirocco radiator fan shroud showed up. Really nice piece but something is not right?! (IMG:style_emoticons/default/blink.gif)
Attached Image

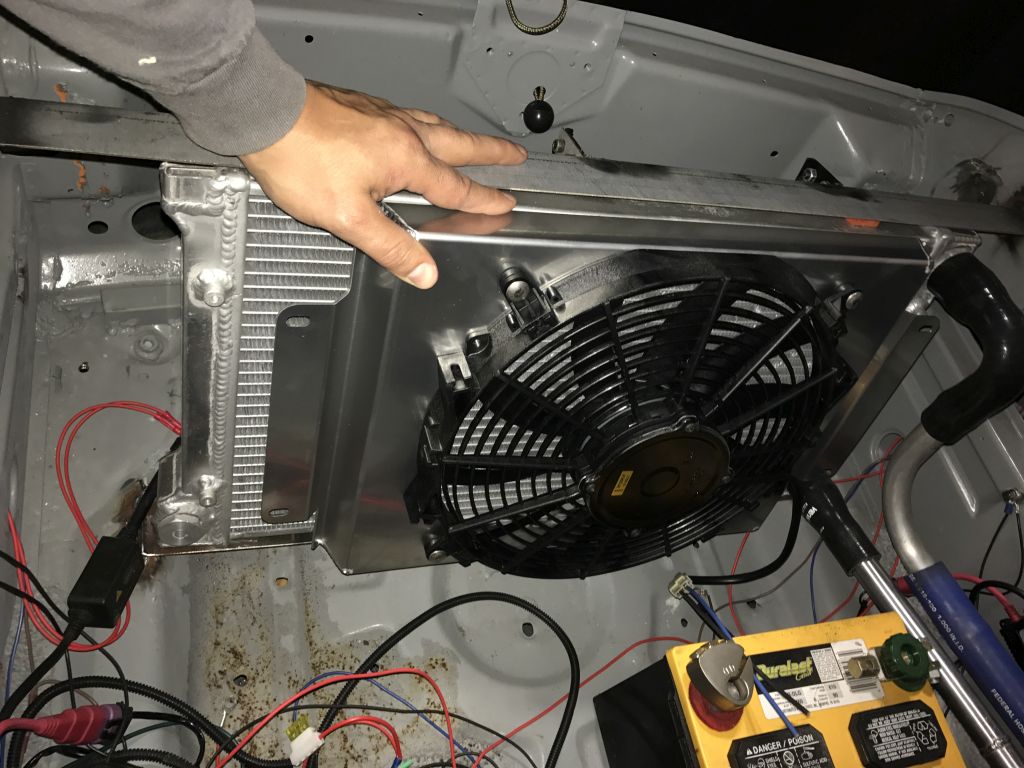

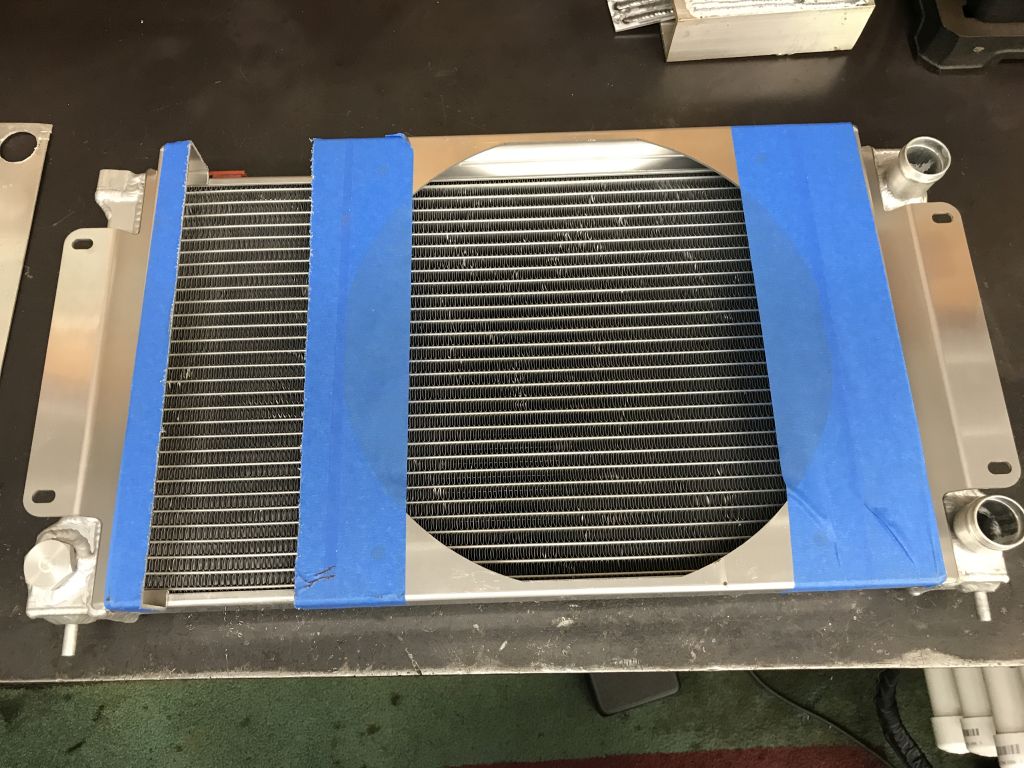

After much measuring and internet searching it turns out that it is not the standard Scirocco rad but some universal radiator for Volkswagen Golf, GTI, Rabbit, Scirocco.

Radiator

Unfortunately there is not a nice fan shroud for this rad...I guess that I will have to widen this one:welder:

Cheers,
Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Sep 7 2017, 11:23 PM
Post #1006


Senior Member
***

Group: Members
Posts: 675
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States



That's a bummer Scott.

On the bright side, you get to play with your new toy (post #1001).

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 8 2017, 07:53 PM
Post #1007


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



Business travel is over for a while so it it time to get serious about Grey.

Got the new Tig welder dialed in so it was time to finish the IC plumbing.

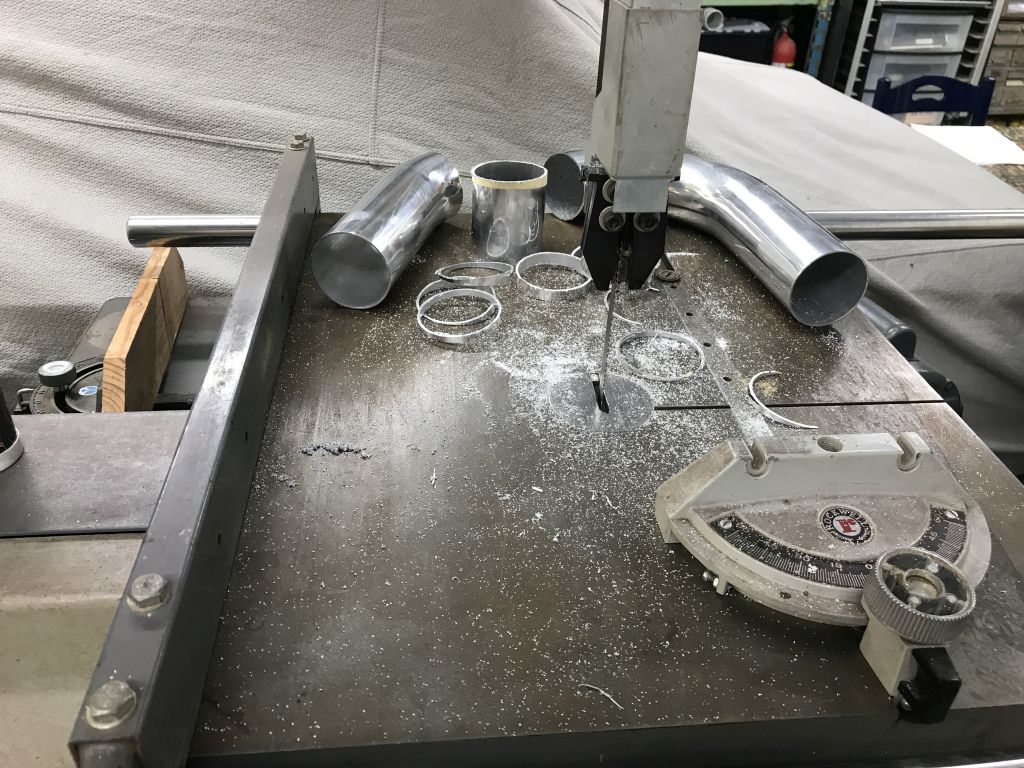

Attached Image

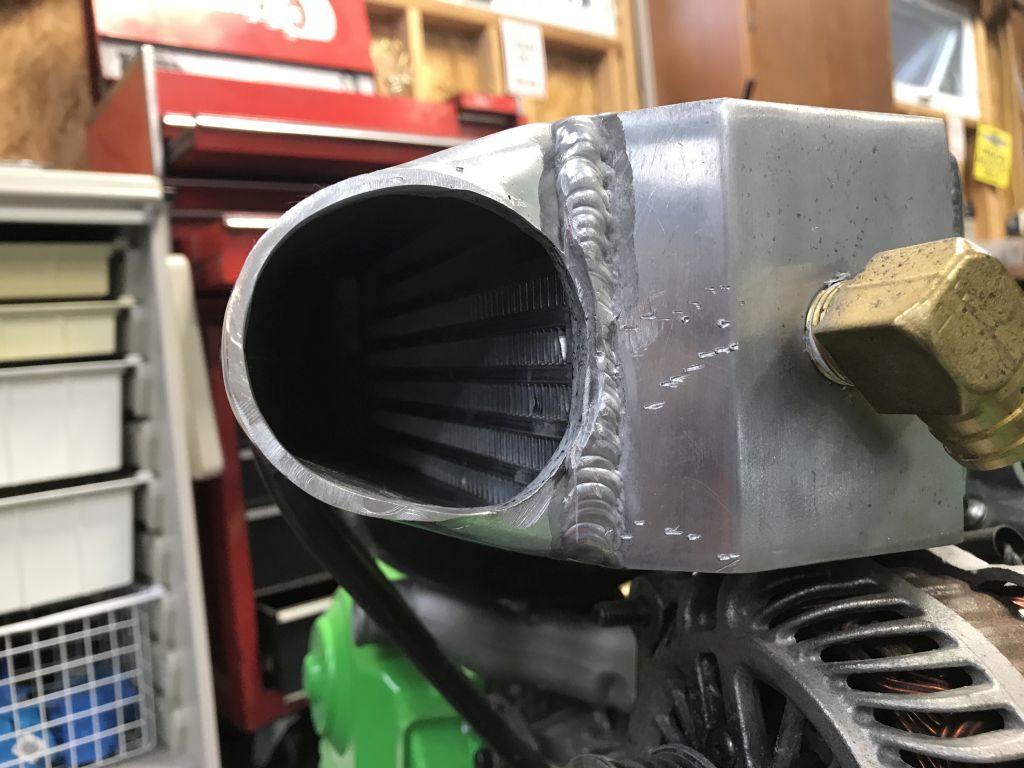

The best execution looks simple...it wasn't. Many fine adjustments to get the gaps tight enough to Tig weld. Final fitting was done on the belt sander.

Attached Image

Lots of work to open up the outlet of the IC, should flow cleanly.

Attached Image

Still need to weld the seams on the IC and then fit the Tial BOV.

Also started modifying the radiator fan. Could have made more progress but the new brake didn't show up on Friday.

Attached Image

So much more rewarding than rust repair on the PorSti!

Cheers,
Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 9 2017, 05:57 PM
Post #1008


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



What day is it...new tool day!!!

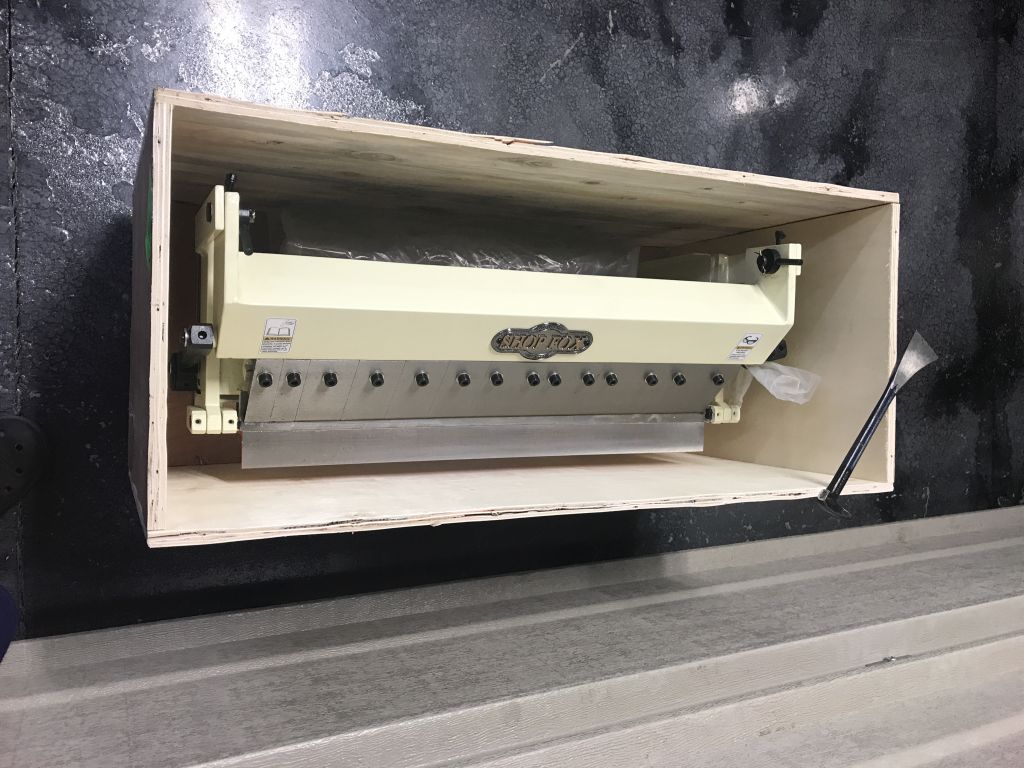

Attached Image

No more (IMG:style_emoticons/default/smash.gif) to bend sheet metal.

Cheers,
Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Oct 9 2017, 10:10 PM
Post #1009


Advanced Member
****

Group: Members
Posts: 2,734
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California



Sweet!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 10 2017, 07:39 AM
Post #1010


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



QUOTE(Amenson @ Oct 9 2017, 07:57 PM) *

What day is it...new tool day!!!

Attached Image

No more (IMG:style_emoticons/default/smash.gif) to bend sheet metal.

Cheers,
Scott

(IMG:style_emoticons/default/piratenanner.gif) I'll be over once I mock all my stuff up.

Nice finger brake.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Oct 10 2017, 07:58 AM
Post #1011


Senior Member
***

Group: Members
Posts: 675
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States



I love new tool day! (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 10 2017, 02:35 PM
Post #1012


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



QUOTE(914forme @ Oct 10 2017, 09:39 AM) *

QUOTE(Amenson @ Oct 9 2017, 07:57 PM) *

What day is it...new tool day!!!


No more (IMG:style_emoticons/default/smash.gif) to bend sheet metal.

Cheers,
Scott

(IMG:style_emoticons/default/piratenanner.gif) I'll be over once I mock all my stuff up.

Nice finger brake.


You can use it any time. Just keep in mind that it is only 24" wide. I could not justify the cost or footprint of the 48".
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 15 2017, 07:36 PM
Post #1013


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



Finished welding the IC joints and installed the BOV.

Attached Image

Not quite #weldporn quality beads but nice and tidy. I did get myself in a bit of trouble on the inside of the sweeper coming out of the IC. My torch would not fit for proper arc position but I tried to make it work and left a blob that took a ton of work to smooth out. Lesson learned....always take the time to configure the torch to fit.

Cheers,
Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 19 2017, 08:36 PM
Post #1014


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None

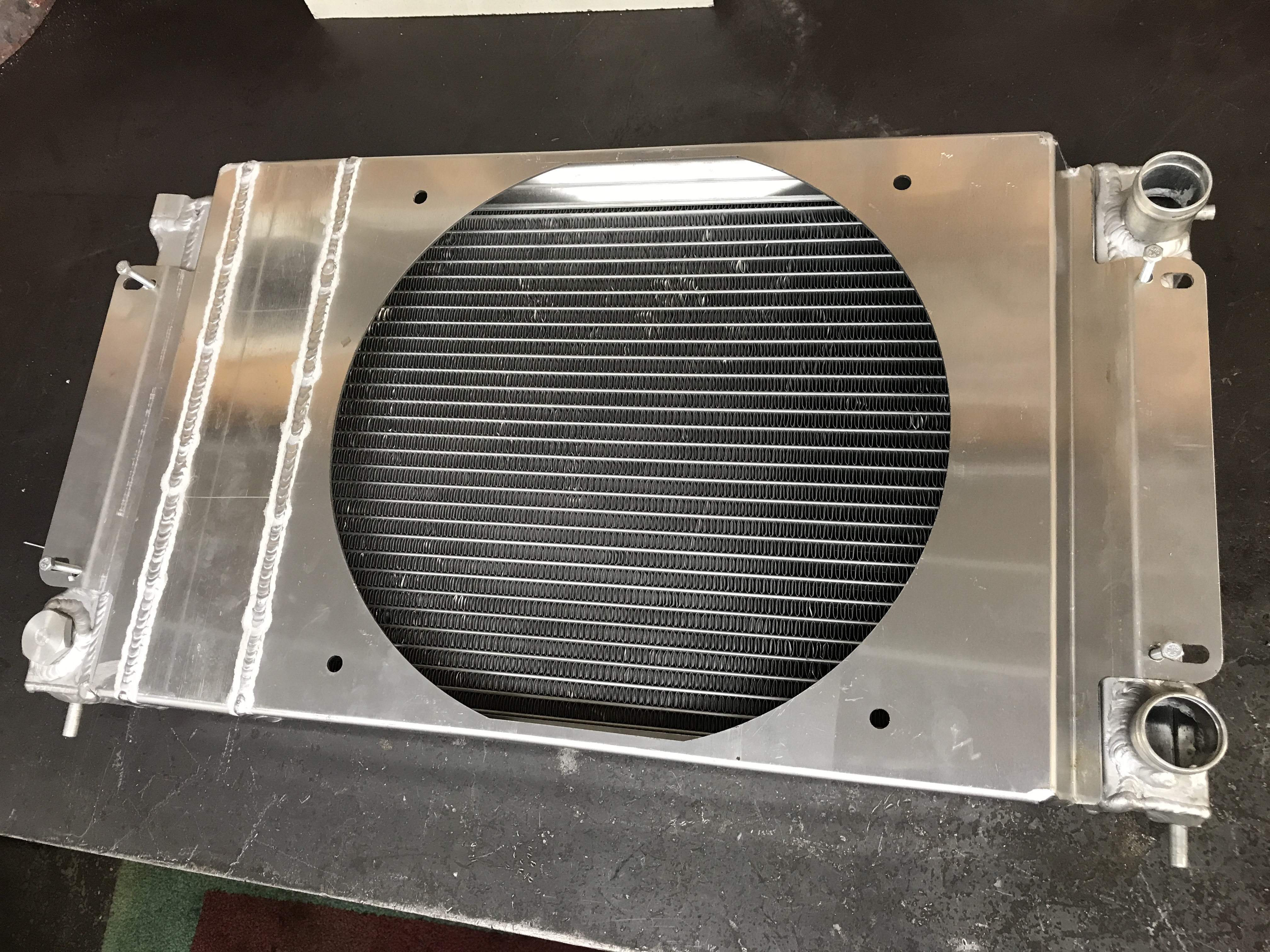

Time to fix the radiator shroud.

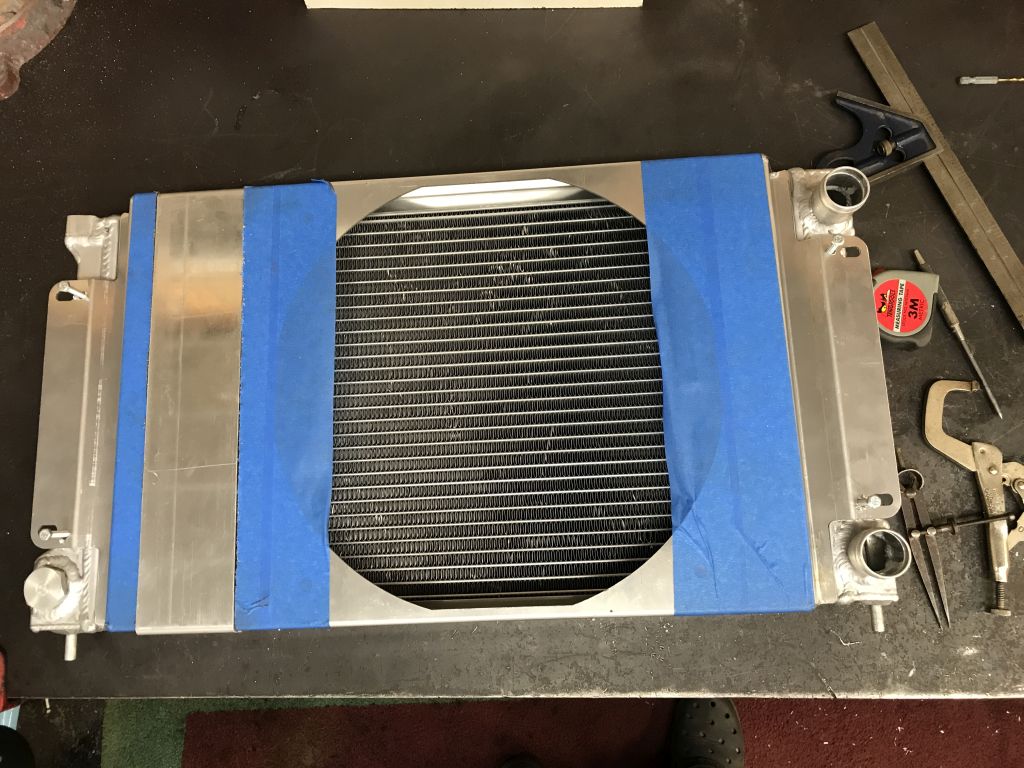

A little measuring, remeasuring and then again. I also had had to reshape the mounting flanges and move the mounting holes because the bosses on the radiator were shorter and in a different location.

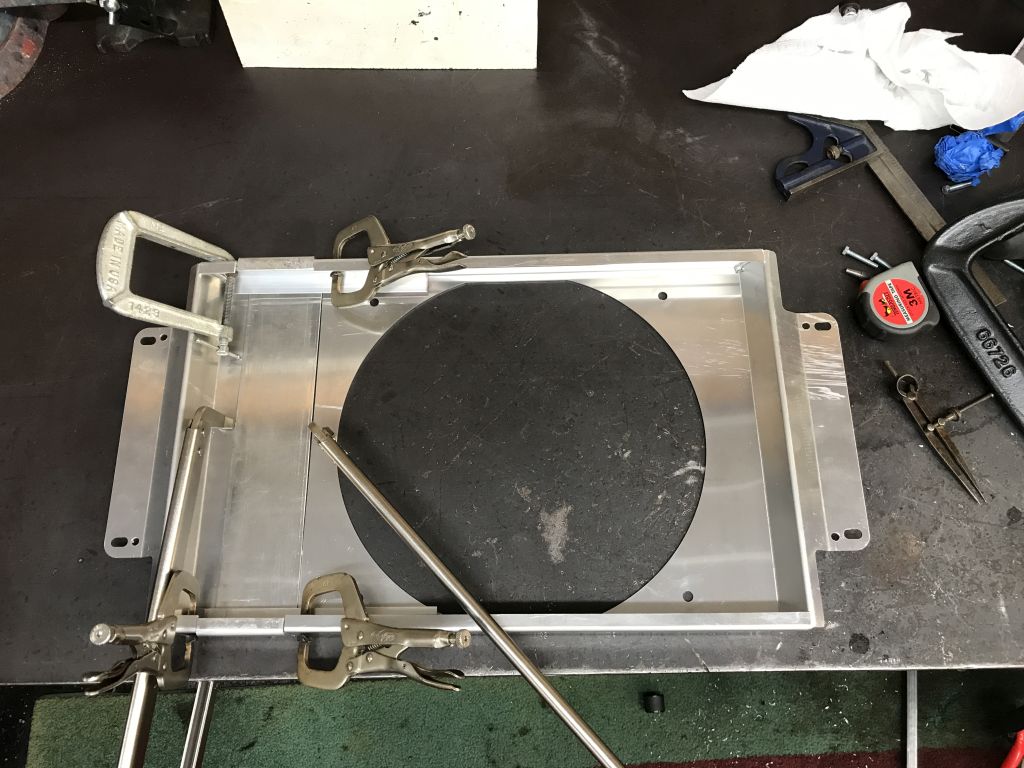

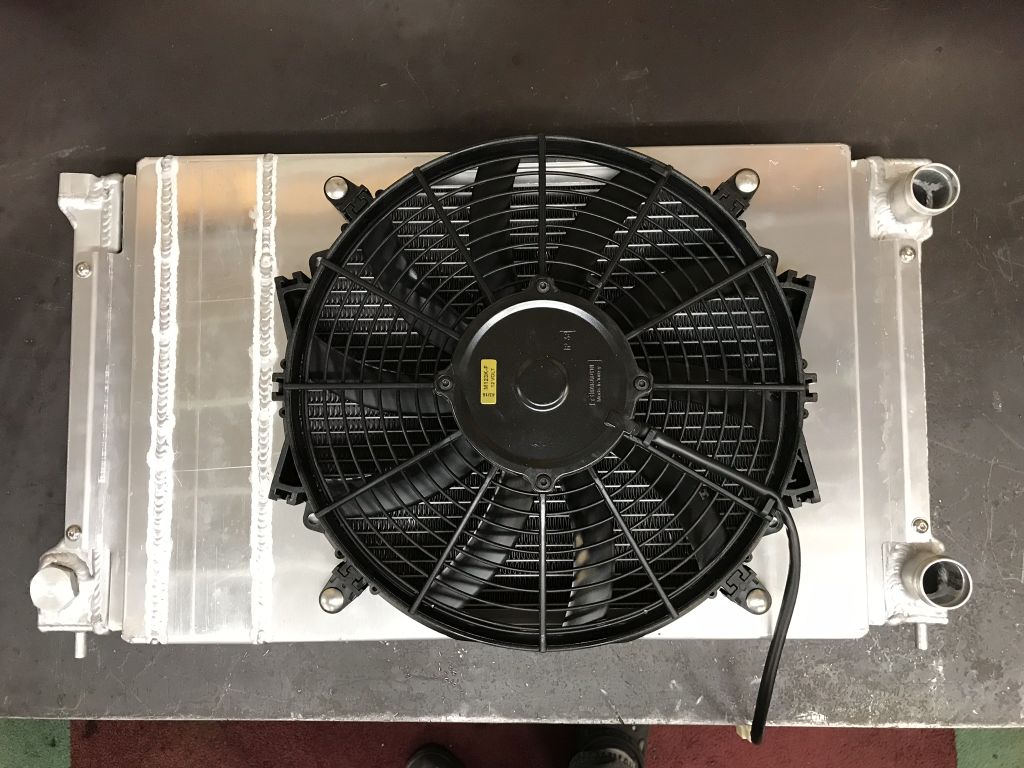

Attached Image

I do have more clamps, this was all that was necessary to keep everything aligned.
Attached Image

Dialed in. That was some really, really satisfying torch time.
Attached Image

The holes still line up!
Attached Image

Still need to trim the mounting flanges and then back in the car.

Cheers,
Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ablesnead
post Oct 19 2017, 10:05 PM
Post #1015


Member
**

Group: Members
Posts: 157
Joined: 16-September 13
From: United States
Member No.: 16,395
Region Association: None



Be careful , that shroud is going to murder your high speed airflow....fan is blocking airflow over about 25 , and not needed , your shroud is reducing the remaining cooling area , rendering your radiator less efficent ...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 20 2017, 09:12 AM
Post #1016


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



QUOTE(ablesnead @ Oct 20 2017, 12:05 AM) *

Be careful , that shroud is going to murder your high speed airflow....fan is blocking airflow over about 25 , and not needed , your shroud is reducing the remaining cooling area , rendering your radiator less efficent ...


Purpose of the shroud is to increasing radiator utilization while stationary or at low speeds by allowing the fan to draw air through the entire radiator instead of just the area covered by the fan. Certainly, at speeds higher than what the fan can create, the shroud will limit the flow to what is capable of passing through the fan.

That said, I have yet to experience a shrouded radiator that cools while stationary, not cooling at high speeds. I have experienced an un-shrouded radiator not cooling effectively while stationary, that does cool at speed.


Cheers,
Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 20 2017, 05:45 PM
Post #1017


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



If your up for the challenge, you could build flaps on the other side of the rad shroud. In the above picture it would be the left side, for the flaps. So when air pressure became to great they will open up, and then close once stoped or air pressure is not great enough to over come either gravity or cavity pressure in the trunk or exhaust duct area.

This presumes that the air pressure will be greater outside the rad than inside the trunk due to speed.

More than likely over kill (IMG:style_emoticons/default/screwy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 29 2017, 06:38 PM
Post #1018


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



Flaps are likely overkill. Easy to add later if necessary.

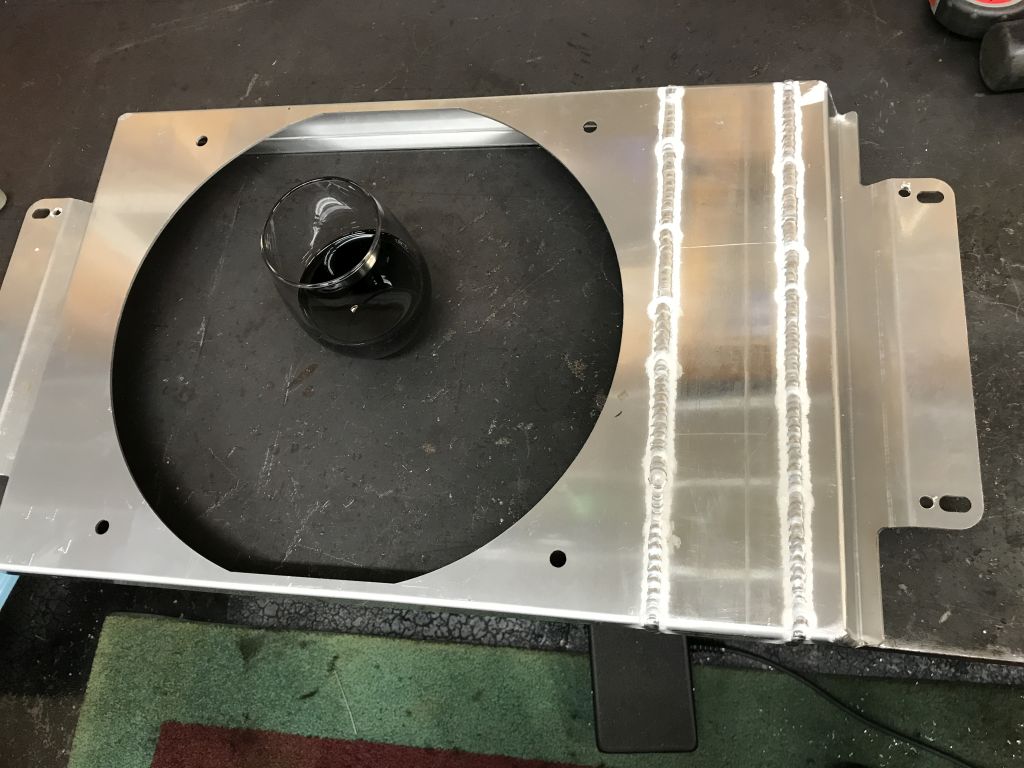

Finished the modifications to the shroud by removing the extra mounting ear material.

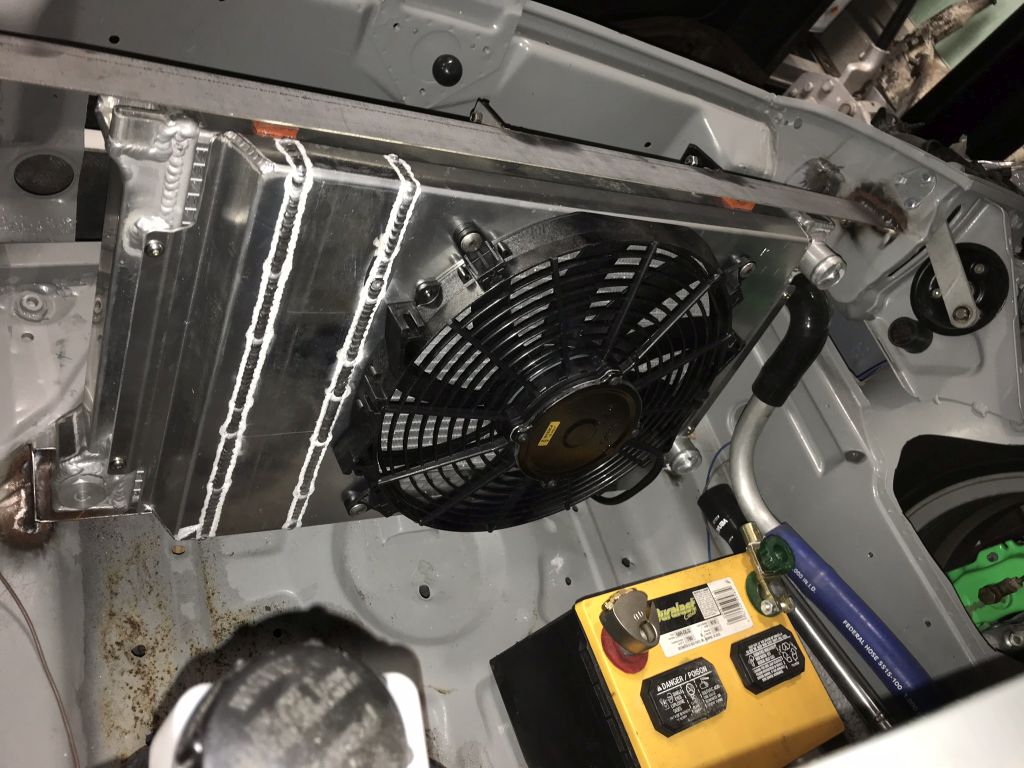

Attached Image

Attached Image

A few things came in the mail this week.

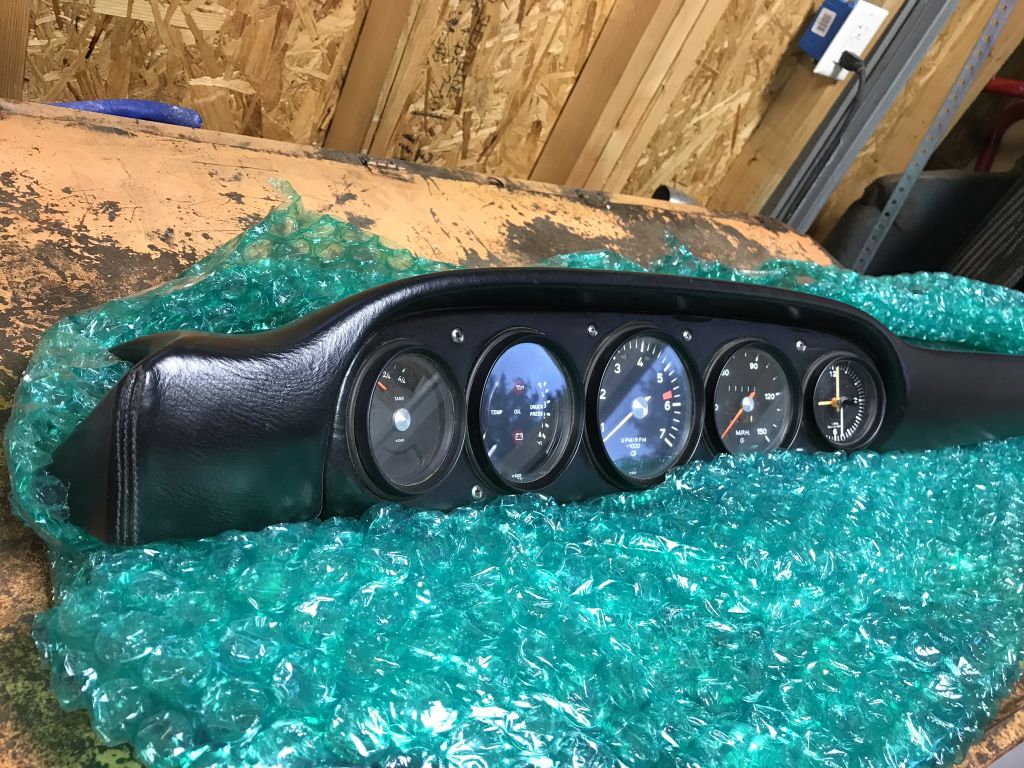

The dash looks really good. A few scuffs here and there but really nice shape.
Attached Image

Unfortunalty it is missing all of the bulb holders. Hopefully the ones from my old cluster fit.
We will need an electronic speedo from a 911 to work with the suby trans. speed sensor.
Attached Image

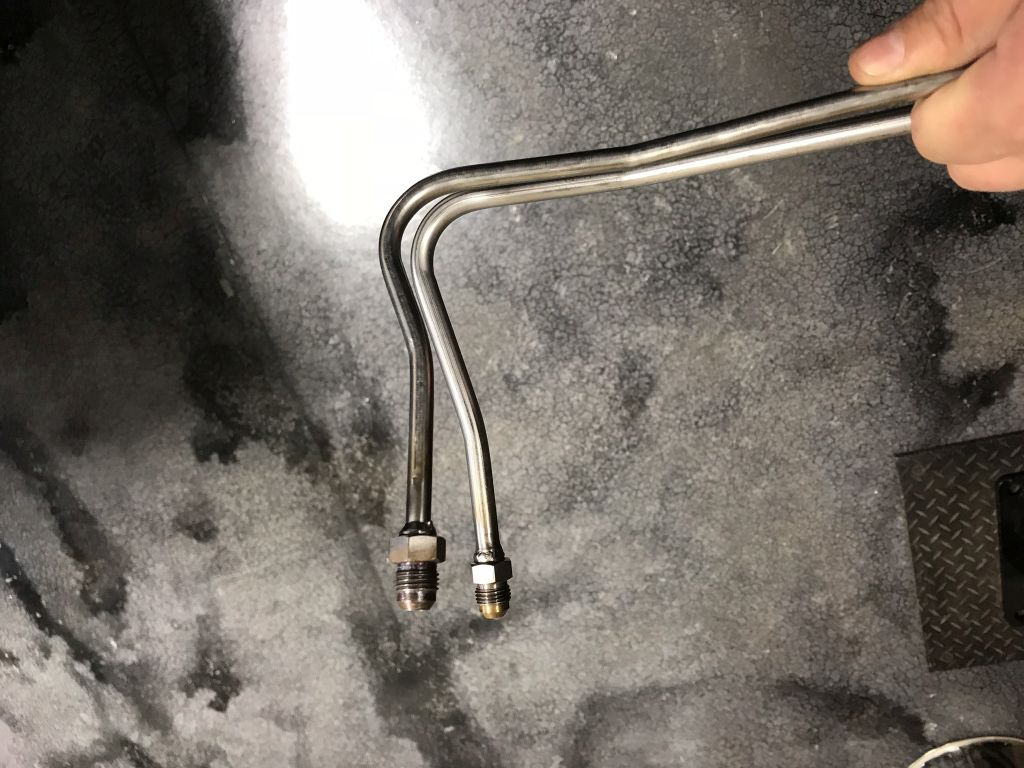

Stainless fuel lines with AN fittings arrived from CFR. He even custom bent the engine side!

Attached Image

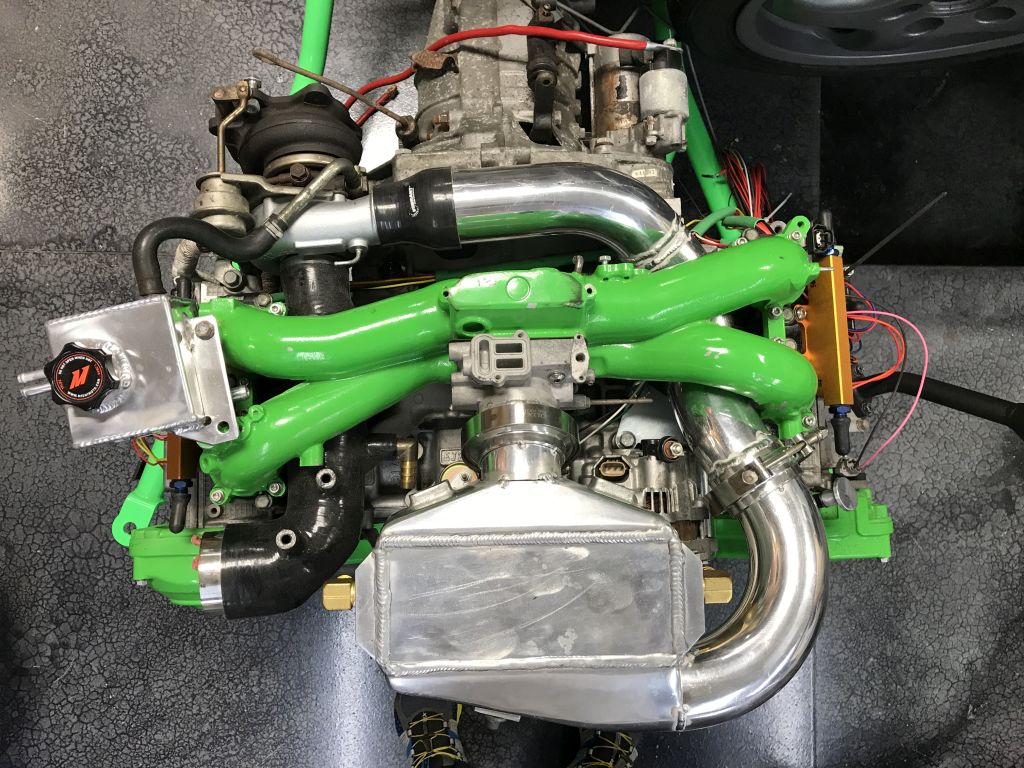

I went through the IC pluming to make sure that it was good to go and didn't like the transition to the outlet V-band flange so I got out the die grinder and ported it a bit. The carbide burr always gets clogged when cutting aluminum so in desperation I tried AL tap magic and it made a world of difference. A few drops every once in a while and the burr stays clean!!

Attached Image

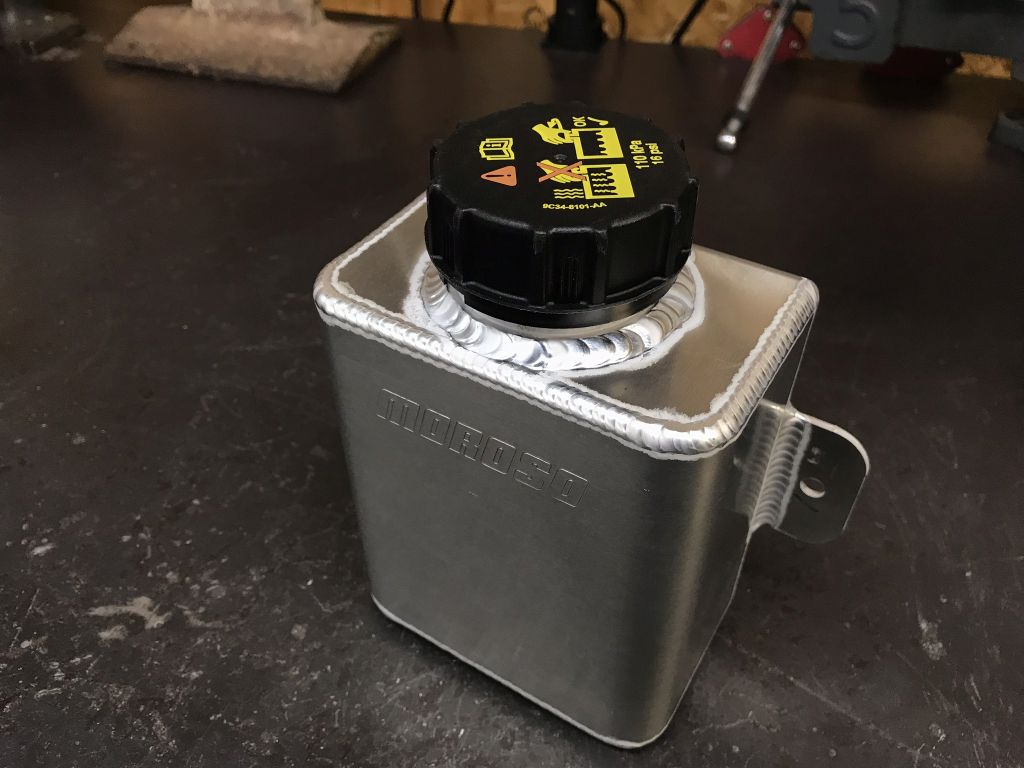

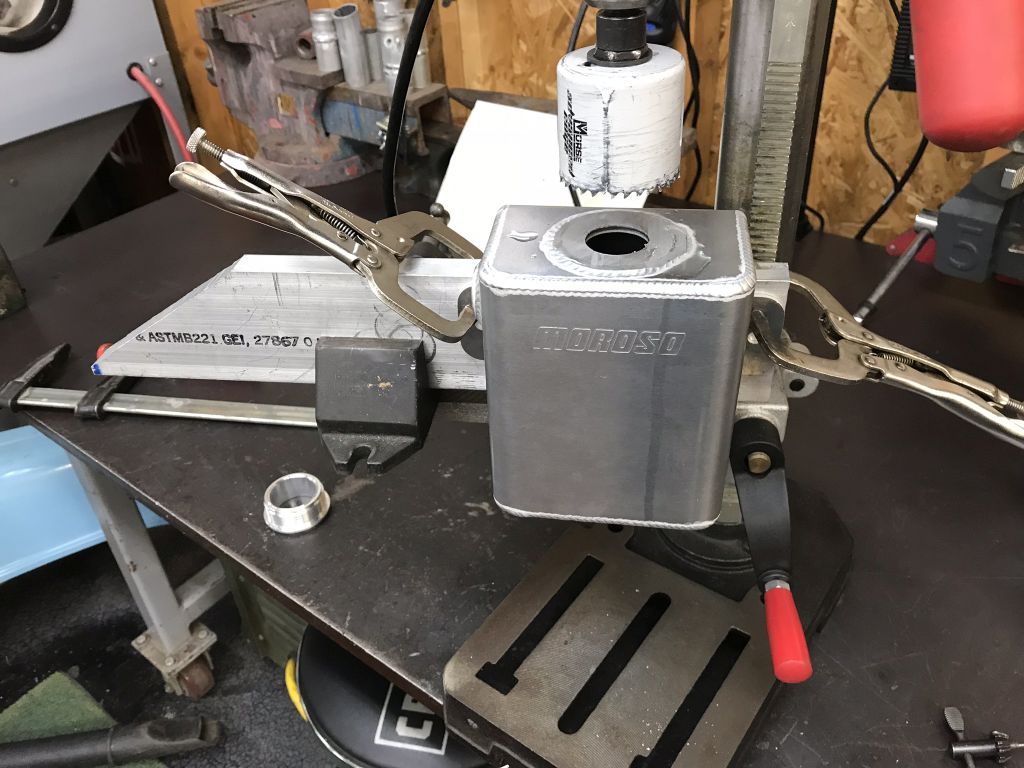

Had some time left so I modified the IC water header tank. I didn't want to run a water exchange type radiator cap so I found weld fittings for a mustang radiator cap. Sliced off the old cap on the band saw and then made a sketchy fixture to cut the hole for the new fitting.

Attached Image

My best AL welds to date. Really getting dialed in with the new welder. Also helped that I changed my tungsten type and got a proper tungsten grinder.
The mustang cap had a huge flange stuck out over the sides of the tank so I cut it off. Much better.

Attached Image

Cheers,
Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 29 2017, 06:59 PM
Post #1019


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



Looks very nice, but really you had to add a Mustang part onto this car (IMG:style_emoticons/default/barf.gif) , better include instructions on how to do a burn out (IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 30 2017, 07:07 AM
Post #1020


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None



QUOTE(914forme @ Oct 29 2017, 08:59 PM) *

Looks very nice, but really you had to add a Mustang part onto this car (IMG:style_emoticons/default/barf.gif) , better include instructions on how to do a burn out (IMG:style_emoticons/default/av-943.gif)


Don't worry, I exorcised the crowd seeking mustang demons when i modified the cap.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
