 What hardware to connect clutch cable to throw out lever arm? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| shuie |
 Sep 2 2013, 05:57 PM
Post
#1
|
|
Member  Group: Members Posts: 352 Joined: 17-May 04 From: baton rouge, la Member No.: 2,075  |

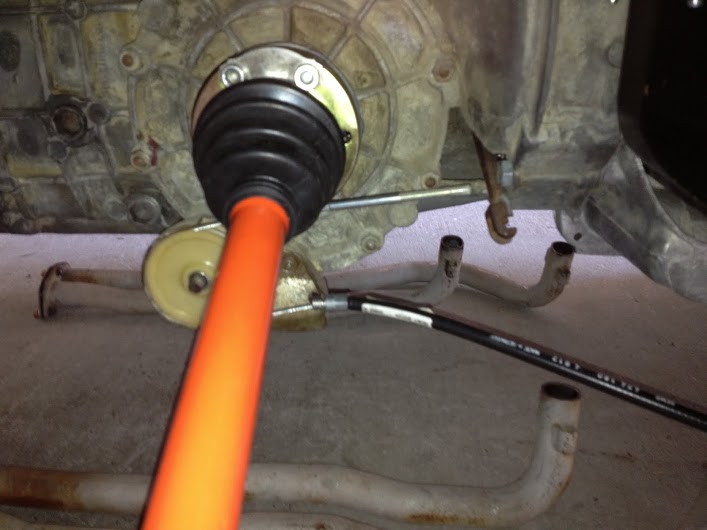

I need to post a WTB for a couple of random small parts so I can get my clutch cable connected to the throwout bearing lever. I know I need the threaded bracket that attaches the cable to the lever. I also know I need the M10 bolt and a washer to secure the wheel/guide that the cable rides on. Is there anything else, any other brackets, etc, not shown in the pic below that I need? I cannot tell exactly what I need from PET and I just want to make sure I ask for the right stuff.
TIA (IMG:http://www.914world.com/bbs2/uploads_offsite/lh6.googleusercontent.com-2075-1378166219.1.JPG) |
   |

|
  |
Replies(1 - 10)
| Harpo |
Sep 2 2013, 06:55 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,304 Joined: 21-August 11 From: Motor City aka Detroit Member No.: 13,469 Region Association: None |

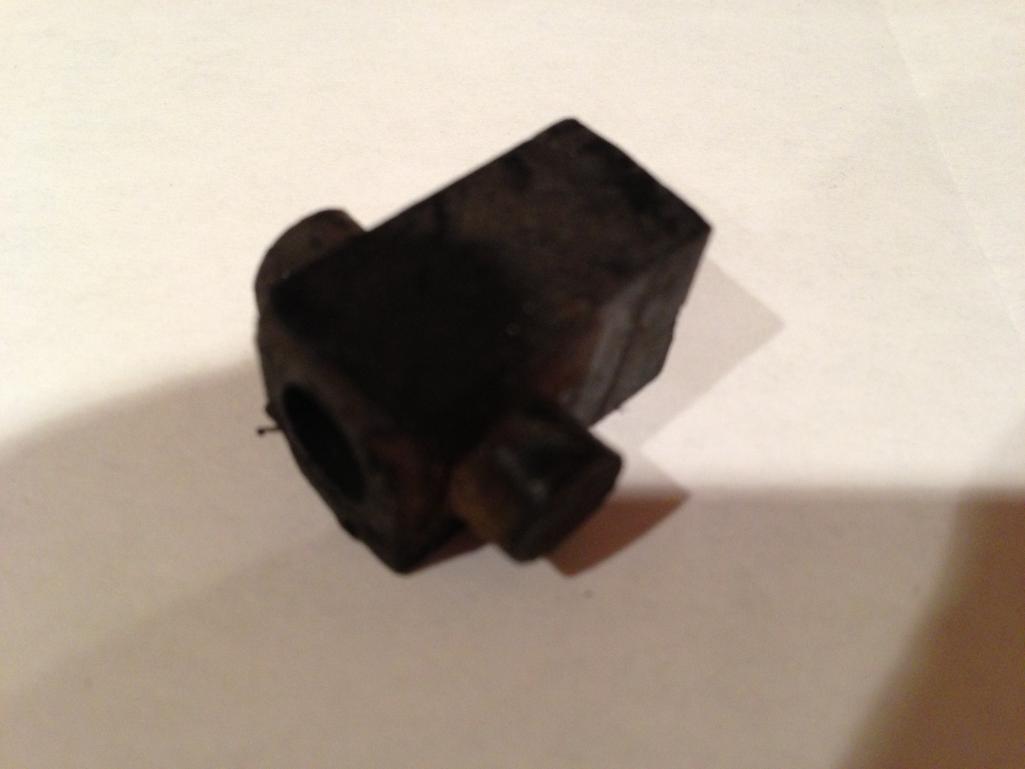

You need one of these and two jam nuts.
They are a unique size, possibly M7-1.0  |
|
|
|
| shuie |
Sep 2 2013, 07:03 PM
Post
#3
|
|
Member Group: Members Posts: 352 Joined: 17-May 04 From: baton rouge, la Member No.: 2,075 |
Yeah, I just looked in PET again and the clevis has a 911 part number. Pelican has that part in stock. I'll double check my hardware stash for the nuts. Thanks again
|
|
|
|
| euro911 |
Sep 2 2013, 07:09 PM
Post
#4
|
|
Retired & living the dream. God help me if I wake up! Group: Members Posts: 8,849 Joined: 2-December 06 From: So.Cal. & No.AZ (USA) Member No.: 7,300 Region Association: Southern California
|
Try to locate a metal trunnion block, not the plastic one (shown above).
The nutz are an off the shelf item at OSH Hardware. I don't remember exactly what size, but they take an 11mm wrench. You may also need a flat washer or two, and a 1" ~ 1.5" spacer between the arm and the double nutz. |
|
|
|
| bandjoey |
Sep 2 2013, 07:11 PM
Post
#5
|
|
bandjoey Group: Members Posts: 4,926 Joined: 26-September 07 From: Bedford Tx Member No.: 8,156 Region Association: Southwest Region |
You also need the tab washer that locks the cable to the cable stop (before the pulley. Pelican also sells these.
|
|
|
|
| shuie |
Sep 2 2013, 08:23 PM
Post
#6
|
|
Member Group: Members Posts: 352 Joined: 17-May 04 From: baton rouge, la Member No.: 2,075 |
Does anyone have a picture of all of this stuff in place? I'm sure it would make more sense than what I am seeing in PET.
|
|
|
|
| turk22 |
Sep 2 2013, 09:22 PM
Post
#7
|
|
Treetop Flyer Group: Members Posts: 735 Joined: 27-July 12 From: Cincinnati OH Member No.: 14,725 Region Association: Upper MidWest |

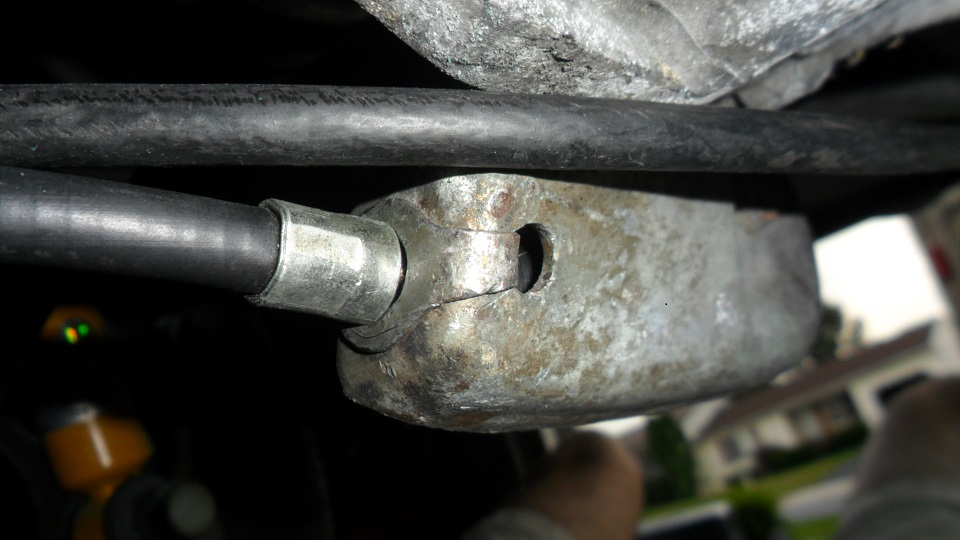

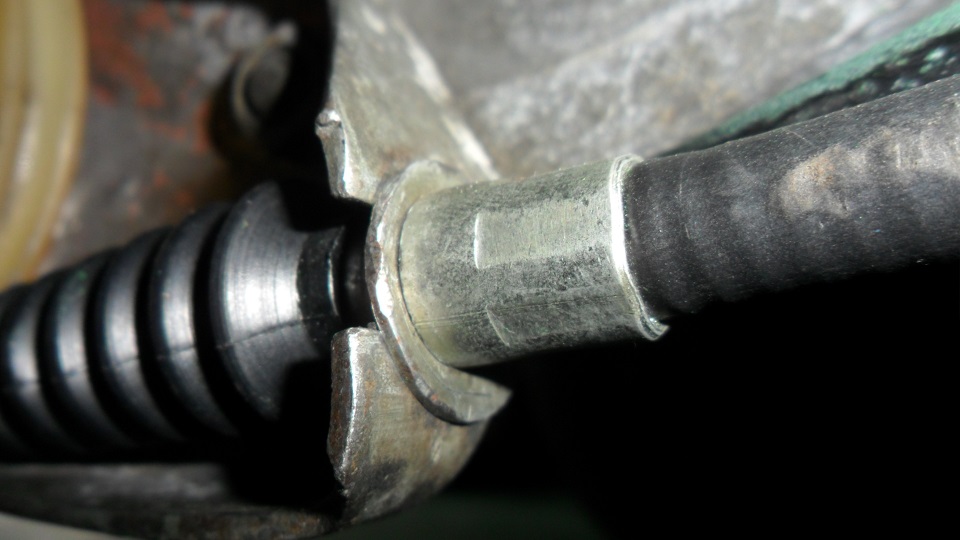

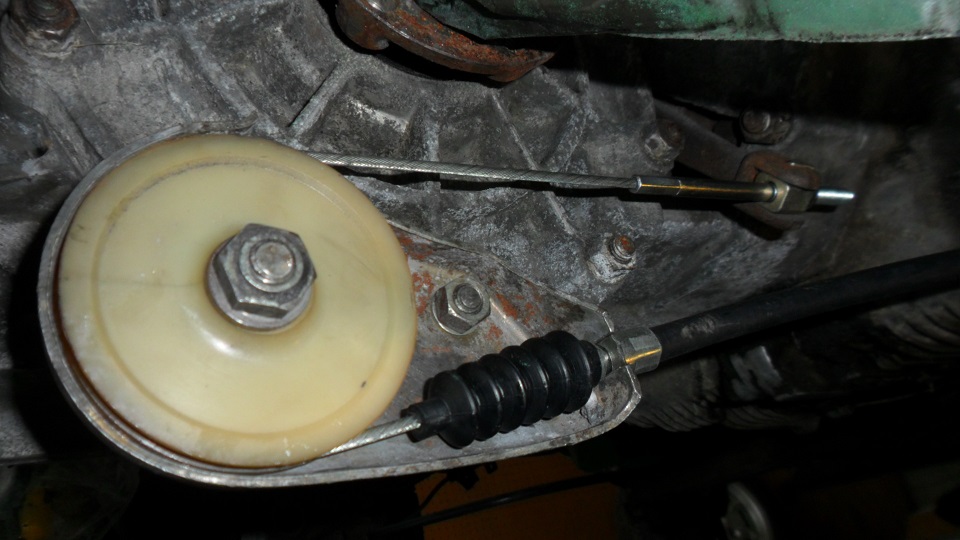

Here's a Pic from Bob's thread, and a couple he sent me to show the banjo clip
   |
|
|
|
| stugray |
Sep 2 2013, 10:29 PM
Post
#8
|
|
Advanced Member Group: Members Posts: 3,824 Joined: 17-September 09 From: Longmont, CO Member No.: 10,819 Region Association: None |
part #:
911-423-205-03-M260 At pelican. Stu |
|
|
|
| Harpo |
Sep 3 2013, 05:57 AM
Post
#9
|
|
Senior Member Group: Members Posts: 1,304 Joined: 21-August 11 From: Motor City aka Detroit Member No.: 13,469 Region Association: None |
Any one know the P/N of that special washer in the last two photos. I can't find it in the PET and I lost mine
Edit - found it. 914-423-283-00 and pelican only has one left Thanks David |
|
|
|
| shuie |
Sep 3 2013, 06:45 AM
Post
#10
|
|
Member Group: Members Posts: 352 Joined: 17-May 04 From: baton rouge, la Member No.: 2,075 |
yep, 914-423-283-00-OEM. They had (2) when I ordered mine this morning.
as an FYI, the sleeve/boot at the pulley is 914-423-922-02-M260 Thanks again for the pics and info. This was pretty helpful. |
|
|
|
| euro911 |
Sep 3 2013, 02:41 PM
Post
#11
|
|
Retired & living the dream. God help me if I wake up! Group: Members Posts: 8,849 Joined: 2-December 06 From: So.Cal. & No.AZ (USA) Member No.: 7,300 Region Association: Southern California
|
I don't think the PET diagram shows this, but in some applications, a spacer may be needed between the trunnion block and the two nuts (as mentioned earlier). This is even with brand new cables on two of my cars (IMG:style_emoticons/default/confused24.gif)
I run the cable as follows: Through the arm - trunnion block - flat washer - 1.25" spacer - flat washer - nut 1 & nut 2. |
|
|
|
|
