> Subaru Transmission Cable Linkage, Some Photos with a Rule
CptTripps
post Jan 21 2014, 10:04 PM
Post #121


:: Punch and Pie ::
****

Group: Members
Posts: 3,585
Joined: 26-December 04
From: Tuscaloosa, AL and Akron, OH
Member No.: 3,342
Region Association: Upper MidWest
Nice pillow!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jan 21 2014, 10:35 PM
Post #122


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,764
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
IIRC, I tweaked the opening w/ a small crescent so that the opening is offset then they drop right in. After that straighten the opening back in line. Does that make sense? If not I'll shoot a photo. The next snag on that shifter is the 8mm stud. You need to grind it off and weld in a 1/4" stud for the heim joint. Clearances get tight between the shifting mechanisms and you may need to file the head of a bold down. Or use clevis pins for more clearance. And that pillow is a great comfort to my ancient old ass. (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ruby914
post Jan 21 2014, 11:04 PM
Post #123


Senior Member
***

Group: Members
Posts: 720
Joined: 26-April 09
From: Hawthorne, Ca
Member No.: 10,305
Region Association: None
QUOTE(76-914 @ Jan 21 2014, 08:35 PM) *

Does that make sense? If not I'll shoot a photo. The next snag on that shifter is the 8mm stud. You need to grind it off and weld in a 1/4" stud for the heim joint. Clearances get tight between the shifting mechanisms and you may need to file the head of a bold down.


Or you could bend the mechanisms to the left some.
(IMG:style_emoticons/default/biggrin.gif)
I would of put a photo over at NARP but didn't have a place to put it (IMG:style_emoticons/default/lol-2.gif)

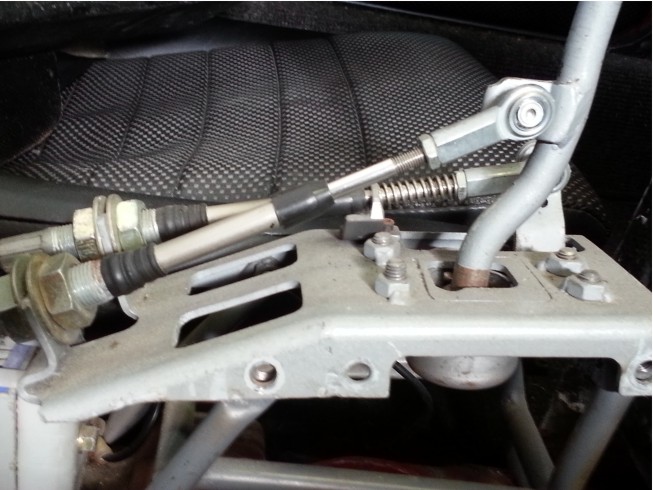

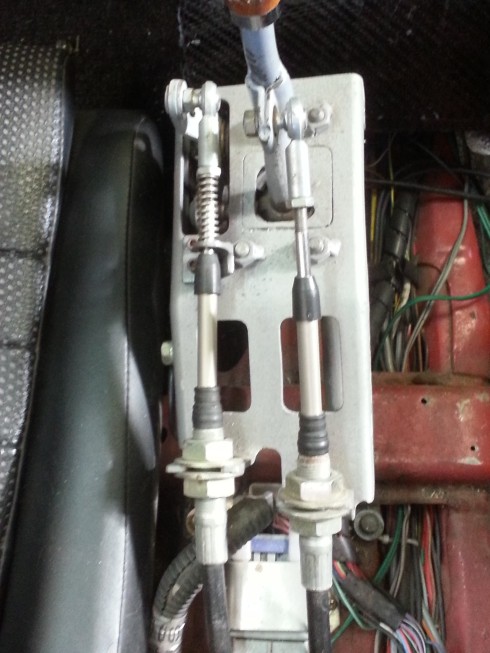

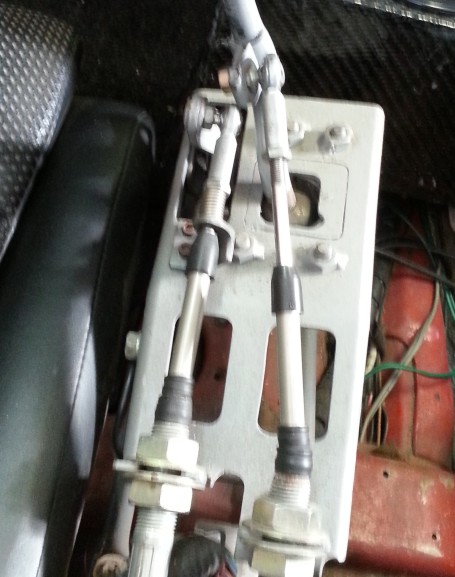

This is what I came up with. I did have the same interference. one other thing that helped me is moving the pivot mount on the shift shaft up a little. I moved it up and down and bent the shaft forward and back more than once looking for the best feel and location. Moving the pivot up gives you a shorter shift stroke. this can also be changed by the rear linkage. The spring on the left is my reverse lock out. It keeps naturally in 2nd and 3rd position. A little resistance to 1st and reverse. I also had to cut open the cable slots and relocate them forward or aft for some reason.
The riser is offset and tilted to the driver and up in the front.

And yes, I had a cushion too. (IMG:style_emoticons/default/beerchug.gif)


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IanJ
post Jan 22 2014, 04:04 PM
Post #124


Member
**

Group: Members
Posts: 90
Joined: 28-December 05
From: Perth, Western Australia
Member No.: 5,327
Region Association: Australia and New Zealand
Ruby is your shift from an earlier MR2 (AW11)and the others are the later models (SW20)?
In the pics they look like different base plates.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rnellums
post Jan 22 2014, 04:14 PM
Post #125


Professional Enthusiast
***

Group: Members
Posts: 1,673
Joined: 26-November 09
From: Littleton, CO
Member No.: 11,072
Region Association: Rocky Mountains
JimKelley's shifter looks just like mine, our of a first gen MR2.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ruby914
post Jan 22 2014, 06:06 PM
Post #126


Senior Member
***

Group: Members
Posts: 720
Joined: 26-April 09
From: Hawthorne, Ca
Member No.: 10,305
Region Association: None
I have no idea. I did a lot of cutting and bending. That's how it is now.
Honestly I don't recall. Now that I look at others, I may have made a completely new base plate out of 4" tube? I'm getting old. (IMG:style_emoticons/default/slits.gif)
QUOTE(IanJ @ Jan 22 2014, 02:04 PM) *

Ruby is your shift from an earlier MR2 (AW11)and the others are the later models (SW20)?
In the pics they look like different base plates.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Jan 29 2014, 02:26 PM
Post #127


Advanced Member
****

Group: Members
Posts: 2,736
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California

(IMG:style_emoticons/default/icon_bump.gif)
bump for this week.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Jan 29 2014, 07:46 PM
Post #128


:: Punch and Pie ::
****

Group: Members
Posts: 3,585
Joined: 26-December 04
From: Tuscaloosa, AL and Akron, OH
Member No.: 3,342
Region Association: Upper MidWest
He's close...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Jan 30 2014, 10:11 PM
Post #129


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
II'm ready, Ian, you can aded one to my shipment (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IM101
post Feb 2 2014, 10:48 PM
Post #130


Member
**

Group: Members
Posts: 264
Joined: 9-November 10
From: Boise Idaho
Member No.: 12,367
Region Association: Pacific Northwest
QUOTE(CptTripps @ Jan 29 2014, 06:46 PM) *

He's close...


Yep, The laser cutting finished friday and its on a truck to Boise. Should be able to start producing these this week.

I will keep you guys up to date.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Feb 3 2014, 06:20 AM
Post #131


Senior Member
****

Group: Members
Posts: 4,063
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
Great news!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Feb 3 2014, 10:53 AM
Post #132


Advanced Member
****

Group: Members
Posts: 2,736
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
cool! excited.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rnellums
post Feb 3 2014, 10:57 AM
Post #133


Professional Enthusiast
***

Group: Members
Posts: 1,673
Joined: 26-November 09
From: Littleton, CO
Member No.: 11,072
Region Association: Rocky Mountains
Looks like it's about time to blow my paycheck on conversion parts!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
edwin
post Feb 3 2014, 04:39 PM
Post #134


Member
**

Group: Members
Posts: 321
Joined: 20-May 09
From: Australia
Member No.: 10,384
Region Association: Australia and New Zealand
Are you able to produce something that neat for the 901 box
I was never a fan of bending and twisting the cables so your bell crank system looks fantastic
Cheers
Edwin
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IM101
post Feb 3 2014, 07:52 PM
Post #135


Member
**

Group: Members
Posts: 264
Joined: 9-November 10
From: Boise Idaho
Member No.: 12,367
Region Association: Pacific Northwest
Well I am planning on building a system for the 901 side shift but a bell crank with that setup might b a bit more tricky to pull off... Then again really need to sit down and look at it before I know for sure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ruby914
post Feb 3 2014, 08:59 PM
Post #136


Senior Member
***

Group: Members
Posts: 720
Joined: 26-April 09
From: Hawthorne, Ca
Member No.: 10,305
Region Association: None
QUOTE(IM101 @ Feb 3 2014, 05:52 PM) *

Well I am planning on building a system for the 901 side shift but a bell crank with that setup might b a bit more tricky to pull off... Then again really need to sit down and look at it before I know for sure.

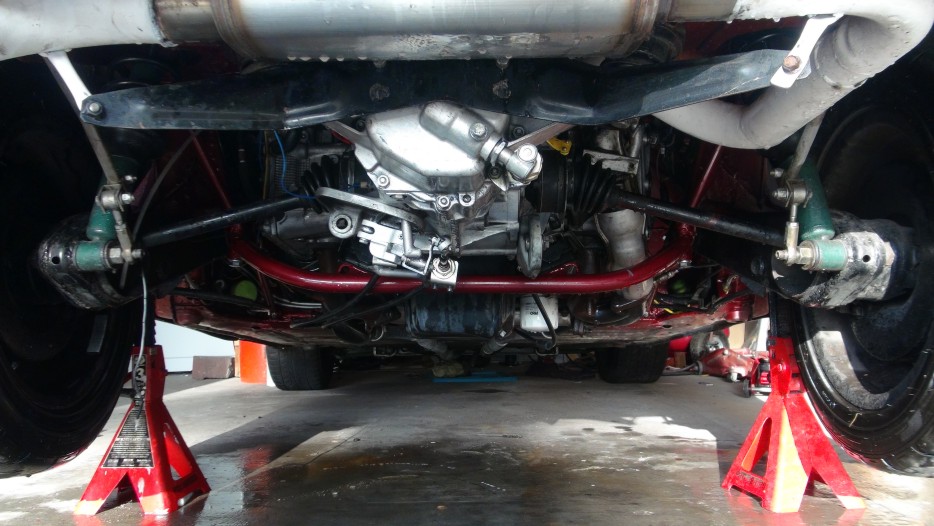

Ian,
I saw a cable shift folder on my laptop at home. It had Catia files. Not sure what is in there, they may give you some ideas, I'll take a look when I get home. It is hard to see but I used somewhat of a bellcrank system. This is from NARP.
Mike


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ruby914
post Feb 4 2014, 03:04 AM
Post #137


Senior Member
***

Group: Members
Posts: 720
Joined: 26-April 09
From: Hawthorne, Ca
Member No.: 10,305
Region Association: None
Well, the name of the folder is Cable tail shift.
I had this on the car until I broke first gear. I didn't make a cad file for the side shift but it works about the same way. Bell crank operates a brass or nylon, pivoting and sliding block that pushes and pulls the shift shaft in and out.

Why is that photo a download? (IMG:style_emoticons/default/confused24.gif)


Attached File(s)
Attached File  Tail_shift_s.bmp ( 838.41k ) Number of downloads: 102
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Feb 4 2014, 04:30 AM
Post #138


:: Punch and Pie ::
****

Group: Members
Posts: 3,585
Joined: 26-December 04
From: Tuscaloosa, AL and Akron, OH
Member No.: 3,342
Region Association: Upper MidWest
QUOTE(ruby914 @ Feb 4 2014, 04:04 AM) *
Why is that photo a download? (IMG:style_emoticons/default/confused24.gif)

Windows Bitmap images can't be displayed by browsers. (Never have) They're the digital equilivent of Leaded Gasoline.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Feb 4 2014, 05:29 AM
Post #139


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region

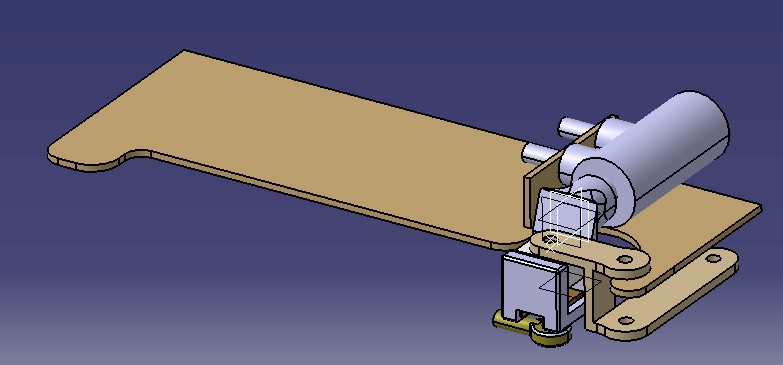

here is ruby914 bmp as a jpg

QUOTE(ruby914 @ Feb 4 2014, 02:04 AM) *

Well, the name of the folder is Cable tail shift.
I had this on the car until I broke first gear. I didn't make a cad file for the side shift but it works about the same way. Bell crank operates a brass or nylon, pivoting and sliding block that pushes and pulls the shift shaft in and out.

Why is that photo a download? (IMG:style_emoticons/default/confused24.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Feb 7 2014, 10:44 AM
Post #140


Advanced Member
****

Group: Members
Posts: 2,736
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
(IMG:style_emoticons/default/icon_bump.gif)
Once I have half shafts and shifting in, I can start on my exhaust.

Anybody want to go halves on a exhaust cut out? they come in pairs....
http://quicktimeperformance.com/QTEC/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
